Bought this bike because my wife has a 1983 Trek 400 already and I wanted to have a "matching" set of vintage Treks. The last photo shows the bike in its near original (and excellent) condition. I purchased it from the original owner who also gave me the original 1983 Trek catalog, Owner's Manual and sales receipt! It's hard to believe this bike is 42 years old!
Frame:
22.5" Trek 560; Reynolds 501/Mangaloy chromoly; "Fast" criterium/triathlon geometry.
Fork/Headset:
Steel Mangaloy fork; Steel, 1" threaded headset
Crankset/Bottom Bracket:
Shimano 500LX; Original SR bottom bracket
Pedals:
Schwinn SX platform
Drivetrain/Cog/Chainring/Chain:

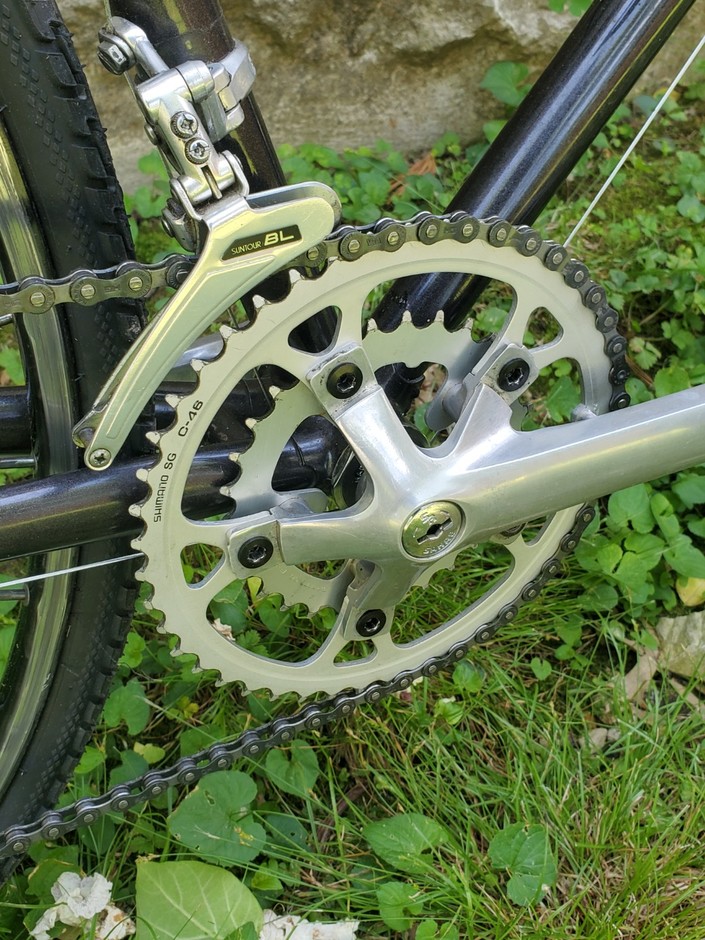

2x6 speed; Swapped out the 52/42t crankset setup for some lower gearing (46/30t).
Derailleurs/Shifters:

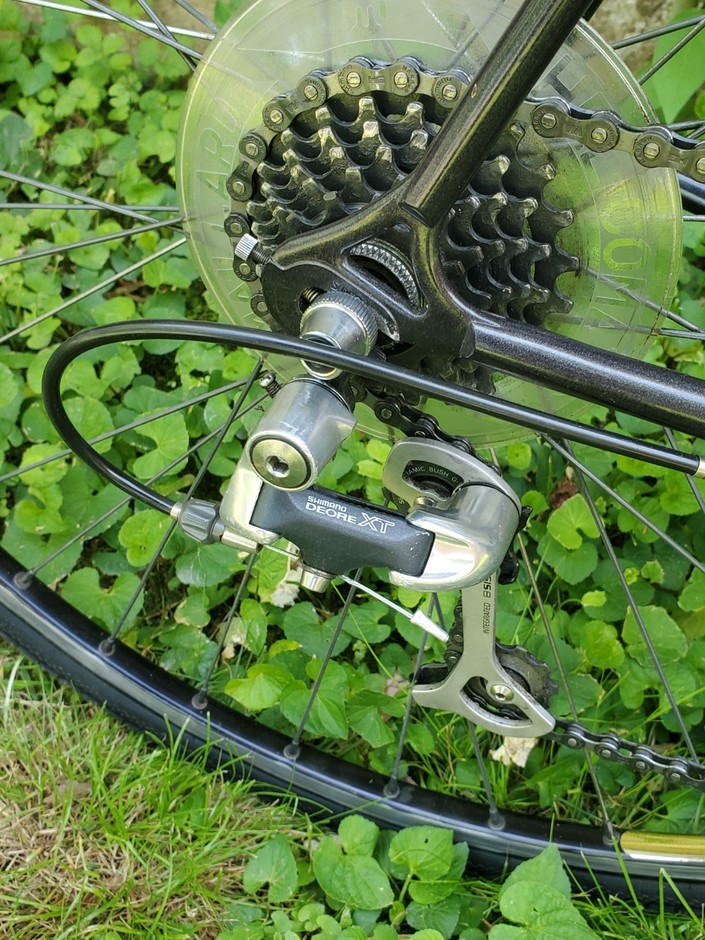

Shimano Deore DX thumbies; Shimano Deore XT rear derailleur and Suntour BL front derailleur.

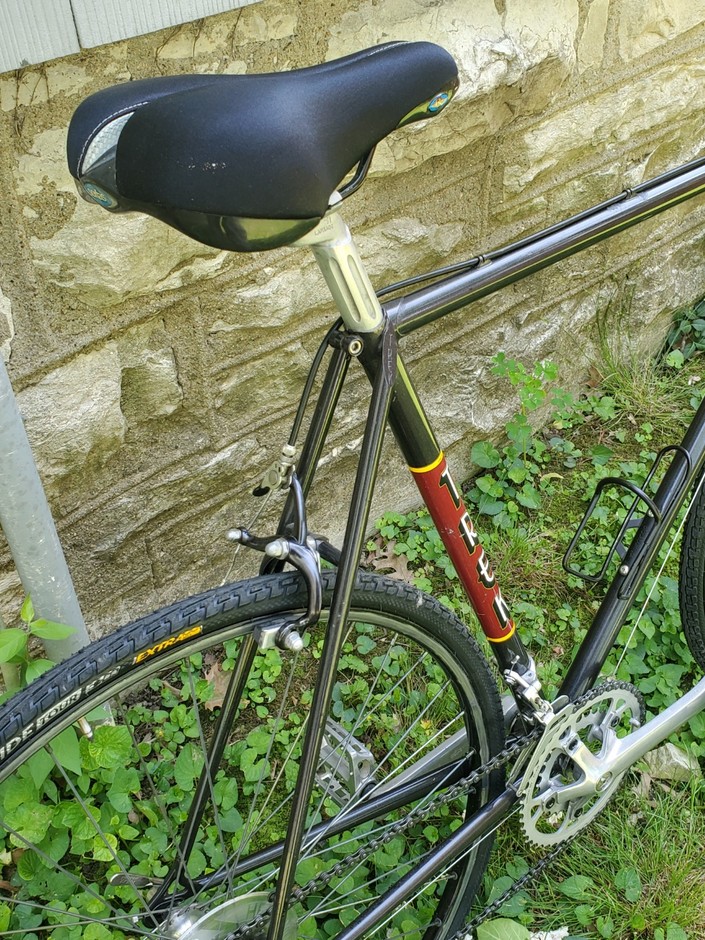

Saddle/Seatpost:
Serfas gel
Brakes:

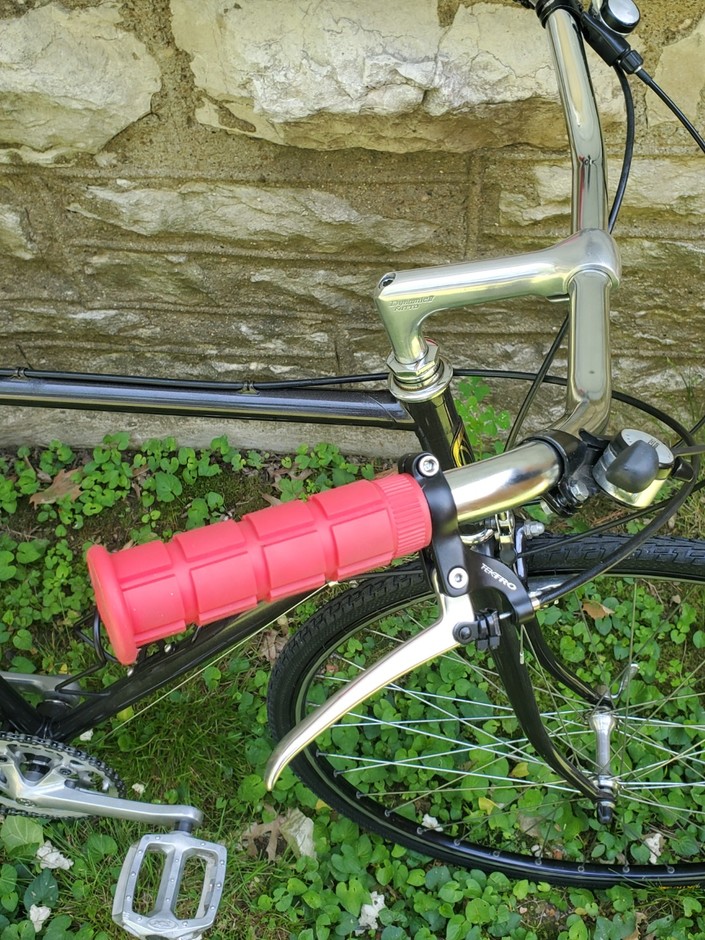

Original black Dia Compe side pulls; Tektro FL750 levers
Front Wheel/Hub/Tire:

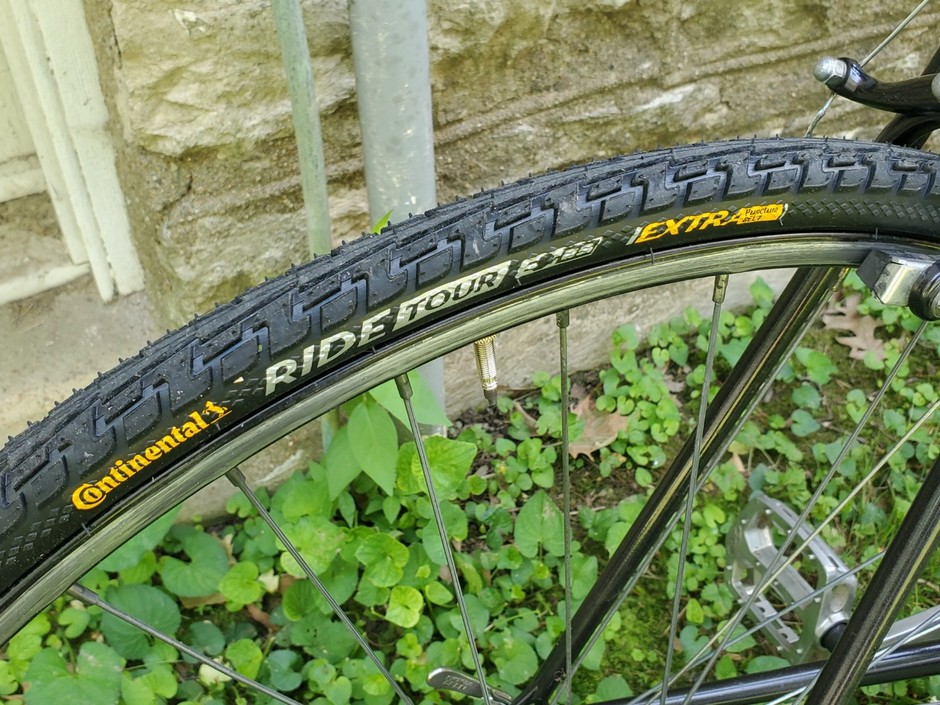

Original black rims, original QR hub; Continental Ride Tour Extra tire, 700x28c
Rear Wheel/Hub/Tire:
Original black rims, original Maillard Helicomatic hub; Continental Ride Tour Extra tire, 700x28c
Accessories:
Bottle cage
More Info:
Final phase of my build (?). But, I will likely try to find a decent late 80s or early 90s Shimano wheelset so I won't be stuck with the Maillard freewheel forever.
