Faust Fixed Criterium

Steel track-ish bike. TIG welded with a little fillet work around the seat cluster. One month from final geo to riding.

Frame:

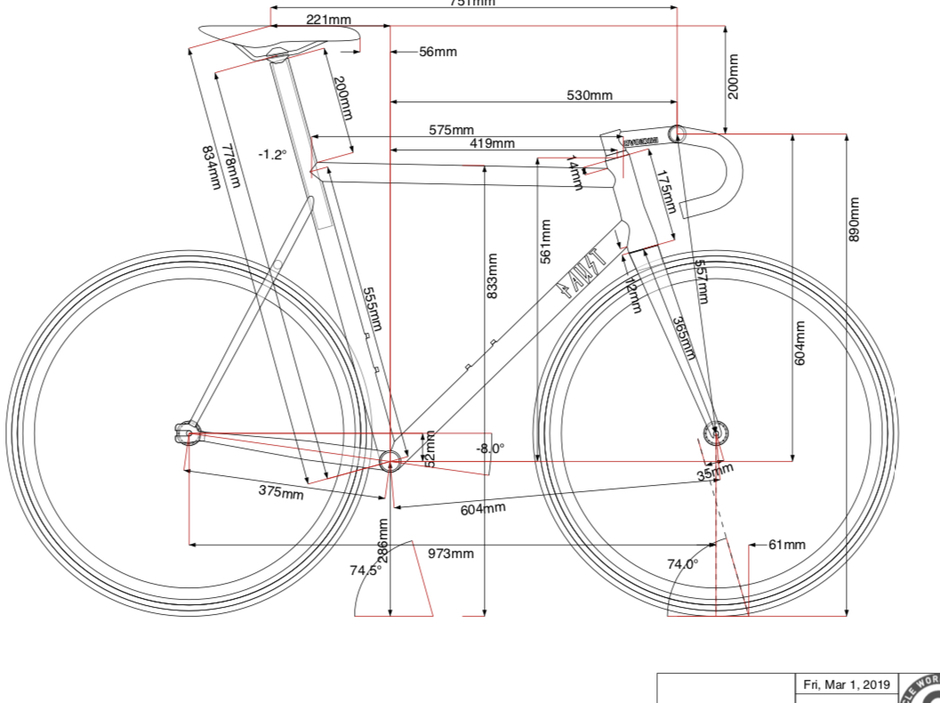

Steel 58cm; 74deg HT; 74.5deg ST; 375mm chainstays; 52mm BB drop; dimpled ST; dimpled chainstays; fillet-brazed integrates seat mast;

Fork/Headset:
Columbus carbon track; Cane Creek 110

Crankset/Bottom Bracket:
SRAM Omnomnom

Pedals:
Wellgo platforms; YNOT straps

Drivetrain/Cog/Chainring/Chain:
Fixed; 17t Surly; 48t SRAM; SRAM SS chain; KMC 1/2 link

Derailleurs/Shifters:
nope

Handlebars/Stem:
Custom Ti bullmoose; 90mm reach; 0deg rise; 760mm wide; just a little (2.5deg?) sweep

Saddle/Seatpost:
Brooks C13 Cambium carbon; custom ISM; ENVE rail clamp

Brakes:
nope

Front Wheel/Hub/Tire:
Velocity A23; DT; Phil Wood low flange; Continental Gatorskin

Rear Wheel/Hub/Tire:
Velocity A23; DT; Phil Wood low flange; Continental Gatorskin

Accessories:
Spurcycle bell; random lock-on grips

More Info:
Initial build in “coffee break” mode; also have road pedals and drops for “lycra” mode. Wheels are for sale
