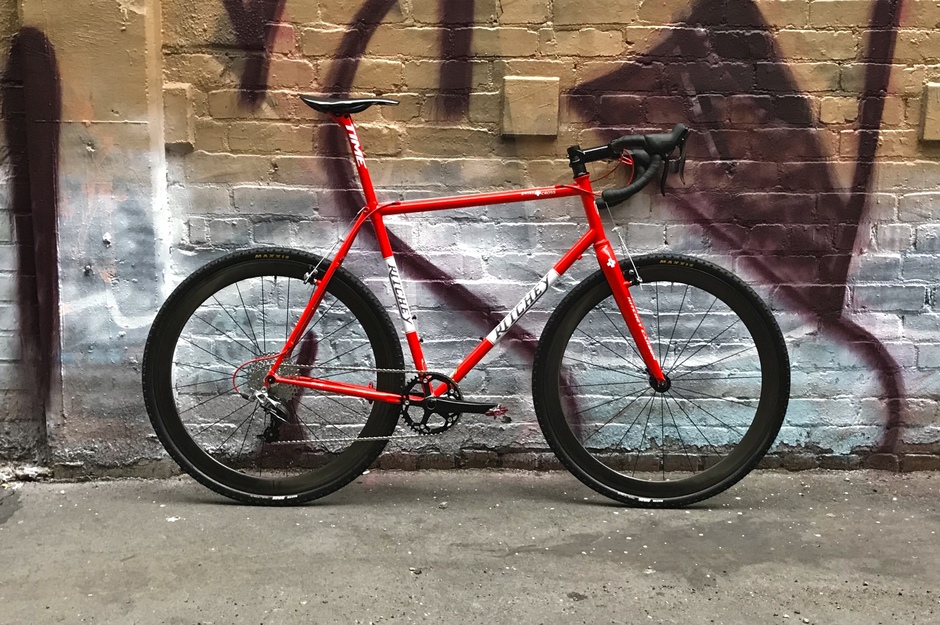

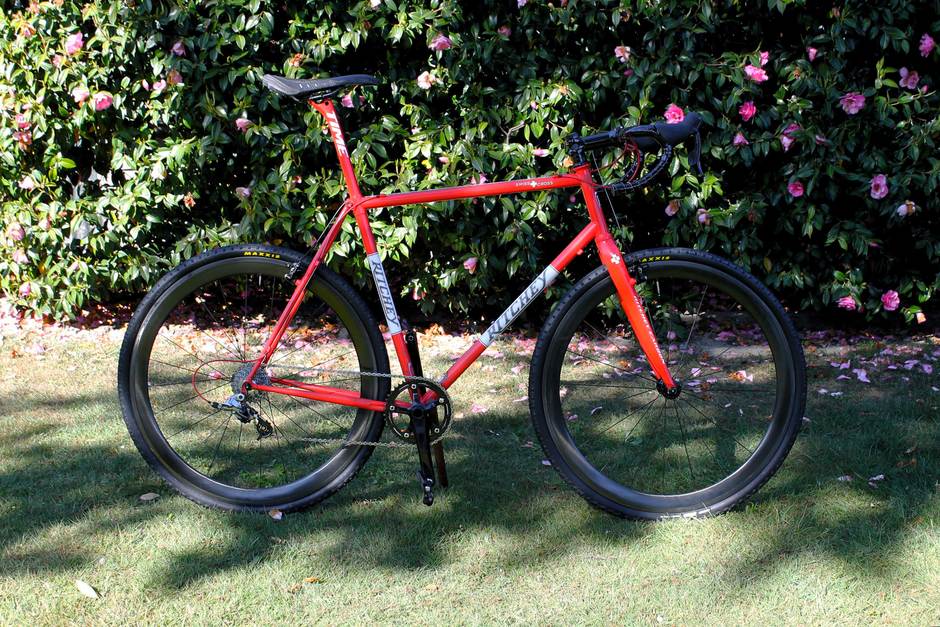

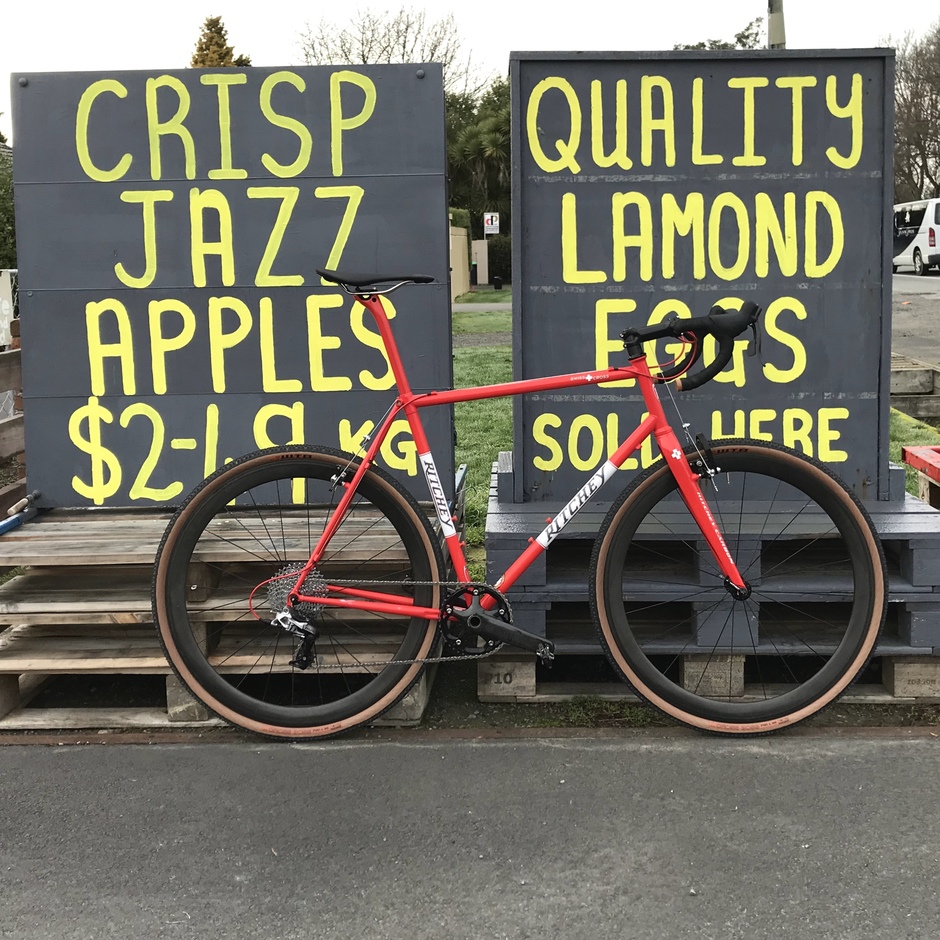

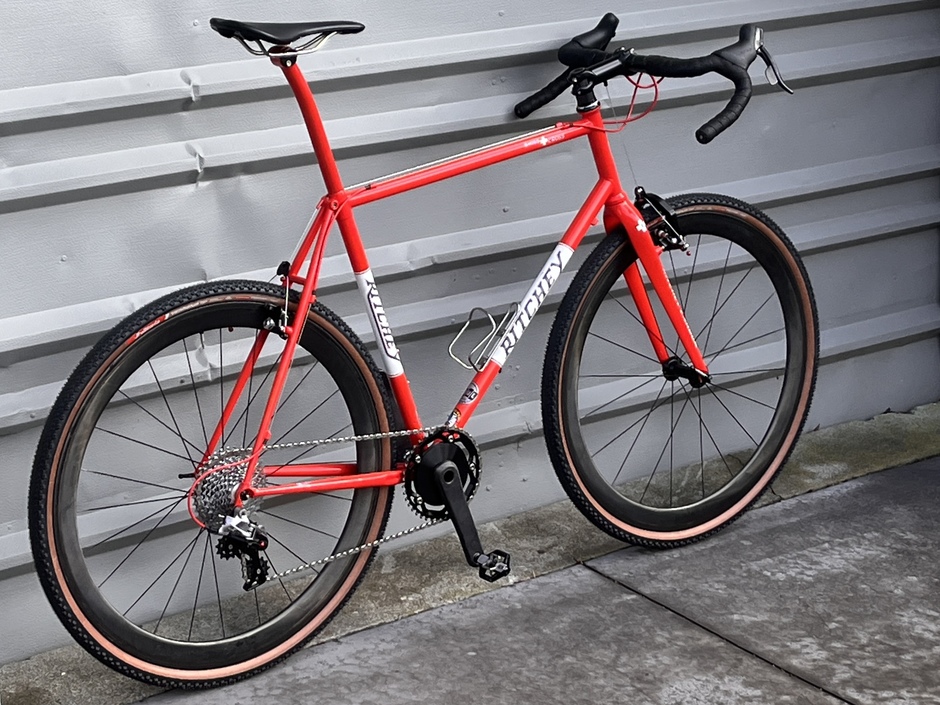

Frame:

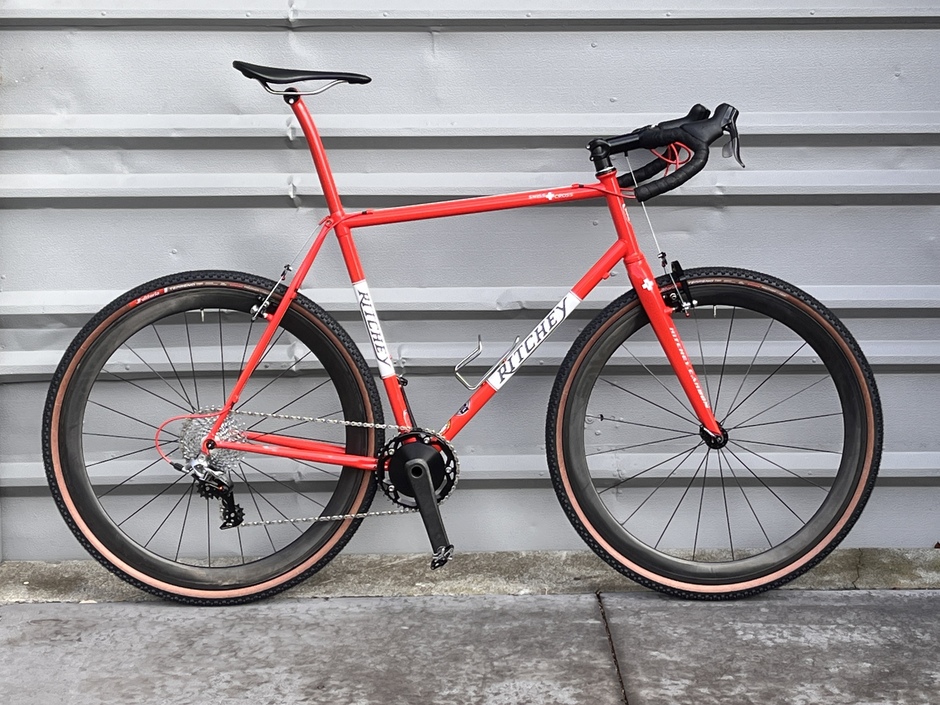

2013 Ritchey Swiss Cross 59cm
Fork/Headset:
Ritchey Carbon WCS Cross / Ritchey WCS
Crankset/Bottom Bracket:

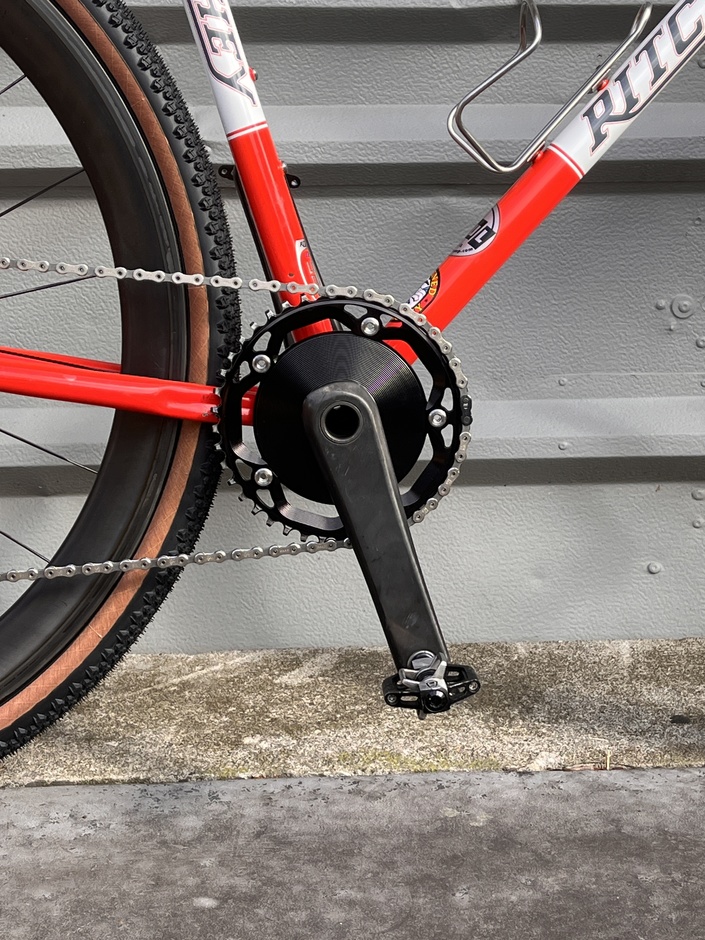

SRAM Red / SRAM GXP
Pedals:
Crank Brothers Candy 3
Drivetrain/Cog/Chainring/Chain:
SRAM PG1070 12-36 10 speed / Absolute Black 42T / SRAM PC1071
Derailleurs/Shifters:

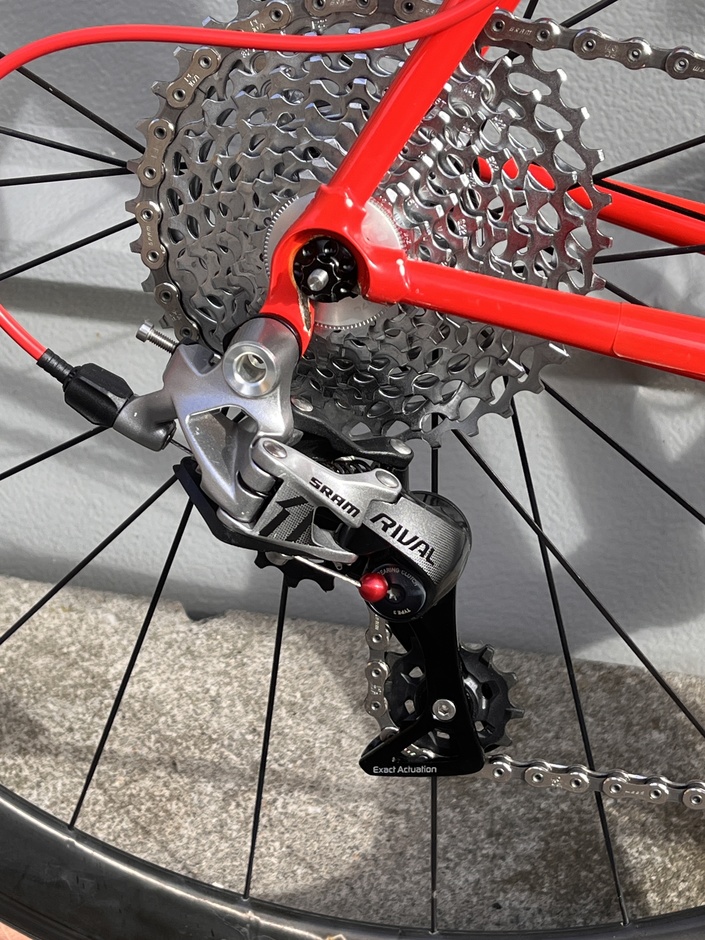

SRAM Rival 1X / SRAM Rival Double Tap with Red internals
Saddle/Seatpost:
Fabric Scoop Flat Race / Titanium painted to match
Brakes:

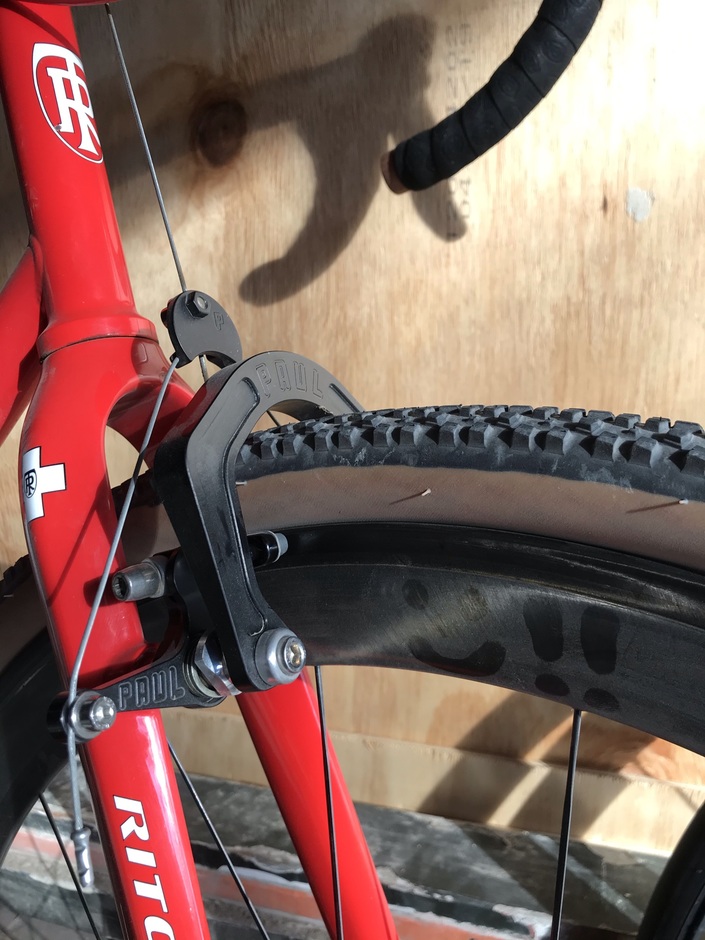

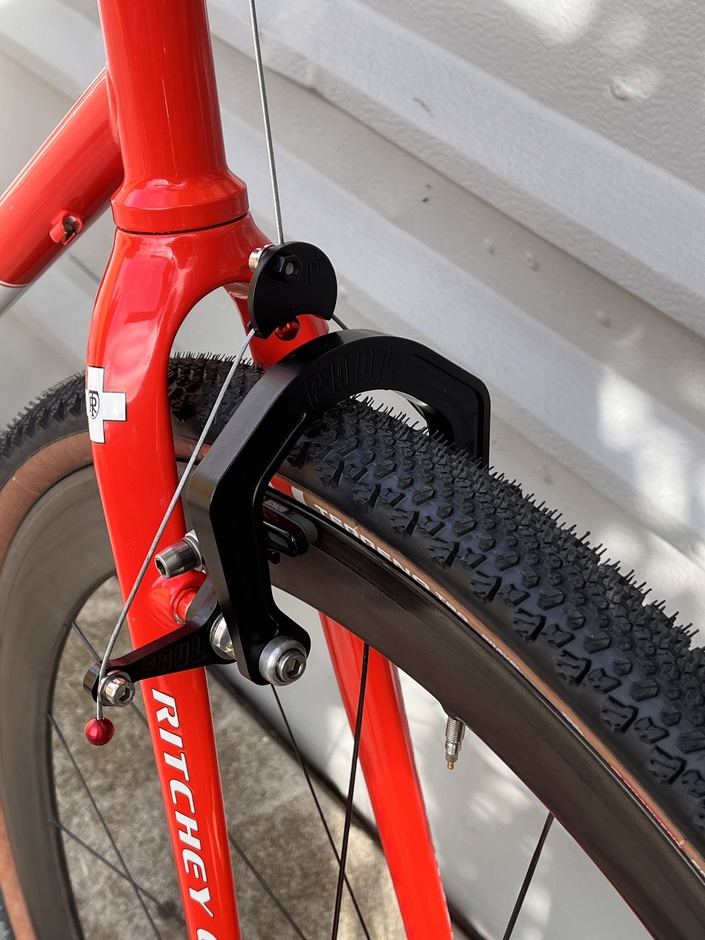

Paul Component Neo Retro / Paul Component Moon Unit cable carriers / Paul Component Brake Booster on the front
Front Wheel/Hub/Tire:
Enve 45 Classic / DT Swiss 240s / KCNC Ti Skewer / Vittoria Terreno T50 40c
Rear Wheel/Hub/Tire:
Enve 45 Classic / DT Swiss 240s with 54T ratchet rings / KCNC Ti Skewer / Vittoria Terreno T50 40c
Accessories:
King Cage titanium bottle cage / Paul Component brake booster / FYXO top cap / titanium bolts where possible / red cable cherries
More Info:
The day I'm no longer riding this bike better be the day I'm dead.

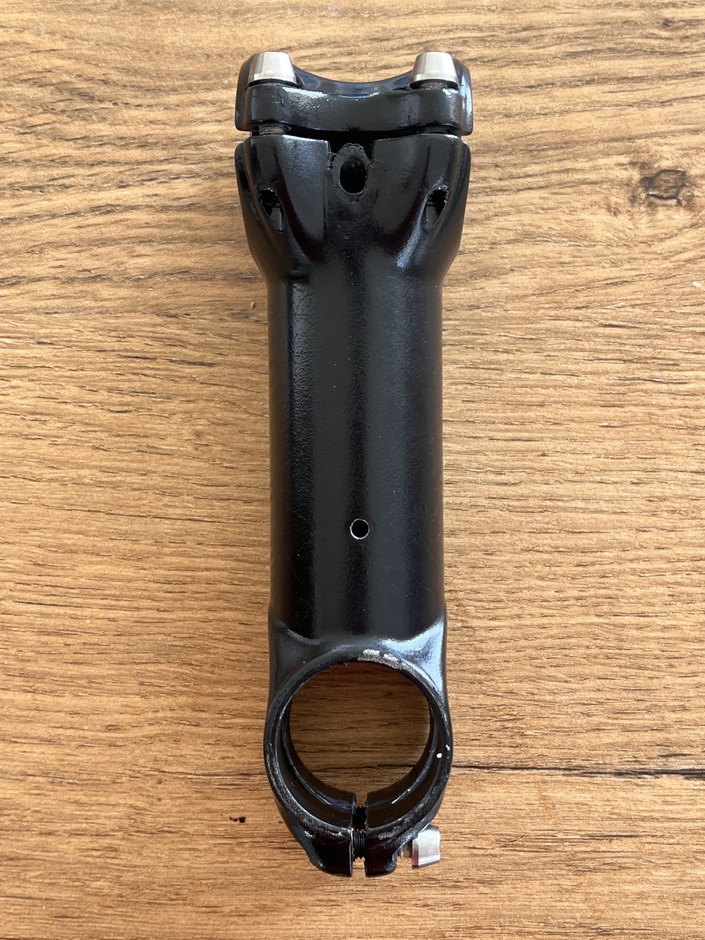

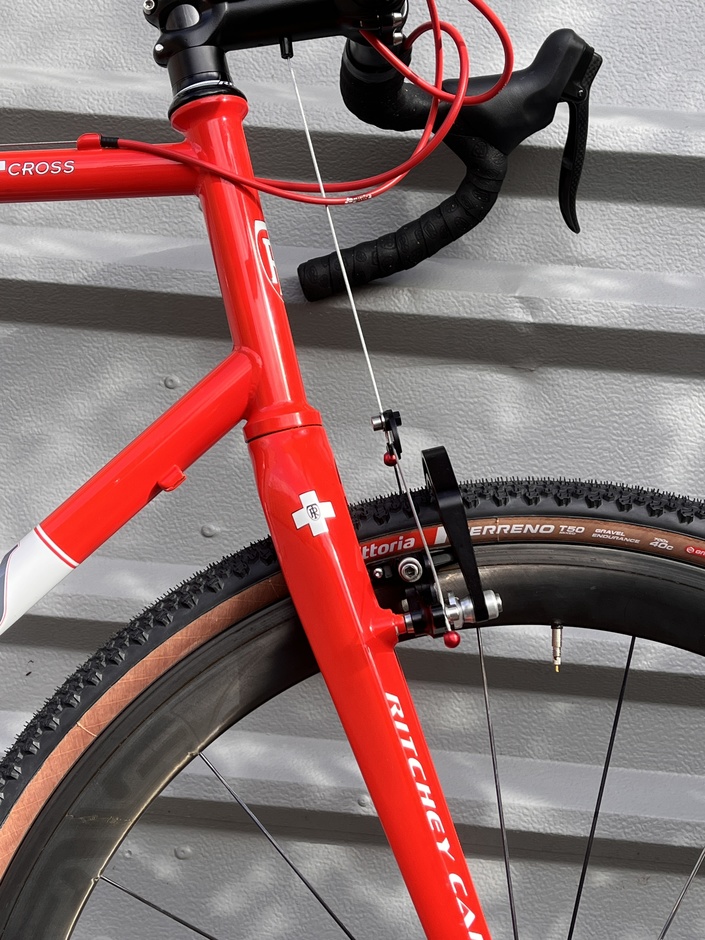

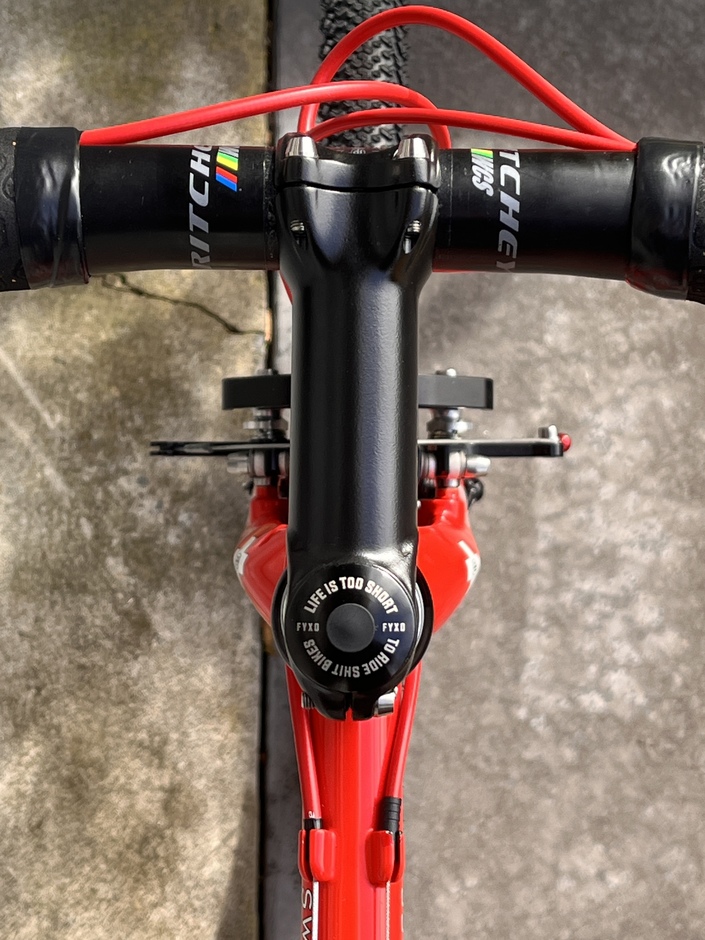

Custom drilled and painted 3T stem with integrated cable routing to act as a hanger for the front brake, this version was repainted and adapted and slightly simplified with a frame cable stop to smooth out the lever feel and tidy it up including aligning the cable to the head tube, stay tuned for a proper version two.
Left shifter fully gutted, shift mechanisms removed to only be a brake lever. Right shifter internals upgraded from Rival to Red.
Matching red shift and brake cable housing.
Upgraded rear DT Swiss hub ratchet rings from 18T to 54T.
10 speed ain't dead, steel is real, etc etc
Bike History
Click a link below to see past stages of this bike.
Current Stage Info:
2026
Added by moonunit. Last updated 13 days ago.
7 Comments
Very nice. Any chance to get a pic of the "integrated" cable routing.
Where do you enter the stem and how is it "fixed" at the exitpoint?
Posted 4 months ago

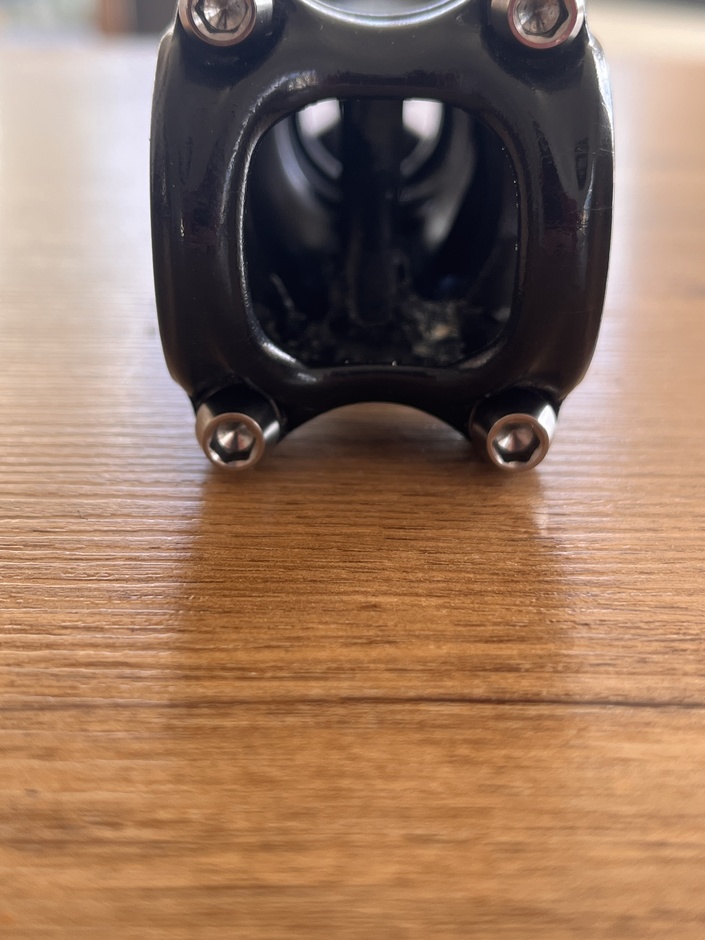

Added photos to the initial build history, in the first version the cable housing ended behind the face plate and the brake cable entered a section of small PVC pipe epoxied in that acted as a cable stop and exited below from a small hole. New version uses a frame cable stop part that is seated into a larger hole in the bottom of the stem, this allows the normal cable housing to enter the stem and finish at the cable stop, simplifying and smoothing out lever feel. I was inspired by the Enve/Speedvagen cross stem that I saw on the Radavist back in 2013!
Posted 13 days ago
Thx for the Pics. And know it "all" makes sense.
NZ = New Zealand = front brake lever on the right etc..
"The day I'm no longer riding this bike better be the day I'm dead." With all this custom work = quoteworthy ;)
Posted 13 days ago
Photos
dfadhilm says:
um..sorry, i think i have a crush with your bike
Posted 12 days ago
