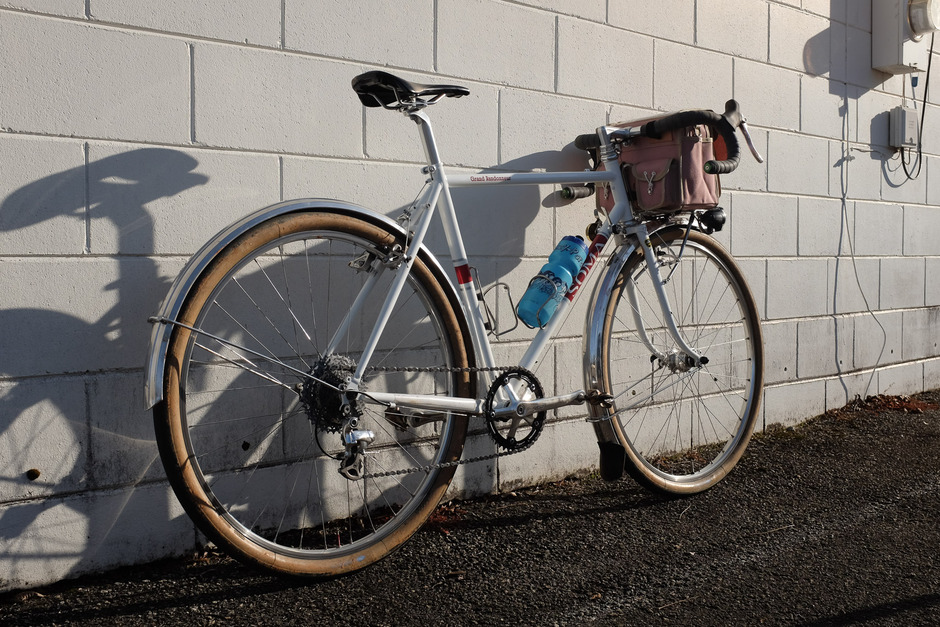

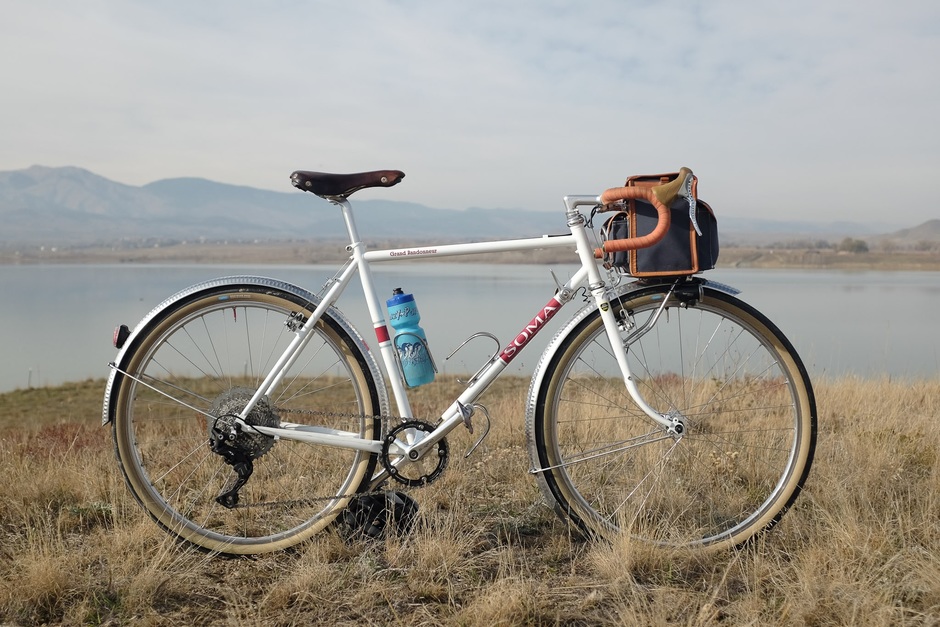

An experimental platform for lots of new ideas: - 1x drivetrains - low trail geometry - 650b wheels - long ramp drop bars
Frame:
Soma Grand Randonneur V.2, 52cm
Fork/Headset:
Soma Grand Randonneur / FSA Duron X 1" Threaded

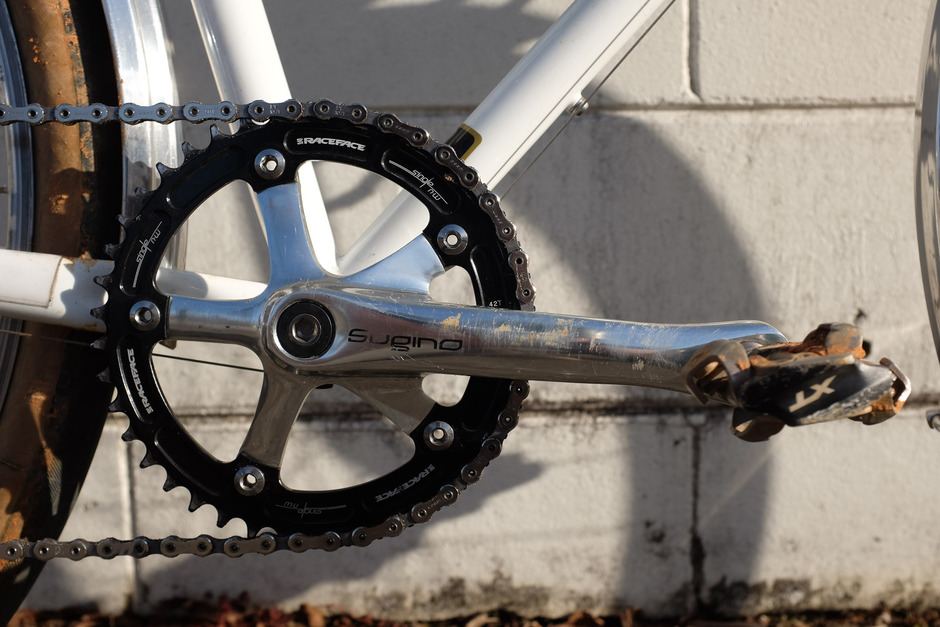

Crankset/Bottom Bracket:
Sugino RD2, 165mm / Tange 103 mm
Pedals:
Shimano PD-A600

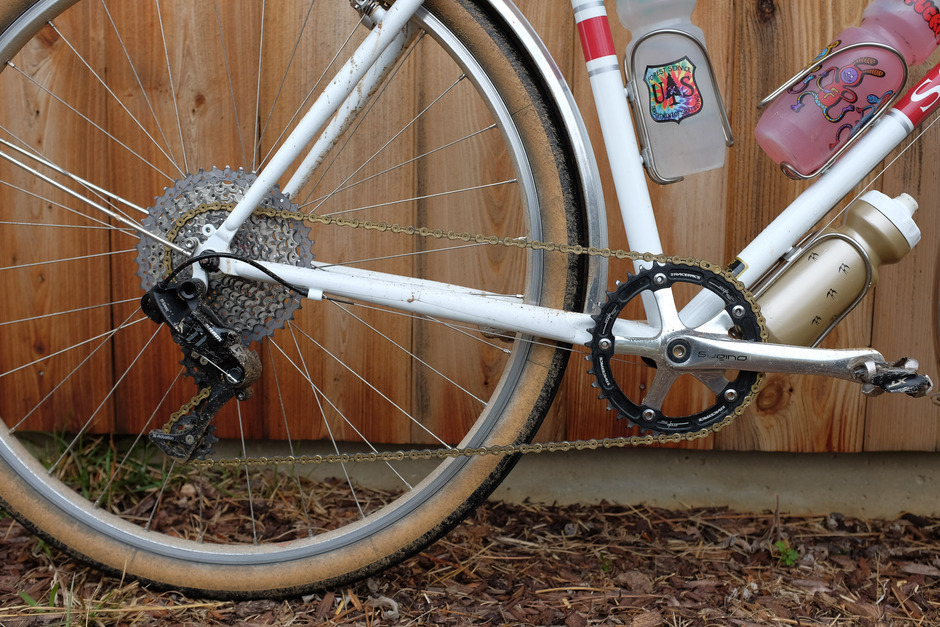

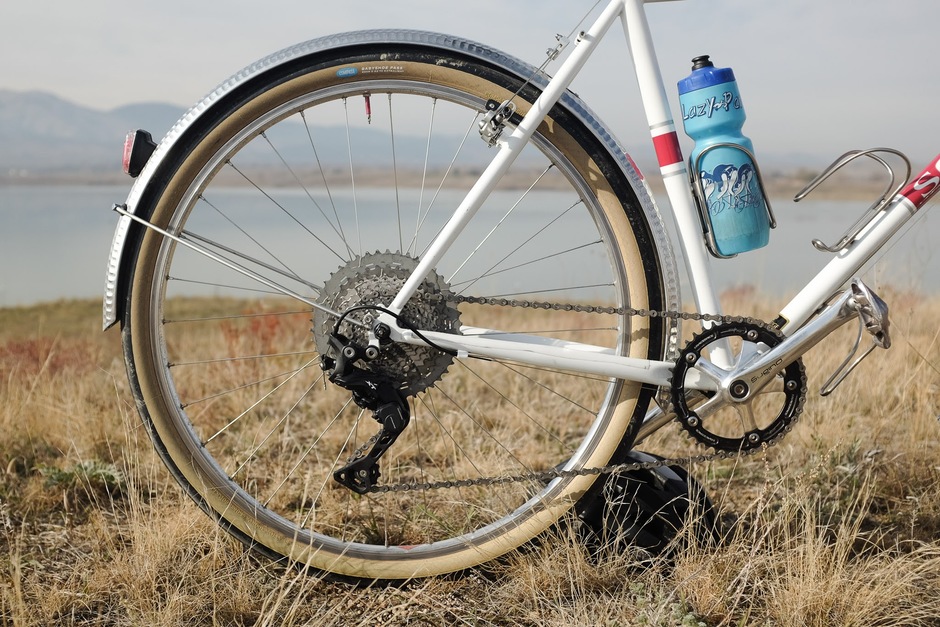

Drivetrain/Cog/Chainring/Chain:
Shimano CS-M8000 11-46t / Raceface Narrow-Wide 40t / Shimano CN-HG901-11

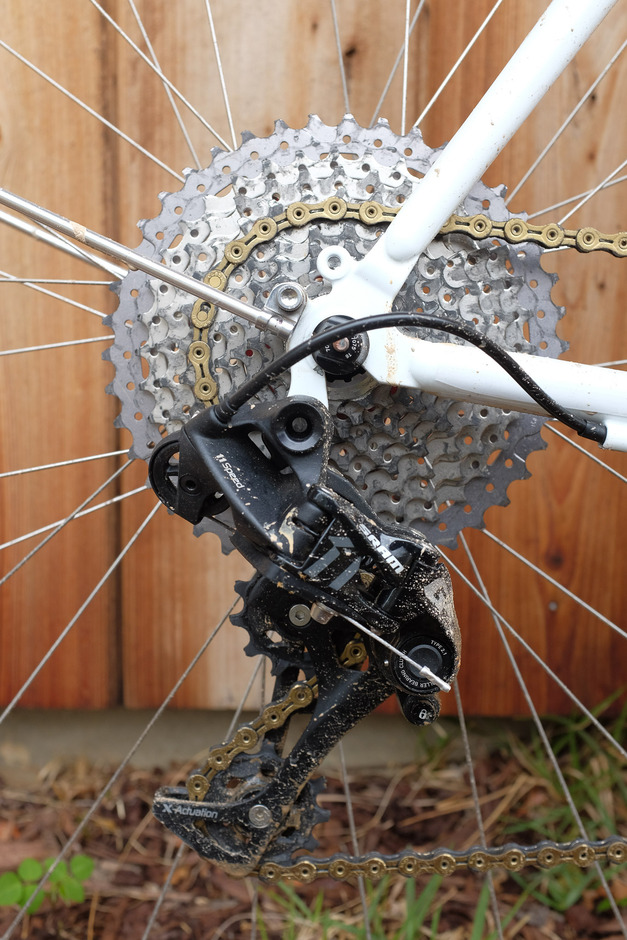

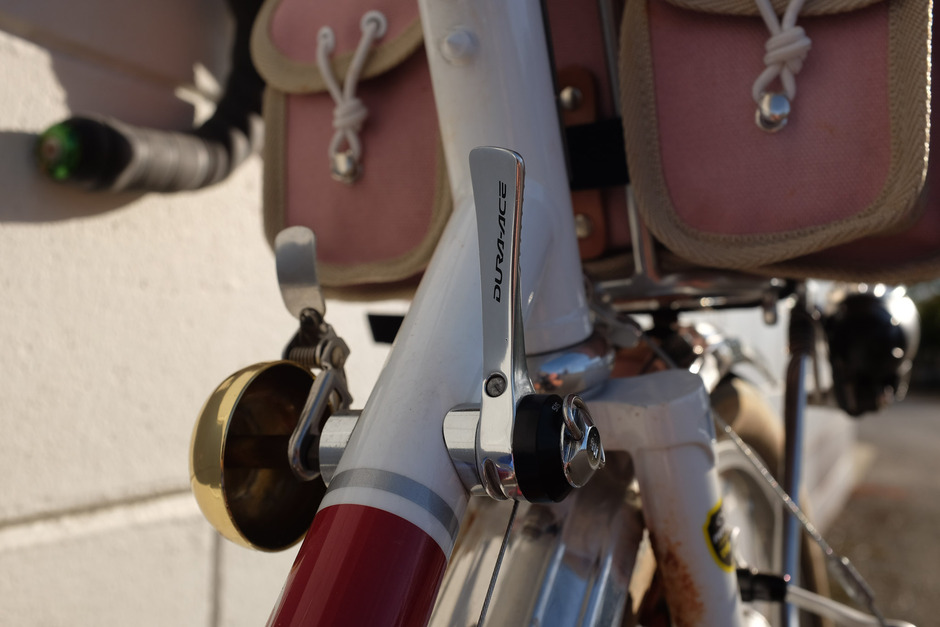

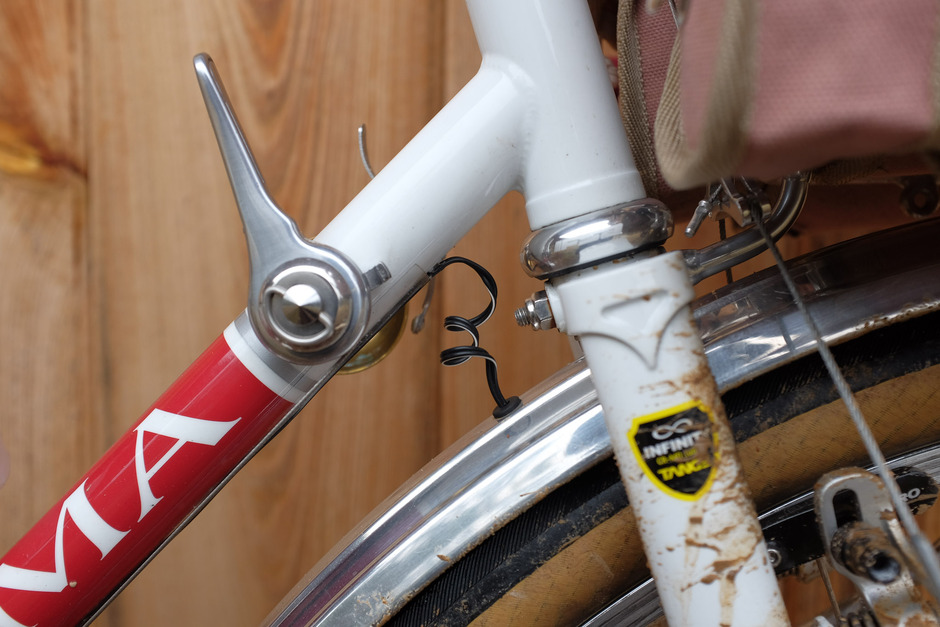

Derailleurs/Shifters:

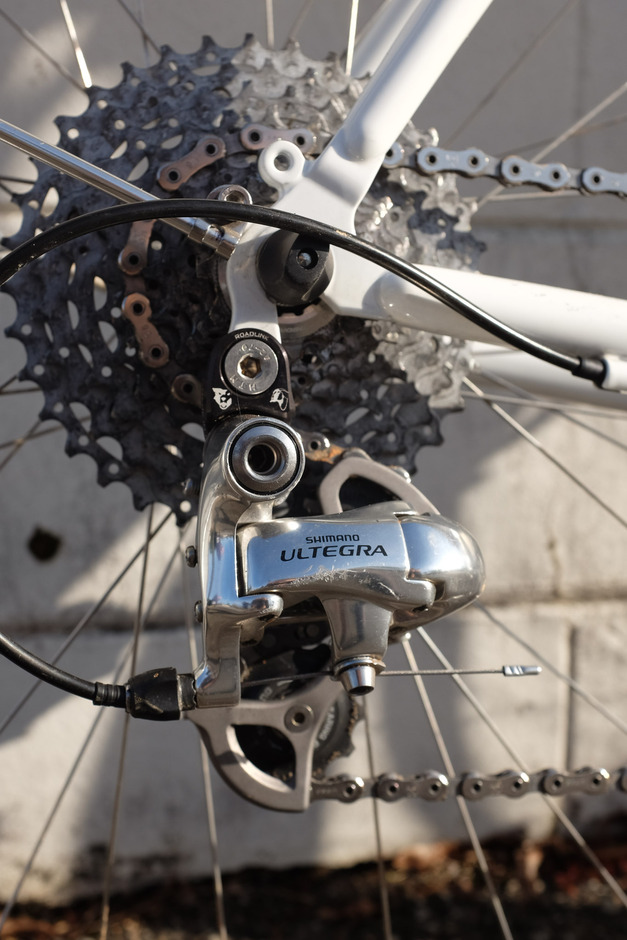

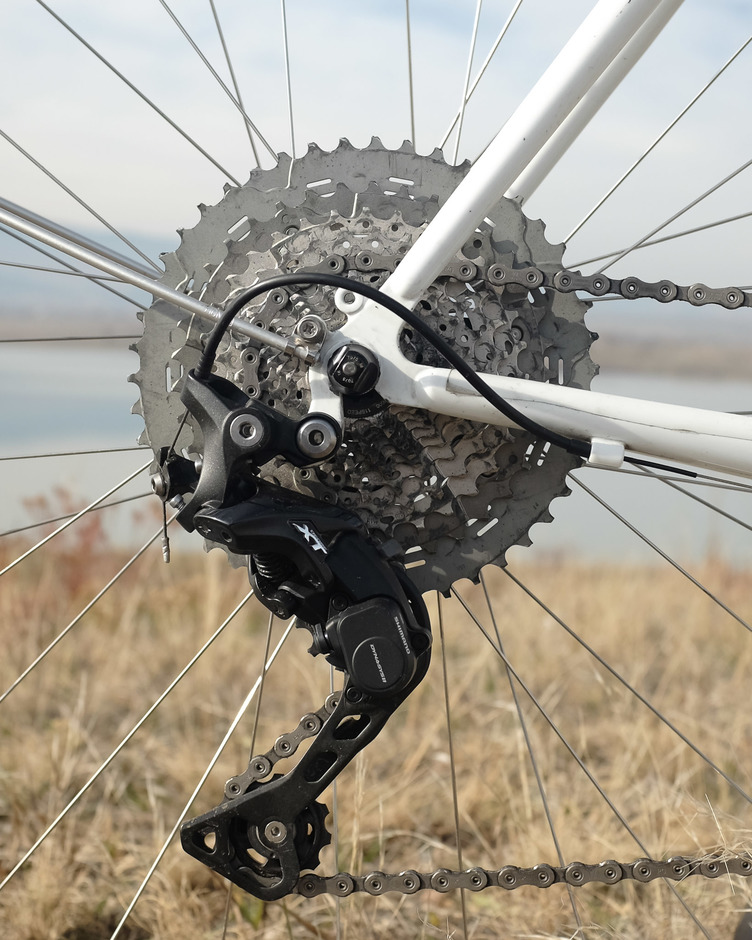

Deore XT M8000 GS / Dia-Compe 11 Speed Downtube Shifter

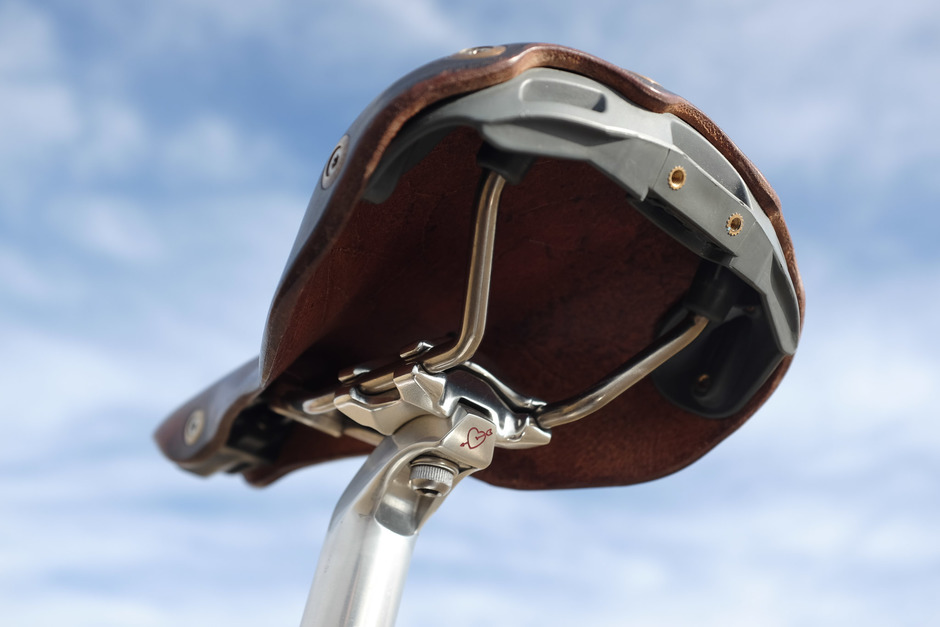

Saddle/Seatpost:

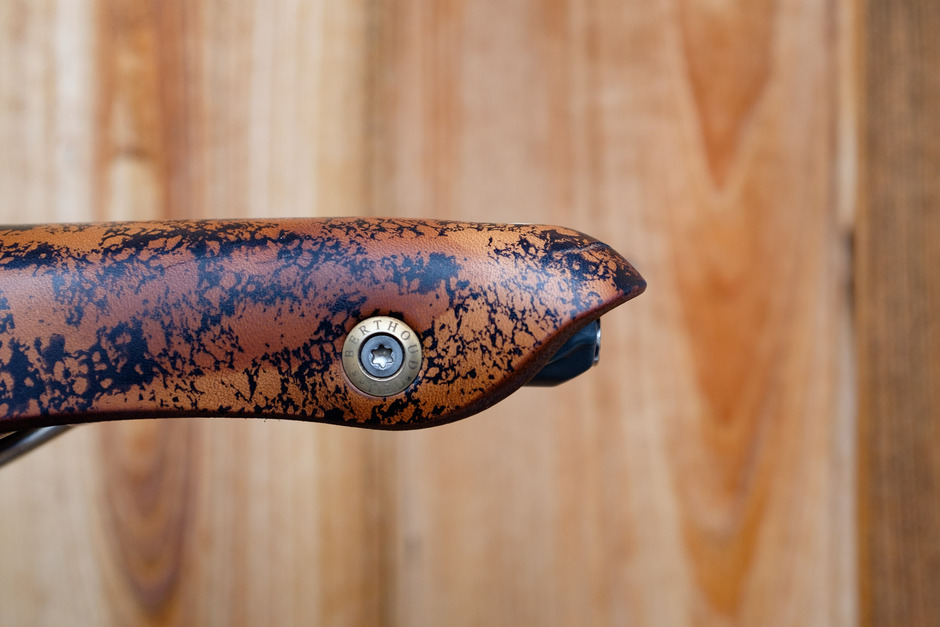

Gilles Berthoud Aravis, Cork / Sim Works Beatnik 300mm
Brakes:

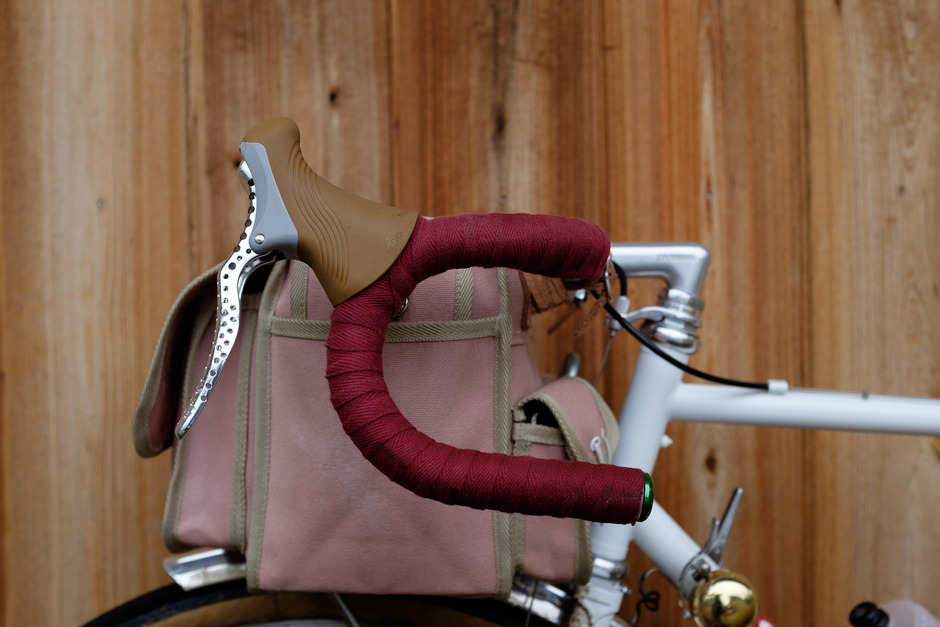

TRP RRL-SR / Tektro CR720
Front Wheel/Hub/Tire:

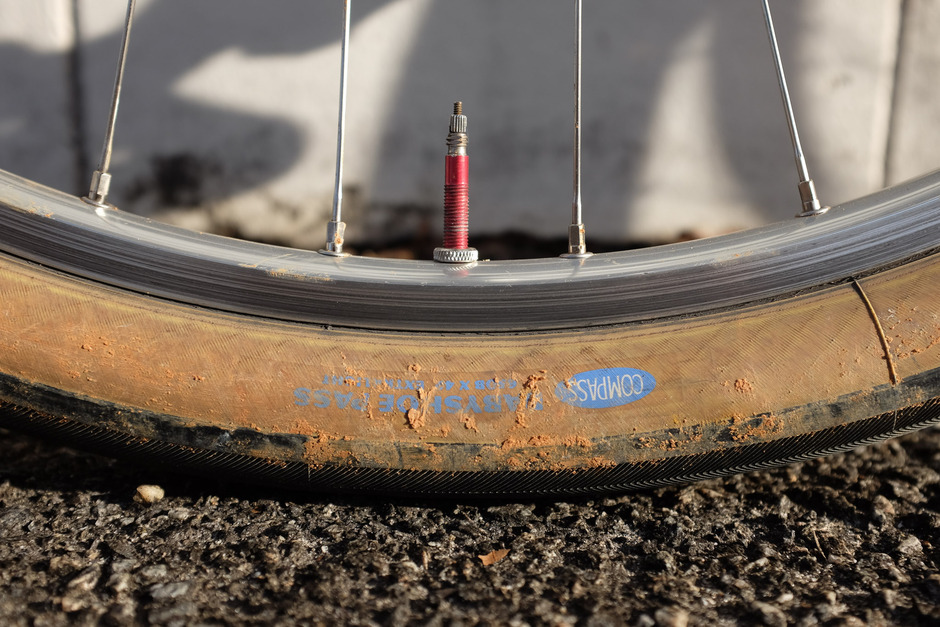

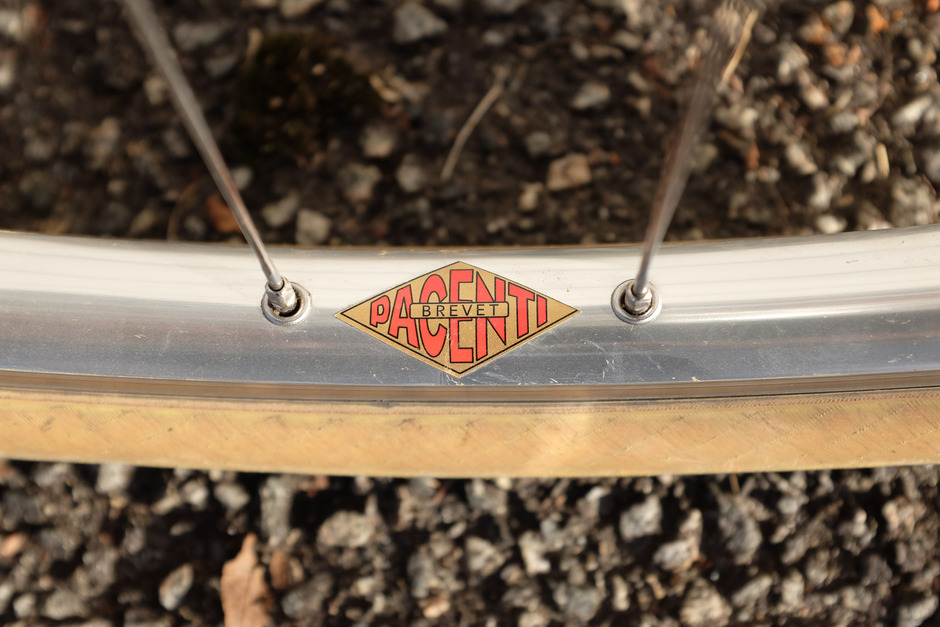

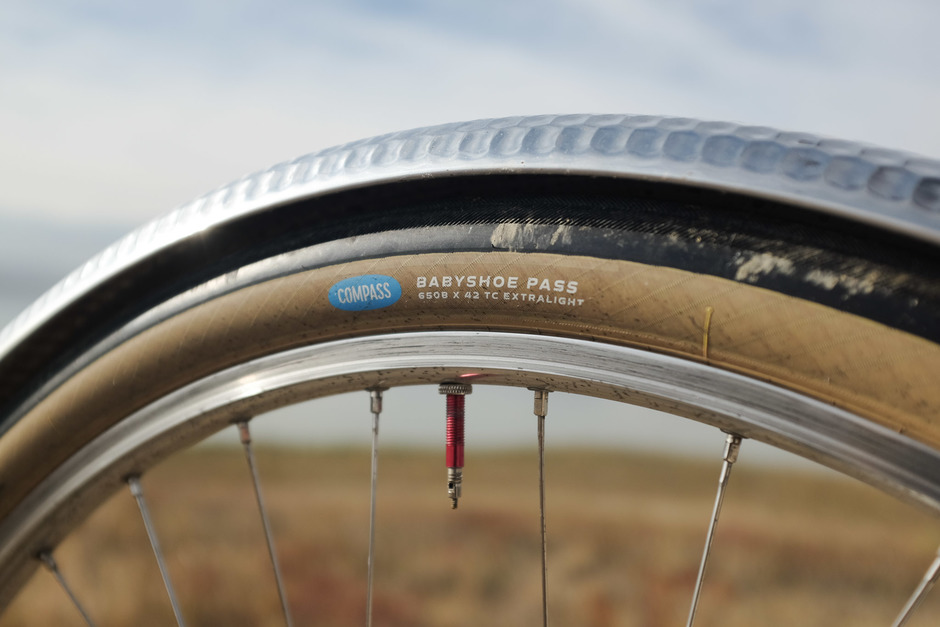

Pacenti Brevet 650b / Shutter Precision PD8 32H / Sapim Laser Spokes / Compass Babyshoe Pass 650b x 42c TC/ ControlTech Race Skewer
Rear Wheel/Hub/Tire:

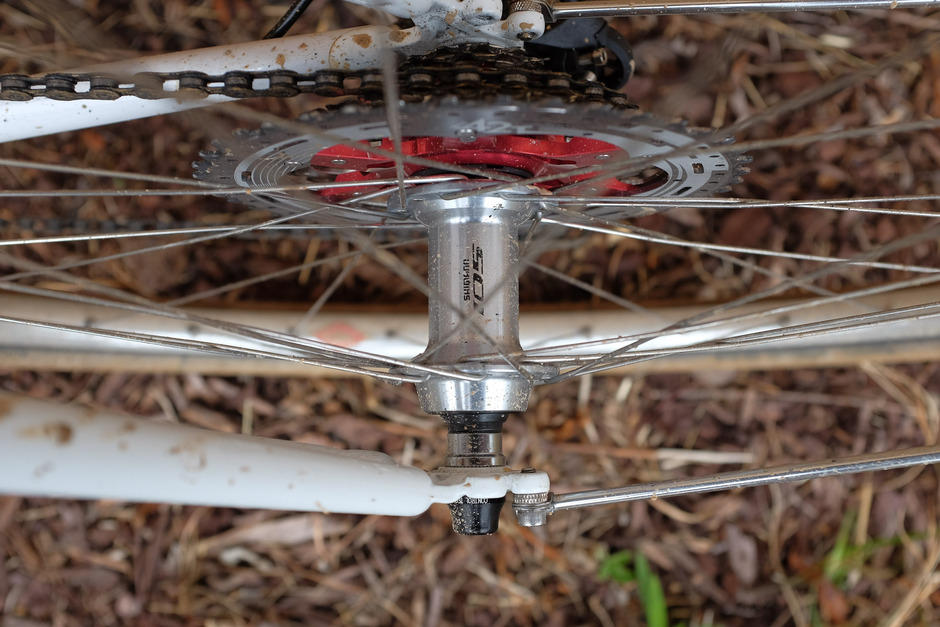

Pacenti Brevet 650b / Shimano 105 5800 / Sapim Laser Spokes / Compass Babyshoe Pass 650b x 42c TC / ControlTech Race Skewer
Accessories:

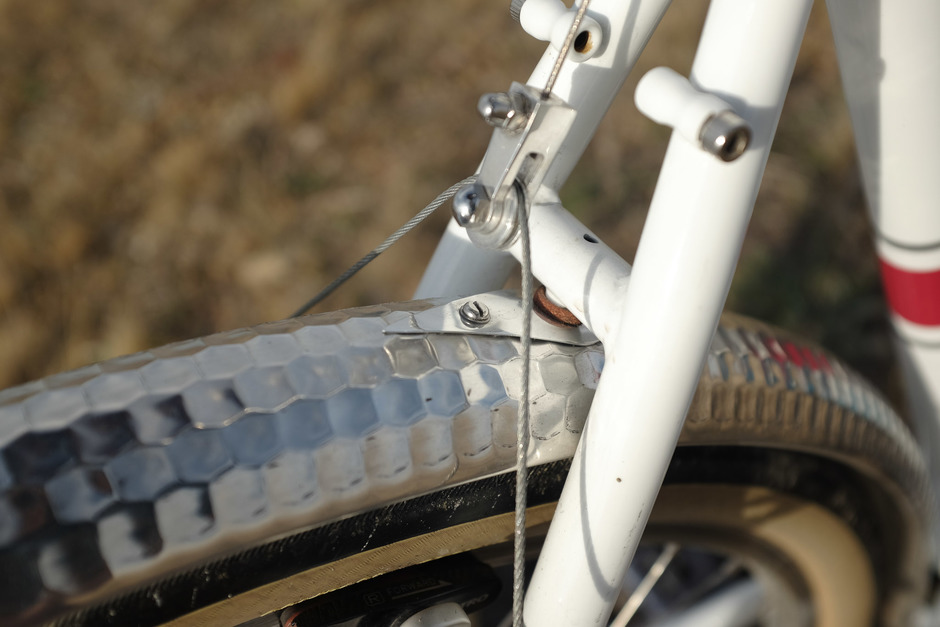

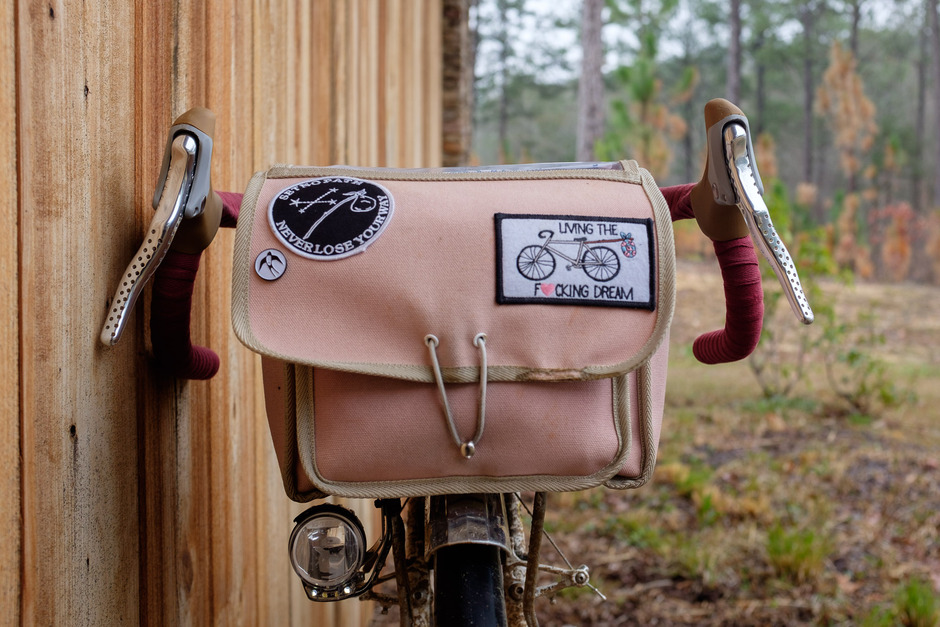

Gilles Berthoud GB25, Velo Orange light mount, PDW Bell, Honjo H50 Hammered Fenders, Busch and Muller IQ Premium Cyo, Busch and Muller Secula Tail Light, King Cage Iris Cages
More Info:
Tried out some new wire harnessing techniques for the rear light. A single hot lead runs through the fender rolled edge to the tail light. The ground runs through the fender into a ring terminal at the bb shell.
Bike History
Click a link below to see past stages of this bike.
Added by soitgoes. Last updated 3 months ago.
As of 3 months ago, soitgoes has indicated that they no longer own this bike.
11 Comments
How do you route the front light?
Posted almost 4 years ago

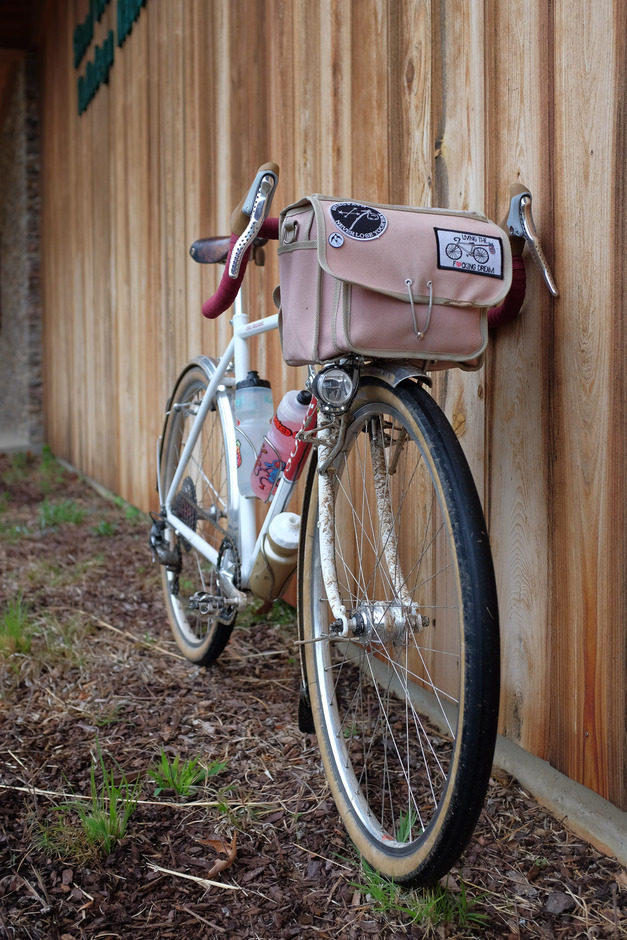

front light is mounted to the rack. Nitto makes a light mount that fits most dynamo headlights.
Posted almost 4 years ago
Genius! Agree with the bell placement comment. Nice to see a Gilles Berthoud out there. Your wheels sound pretty serious too! Cheers and thanks for sharing!
Posted over 6 years ago

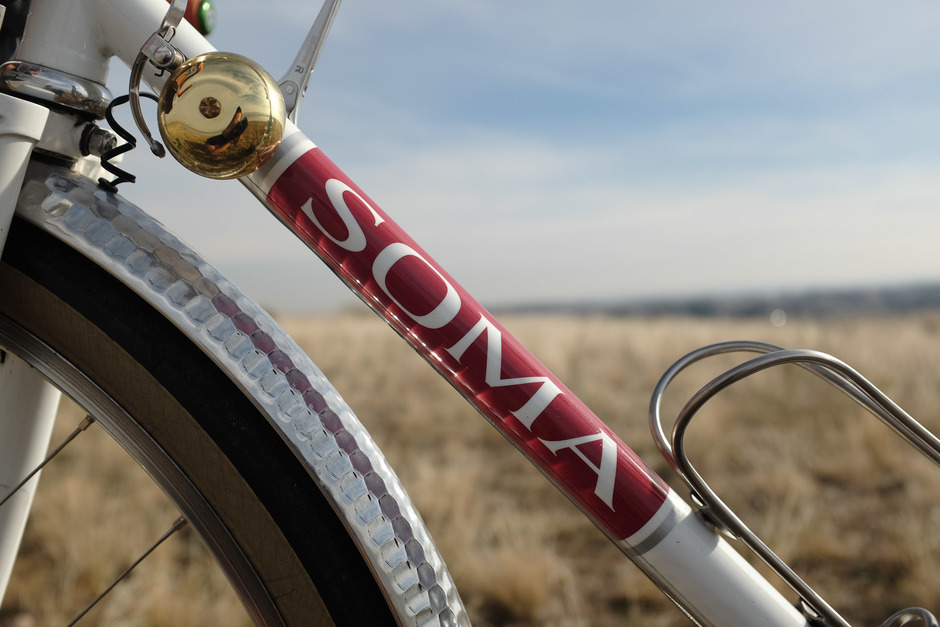

Everything about this is awesome but the bell placement in particular is my favourite
Posted over 7 years ago
Awesome. I love the practicality of the build, I'm sure it's a fun ride.
Posted over 7 years ago
Photos
zonaut says:
I meant the cable routing for the front light. Because I usually see lights where the cable is wrapped around the fork blade. But yours is hidden
Posted almost 4 years ago
soitgoes says:
Ah ok. I used helicopter tape on the inside of the fork leg for the Dynamo wire. The rear light is wired to the front light. Its wire runs through the rolled edge of the rear fender, under the bb and downtube and then through the front fender before terminating at the front light.
Posted almost 4 years ago
