1989 Raleigh Pointe

Acquired a Retro MTB intended components as a hybrid and turned it into a Monster Cross/Touring/ATB after restoring the gloss and luster of the original paintjob. The 1990 Shimano 200GS Groupset was also painted with black spraypaint to make sure that the previous owner would convince me that it is 'well-maintained', considering the bike shop decal on the Down Tube reads, "Cycle Path Chatsworth".

Frame:

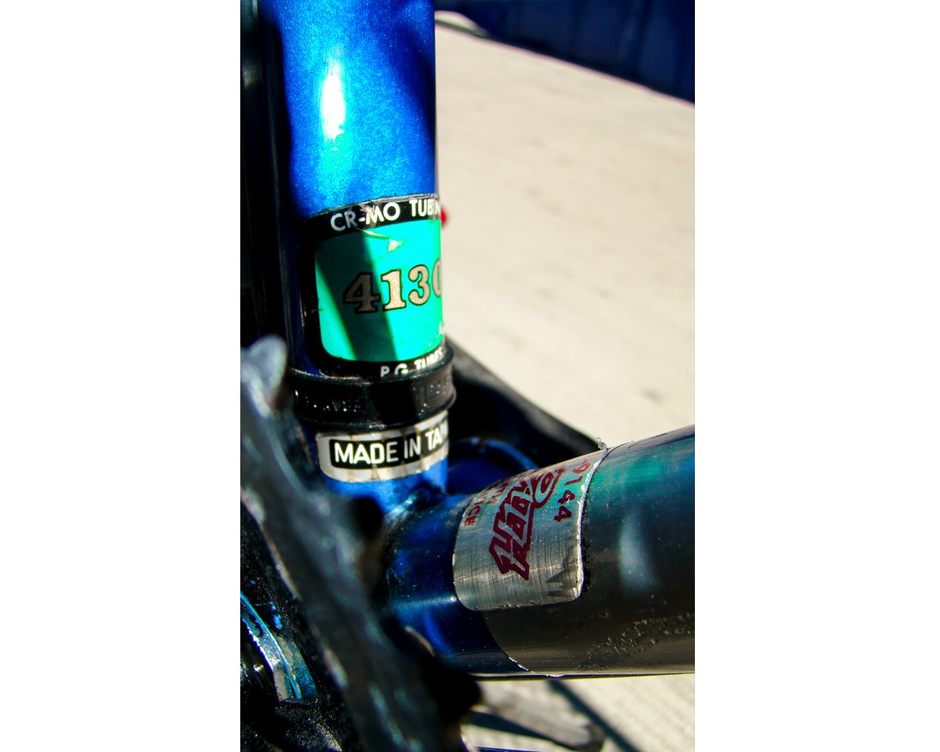

1989 Raleigh Pointe 4130 CR-MO Frame (Made In Taiwan)

Fork/Headset:
1989 Raleigh Pointe 4139 CR-MO Fork / Unbranded 1" Threaded Loose Ball Headset

Crankset/Bottom Bracket:
1990 Shimano 200GS (FC-M200 170mm) / 1990 Shimano 200GS Loose Ball Sealed Mechanism (BB-M500)

Pedals:
Unbranded China-Made Plastic Resin Pedals with reflectors

Drivetrain/Cog/Chainring/Chain:
1990 Shimano 200GS / Shimano HG-50 14T-32T / 1990 Shimano 200GS BioPace 48T, 38T, 28T / Badly corroded 7speed chain

Derailleurs/Shifters:
1990 Shimano 200GS (FD-M200-B / RD-M200-SGS) / 1990 Shimamo 200GS (ST-M020)

Handlebars/Stem:

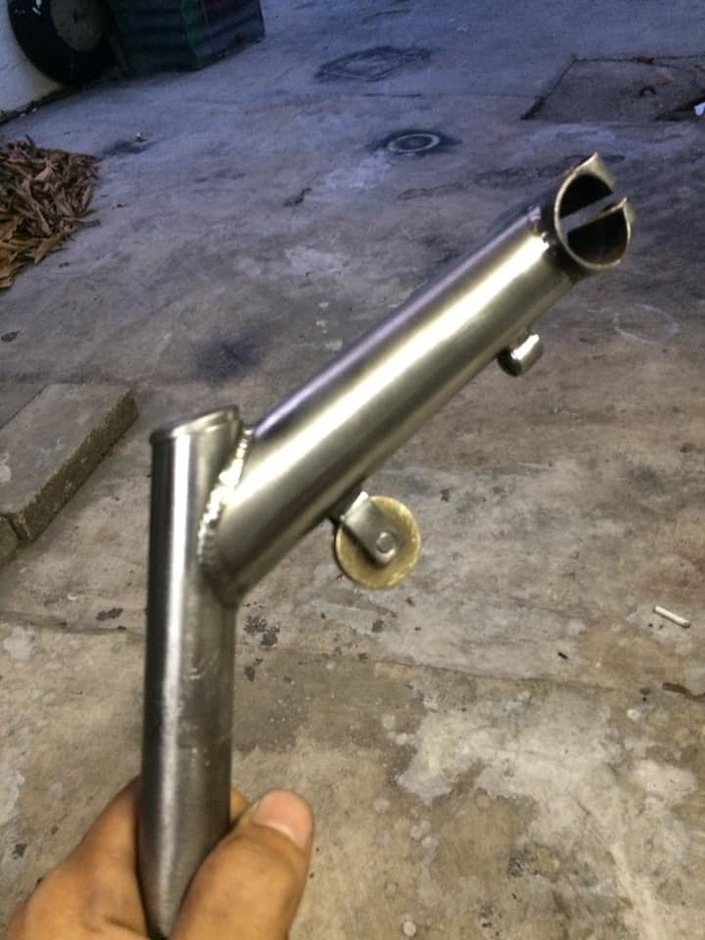

Unbranded Aluminum 25.4 Swept-Back Riser Bar / 22.2 x 25.4 Taiwan HL 88 I Canti Roller Quill Stem

Saddle/Seatpost:
Velo Spring-Tensioned Saddle / 26.0 Clamped Seatpost

Brakes:
1990 Shimano 200GS (BR-M200)

Front Wheel/Hub/Tire:
Araya HE VP-20 Rim / 1990 Shimano 200GS (HB-RM50-F) / Unidentified Gum Wall 26" x 1.95

Rear Wheel/Hub/Tire:
Araya HE VP-20 Rim / 1990 Shimano 200GS (FH-HG20) / Unidentified Gum Wall 26" x 1.95

Accessories:
SUPERBYKE U.S.A. Bidon Cage / JoyTech QR Seat Clamp Binder Bolt / Stock Front & Rear Reflectors / Stock Spoke Protector Disc

Bike History

Click a link below to see past stages of this bike.

  1. Monster Cross/ATB/Touring
  2. Initial State

Current Stage Info:

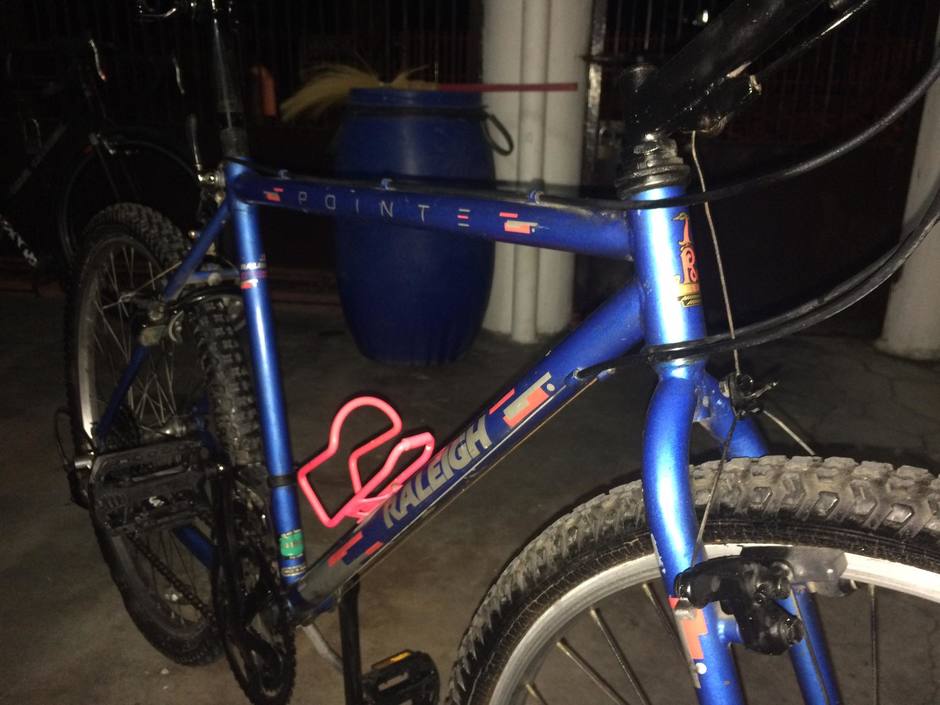

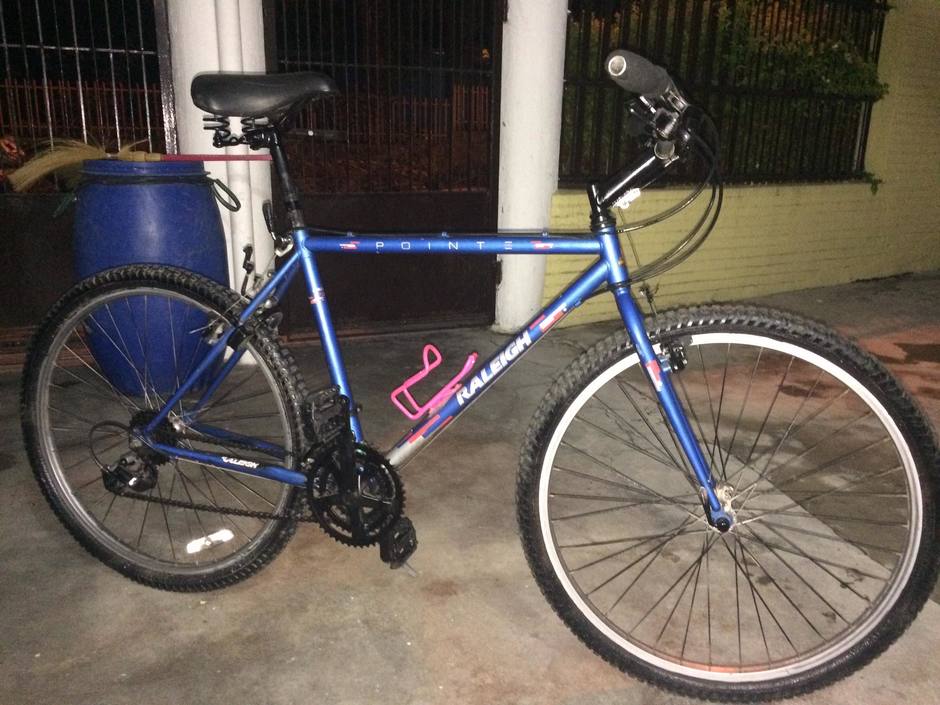

I got this bike on this stock setup with a purposely spraypainted groupset and tires of the previous owner (seller) to convince me in selling it for the condition he is saying. Considering the additional decal on the down tube stating, "CyclePath Chatsworth". I still purchased it on a very desirable price.

Added by kean_oscar_619. Last updated over 3 years ago.

As of over 3 years ago, kean_oscar_619 has indicated that they no longer own this bike.
