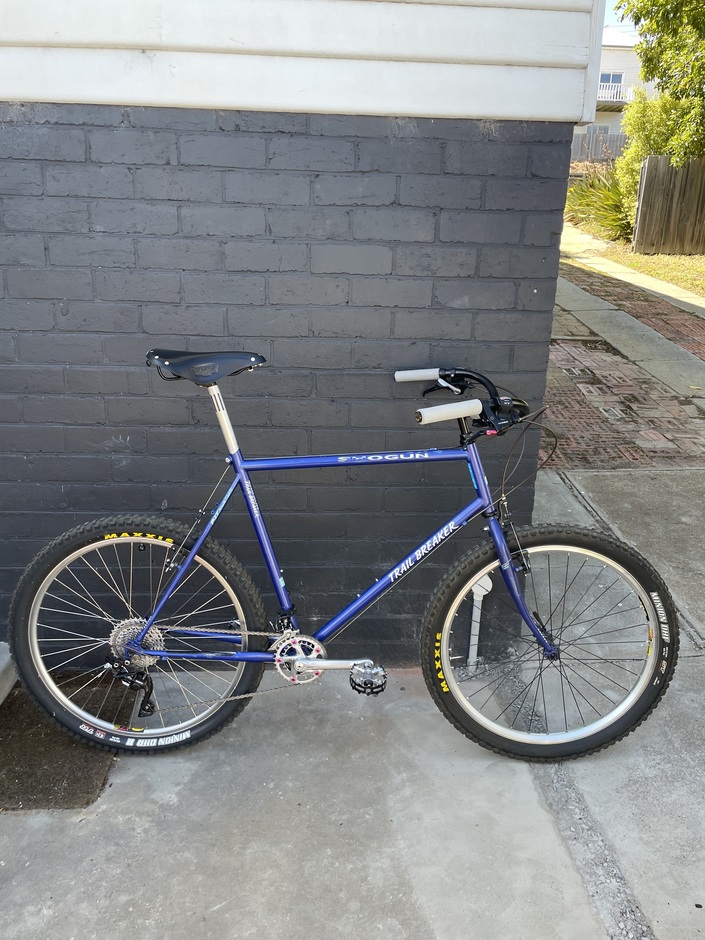

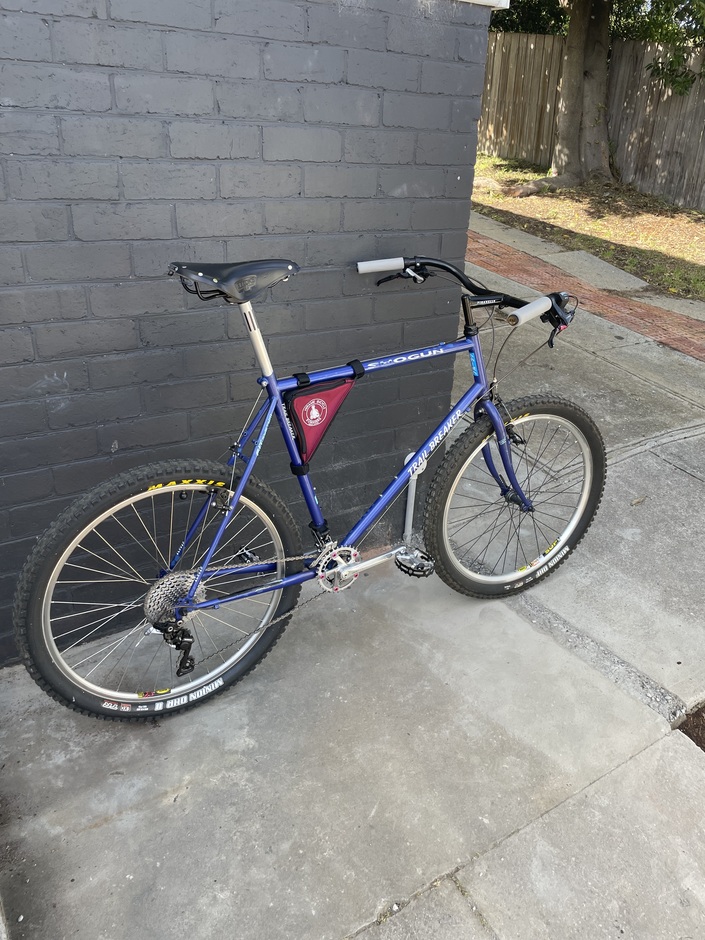

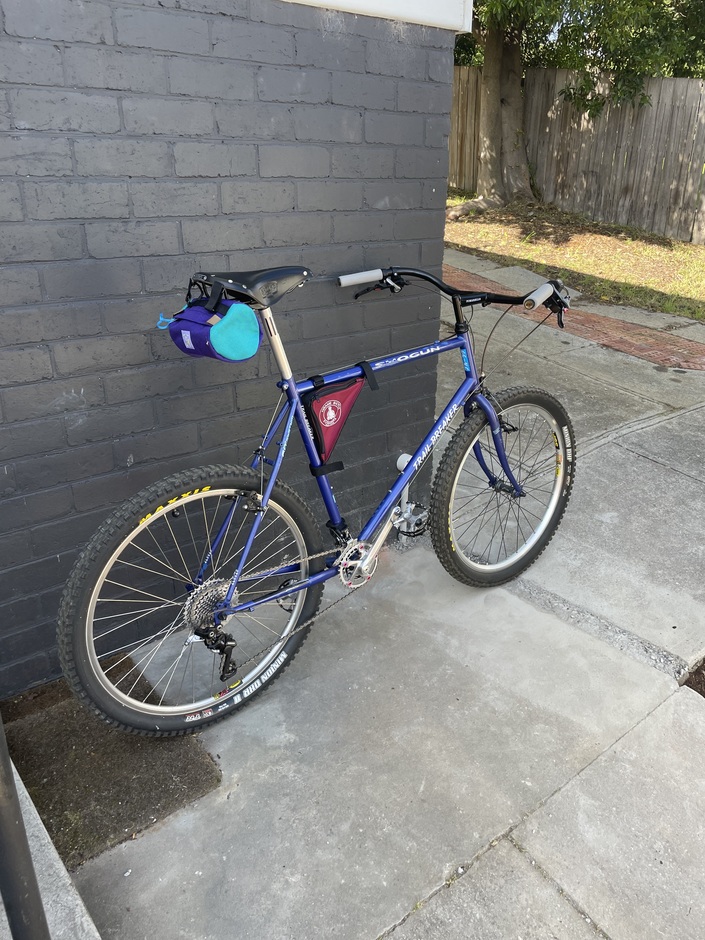

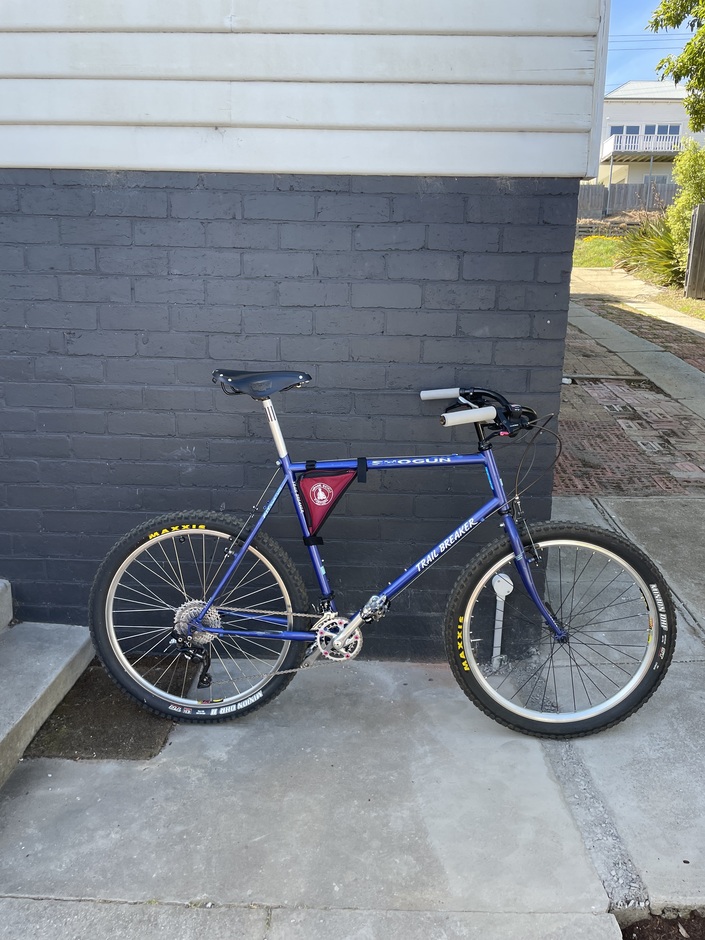

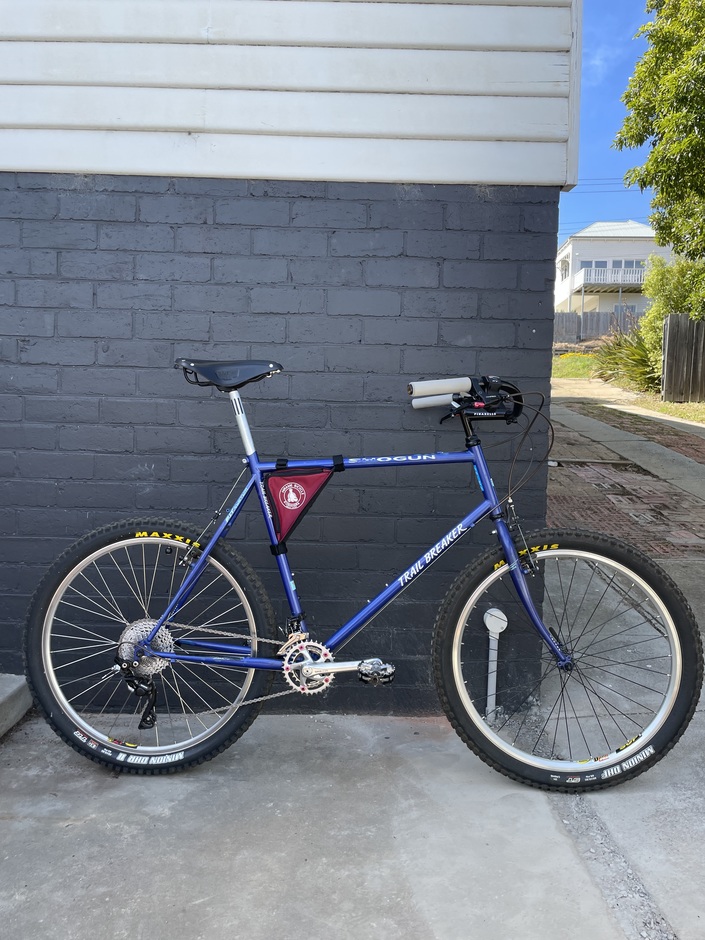

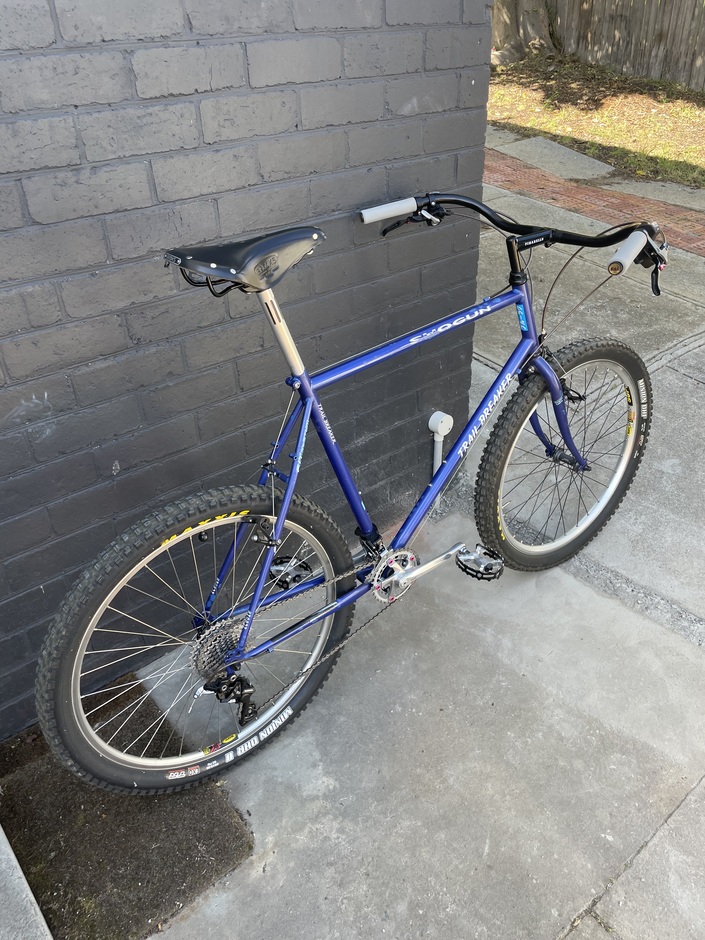

A restomod of sorts - picked up the frame for super cheap and cleaned and rust repaired it. The purpose of the bike is to be a capable but also cool bike for weekend trails etc.
Frame:
1993 Shogun Trail Breaker
Fork/Headset:
Standard unifork; Crust 24 palms headset
Crankset/Bottom Bracket:

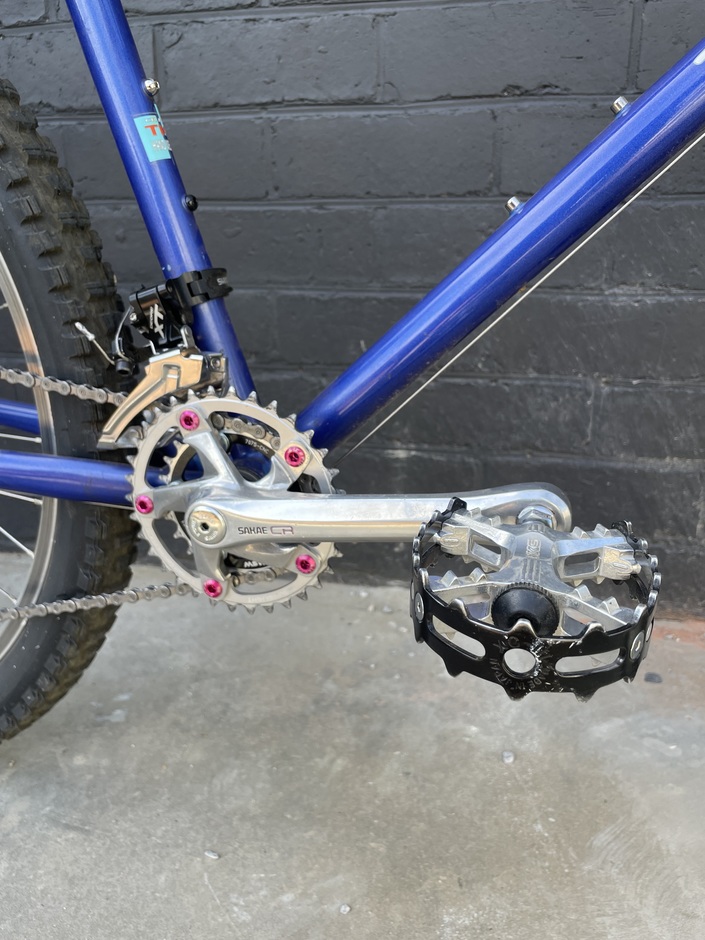

Vintage Sakae CR (3x running as a 2x with 34/24 chainrings); Sun Race 68/127.5 BB
Pedals:
MKS XC-III Bear Trap
Drivetrain/Cog/Chainring/Chain:
Dimension multi speed 24t inner, Stronglight 9/10 speed 34t outer; Shimano XT CS-M771 11-36 cassette; Shimano HG95 chain
Derailleurs/Shifters:
Shimano XT FD-M786 front derailleur (with an asymmetrical shim to position the 34.9mm clamp correctly on the 28.6mm seat tube. Mechanism then further modified to increase the bottom position of the derailleur); Shimano XT RD-M786 GS Shadow Plus 10 Speed Medium rear mech; Shimano XT SL-M780 shifters (with indicators).
Saddle/Seatpost:
Brooks B17 standard (black); Random fluted 26.8mm seatpost (kalloy maybe?)
Brakes:
Tektro 720 cantilever brakes, Tektro levers
Front Wheel/Hub/Tire:
Shimano XTR M950 hub; Mavic D521 rim; Maxxis Minion DH 26x2.5
Rear Wheel/Hub/Tire:
Shimano XT M760 hub; Mavic X317 rim; Maxxis Minion DH 26x2.3
Added by ConePacker69.
