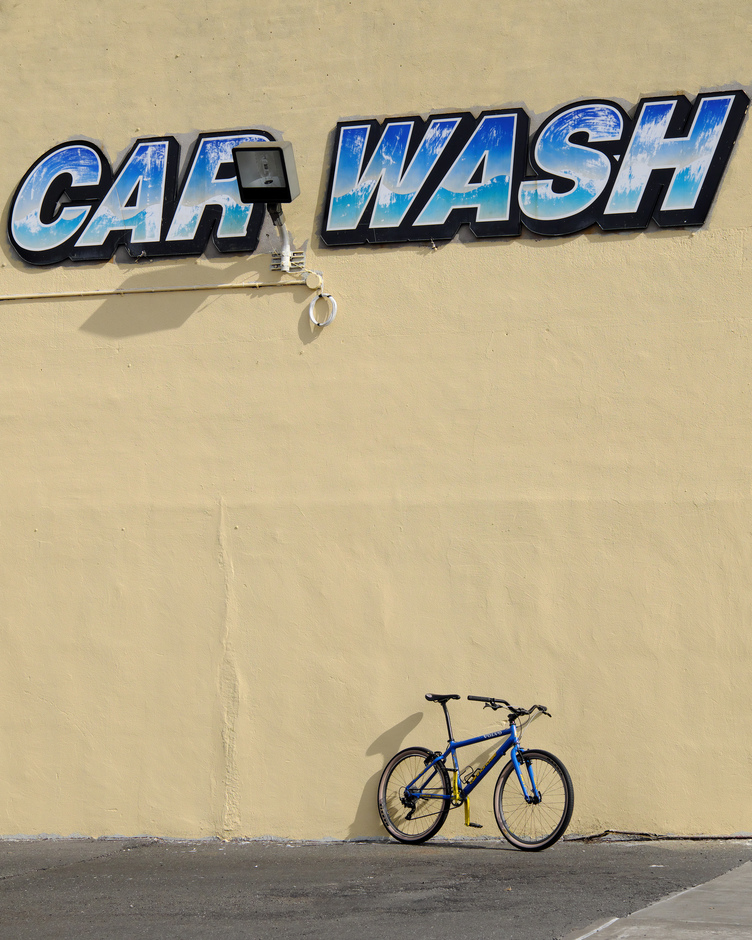

Classic Trials replica frameset rebuilt as a modern 1x10 trail / snow shredder.
Frame:
1999 Cannondale CAAD3 Martyn Ashton
Fork/Headset:
1999 Cannondale Fatty R fork / Chris King NoThreadSet
Crankset/Bottom Bracket:
Race Face Turbine LP 175mm cranks / Shimano BB-UN55 BB
Pedals:
DMR V12 Magnesium pedals
Drivetrain/Cog/Chainring/Chain:

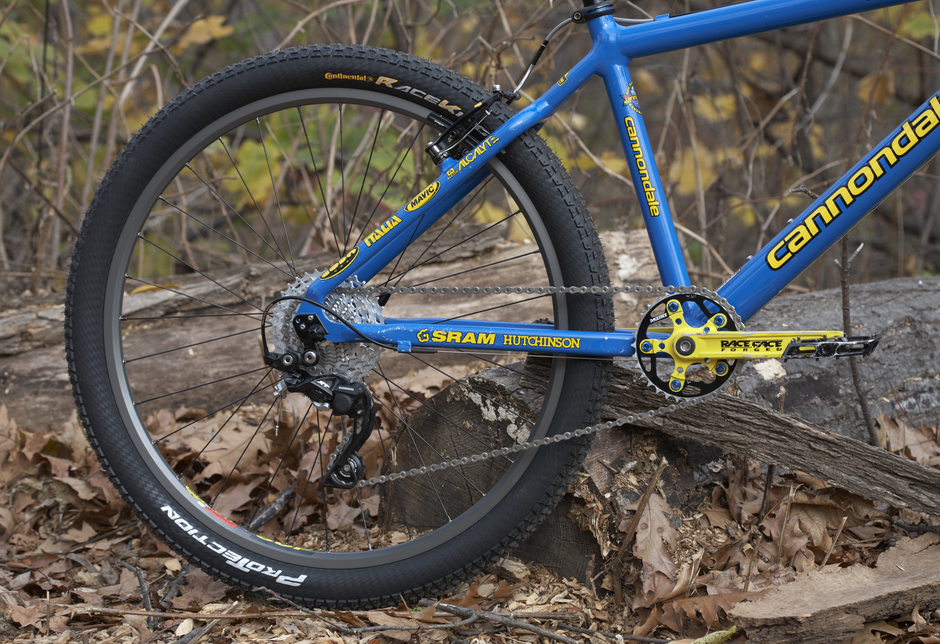

1x10 / Shimano XT CS-M771 11-36T cassette / Wolf Tooth DropStop 32T chainring / Shimano XT HG-95 10spd chain
Derailleurs/Shifters:
Shimano XT RD-M786 GS Shadow Plus mech / Shimano XT SL-M780 shifter
Saddle/Seatpost:
1999 Selle Italia Flite Titanium saddle / Thomson Elite 410x27.2mm post
Brakes:

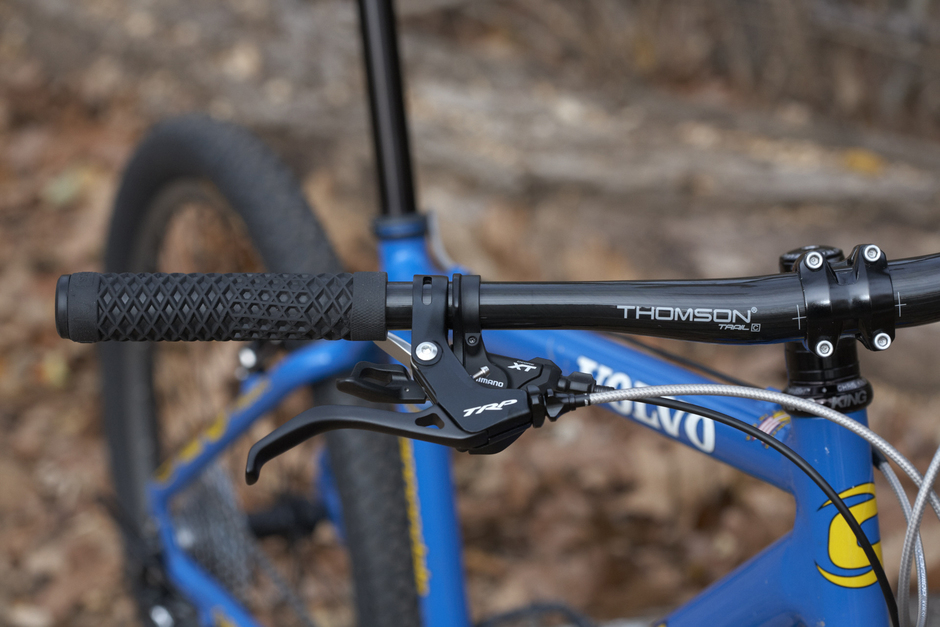

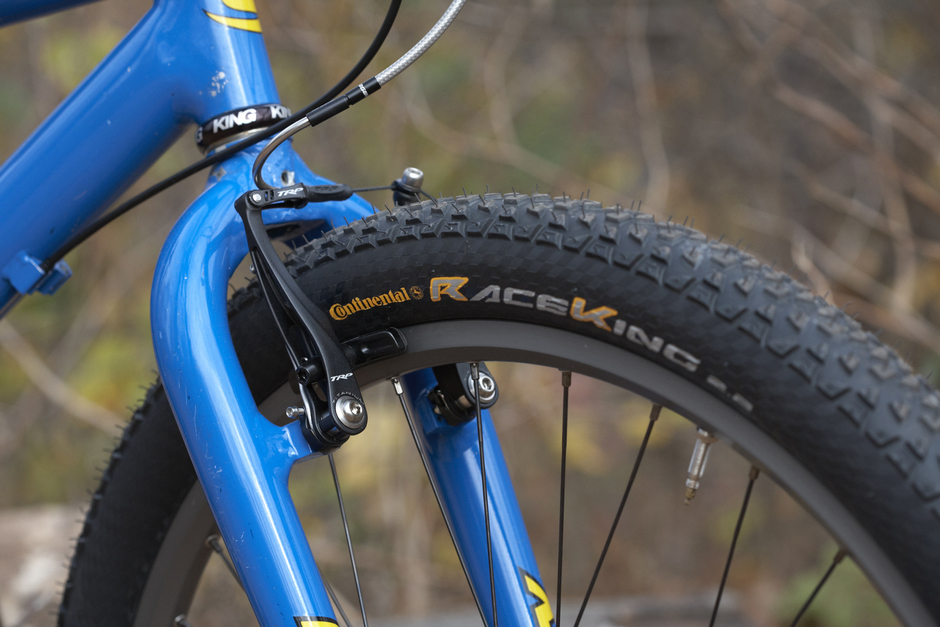

TRP M920 Calipers / TRP ML930 Levers
Front Wheel/Hub/Tire:

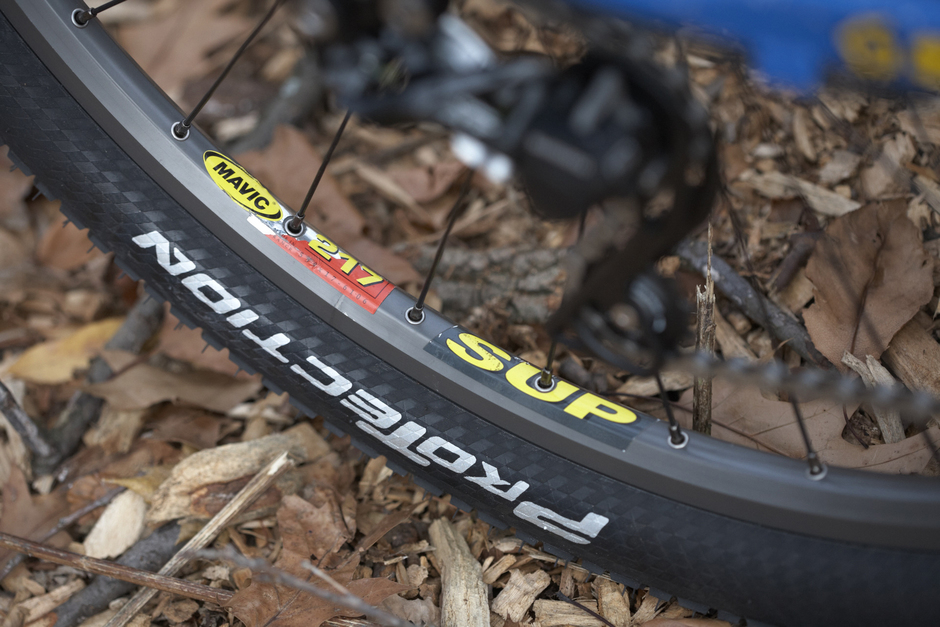

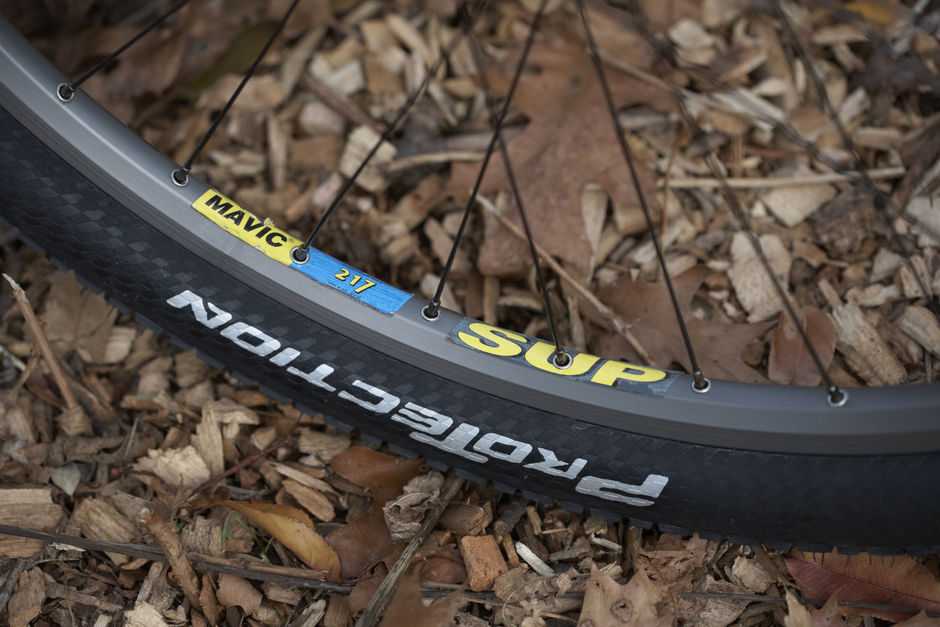

Mavic 217 CD Grey rim / Deore FH-M615 hub / Maxxis DTH 26x2.15 Gumwall tyre
Rear Wheel/Hub/Tire:
Mavic 217 CD Grey rim / Deore HB-M615 hub / Maxxis DTH 26x2.15 Gumwall tyre
Accessories:
Vans x Cult Grips
Bike History
Click a link below to see past stages of this bike.
Current Stage Info:

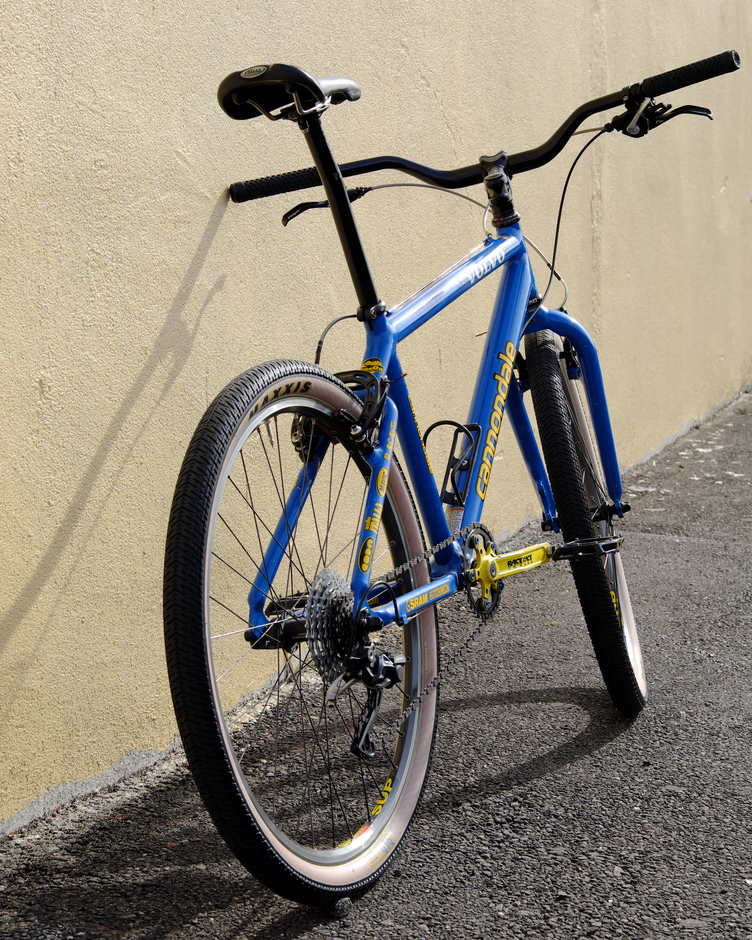

Summer ripper with fat gumwalls and swept-back risers.
Added by theycallmemisterbridge. Last updated almost 5 years ago.
8 Comments
Ok ! Thank you for the informations. If i can’t find sonething cheaper, i’ll order a Wolf tooth drop stop narrow wide too. Can you say me what’s the lenght of your bottom bracket axle ? Now with a 109mm axle and the ring in the middle position (inside of the spider) my chain is almost straight in the middle of the cassette. Maybe with a shorter axle this is possible to install the ring on the outside of the spider. Thanks
Posted almost 6 years ago
The Wolf Tooth ring is designed to mount in the middle position only, I think - email them and check. I don't know my BB axle length, sorry.
Posted almost 6 years ago
Perfect build !
Posted almost 6 years ago
Do you have two model of narrow wide chainring ? (the wolftooth on the last picture and another one on the first picture ?) Can you say me what is the second chainring ? I am look for a narrow wide ring for my race face turbine crank (5 Bolt bcd 94) and i’ve only find the wolftooth component. Thanks
Posted almost 6 years ago

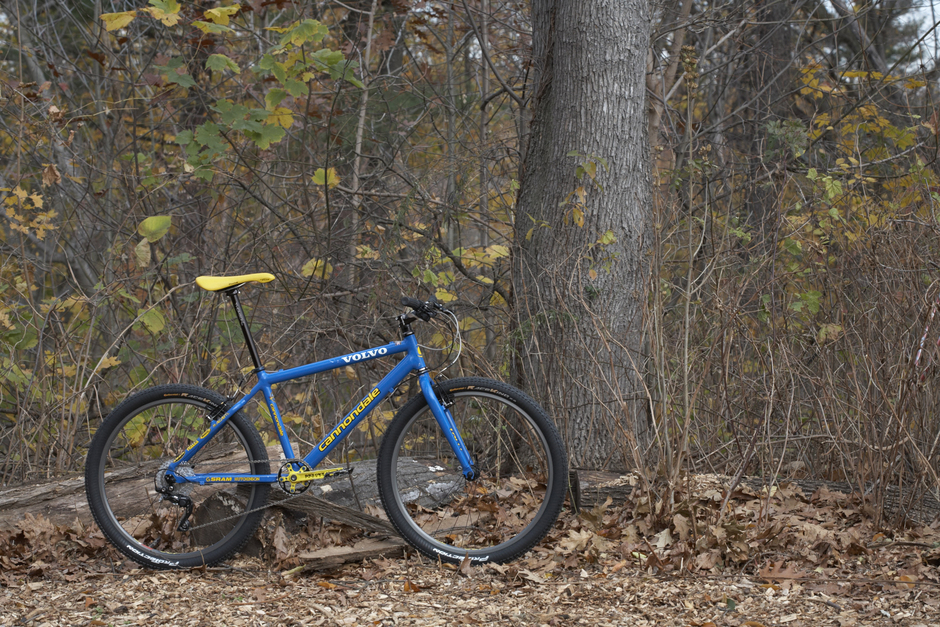

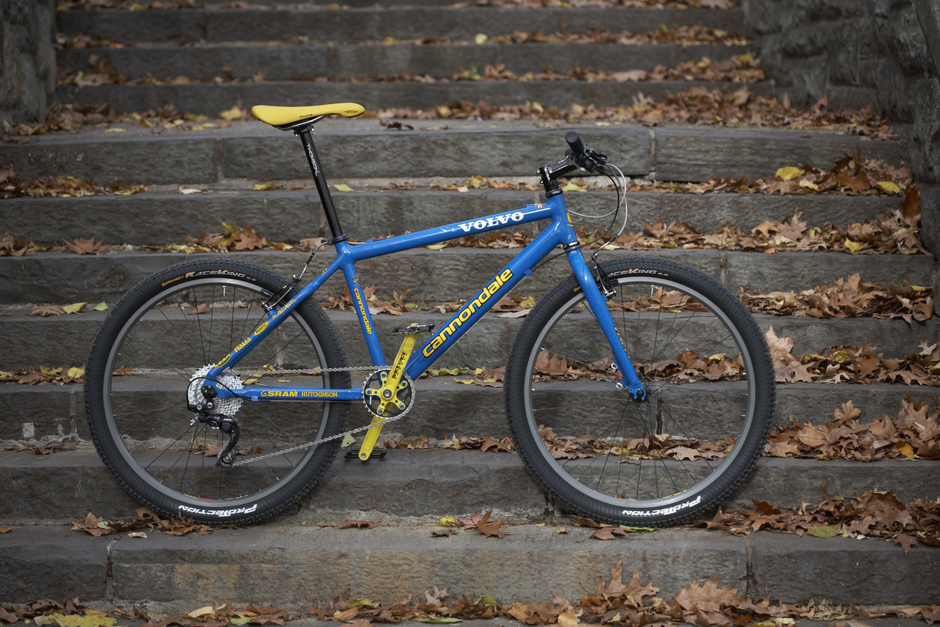

Glad you like it. The chainring in the first set of images (yellow saddle) is the original RaceFace middle chainring that came with the cranks. It's not a Narrow-Wide. The one in the last picture is the Wolf Tooth DropStop 32T 5-bolt 94BCD.
Posted almost 6 years ago
might be the coolest neo retro build I've seen. perfect mix of period correct and sensible :).
Posted almost 6 years ago
Photos
Tags
caad3, cannondale, martyn-ashton, mountain-bike, volvo
More
theycallmemisterbridge's Other Bikes
notsen says:
I have the same cranks and just got that Wolf Tooth chainring as well.. I’m wondering how do you mount the 5th bolt hole that isn’t threaded? The only way I can get a bolt on there is if I mount a standard chainring bolt backwards.
Posted almost 4 years ago
