Canyon Pathlite

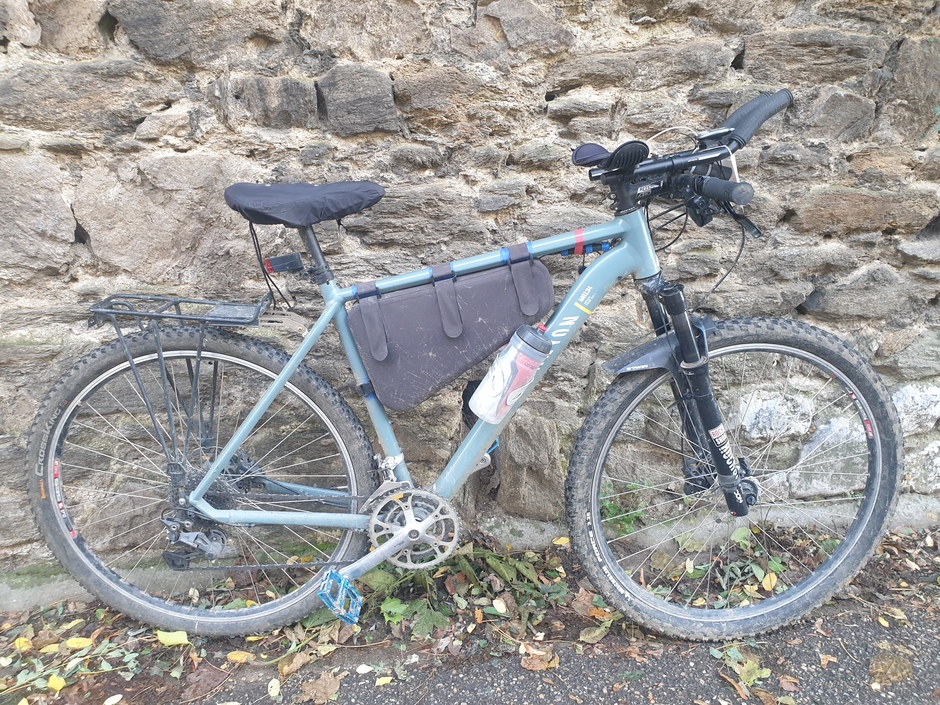

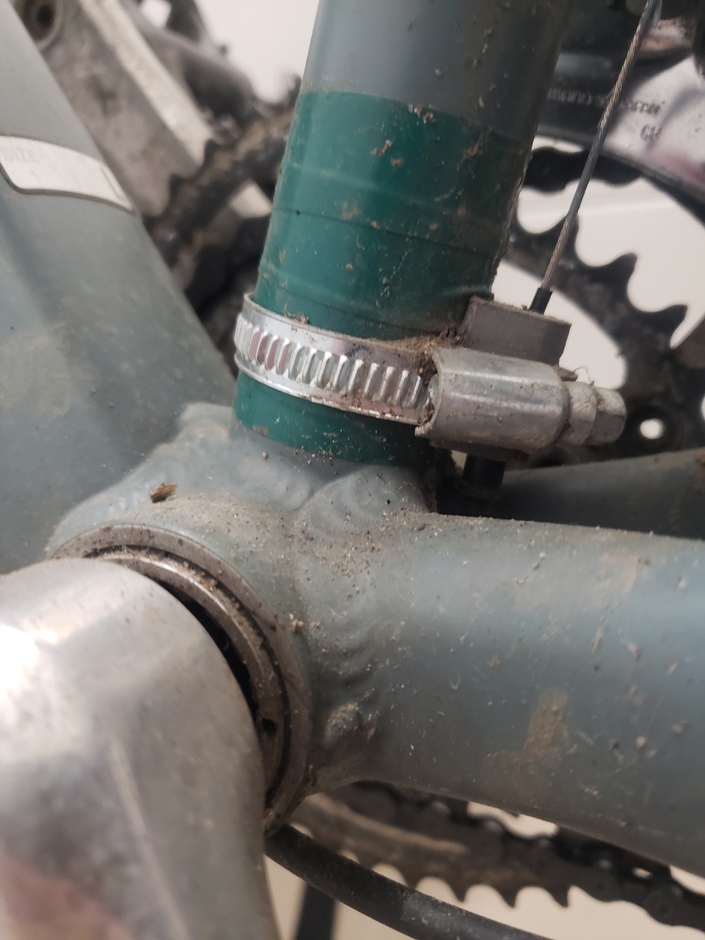

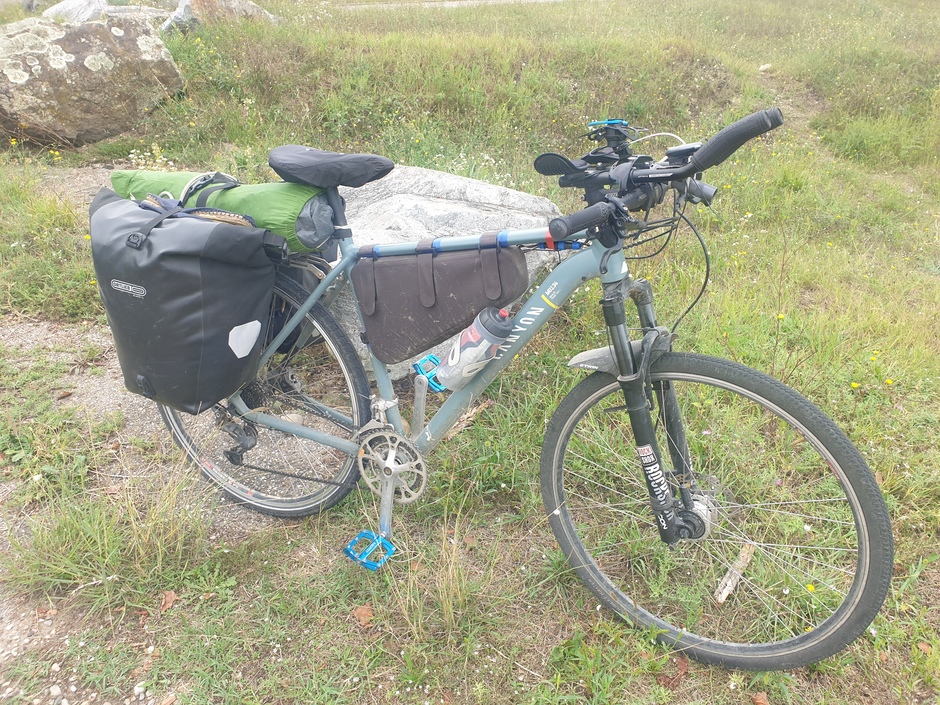

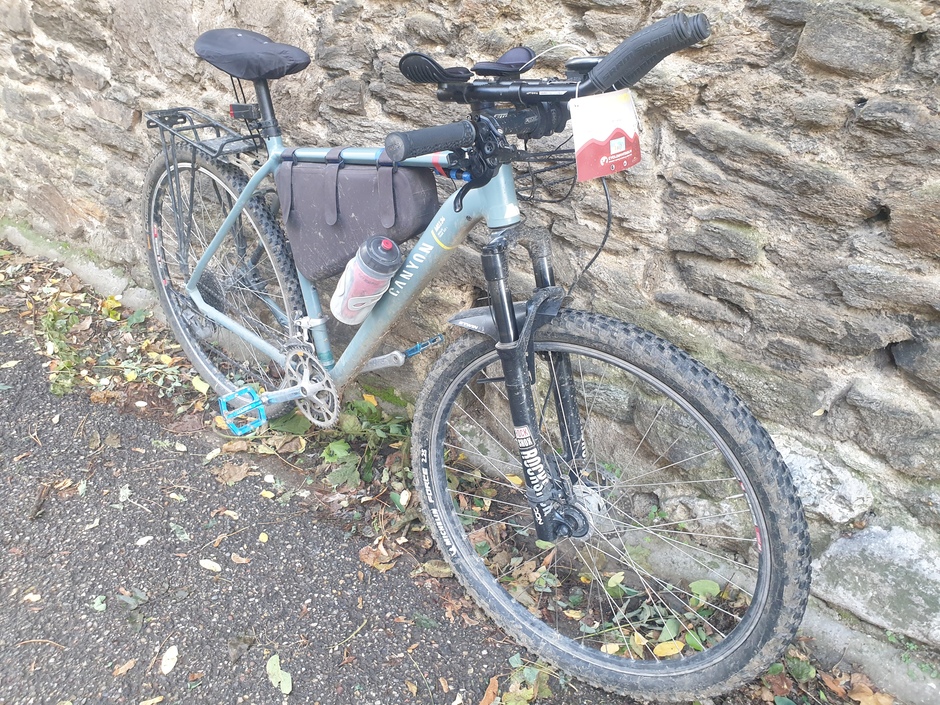

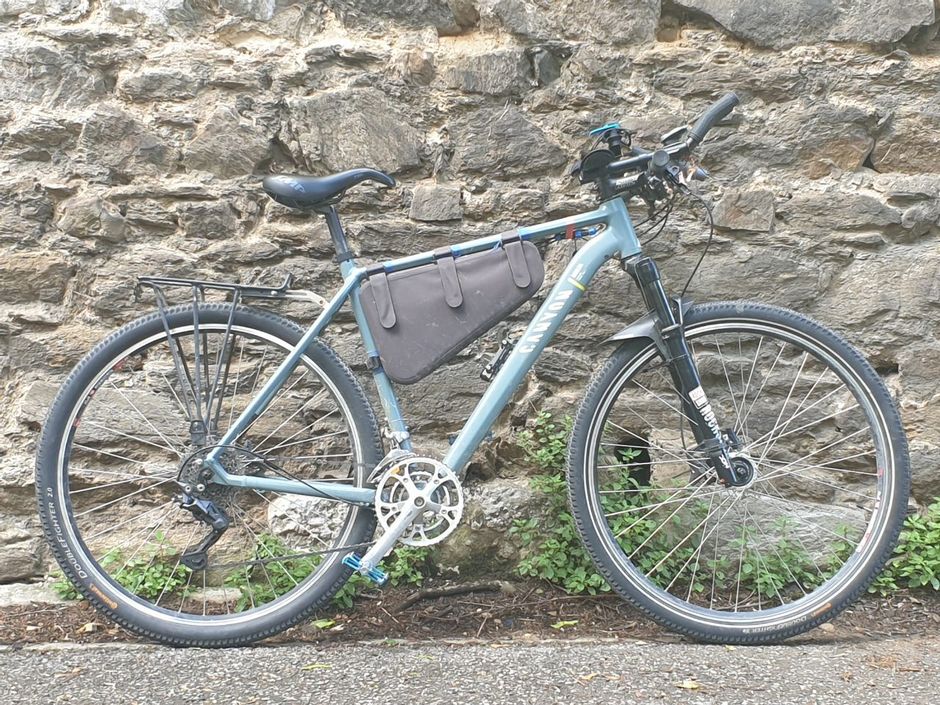

My take on the Pathlite frame, as a Cutthroat wanabee It's made for 1-by so I had to widen a tiny bit the internal cable passing hole to fit one more housing for the front derailleur + added a custom 3D printed cable stop. This bike can do basically everything I need, with 3 pairs of tires. - Continental Double fighter + ride tour 37 for touring and commuting - Continental Double fighter 50 for commuting and gravel - Continental Crossking + Michelin Force for MTB Surely not the lightest, but it took me quite a few times to work and lost trails, as well as France crossings without the tiniest failure except 1 flat maybe). It's autonomous thanks to the dynamo hub coupled with a USB charger and housemade front light (up to 700 lumen + standlight)

Frame:
Canyon Pathlite L size

Fork/Headset:
Rockshox Recon lockable

Crankset/Bottom Bracket:
Shimano

Drivetrain/Cog/Chainring/Chain:
Shimano biopace 48/34/24 + Shimano 10s 11-36 cassette

Derailleurs/Shifters:
Shimano Deore/random

Handlebars/Stem:
Ritchey

Saddle/Seatpost:
SMP TRK

Brakes:
Shimano deore hydraulic disc

Front Wheel/Hub/Tire:
Custom DT Swiss 535 rim + Shimano DH-3D80

Rear Wheel/Hub/Tire:
Custom DT Swiss 535 rim + Shimano deore hub

Accessories:
Zefal frame bag Aptonia (décathlon) aero bars
