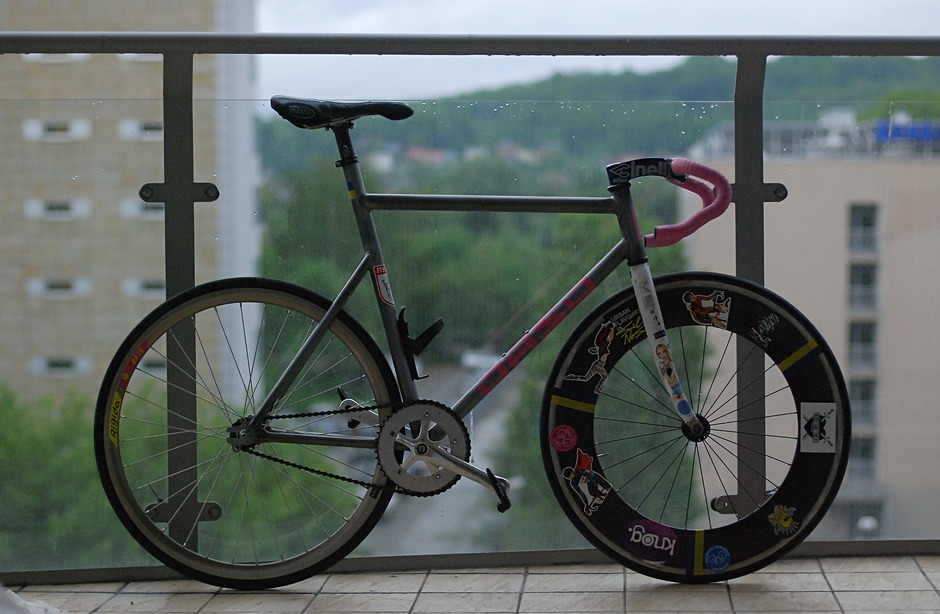

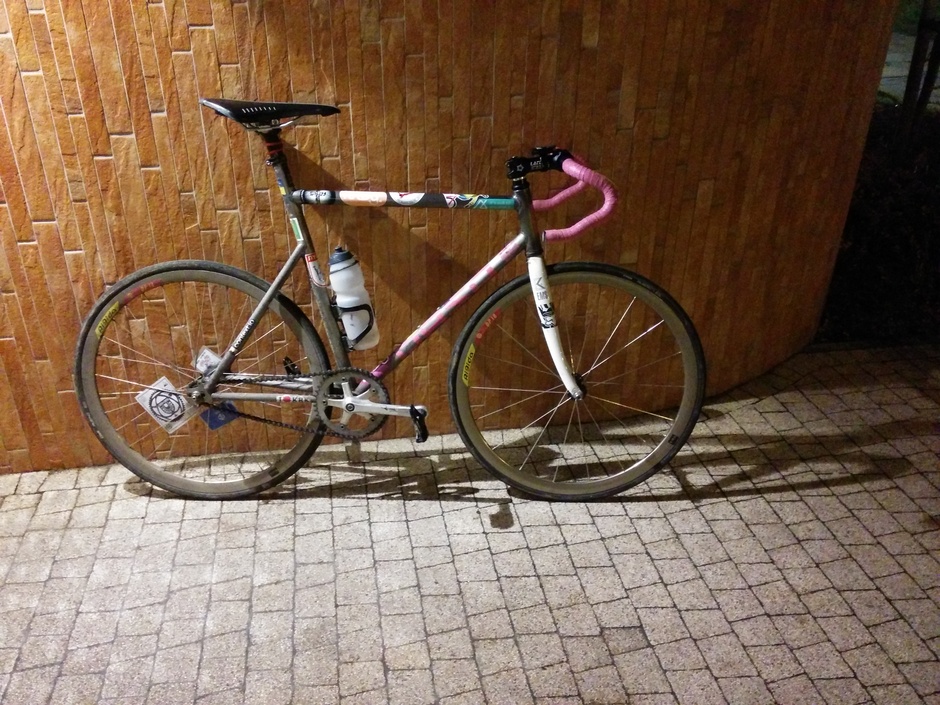

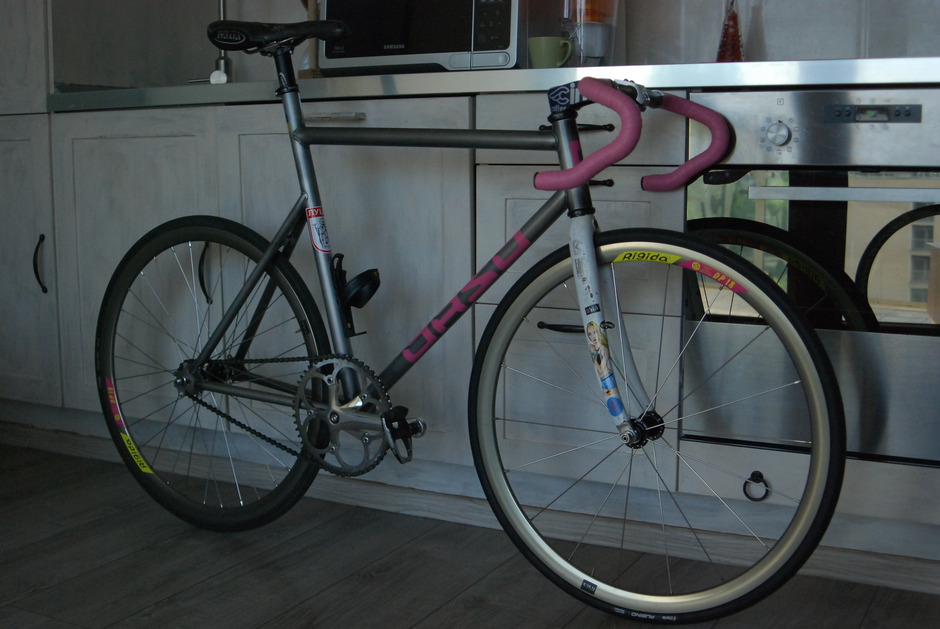

650С hybrid bike. Has an option for road and track using.
Frame:

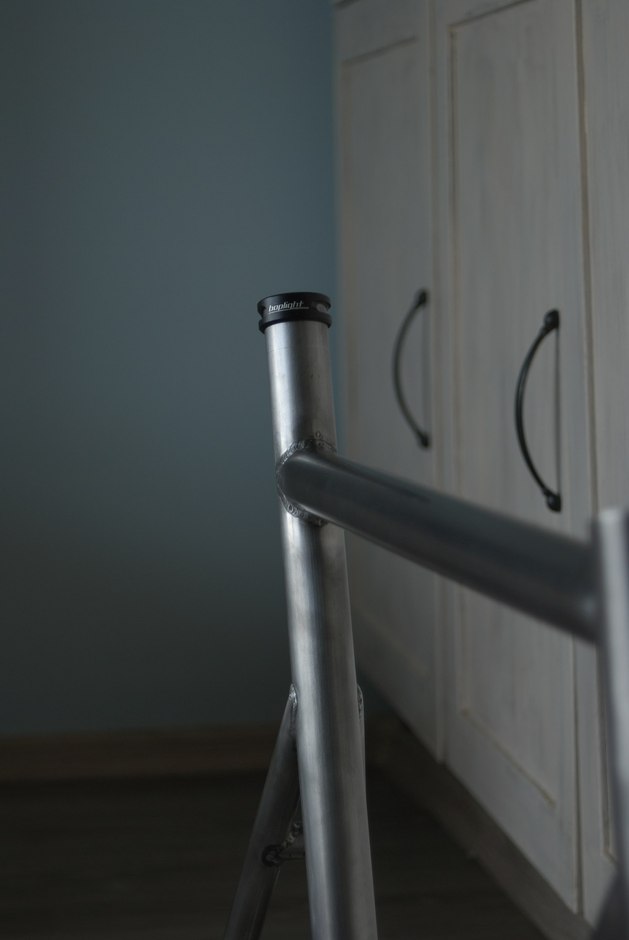

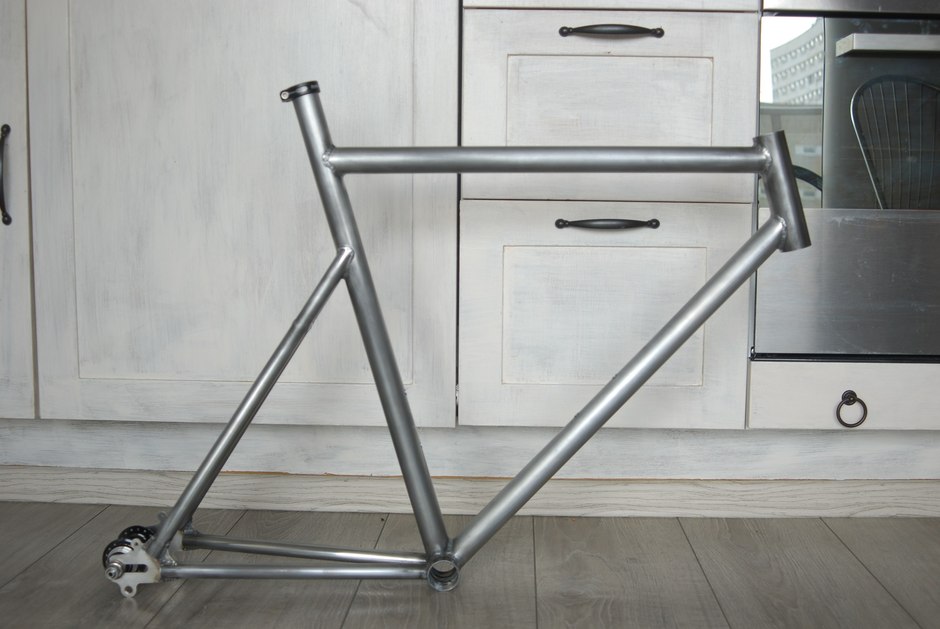

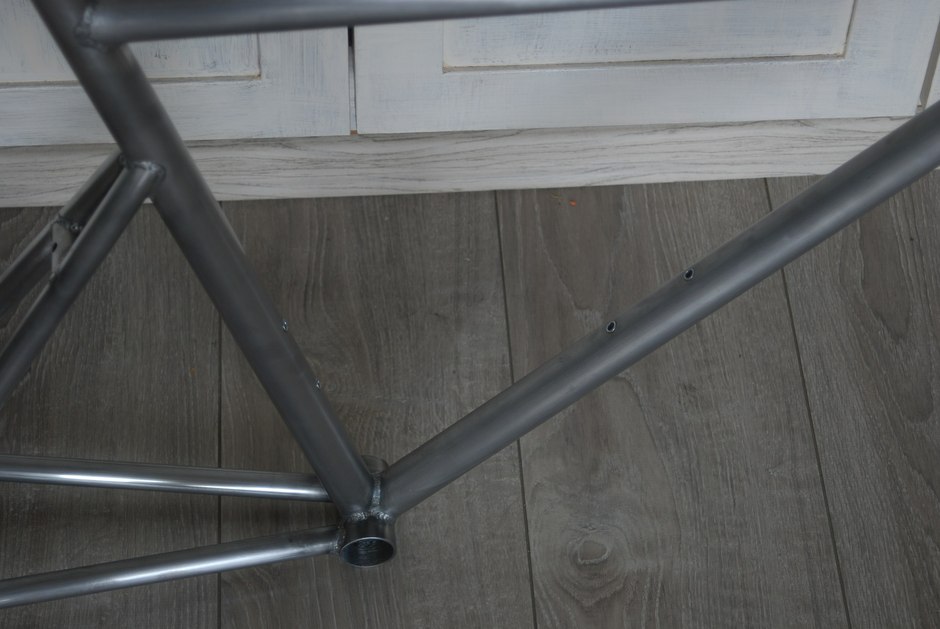

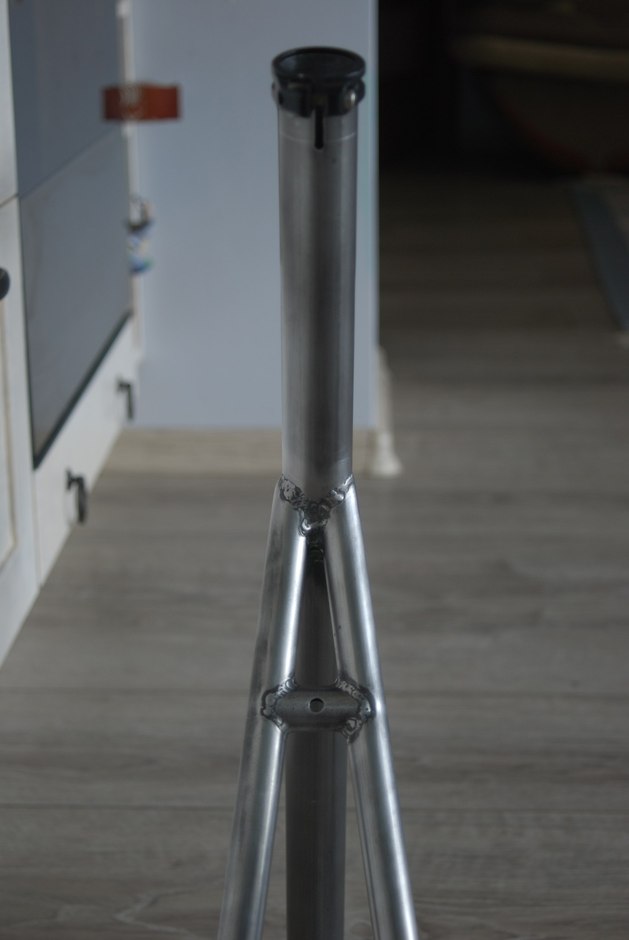

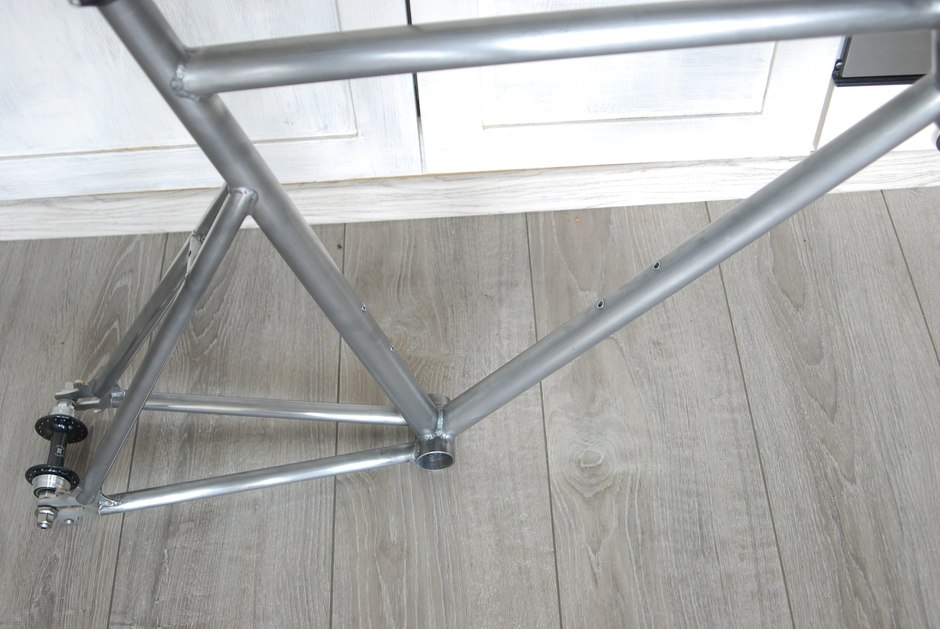

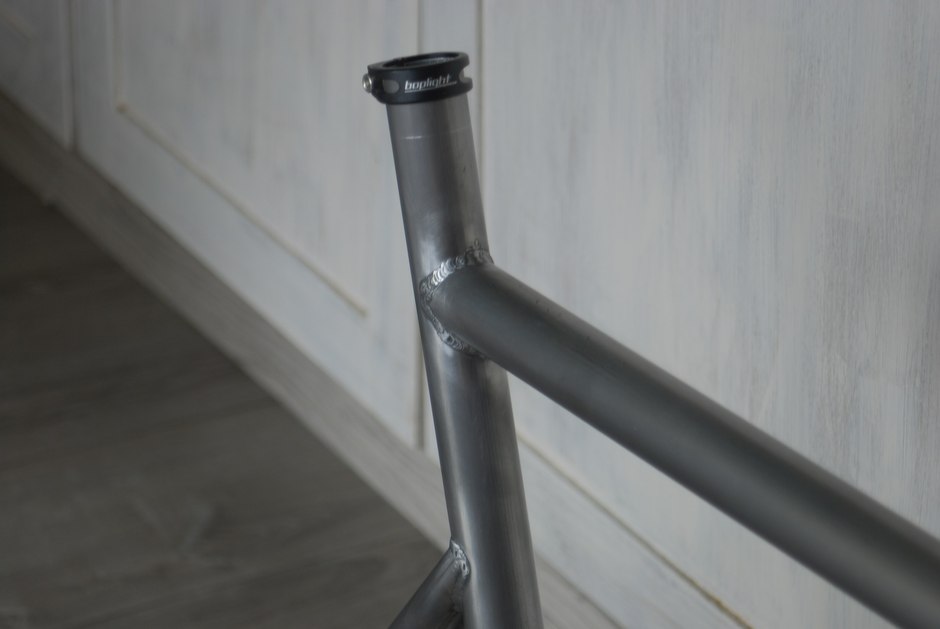

My own project. Steel. Built by ORSO.
Fork/Headset:
EMS Carbon 650C / Cane Creek 1 inch A-Head
Crankset/Bottom Bracket:

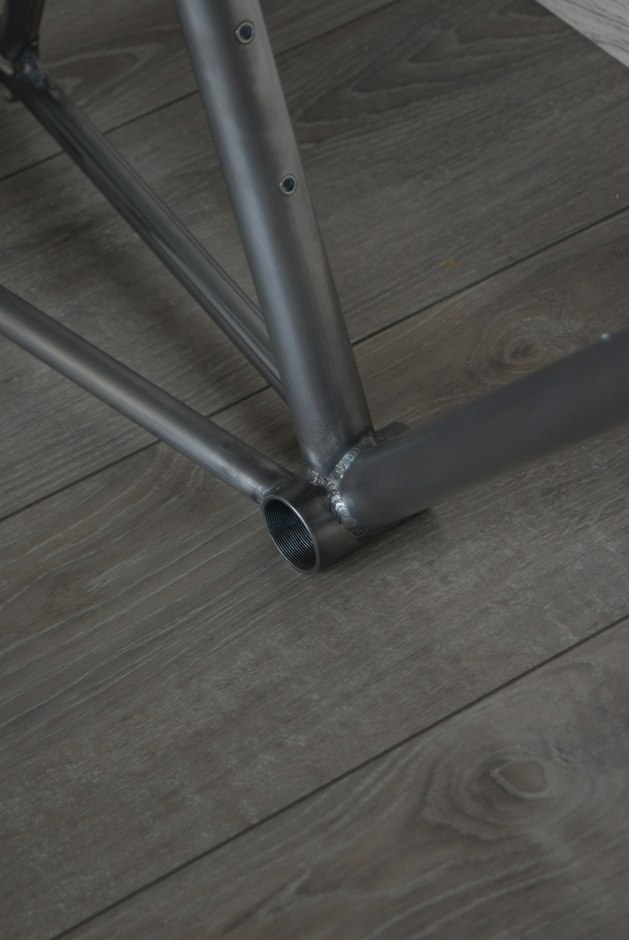

Shimano 600 170mm / Shimano BB-UN26 68x110mm
Pedals:
Shimano 105
Drivetrain/Cog/Chainring/Chain:
Shimano Dura-Ace 13T / Handmade in Kraków INOX Steel 44T / Sram PC-1
Saddle/Seatpost:
Fizik Arione Wing Flex / BBB SKYSCRAPER 30mm
Front Wheel/Hub/Tire:
Rigida DP18 650C 18H / Novatec Low Flange 36H / Vittoria Rubino 650x23C
Rear Wheel/Hub/Tire:
Rigida DP18 650C 32H / Novatec Low Flange 32H / Vittoria Rubino 650x23C
Accessories:
1x Zefal Spring Bottle Cage / Fizik Microtex Pink Bartape / KNOG Nerd 9 computer
More Info:
8,5 kg
Bike History
Click a link below to see past stages of this bike.
Added by ddmytrenko. Last updated almost 6 years ago.
As of almost 6 years ago, ddmytrenko has indicated that they no longer own this bike.
21 Comments
как, например, проводить тросы переключения передач?
Posted almost 10 years ago
в продаже есть специльньіе зажимьі на трубьі для тросиков (на тормоза и передачи)
Posted almost 10 years ago

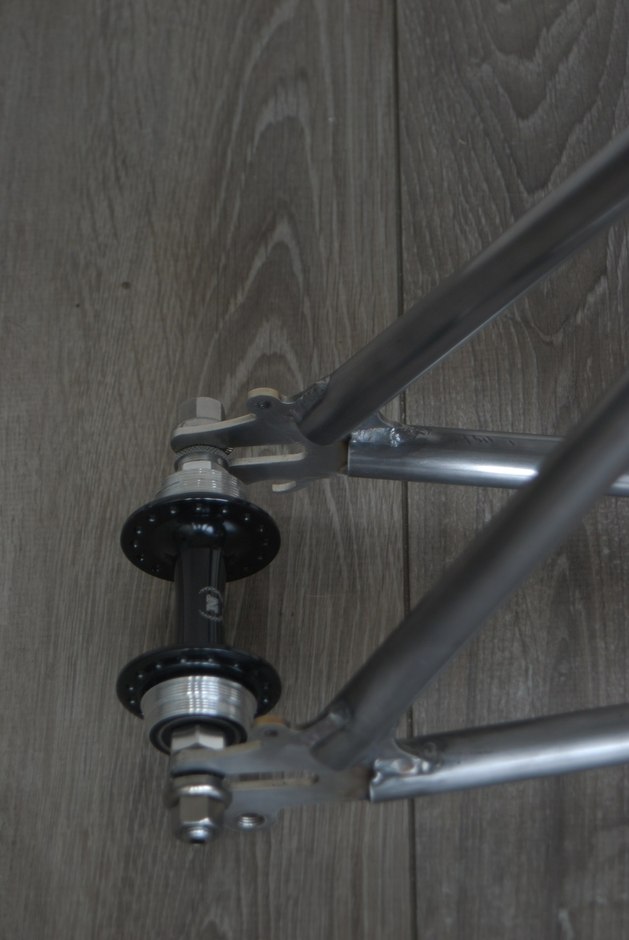

are you using a track rear spacing (?120mm) or road rear spacing (130mm)?
Posted over 10 years ago

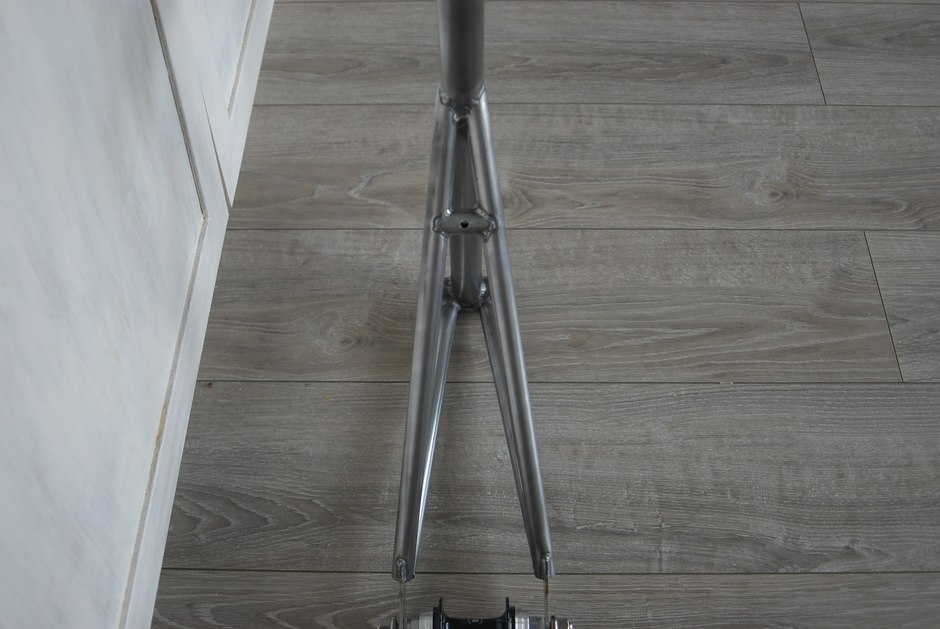

As this bike is made from steel, I've decided to use 125mm. So in case of track hub I will bend it in for 2.5mm on each side. And vice versa for the road 130mm option.
Posted over 10 years ago
In case of such en experiment with alu I suggest to use 130mm (mean to add some spacer in case of track hub).
Posted over 10 years ago
That's so cool! Any particular reason you went with 650c
Posted over 10 years ago
Thanks! I'am 171cm tall. And also 650C rim has some positive features: the possibility to build much more rigid wheel on the same weight, easier to climb and so on.
Posted over 10 years ago
Oh that's cool, I thought about 650c for awhile, but pretty much everything I read or posted steered me away from it
Posted over 10 years ago
In case when you are a kind of tall person then you will loose in overal bike stiffness. But in my case the frame is not so huge (even remains small). Also I prefer rather shorter frame + longer stem than vice versa.
Posted over 10 years ago
That makes sense, I'm still supposed to grow, so that was one of my concerns (I would grow out of my frame), but now I'm back to considering it. Thanks
Posted over 10 years ago
Also there is a nice article from Cervelo about 650C: http://www.cervelo.com/en/engineering/a...
Posted almost 10 years ago
staylurkn says:
what a unique and sweet lil frame.
Posted almost 6 years ago
