- road race disc geometry - oversized conical internally butted headtube for 1.5" fork - diamond hydroformed toptube - oversized double butted downtube - double butted seattube - shallow hydroformed seatstays - Illuminati brake bridge - hydroformed chainstays - integrated brake cable routing - integrated shifting cable routing - PressFit 30 bottom bracket - flat disc mount - made in USA PARAGON dropouts compatible with both DT Swiss 142 x 12mm and SHIMANO 142 x 12mm hangers - DT Swiss 142 x 12mm thru axle removable alu hanger - hand brushed finish - custom sandblasting - ti headbadge - anodized bolts
Frame:
Illuminati (grade 9 ti)
Fork/Headset:

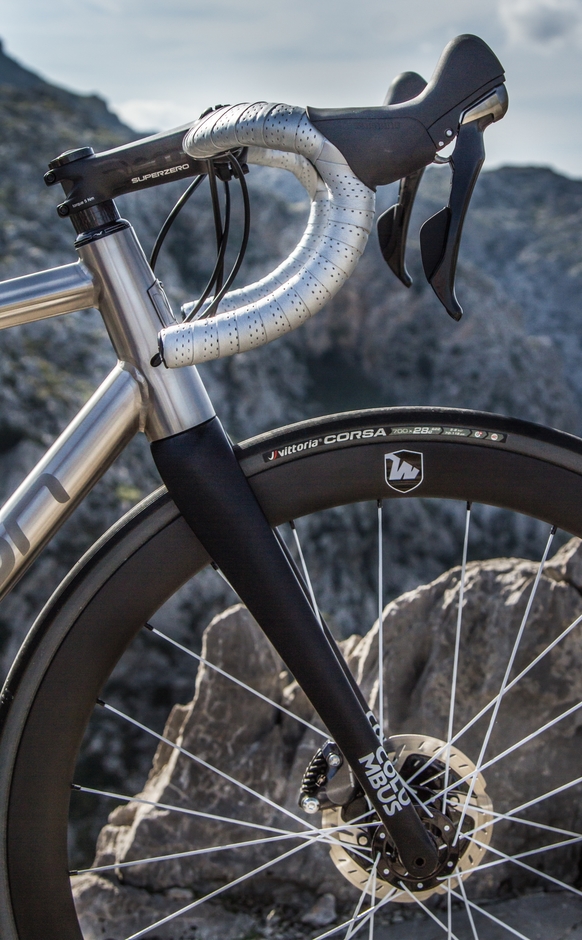

COLUMBUS Futura Disc Tapered 1.5" (carbon) / CANE CREEK 110 Tapered IS42/52
Crankset/Bottom Bracket:

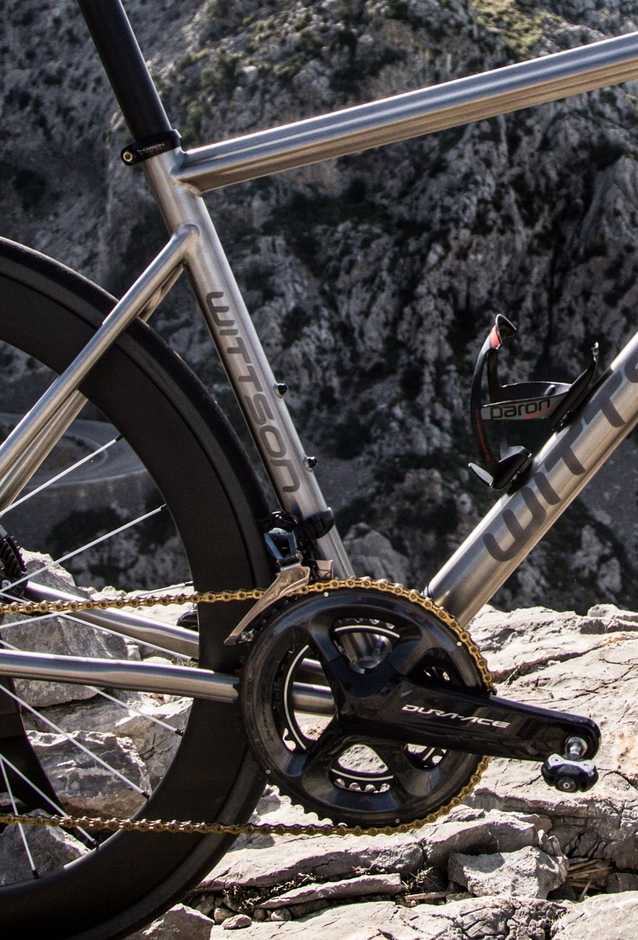

SHIMANO Dura-Ace R9100
Drivetrain/Cog/Chainring/Chain:
SHIMANO Dura-Ace R9100
Derailleurs/Shifters:
SHIMANO Dura-Ace R9100
Saddle/Seatpost:

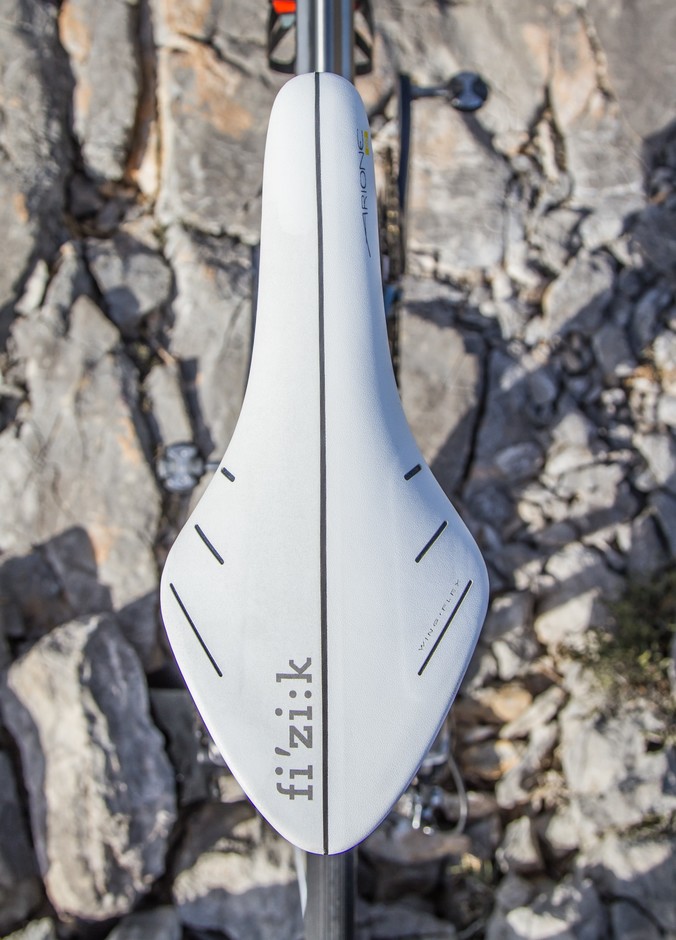

FIZIK Arione 00 (carbon rails/white) / DEDA SuperZero 31.6mm (carbon/black on black)
Brakes:
SHIMANO Dura-Ace R9100
Front Wheel/Hub/Tire:

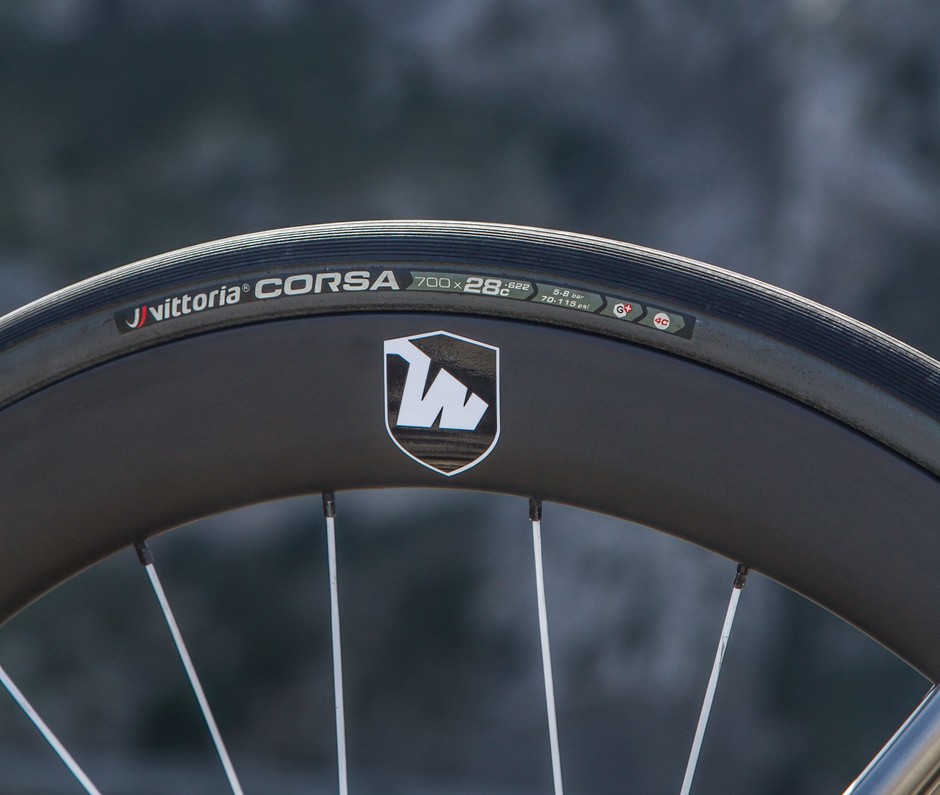

WITTSON Custom 45 (UD carbon) / CHRIS KING R45 Disc CL / VITTORIA Corsa G+Isotech 28 (dark grey/black)
Rear Wheel/Hub/Tire:
WITTSON Custom 55 (UD carbon) / CHRIS KING R45 Disc CL / VITTORIA Corsa G+Isotech 28 (dark grey/black)
Accessories:

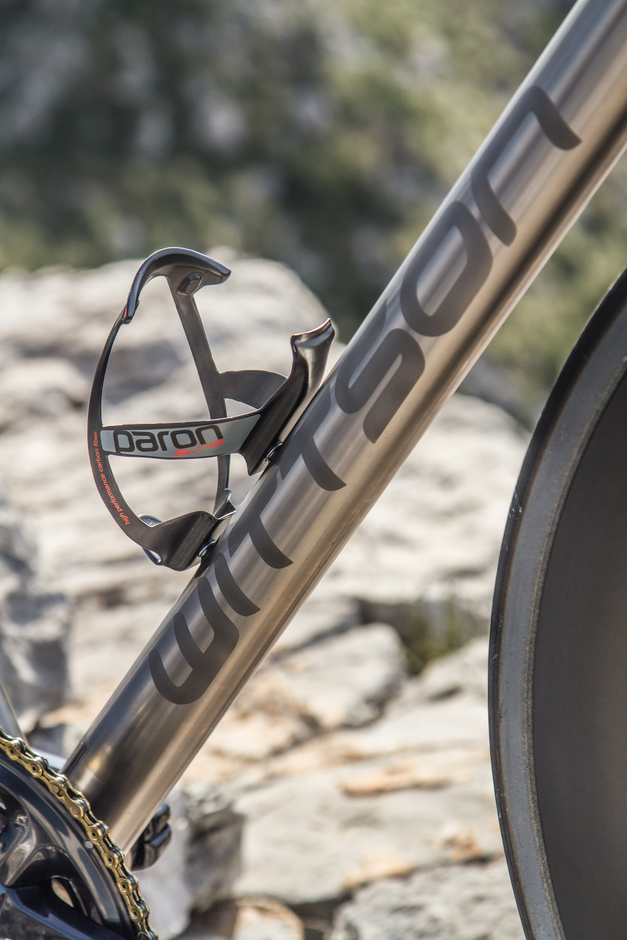

Carbon spacers / ELITE Paron Race bottle cage (carbon) / Ti bottlecage bolts
More Info:
Size: M / Finish: hand brushed titanium / Weight: 7.8 kg
