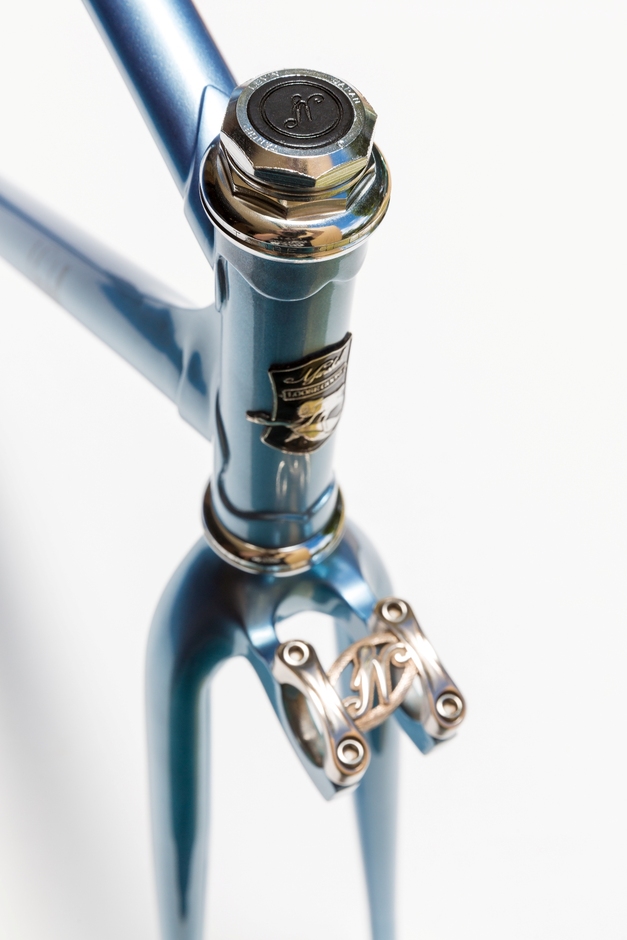

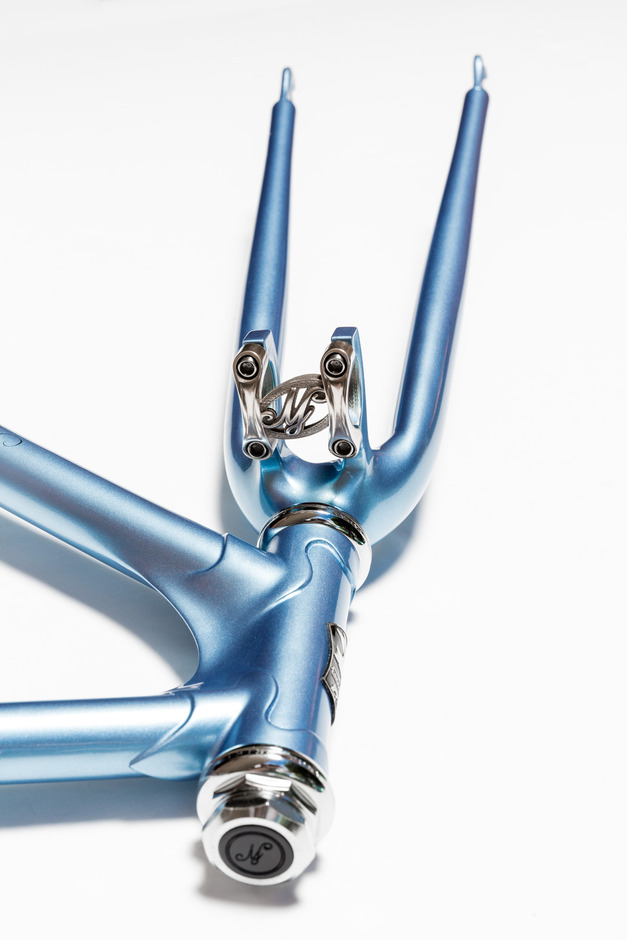

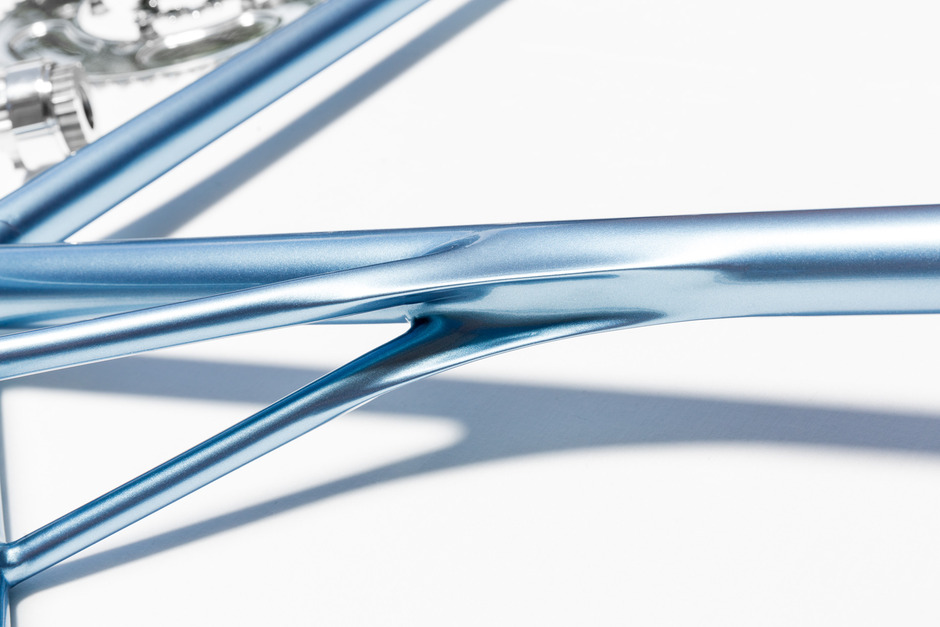

This is a project that started as something simple and morphed into a whole different beast. This thing shouldn't be taken too seriously, but came together nicely for an odd-ball franken bike! This bike draws inspiration from vintage pursuit bikes such as the Lasers, Takhions and Textimas. Substantial mods to the frame include ISP, seat-stay supports, aero gussets, custom track ends and custom fork with stem integrated into the crown. The frame+fork is painted in Bentley Continental GT silverlake metallic. The bike features a number of 3D printed parts including: stainless steel stem cap, high detail stainless steel head badge and bottom bracket serial badge, headset/steerer cap, and handle bar end plugs. The carbon disc also has a custom designed & machined aluminium hub body which carries a custom splined stainless steel track cog.
Frame:
Modified CrMo Australian road frame
Fork/Headset:
Custom, Tange Levin NJS
Crankset/Bottom Bracket:

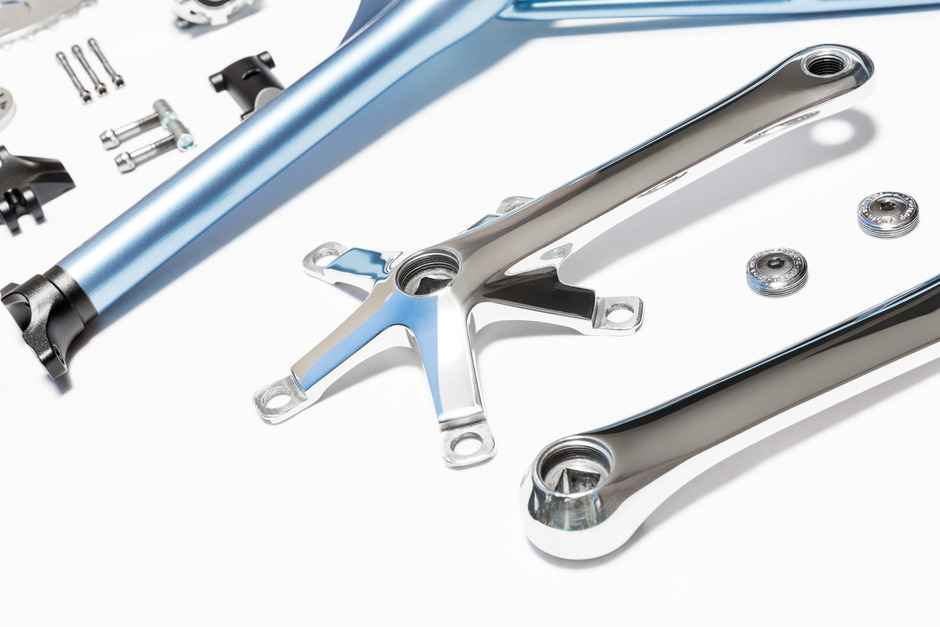

Hand polished Shimano 600, Sugino 75 NJS
Pedals:
Air.
Drivetrain/Cog/Chainring/Chain:

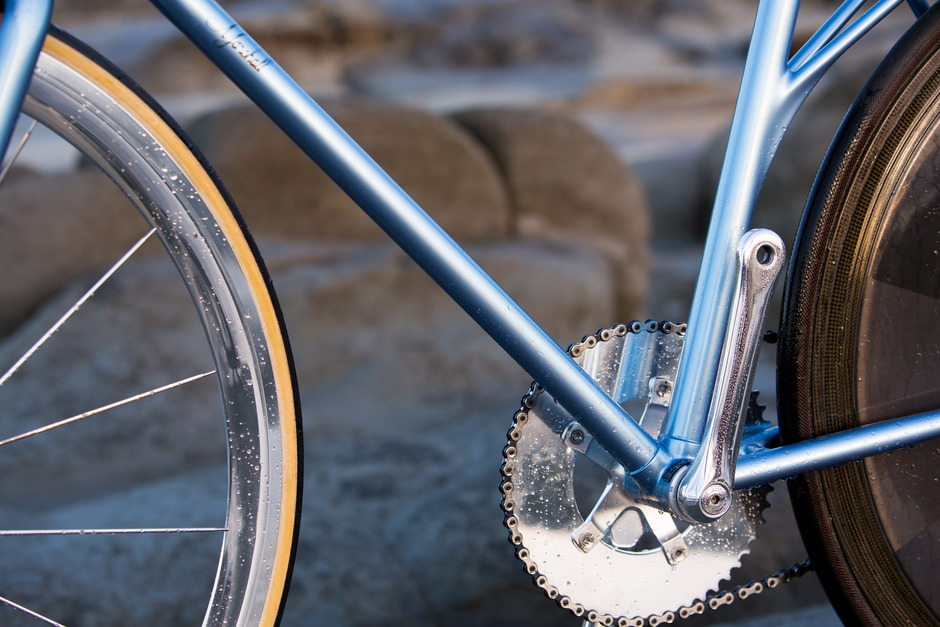

Custom CNC machined 54T chainring, Custom machined bolt-on stainless track cog (Titanium hardware), HKK Vertek NJS Silver
Derailleurs/Shifters:
Nope.
Saddle/Seatpost:
Kashimax Aero NJS Ostrich skin, ISP with modified saddle mount, hidden internal binder.
Brakes:
Nope.
Front Wheel/Hub/Tire:
Hand polished Mavic Cosmic tub.
Rear Wheel/Hub/Tire:
Modified carbon disc, Custom machined hub body (CNC+EDM), accepts custom splined track cog, adjustable chain-line.
More Info:
All work on the frame+fork, all paint, polishing, custom part design, assembly etc. was undertaken in my shed.
The professional photos were taken by Matt Leasegang Photography.
Will add build pics soon!!!
