Steel Di2 Disc Road – "Money Pit"

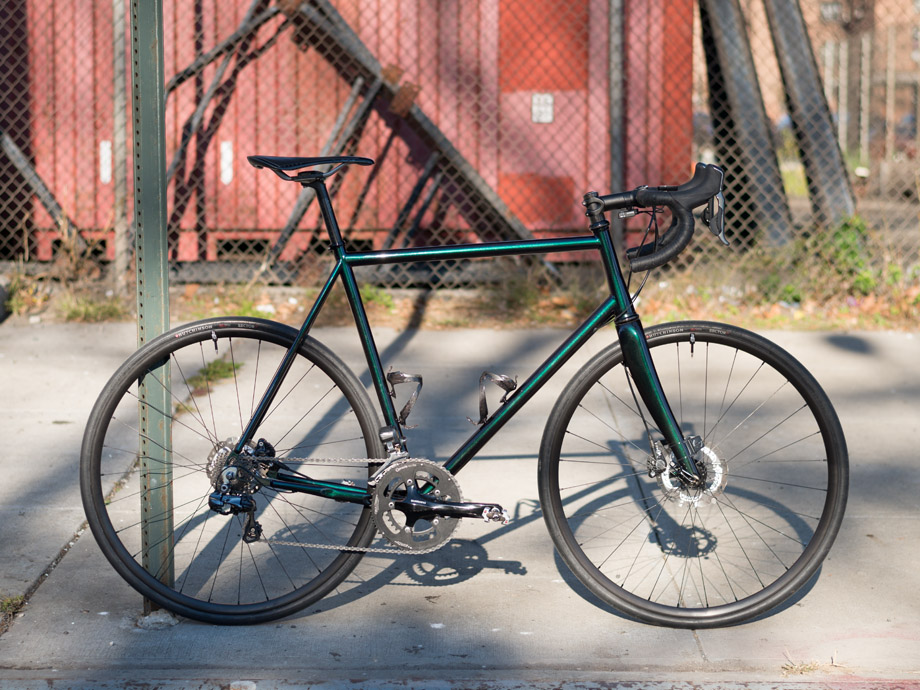

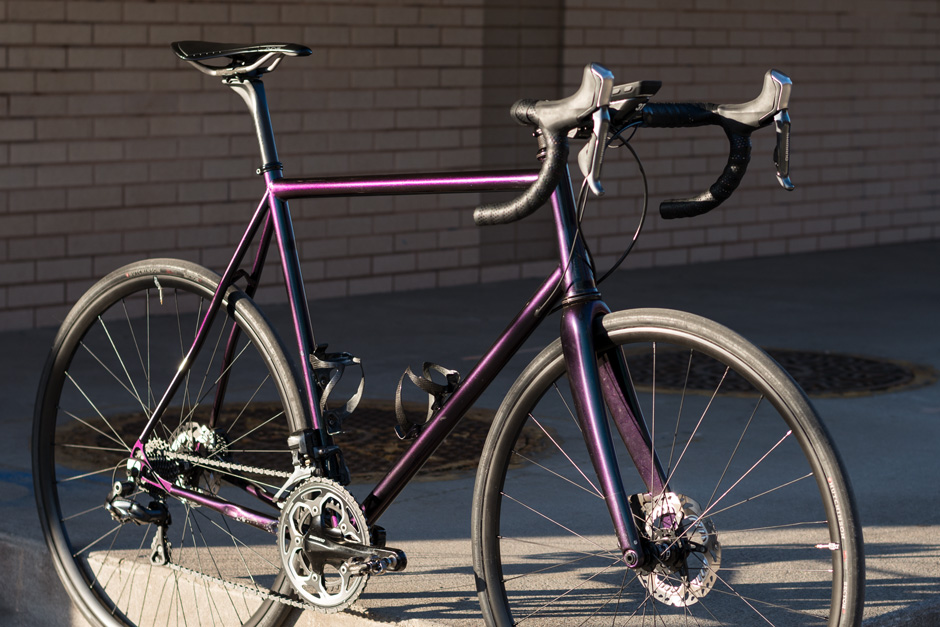

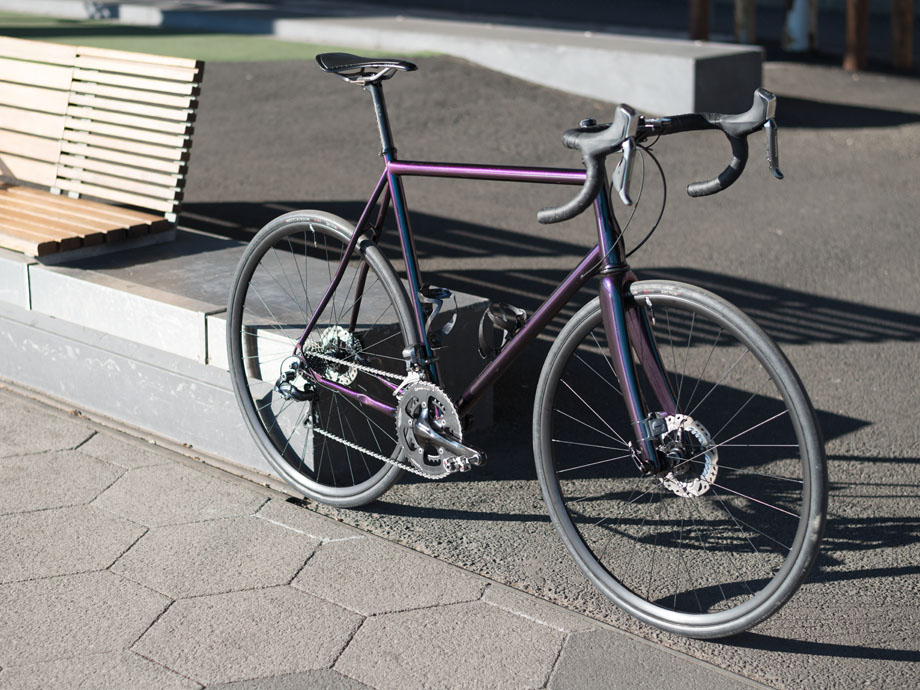

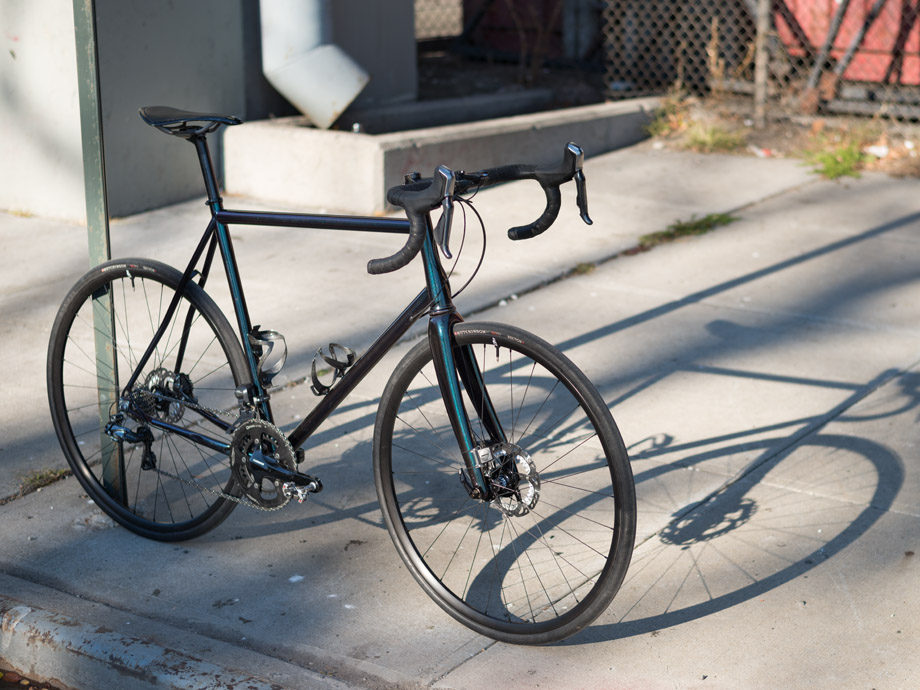

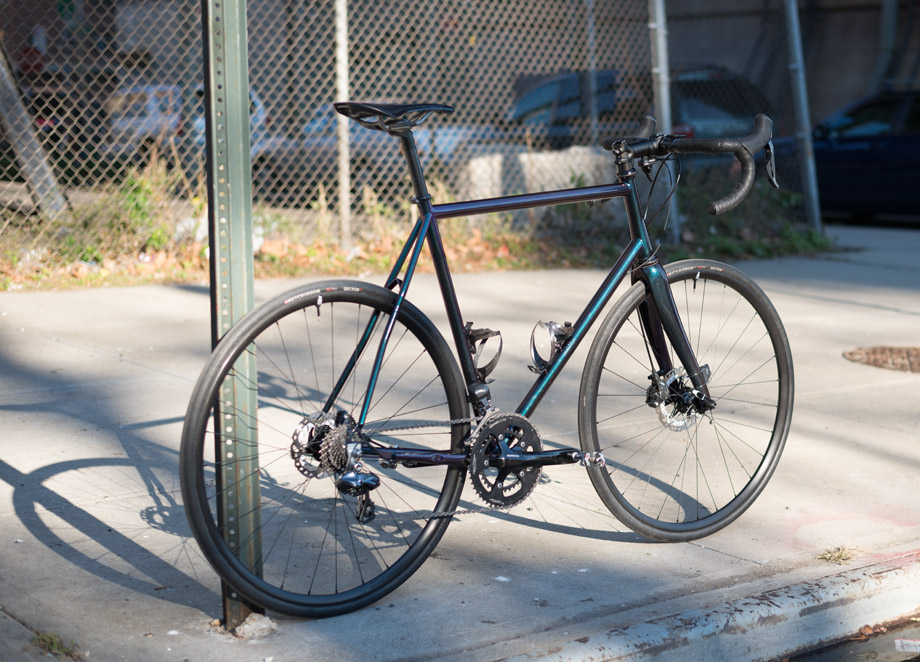

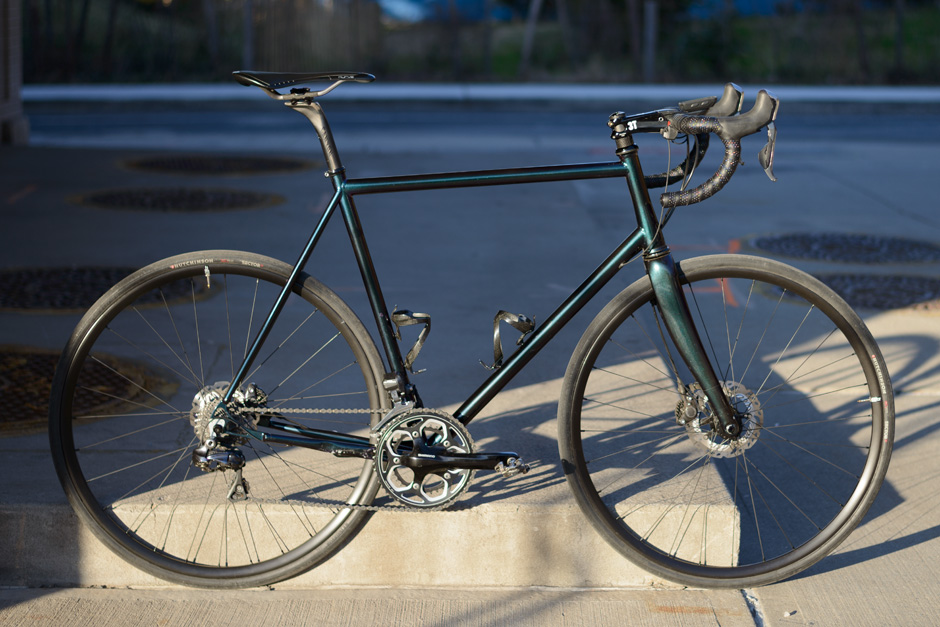

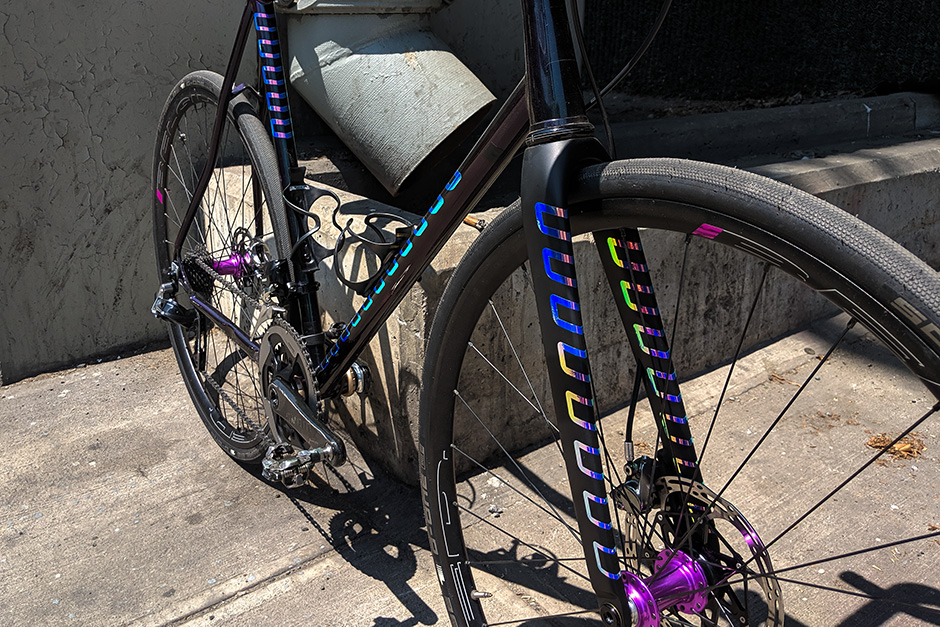

Constructed from a Dedacciai and Columbus, the frame features a tapered head tube, internal Di2 and brake routing. It was built by a student at Metal Guru and the "plum crazy" point job was done at Horse. Geometry is the same as an XL Lynskey R240, designed to be a bit upright for long rides.

Frame:
Custom steel, 59cm eff. TT

Fork/Headset:
Hylix Road Disc // Cane Creek 110

Crankset/Bottom Bracket:
SRAM S952 Wide Axle 30mm // FSA BB386EVO BSA

Pedals:
Shimano XTR 9000

Drivetrain/Cog/Chainring/Chain:
SRAM 50/34T rings // Red 22 chain // 8000 12-25T cassette

Derailleurs/Shifters:
eTAP / eTAP HRD

Handlebars/Stem:

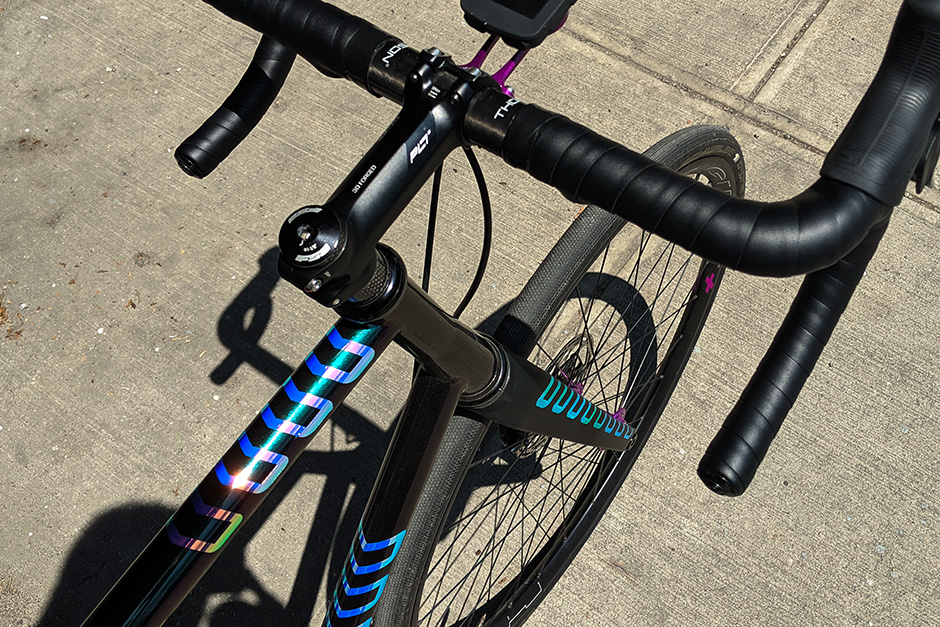

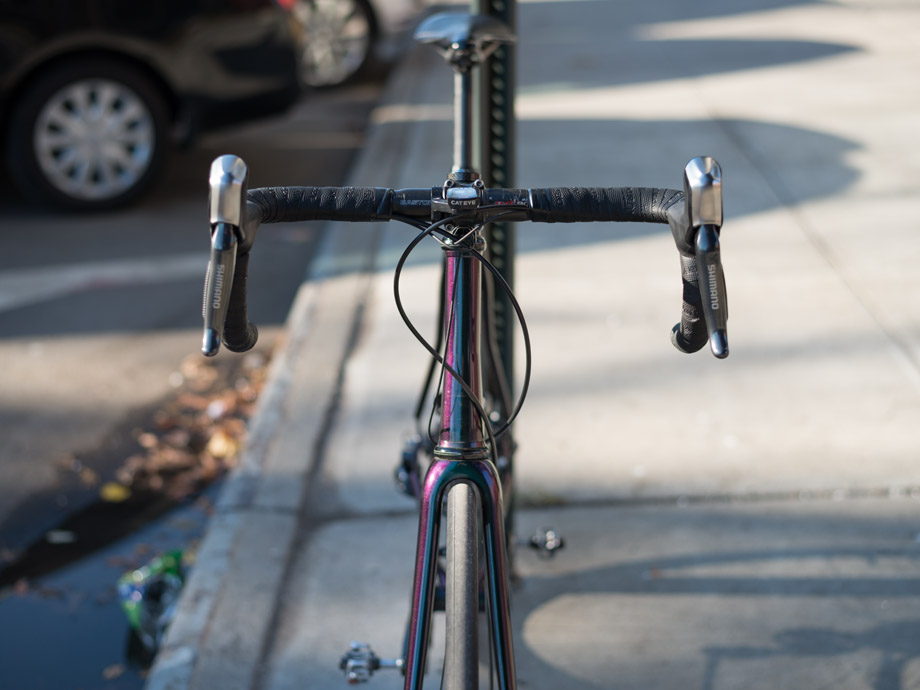

Thomson KFC 42cm // PRO Vibe 110mm -10º

Saddle/Seatpost:

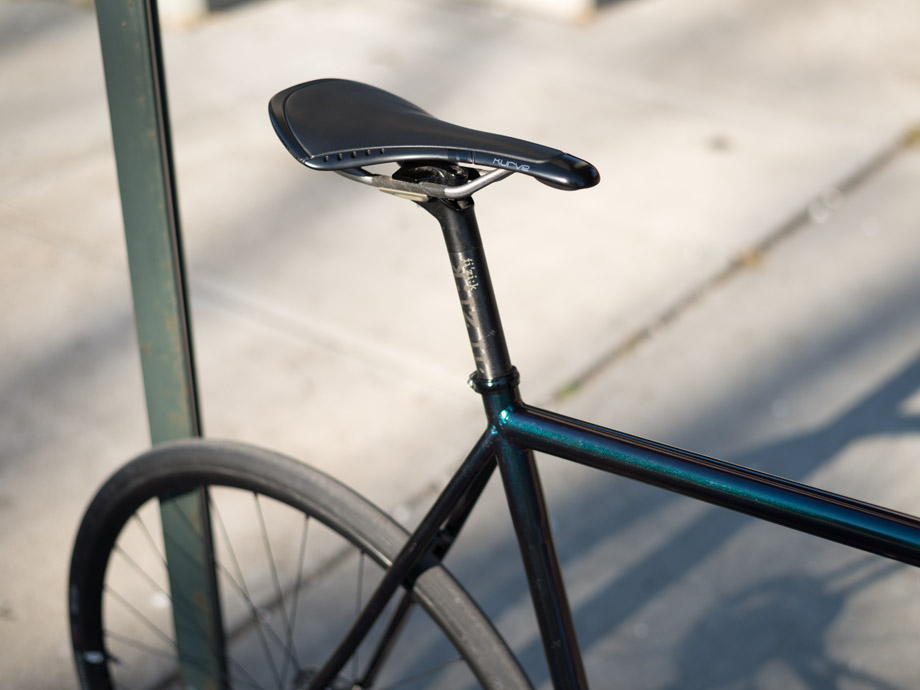

Fizik Kurve Chameleon // Canyon VCLS 1.0 27.2mm

Brakes:
SRAM HRD Flat/F Post/R // 160F 140R Centerline X rotors

Front Wheel/Hub/Tire:
HED Belgium+ to White Industries CLX // Schwable G-One Speed 30mm

Rear Wheel/Hub/Tire:
HED Belgium+ to White Industries CLX // Schwable G-One Speed 30mm

Accessories:
Arundel Mandibles, Garmin 520 & JRC stem mount

Bike History

Click a link below to see past stages of this bike.

  1. Initial
  2. 1 Year Later
  3. 3 Years Later
  4. eTap

Added by Thermal_Attorney. Last updated over 3 years ago.

8 Comments

fafalag

fafalag says:

how strong were the R785 di2 lever ? why did you changed them ?

Posted about 2 years ago

Thermal_Attorney

Thermal_Attorney says:

With hindsight, the R785 levers + brakes combo were actually the strongest I've used. Hood shape was really odd and not my favorite, but it really delivered on gobs of braking power with only a single finger.

The move to flat mount on the front and smaller pads meant the braking took a big hit.

Posted about 2 years ago
