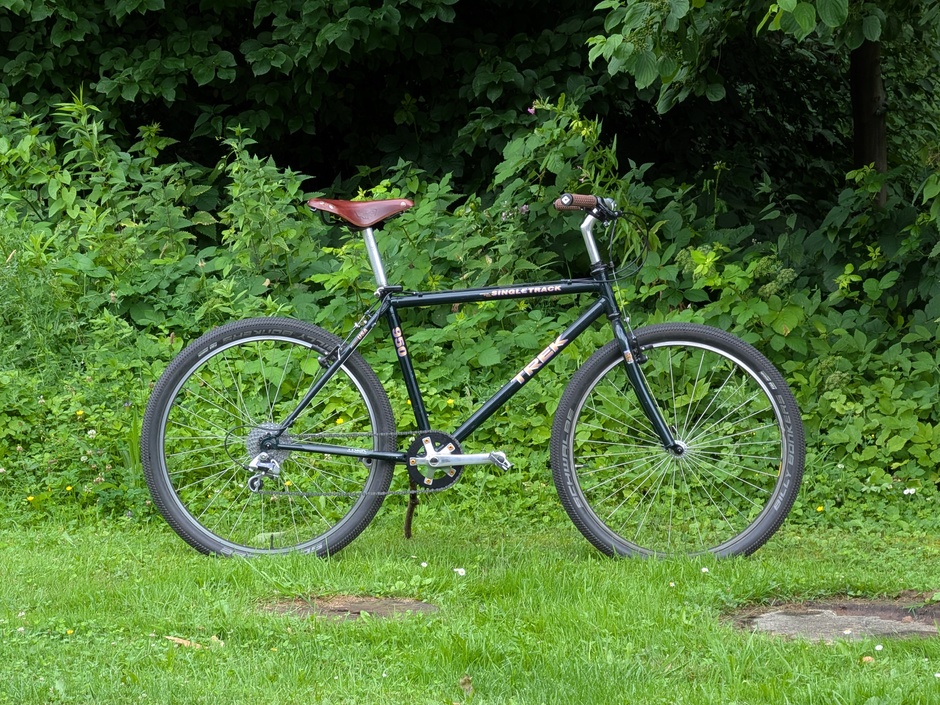

Trek 950 Singletrack 1992

Frame:
Trek 950 Singletrack / True Temper OX Comp II Double Butted OD Chromoly / Size 18" / Black Forest Green

Fork/Headset:
Tange Big Fork 3 Triple Butted Chromoly / Tioga Avenger

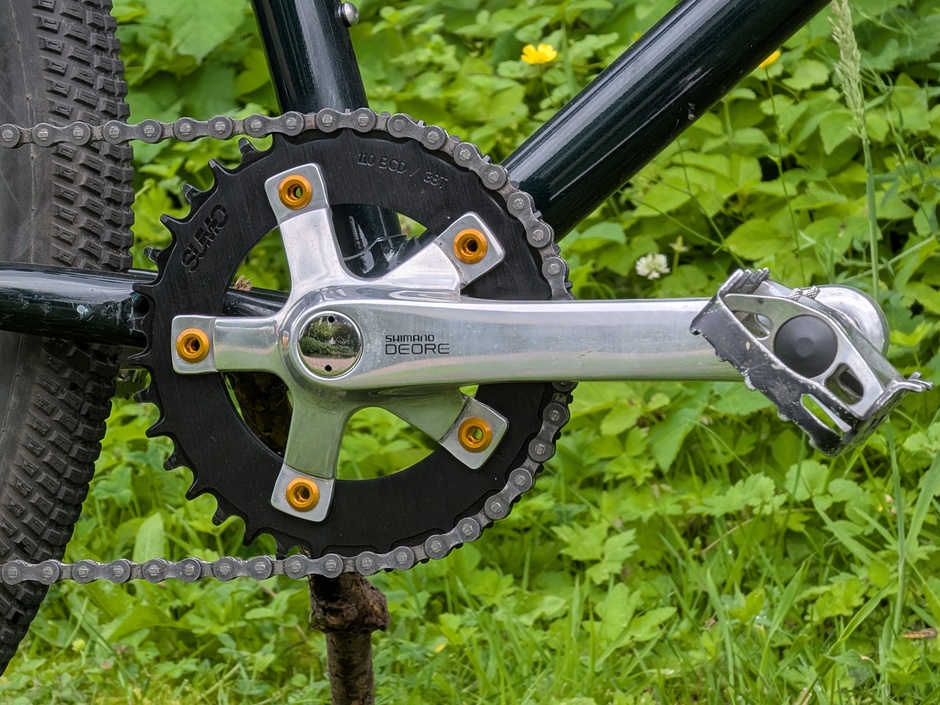

Crankset/Bottom Bracket:

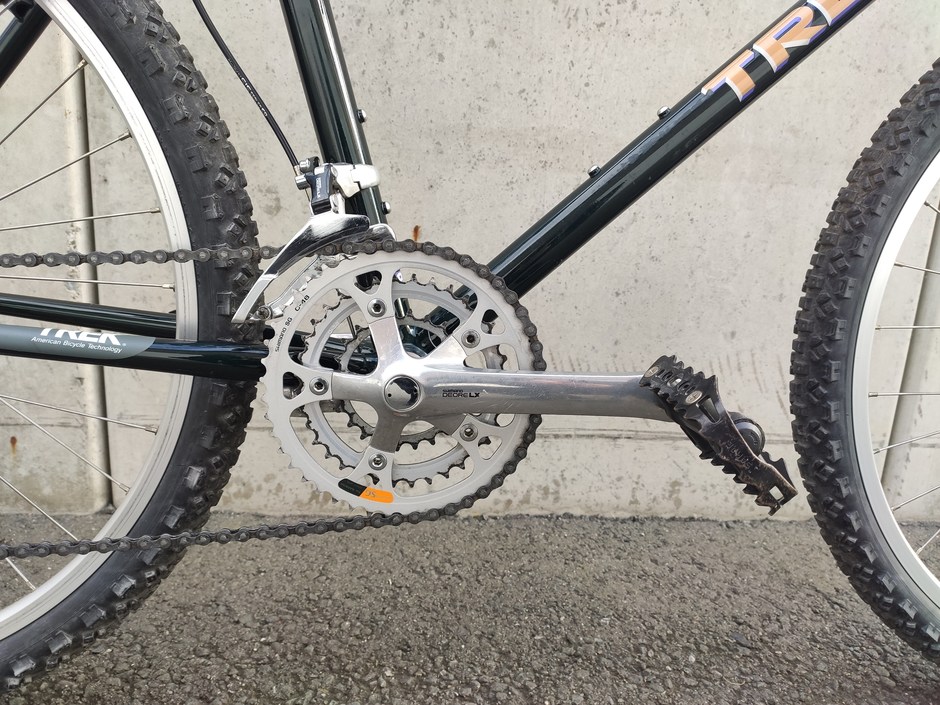

Shimano LX FC-M550 170mm / Shimano

Pedals:
Shimano Deore XT PD-M770

Drivetrain/Cog/Chainring/Chain:
3x7 / 13-30 / 46-36-24 / Shimano

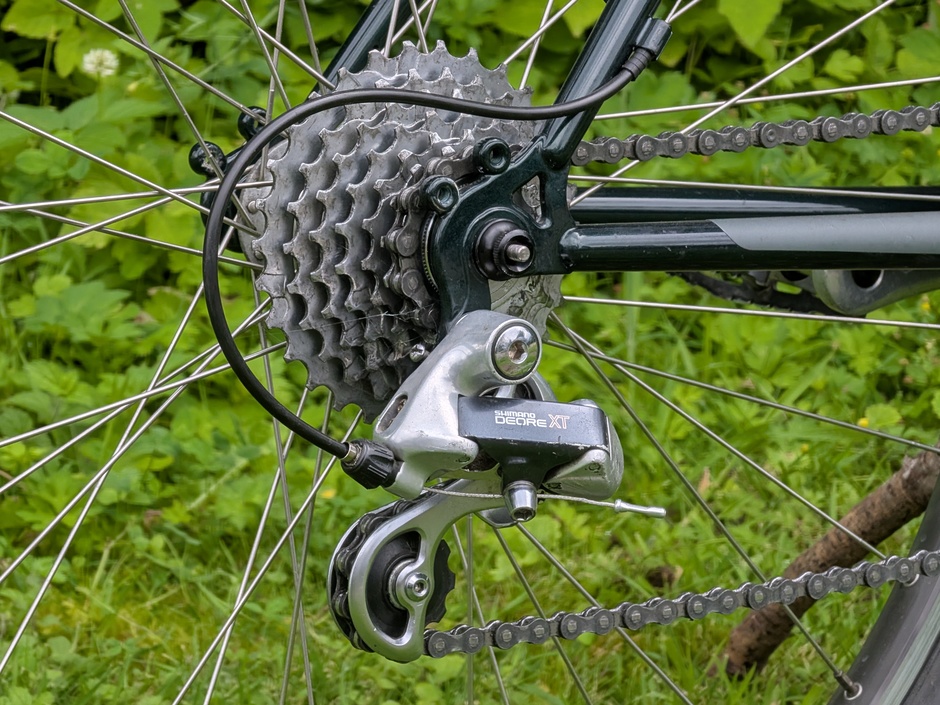

Derailleurs/Shifters:
Shimano Deore LX FD-M550 31.8mm & RD-M550 / Shimano Deore DX ST-M075 STI

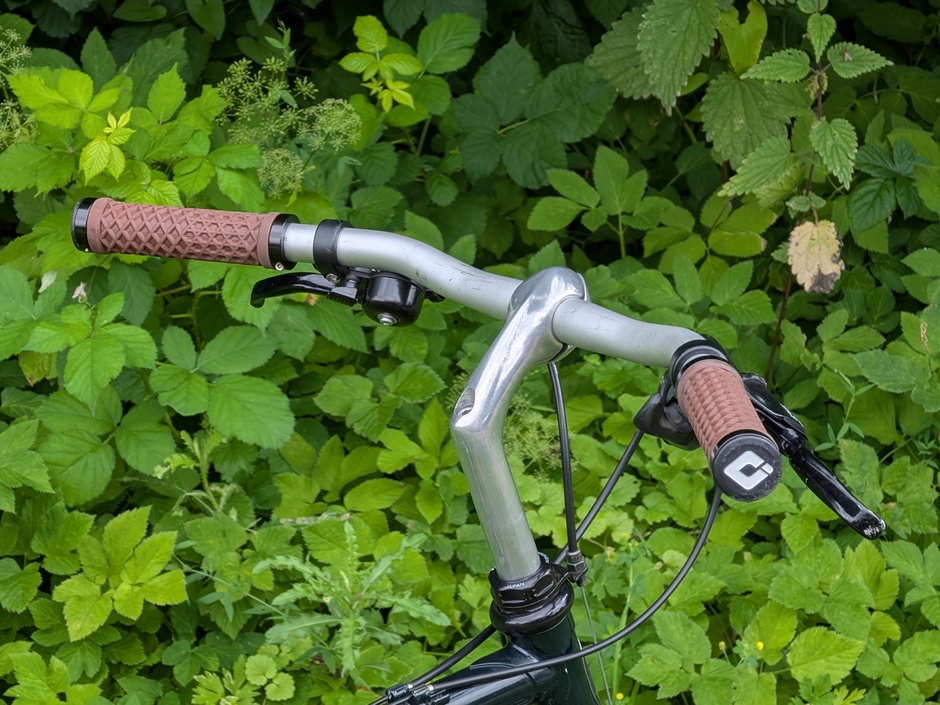

Handlebars/Stem:

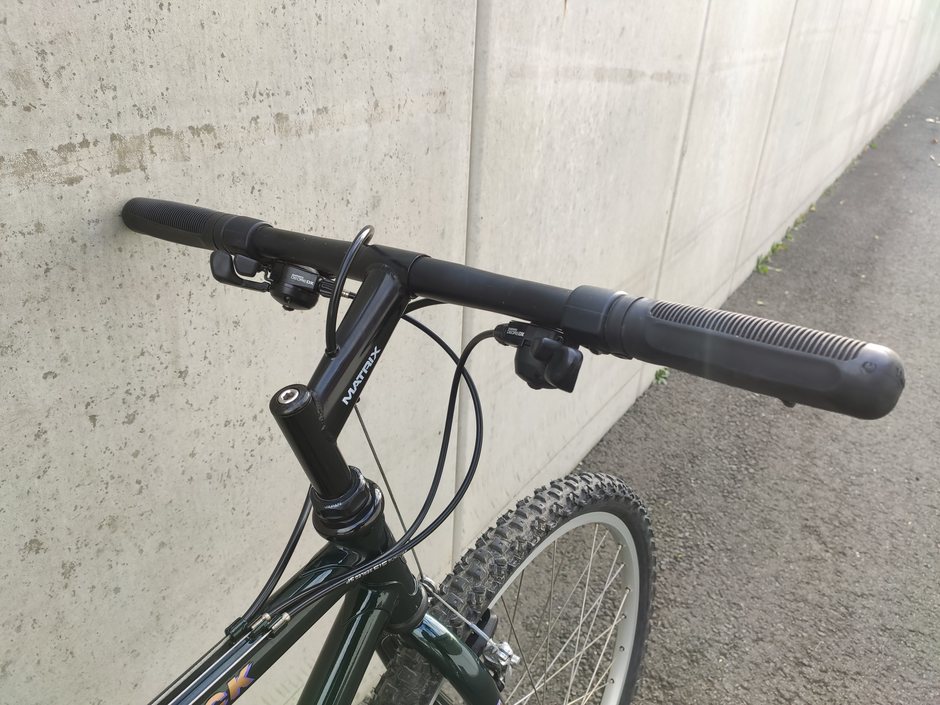

moto bars 800mm 22.2mm shimmed to 25.4mm / Procraft 80mm 25.4mm

Saddle/Seatpost:
Brooks B17 Special / Sakae TCO Sport 29.8mm

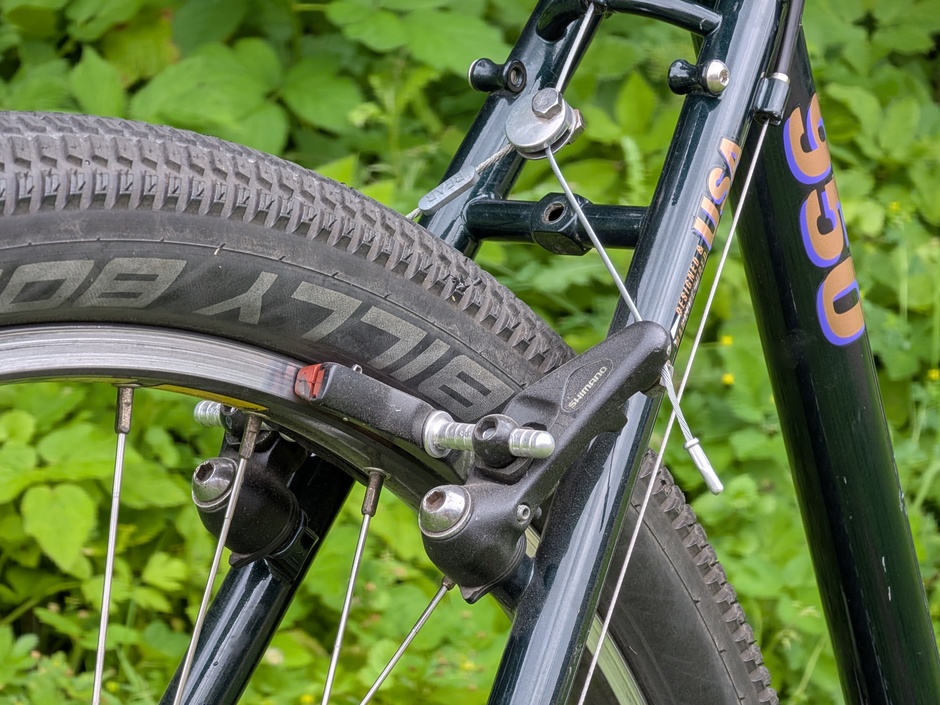

Brakes:
Shimano Deore DX BR-M650 black

Front Wheel/Hub/Tire:

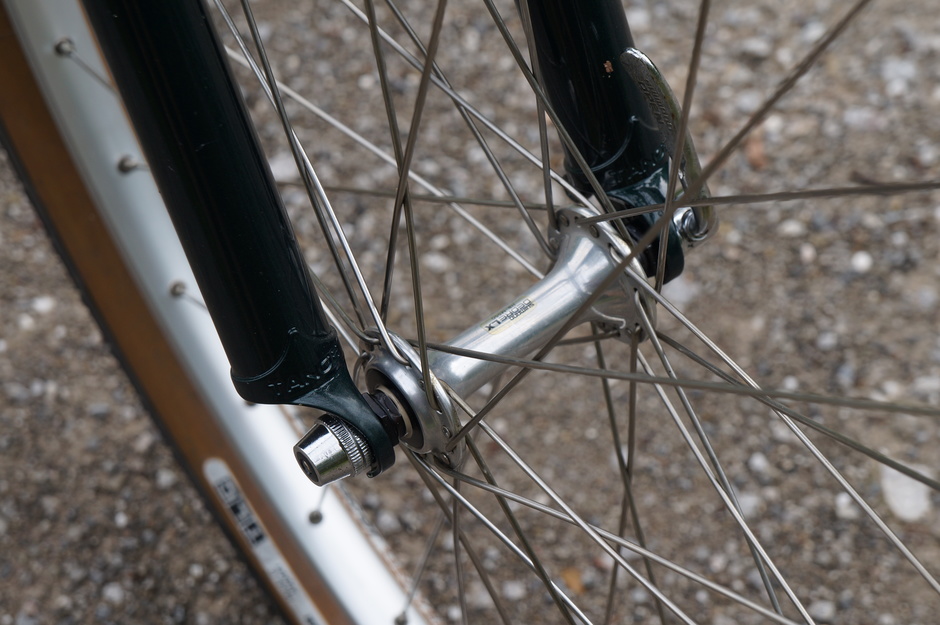

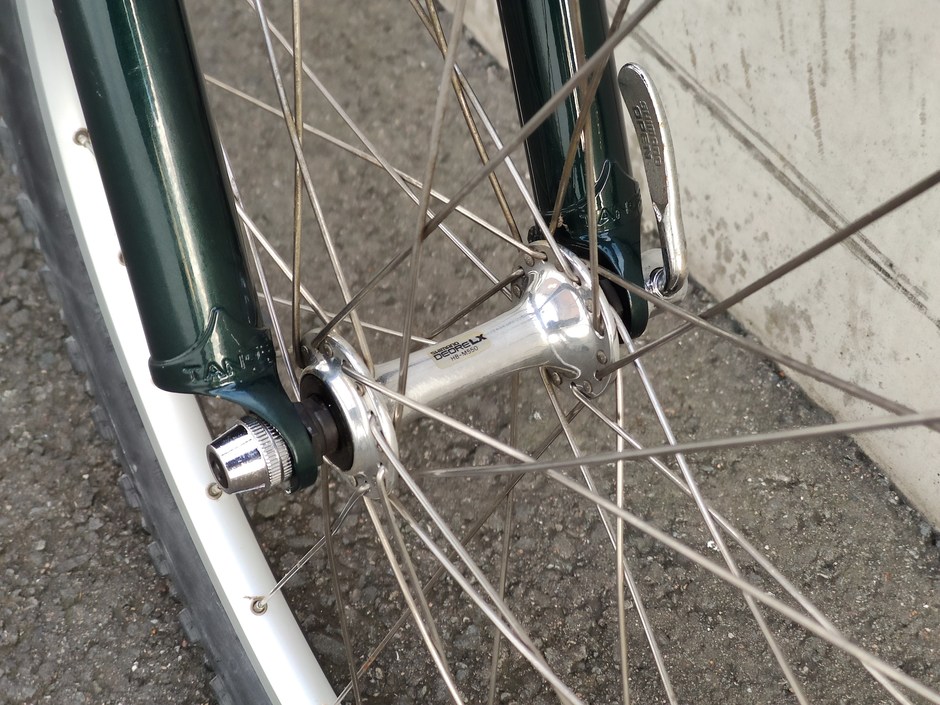

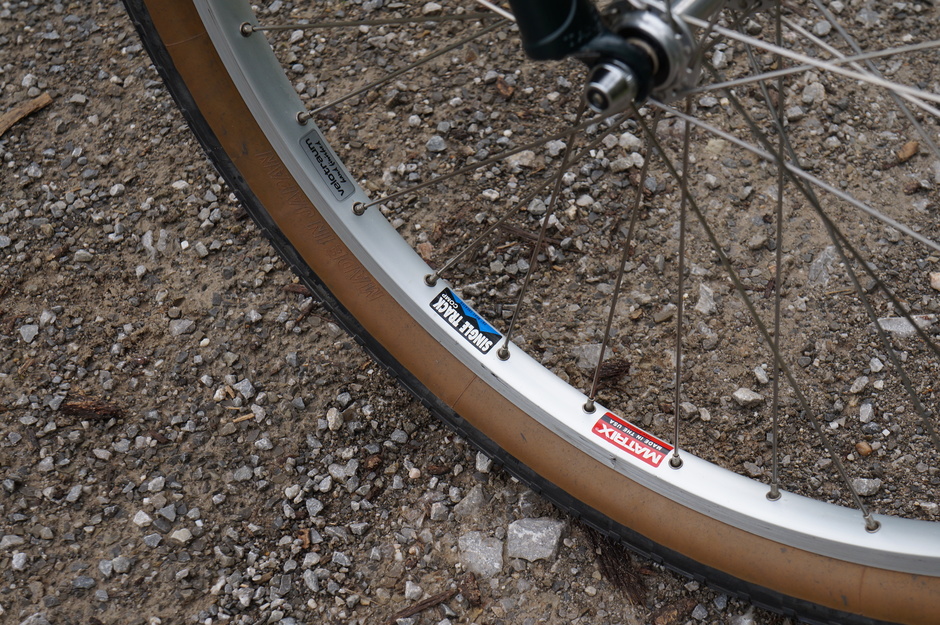

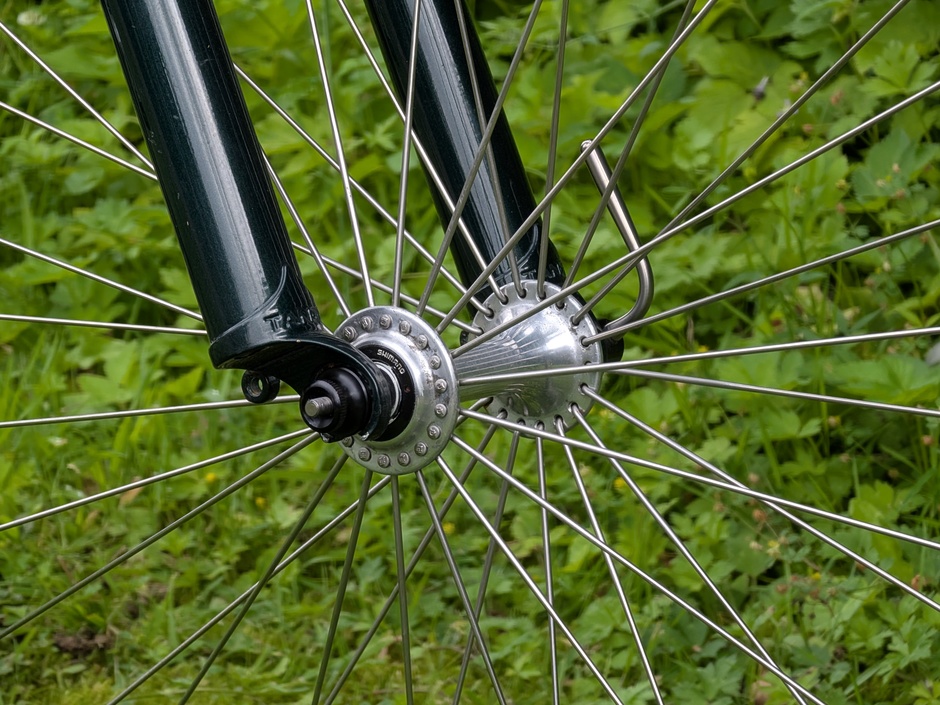

Matrix Singletrack Comp / Shimano Deore LX HB-M550 / Panaracer Gravelking SK 26"x2.1"

Rear Wheel/Hub/Tire:

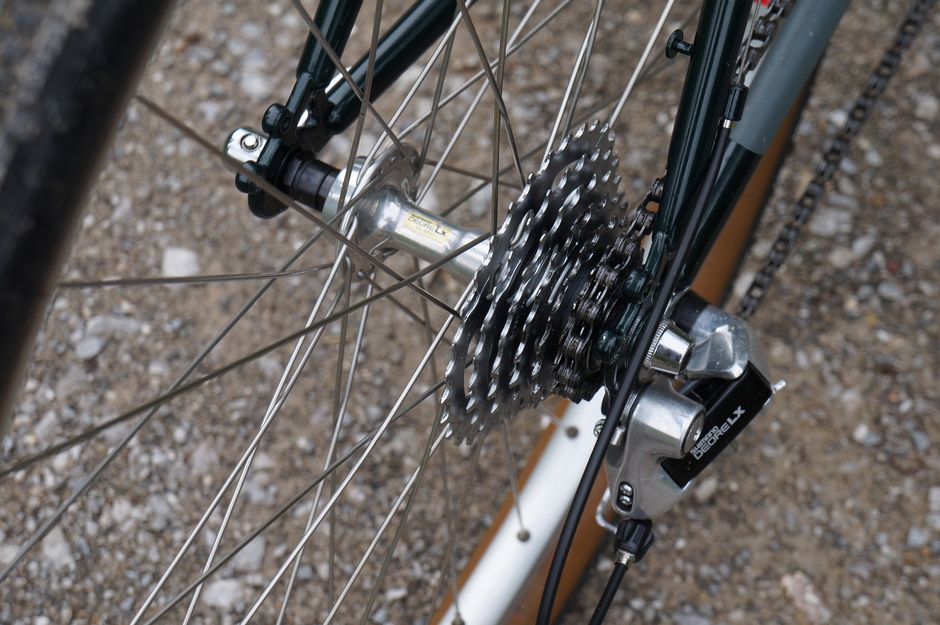

Matrix Singletrack Comp / Shimano Deore LX FH-M550 / Panaracer Gravelking SK 26"x2.1"

Accessories:
Cube RFR front rack and basket

Bike History

Click a link below to see past stages of this bike.

  1. Initial
  2. Rebuild

Added by GrindersKeepers. Last updated about 2 months ago.

As of about 2 months ago, GrindersKeepers has indicated that they no longer own this bike.

4 Comments

KojiKit

KojiKit says:

Beautiful build!

I've got the same frame, but I can't figure out how to set up the front derailleur with the extra FD cable stop doohickey. Can you comment on how you did it?

Posted 2 months ago

GrindersKeepers

GrindersKeepers says:

Thank you! It is actually exactly the same process like with any other top pull derailleur with the only difference that a cable stop is missing on the seat tube. Instead the housing continues and is seated with its ferrule into the FD directly. The cable continues through the FD and is clamped around the eyelet on the bb shell. Start by setting the low limit screw so that the chain is not rubbing on the FD in the lowest gear front and rear, clamp the cable and work you way from there. Hope this helps.

Posted 2 months ago

MouseR

MouseR says:

ayyyy

You post this on r/xbiking

Posted 11 months ago

GrindersKeepers

GrindersKeepers says:

you got me ^^

Posted 11 months ago
