I was looking for a replacement frame because my custom steel frame starts to rust more and more. Getting it painted without a phosphate rust protection on the inside feels like a bad investment and nobody offers a phosphate coating for bikes.
Frame:
Standert Pfadfinder 52cm Midnight Marauder (RAL 790-6) steel Columbus tubing
Fork/Headset:
OEM Standert Pfadfinder carbon in RAL 790-6, axle to crown 382mm, fork offset 47mm / NICHECYCLING ICR Insert / Hope EC44/40 with Ceramicspeed OHD SLT 50x40x7mm 45°/45° bearing / Hope ZS44/28.6mm with Ceramicspeed OHD SLT 41x30.15x6.5mm 36°/45° bearing
Crankset/Bottom Bracket:
Wert Cycling StW-R 157.5mm / BBinfinite T47 extrnal DUB with 30x24x7mm 6806 Abec-7 4030 bearings
Pedals:
Shimano Dura-Ace PD-R9100 or XTR PD-M9100 with Meti Ti Axle
Drivetrain/Cog/Chainring/Chain:
Shimano 1x12 / Shimano Dura-Ace CS-R9100 11-34 / Garabaruk round direct mount chainring 32T / Shimano Dura-Ace CN-M9100 chain
Derailleurs/Shifters:
Shimano Ultegra Di2 RD-R8150 / Shimano Ultegra ST-R8170 and custom BL-R8170
Saddle/Seatpost:
Björn Probka leo kork 143 mm / Thomson titanium 27.2mm / Björn Skrepka Ti 31.8mm
Brakes:
Trickstuff C22 / Trickstuff Dächle 140mm / Intend Skinny 160mm with Galfer center lock adapters
Front Wheel/Hub/Tire:
690g Nextie Carbon 50mm NXT50GX ERD541mm 425g 50x29x22mm laced with 24x 260mm Sapim CX-Ray to DT-SWISS 350 with black Sapim polyax 12mm brass nippels / Challenge Limus
Rear Wheel/Hub/Tire:
820g Nextie Carbon 50mm NXT50GX ERD541mm 425g 50x29x22mm laced with 28 Sapim CX-Ray (DS256mm, NDS258mm) to DT-SWISS 350 with black Sapim polyax 12mm brass nippels / Challenge Limus
Accessories:
King Cage titanium bottlecages / pro-bolt titanium bolts / Silca 3d printed direct mount UDH / Meti titanium pedalaxles
More Info:
8.6kg total incl. pedals, cages and garminmount
Bike History
Click a link below to see past stages of this bike.
Added by ianiscaratti. Last updated 2 days ago.
21 Comments
Clean, Cleaner, Cleanest!

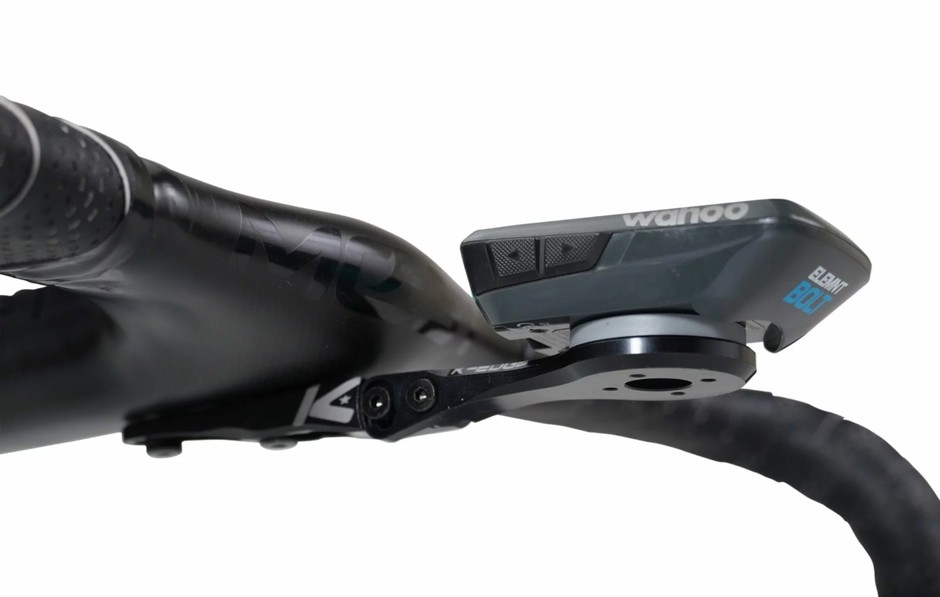

Amazing work with the cable routing through one of the most beautiful stems (except X2 or G2, even if I am not sure if I want to go back to a 2 bolt stem).
Posted about 2 months ago
Oh yeah this gon' be good
Posted 2 months ago
did you find one? I was initialy looking for the Stichsäge CX frameset but they don't do it anymore.
Posted about 1 month ago
oh you got it!
Posted 3 months ago
8.6kg with pedals, cages and garminmount. 1kg lighter than my steel Aerocross but also 1kg heavier than my alloy Allez.
Posted about 1 month ago
the kolb is starting to rust ? wth
Posted 5 months ago
it had cavity spray from the beginning and rusted a lot after only 8 month. I spray a complete bottle in the frame every 12 month. heat it with a heat gun and turn it to coat every angle
Posted 4 months ago
I'm ready
Posted 7 months ago

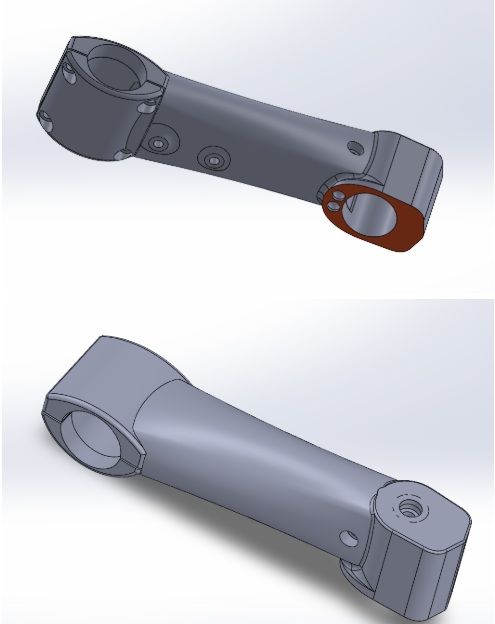

new update becaus I could not find any ICR stem that looks good so this will be very clean with SZ44 upper headset because EC44 upper headset look weird.
Posted 2 months ago
Photos
RSchwentke says:
Super nice, sometime i allow myself a Standert too !
Posted about 1 month ago
ianiscaratti says:
Thank you and can't wait to see your build oneday
Posted about 1 month ago
