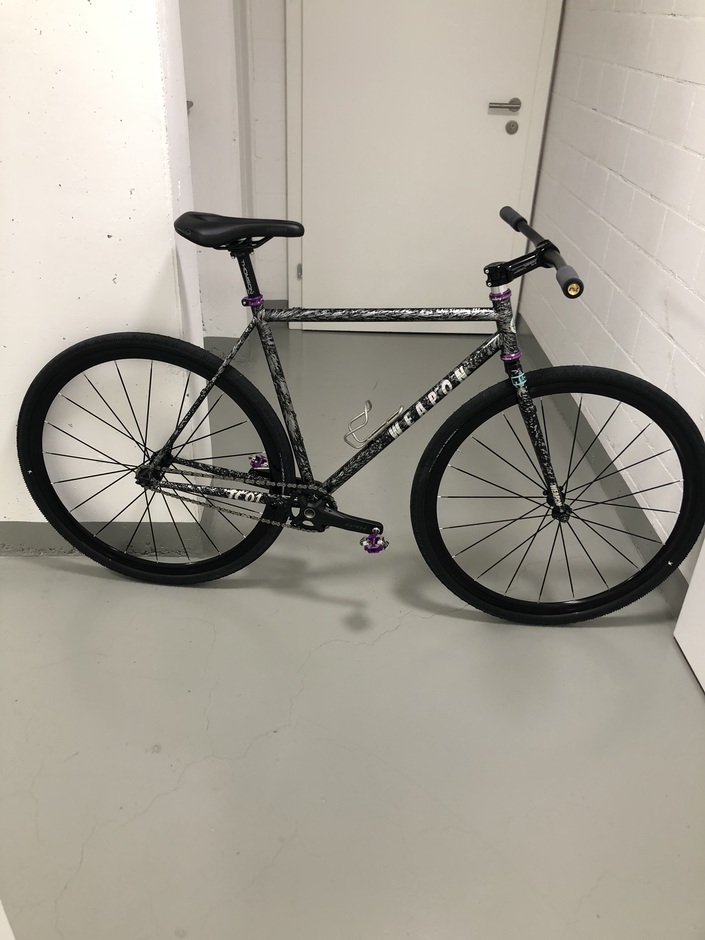

The 2026 Tracklocross World Championship will be hosted in Zurich, and it would be fun to participate, but I don't have a bike yet, so this build is the plan. Happy to get some feedback before I place the order. I thought a steel frame would be the better choice than a stiff alloy frame. I first planned on using MTB cranks, but the 52-55mm chainline doesn't match. Also, Pail component cranks would need a 104mm square taper BB with a 6mm offset chainring, but I can't find a 104mm square taper BB. Frames with less common 135mm rear hub spacing are not an option. I'll race 33-35mm tires like on my cyclocross bike, so I'm not interested in 40/45 or 50mm tire recommendations. The plan is to give the bike away to a nichecycling customer after the race.
Frame:

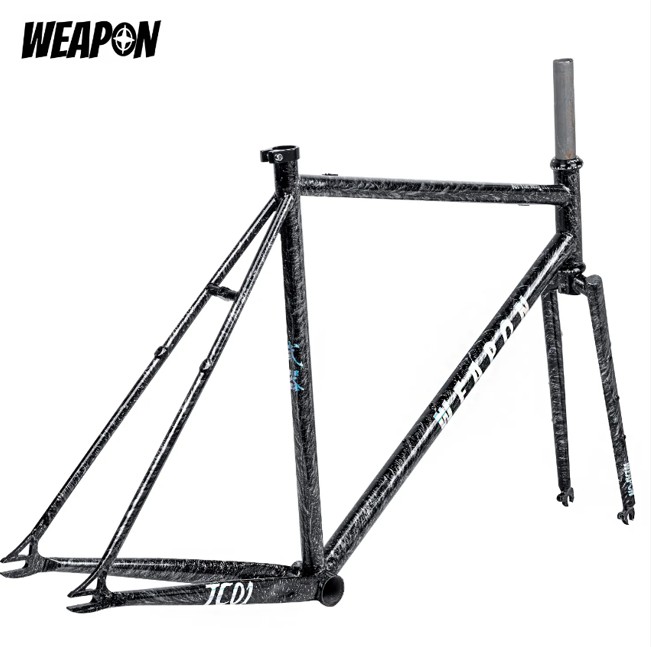

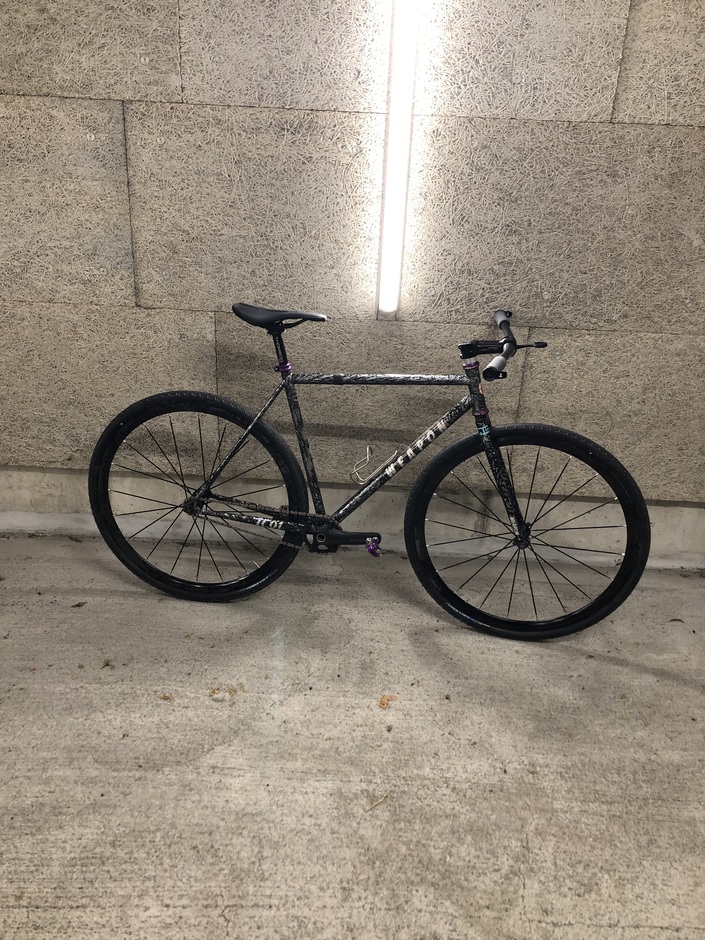

WEAPON TC01-Tracklocross steel frameset ( 700c / Marble Grey) size M(52)

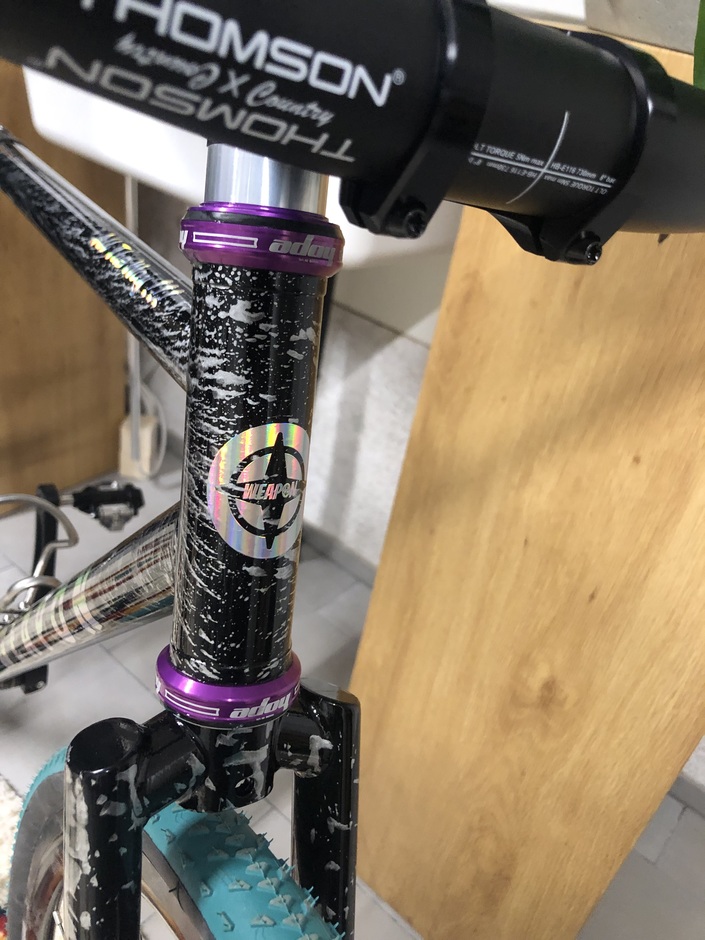

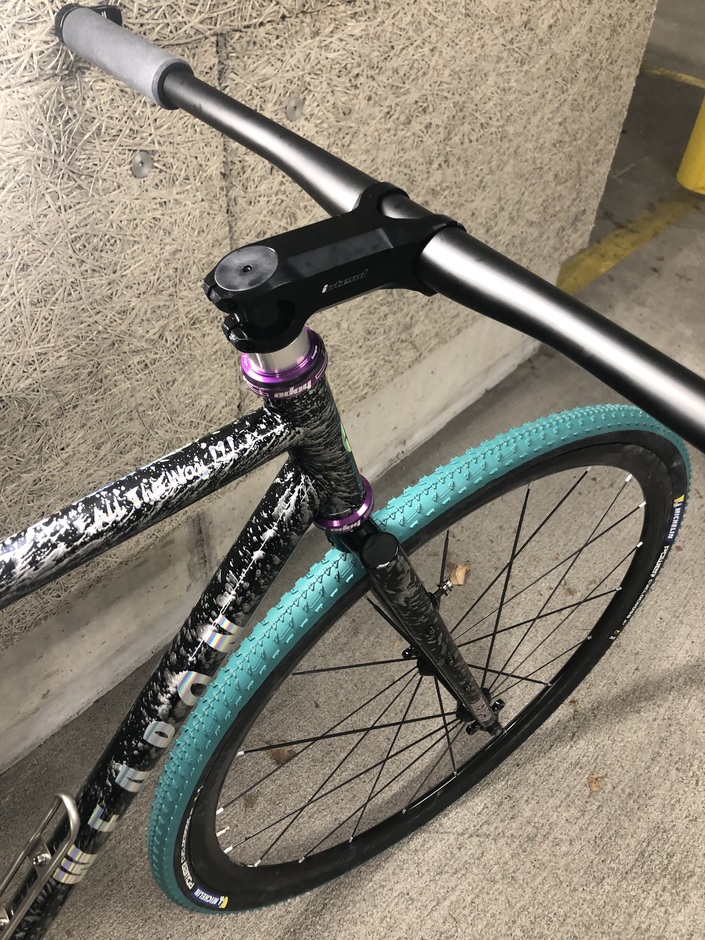

Fork/Headset:

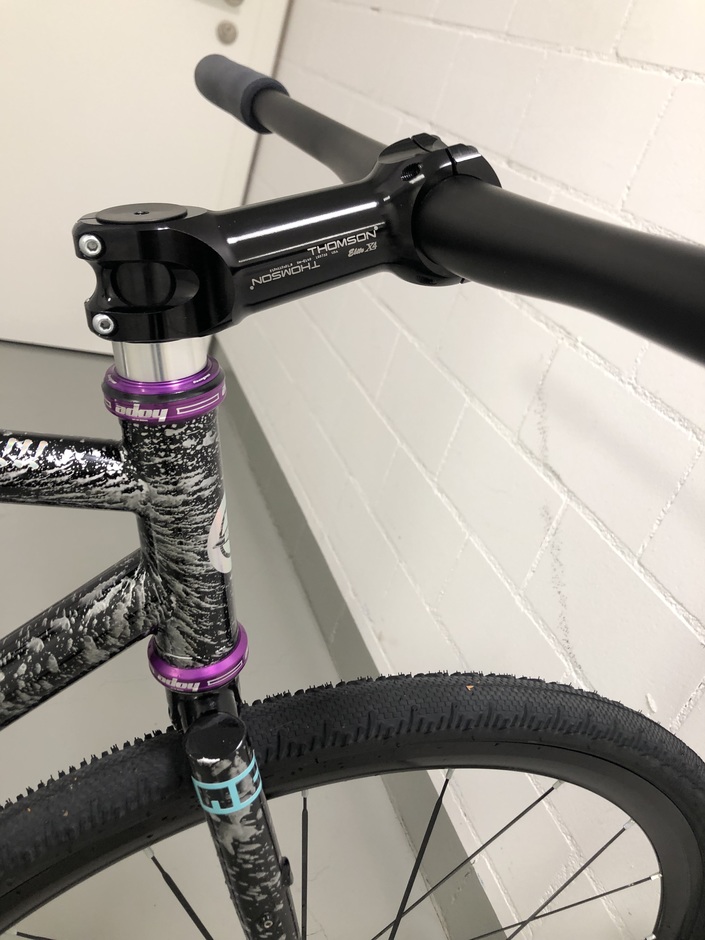

Weapon OEM steel fork / Hope EC34
Crankset/Bottom Bracket:
Sram Rival 160mm / Sram Dub BSA
Pedals:

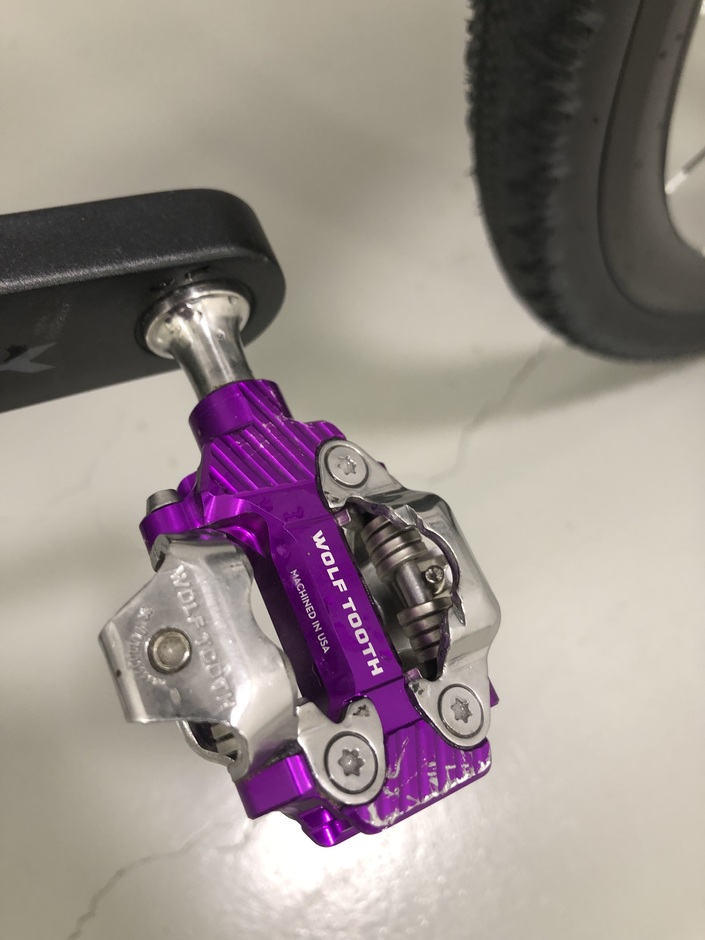

Shimano XTR
Drivetrain/Cog/Chainring/Chain:
Garbaruk 40T / CN-HG901 11-speed chain
Derailleurs/Shifters:
X

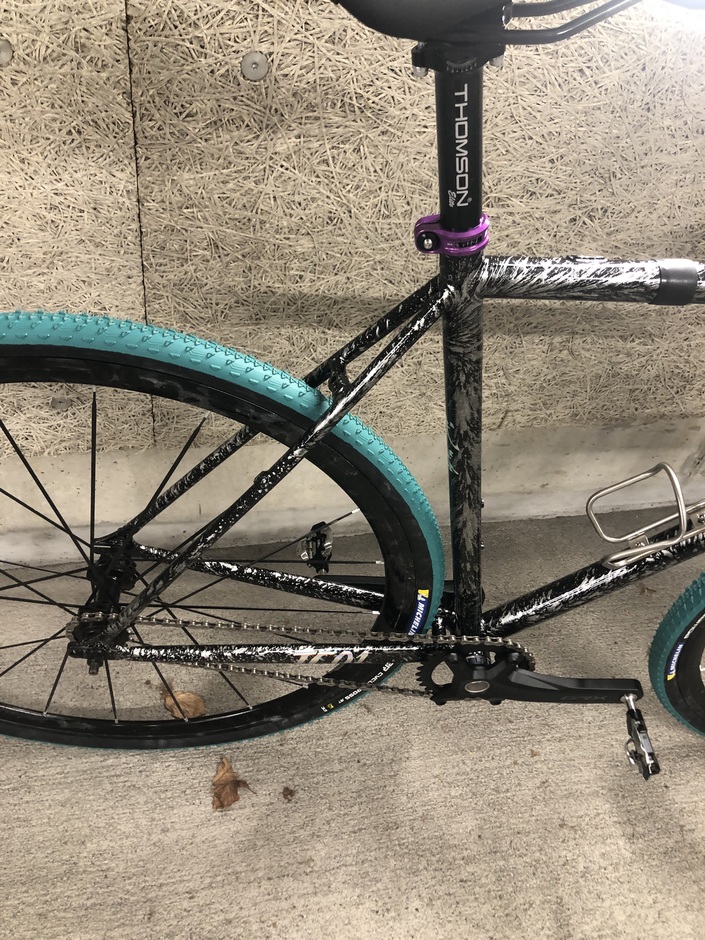

Saddle/Seatpost:

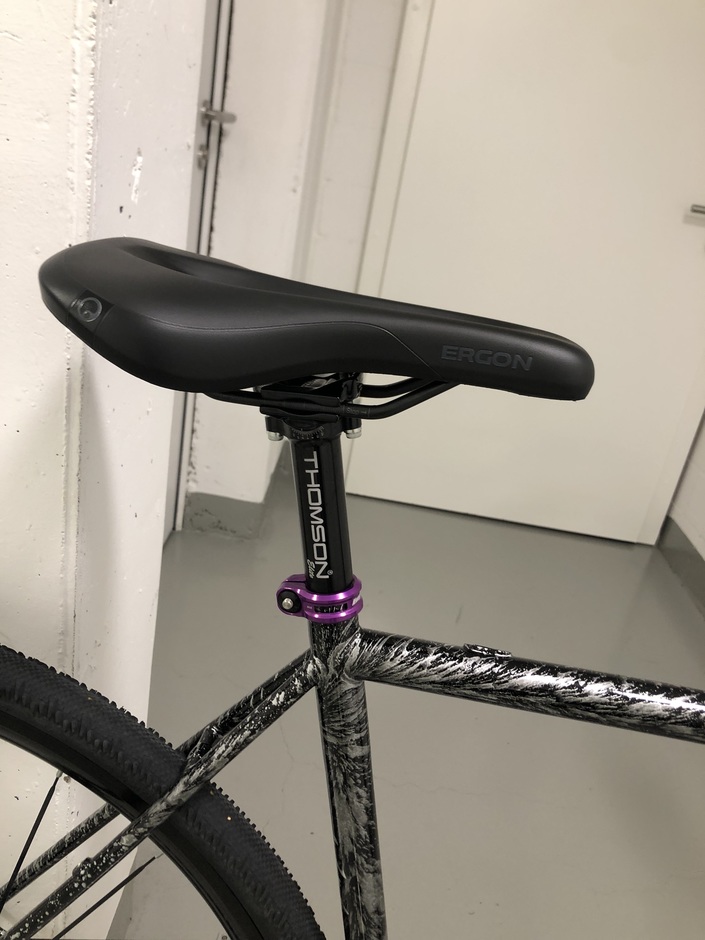

Phenum / Thomson 27.2mm
Brakes:
X

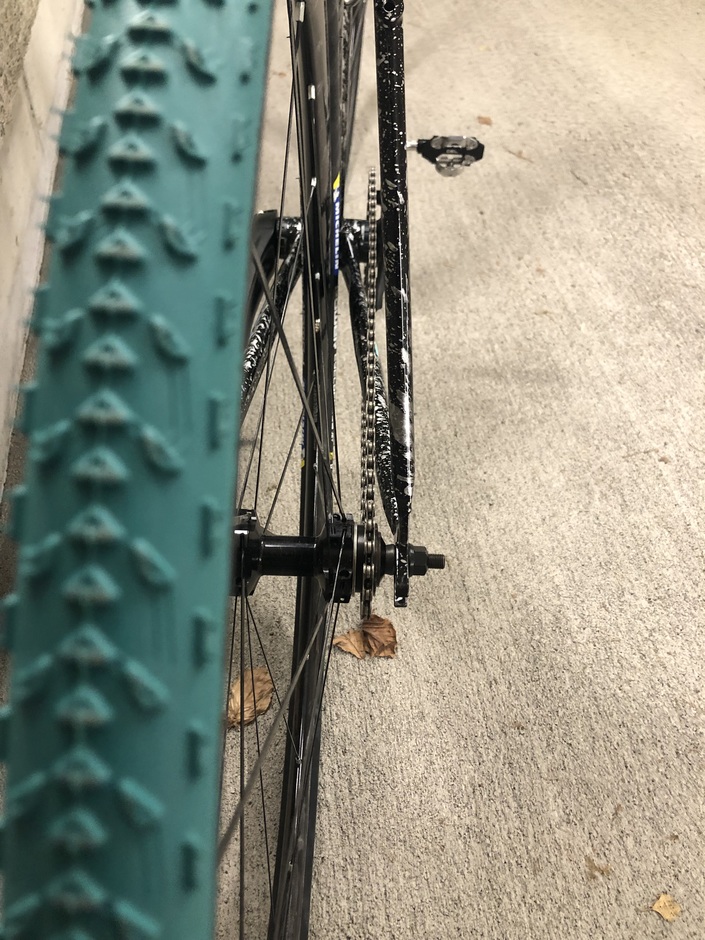

Front Wheel/Hub/Tire:

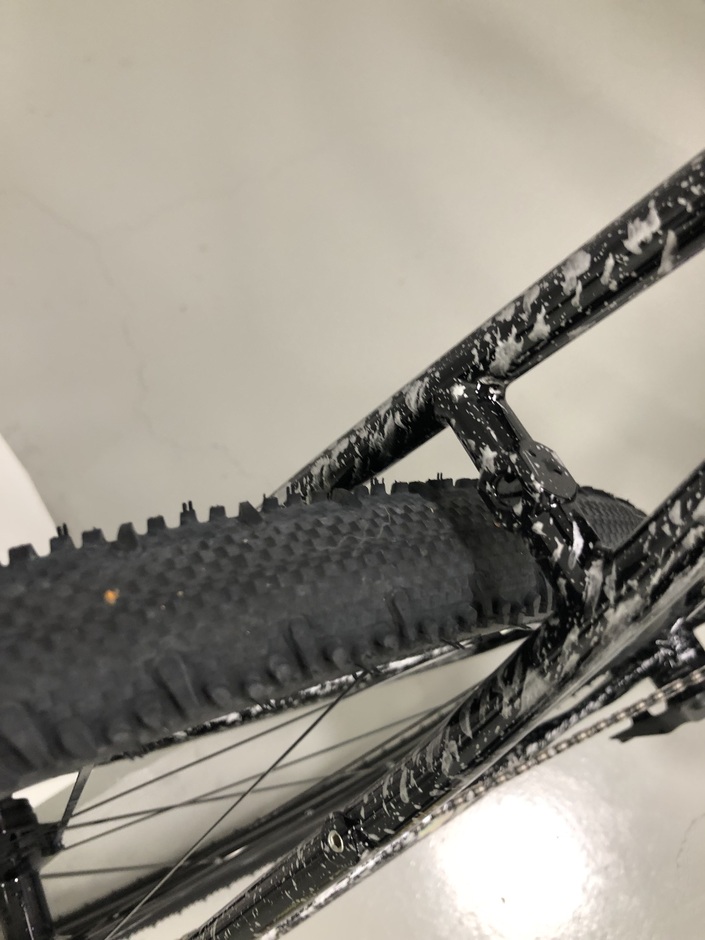

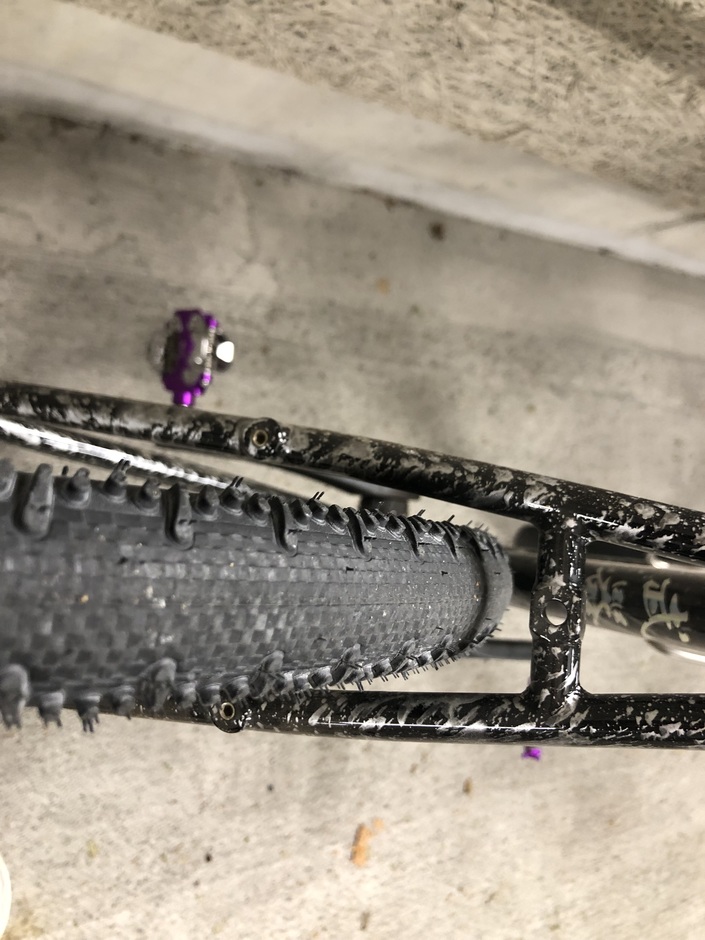

Mavic Ellipse / Michelin Mud or Challenge Babylimus
Rear Wheel/Hub/Tire:
Mavic Ellipse / Michelin Mud or Challenge Babylimus
Accessories:
Hope 30mm Setclamp, Nichecycling minimalist topcap, ESI chunky grips, Loamlab counterpunches, Silca Ti bottlecage, Silca Ti bolts, Schwalbe Clik valves, Kogel crank preload ring
