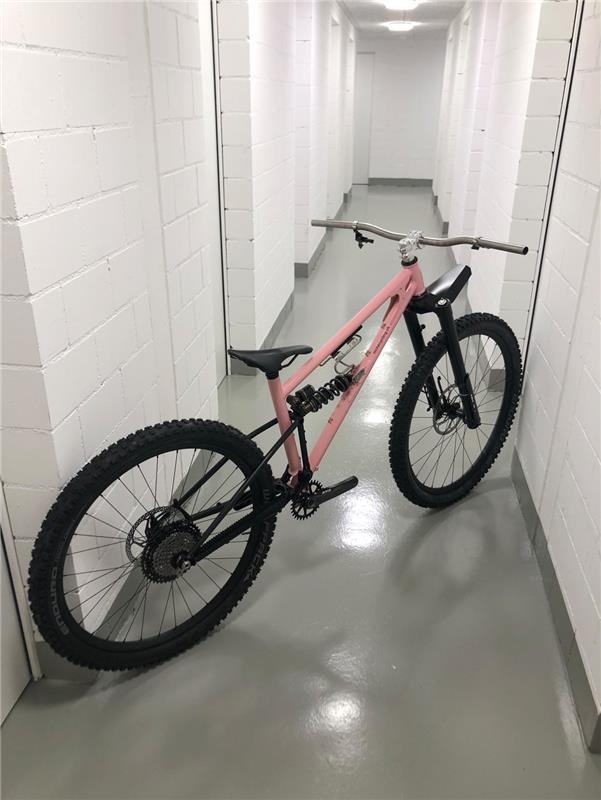

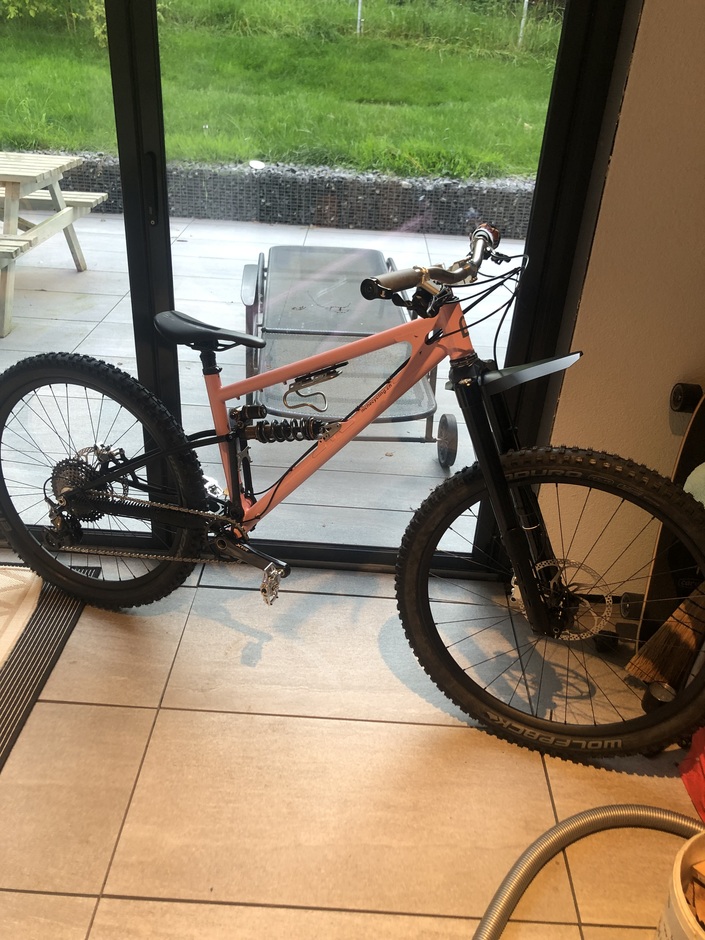

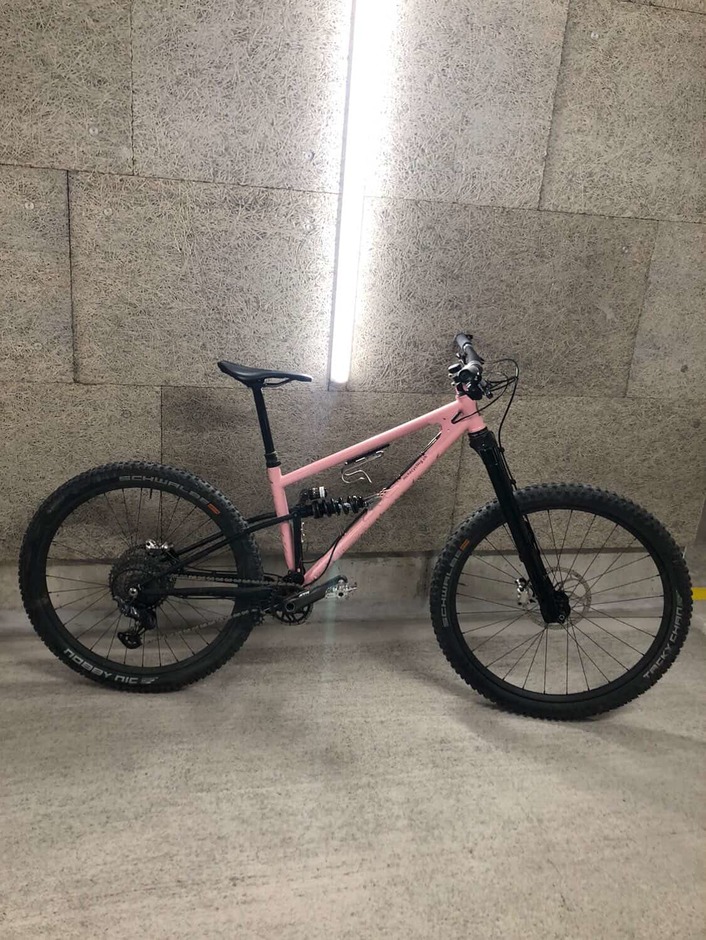

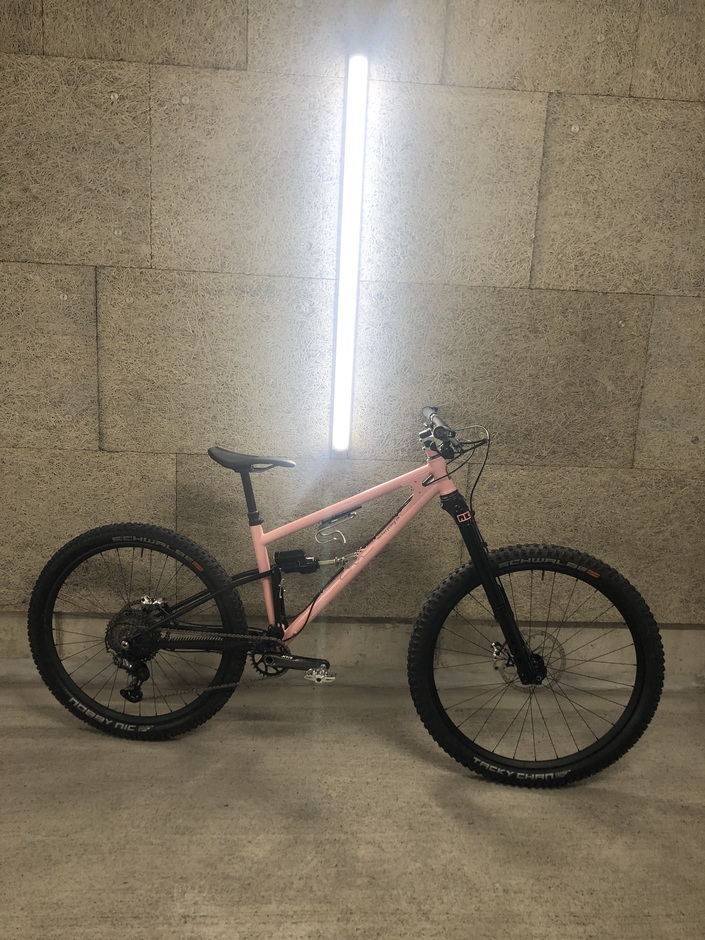

Starling Cycles Mega Twist

After having my second Orange alloy frame developing a crack it is time to take the steel is real path! I have had good experiences with UK bikebrands using Reynolds tubing and loved the single pivot kinematic and flex of my last two Oranges. So the choice fell on Starling Cycles. Then I saw a guy having a EDC tool in the rear yoke and imediatly knew that I want the same on my Starling. Unfortunatly there were no pictures of the drive side and I can imagine why. Hammering a starnut in to the rear triangle or use a topcap with a nut is kind of a bodge. Because of this a friend came up with a specific designed cap that is absolutly killing it. The colourchoice was easy when having the opportunity to coulourmatch it to my beloved pink UK steel commuter. The plan is to buid it up as og mtb with innertubes, massive mirrorpolished CNC Stem, 31.8 riser, coil shock and not a single carbon part. This bike will completly lack modern marketing gimmics like electronic shifting, wireless droppers and big cassettes.

Frame:

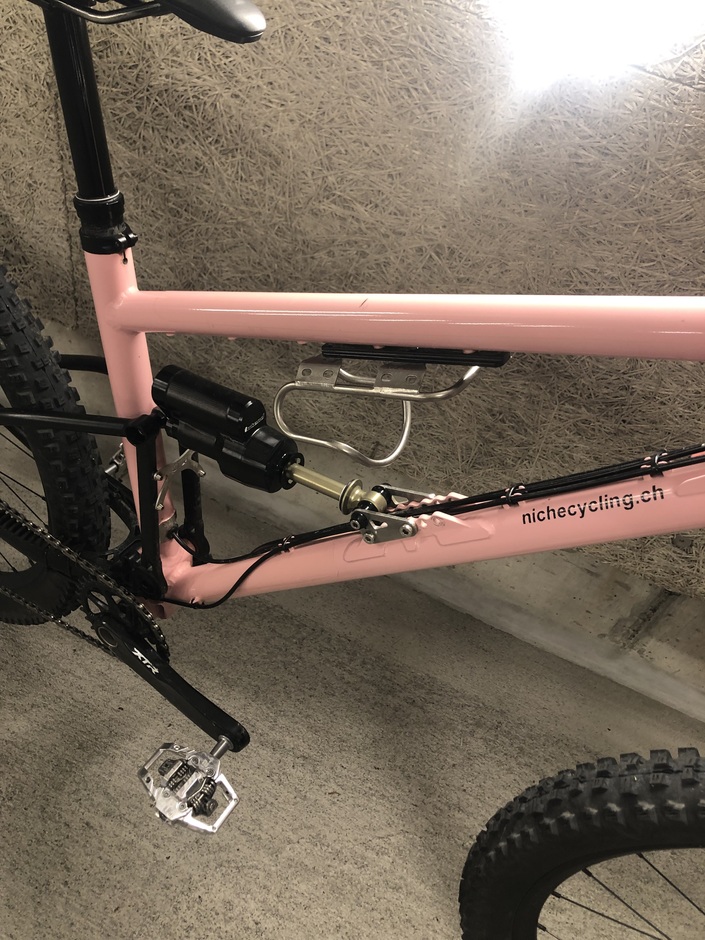

Starling Cycles Mega Twist V3  / Size Medium / Powder Pink colour / 2x SKF MTRX 6902RS 15x28x7mm Bearings / 230x65 EXT Storia Lok V4 with long 350lbs V2 Spring / 35x8mm 30x8mm Buschings. Frameset weight: 4,04kg

Fork/Headset:

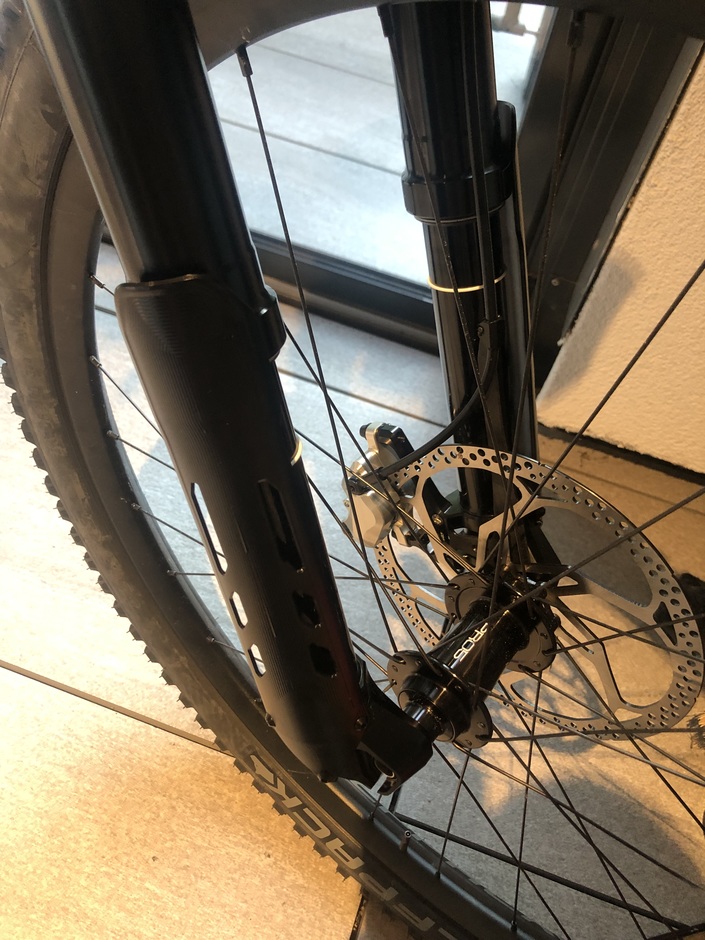

FOX 36 Performnance 160mm Grip2 and Tuning by M-Suspension Tech / 67psi / from closed to open LSR10 LSC10 HSCfix HSRfix / OneUp Components Axle / betterbolts Titanium hardware / Hope ZS44/28,6 / Hope EC44/40

Crankset/Bottom Bracket:

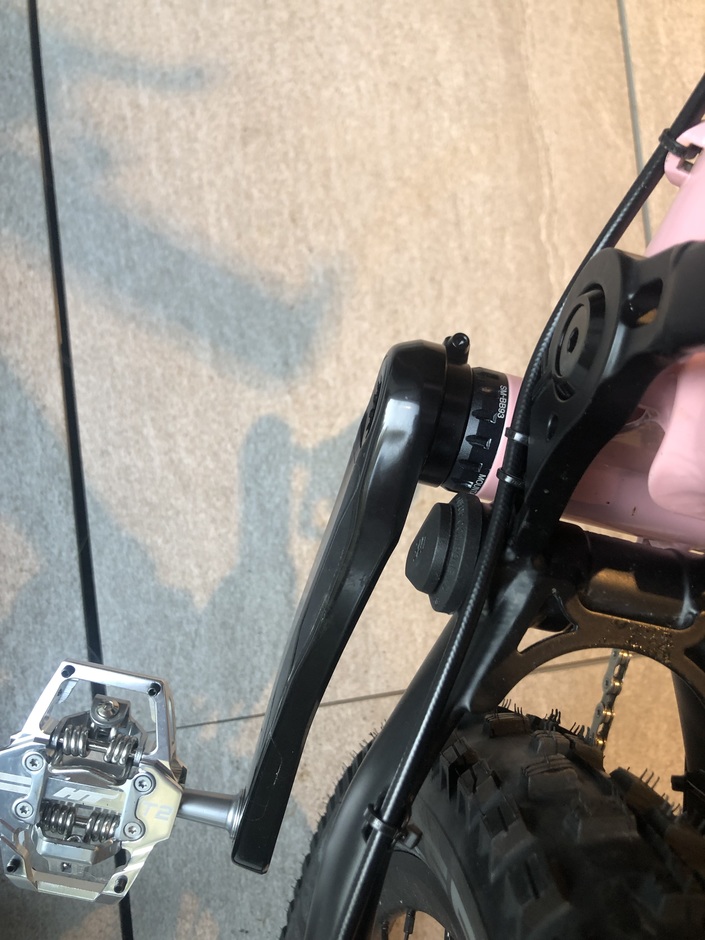

Cane Creek eeWing raven matte 165mm with O-Chain R raw / Enduro Maxhit BSA30

Pedals:
Shimano XTR Trail PD-M9120 SPD

Drivetrain/Cog/Chainring/Chain:
Shimano XTR CS-M9101 10-45 / 5dev Titanium 32T 104 BCD Chainring / Shimano XTR Chain CN-M9100

Derailleurs/Shifters:
Shimano XT RD-M8100 GS / XTR SL-M9100 I-Spec EV

Handlebars/Stem:

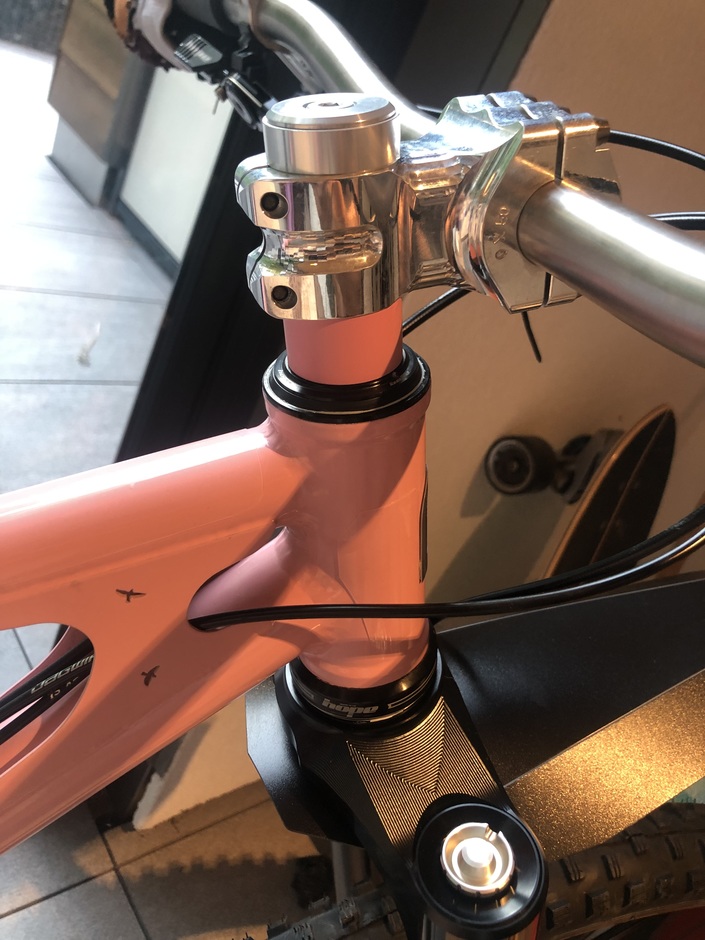

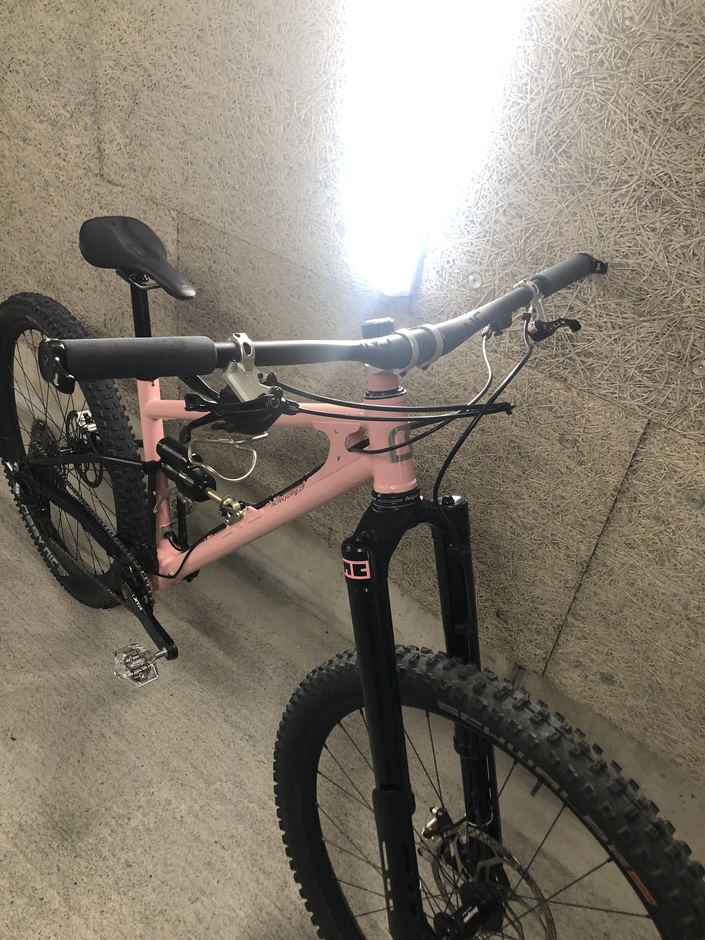

Renthal Fatbar Lite Riser V2 31,8 x 760 mm 7° 40mm Rise / Phenum C1 DH Apollo Ø31.8 40mm Stem

Saddle/Seatpost:
Ergon Enduro titan rails / 31.6mm OneUp Components V3 150mm Dropper

Brakes:

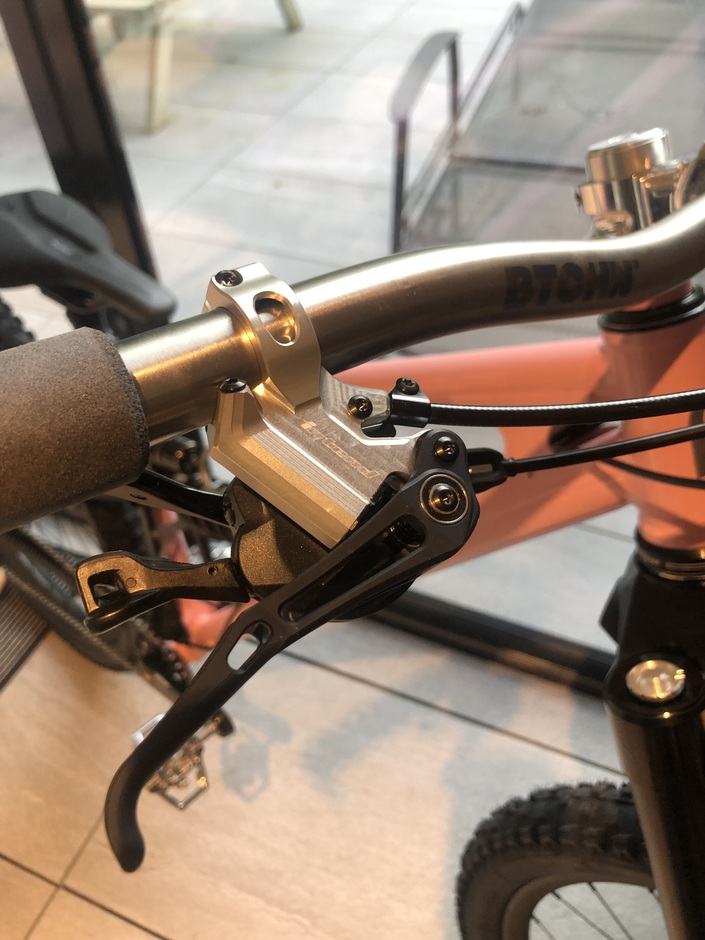

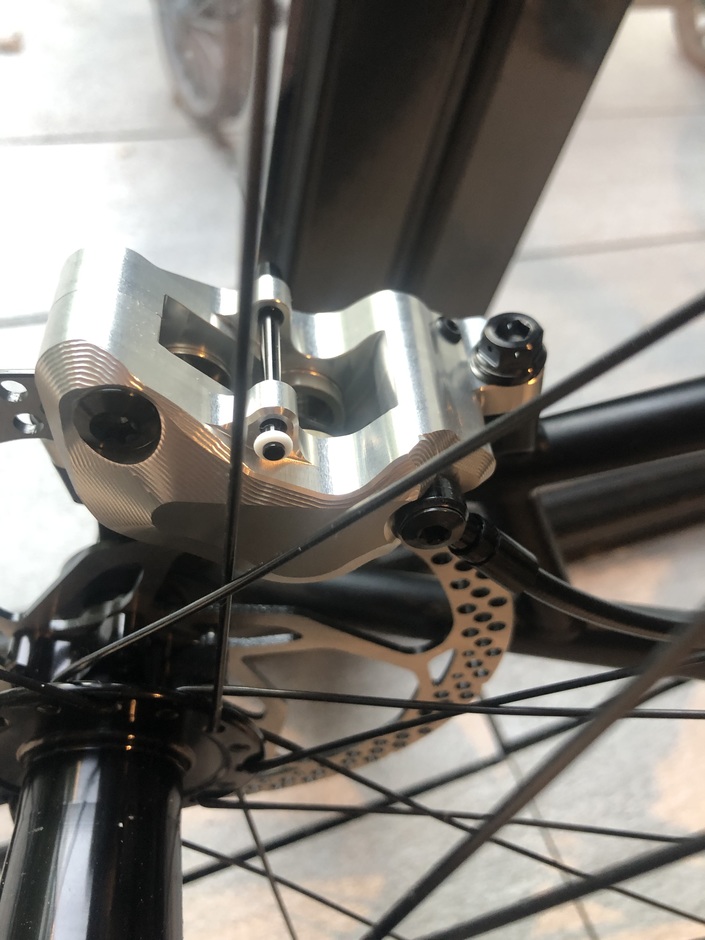

Trickstuff MAXIMA with black Direttissima covers, 6mm goodrich braided hose and Galfer purple pads / 203 Intend Blackline Skinny rotor front, 180mm Trickstuff in the back

Front Wheel/Hub/Tire:
Hope Pro 4 laced with 32 DT Swiss Competition to 29" DT Swiss XM421 / ERD 602mm / Bearings: 2x S6804 20x32x7mm / Schwalbe Tacky Chan 29.2.4 UltraSoft Compound Super Trail Casing

Rear Wheel/Hub/Tire:
Hope Pro 4 laced with 32 DT Swiss Revolution to 27,5" DT Swiss XM421 / ERD 564mm / Bearings: Microspline Freehub (yes 3 bearings not only 2) from outside in so right to left Freehub : 2x S6803/61803 MTRX08 17x26x5mm + 1x 17x28x7mm Pro4 Boost Hub 2x 6903rs MTRX09 17x30x7mm / Schwalbe Hans Dampf for local Trails and Continental Kryptotal-Re 27.5x2.4 for bikepark, shutteling and racing

Accessories:

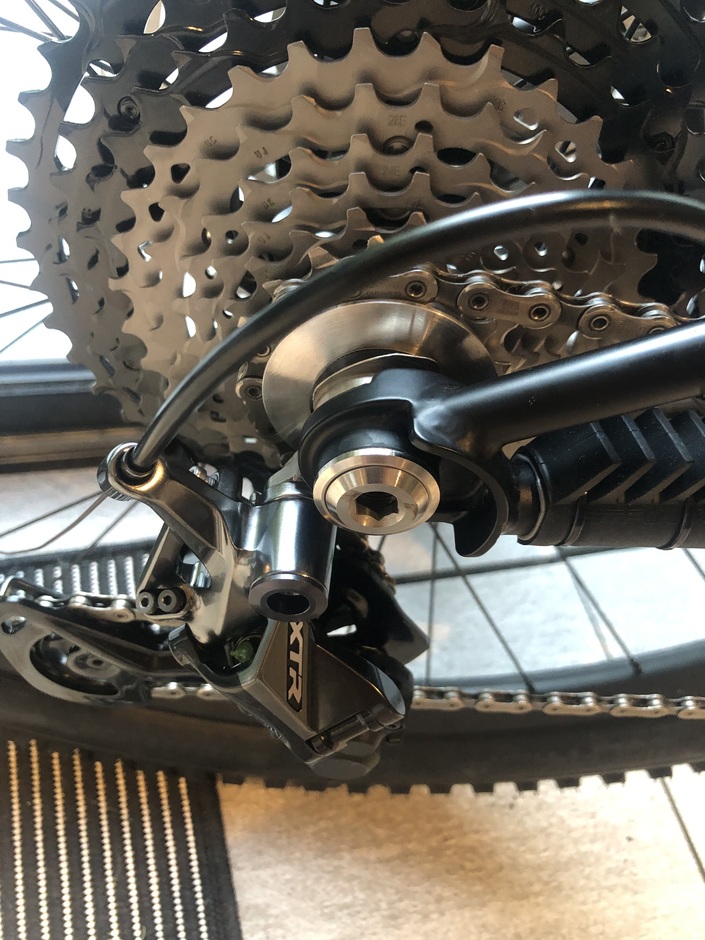

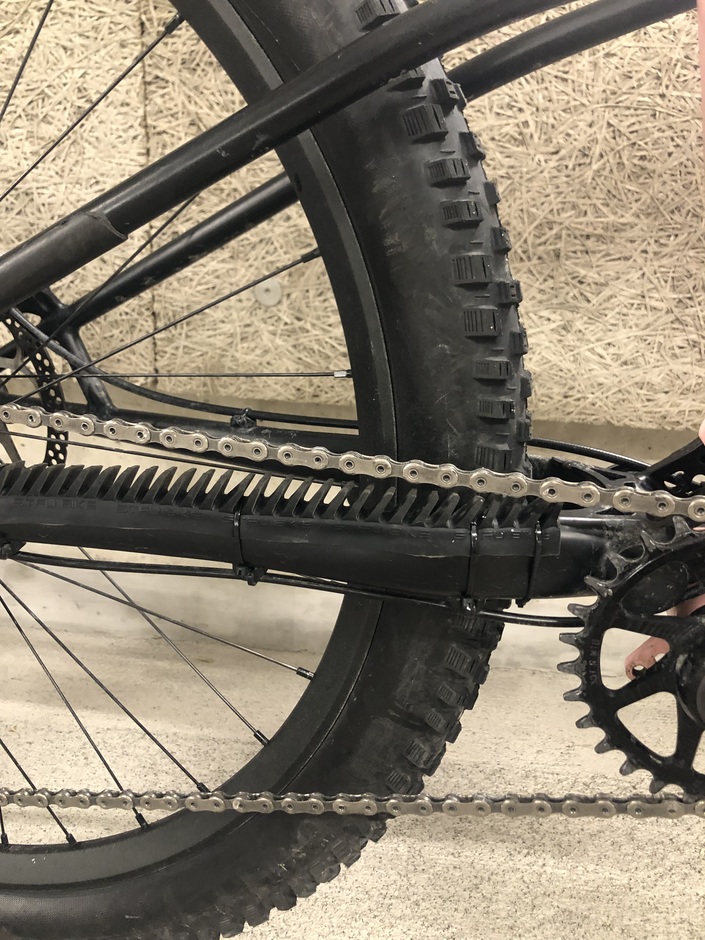

King Kage Sideloader Titanium Bottlecage / Trickstuff Matchmakers / Hope model N IS200 Adapter +40mm silver / nichecycling.ch Titanium UDH / STFU Slapper Tape / OneUp Components EDC Lite Tool / nichecycling.ch CNC Starling Cap / Pro-Bolt Ti bolts / Loam Lab Counterpunch /

More Info:
total weight is 15,99kg which is sub16
