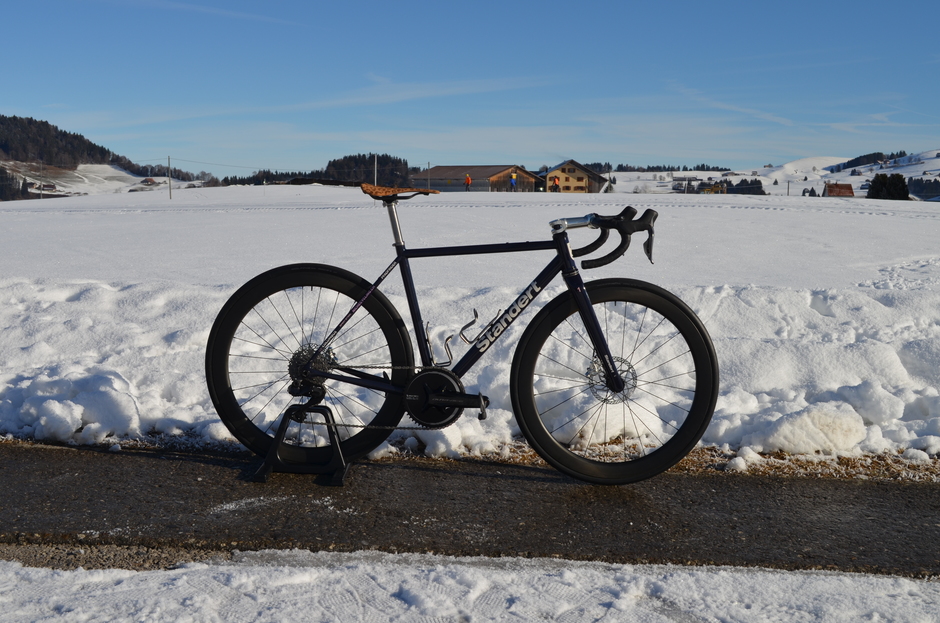

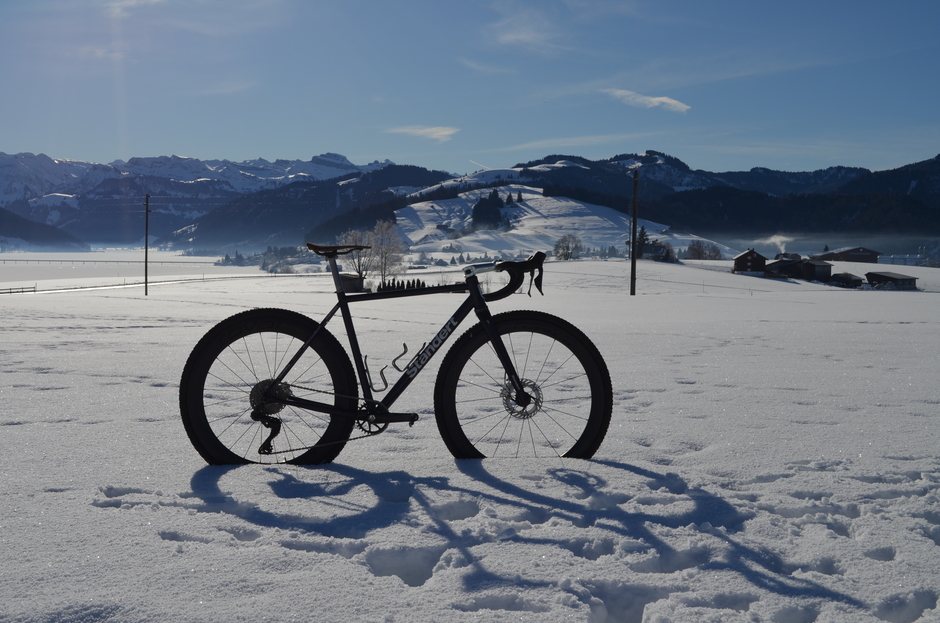

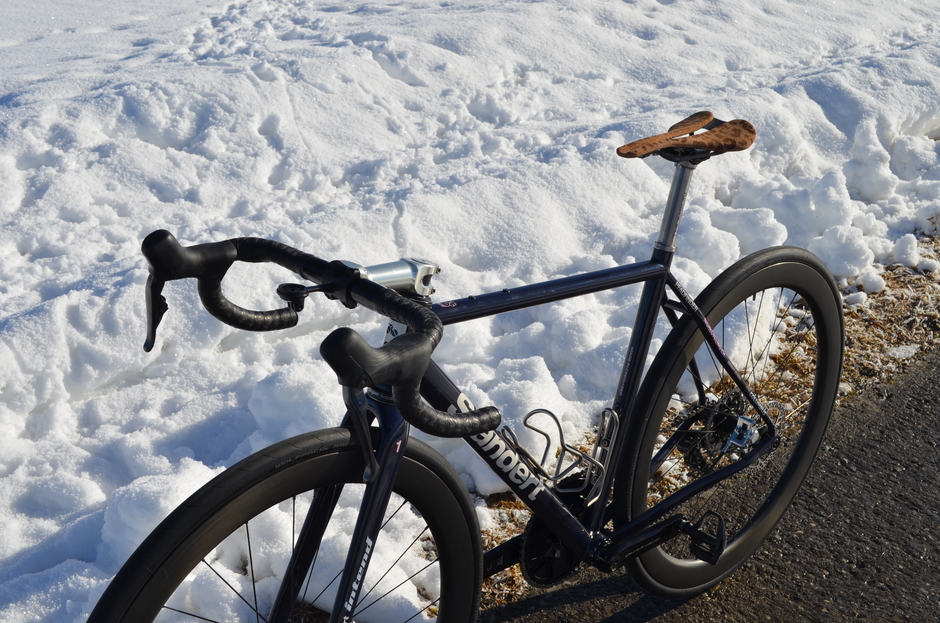

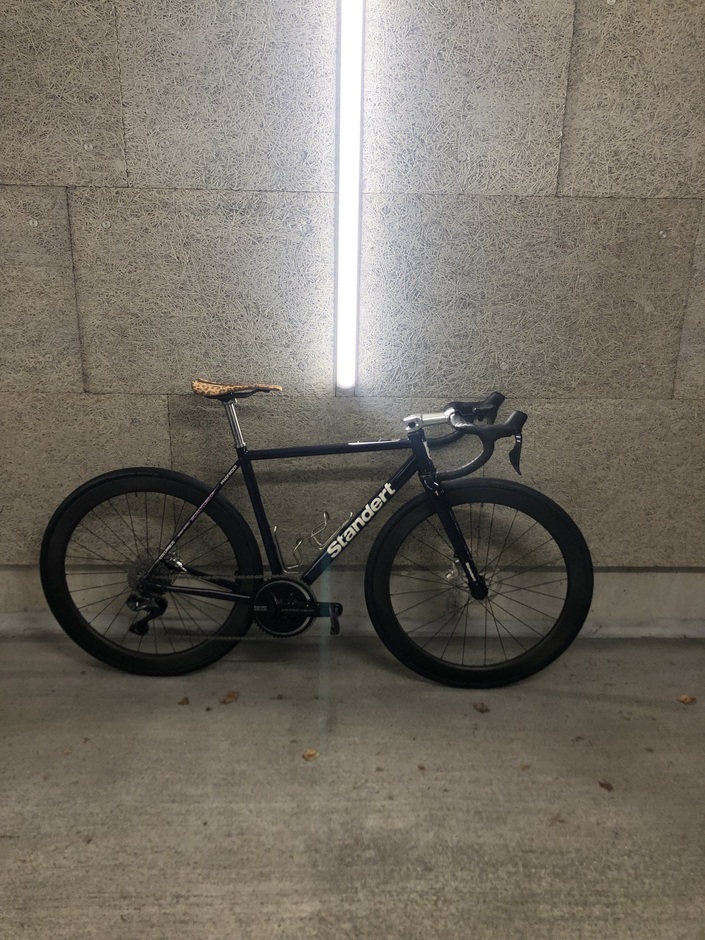

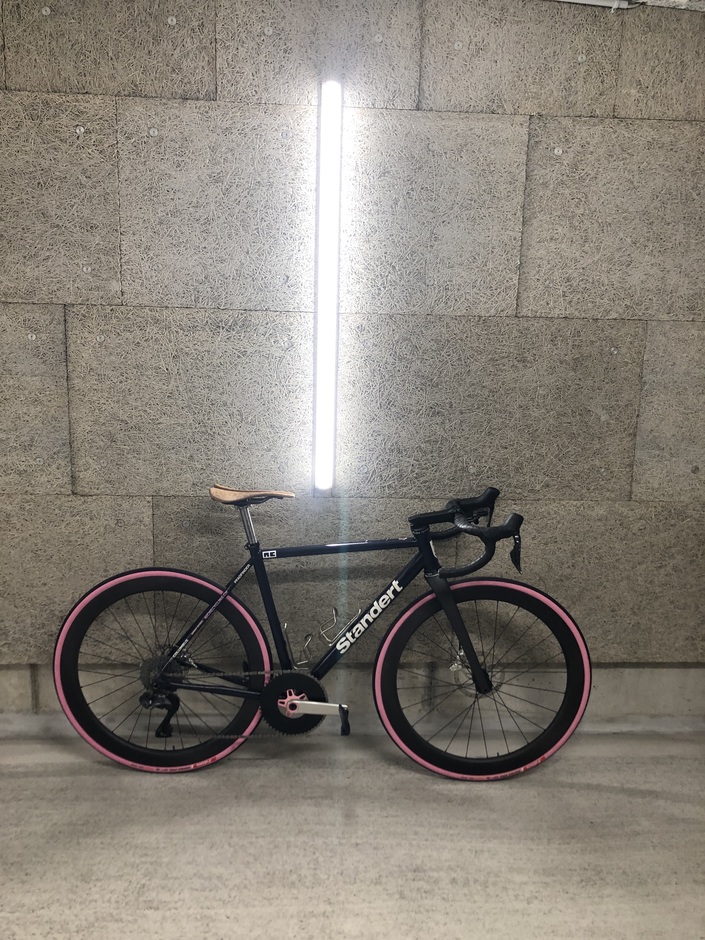

Standert Pfadfinder custom endlevel

I was looking for a replacement frame because my custom steel frame starts to rust more and more. Getting it painted without a phosphate rust protection on the inside feels like a bad investment and nobody offers a phosphate coating for bikes.

Frame:

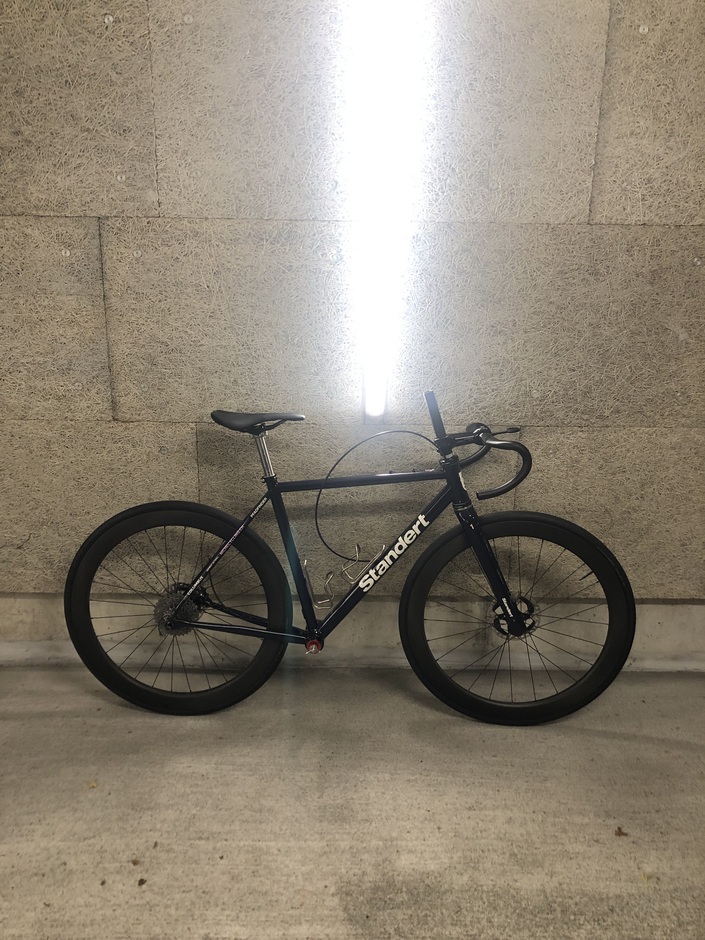

Standert Pfadfinder 52cm Midnight Marauder (RAL 790-6) steel Columbus tubing

Fork/Headset:

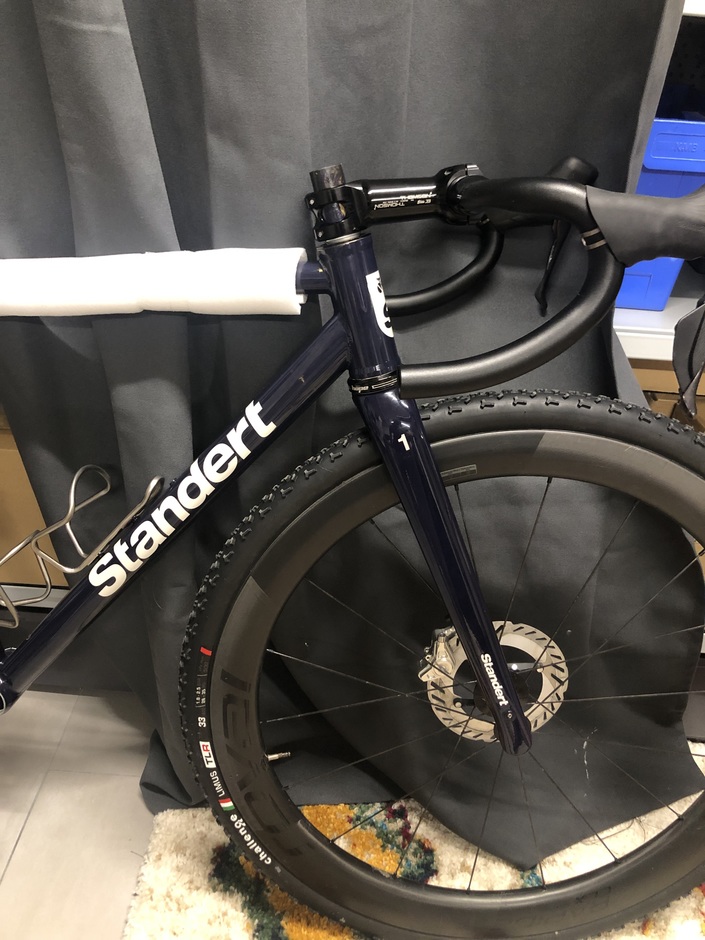

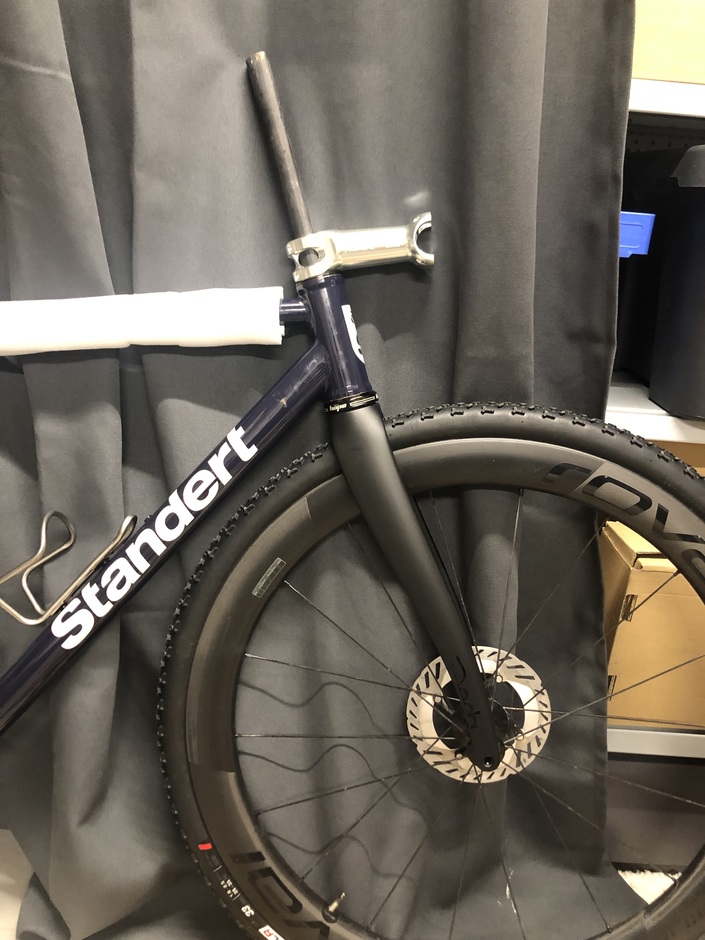

OEM Standert Pfadfinder carbon in RAL 790-6, axle to crown 382mm, fork offset 47mm with custom bonded deda d-shape steerer / Hope ZS44/28.6mm with Ceramicspeed OHD SLT 41x30.15x6.5mm 36°/45° bearing / Hope EC44/40 with Ceramicspeed OHD SLT 50x40x7mm 45°/45° bearing

Crankset/Bottom Bracket:

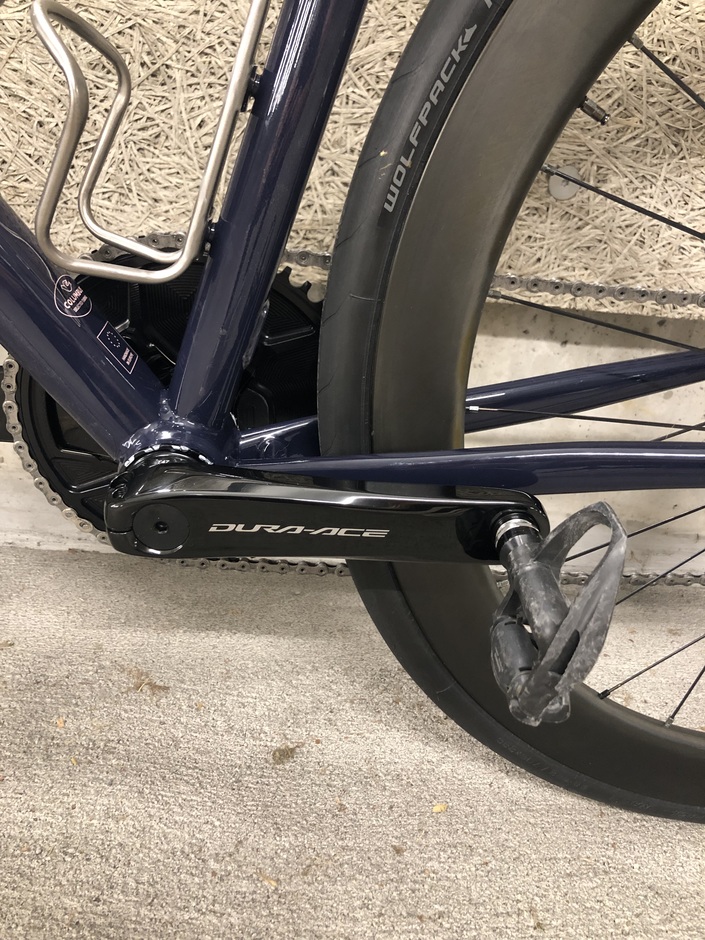

Sram force carbon DUB 160mm / BBinfinite T47 extrnal DUB with 30x24x7mm bearings

Pedals:
Shimano Dura-Ace PD-R9100 or XTR PD-M9100 with Meti Ti Axle

Drivetrain/Cog/Chainring/Chain:

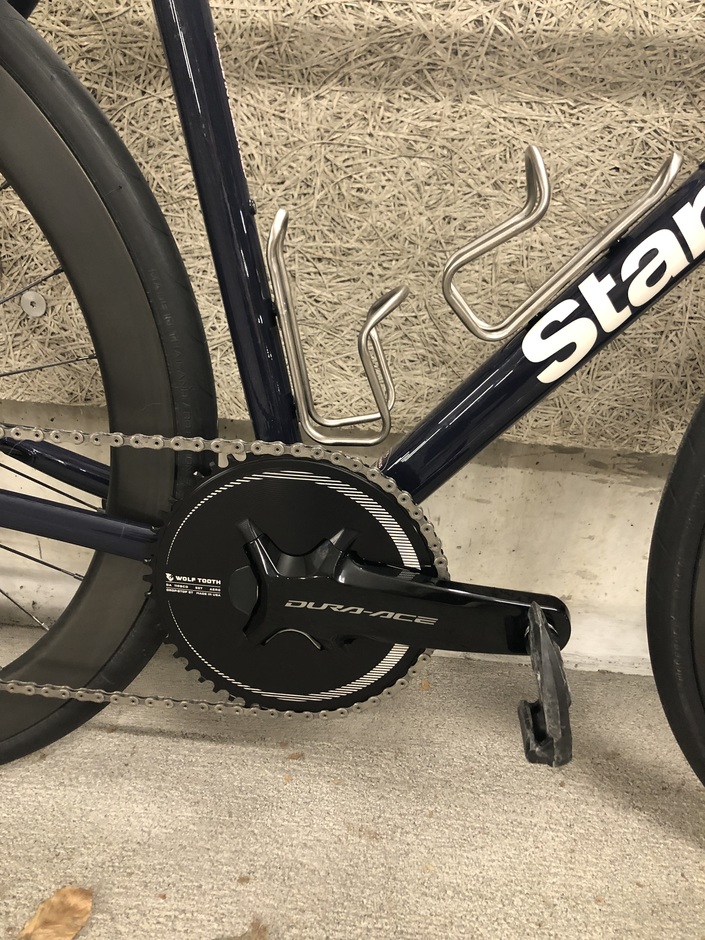

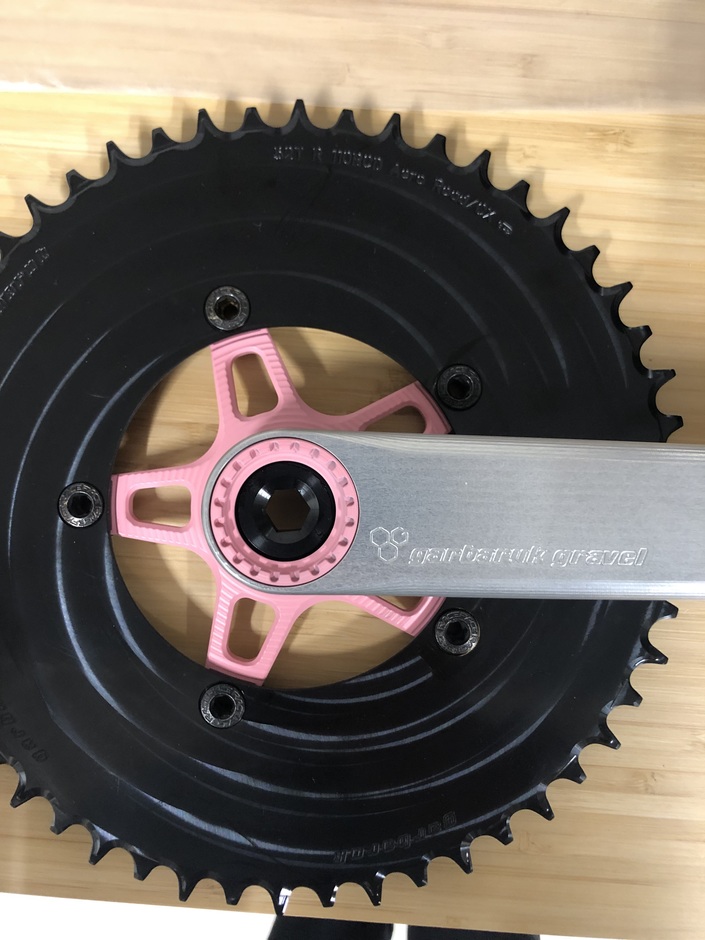

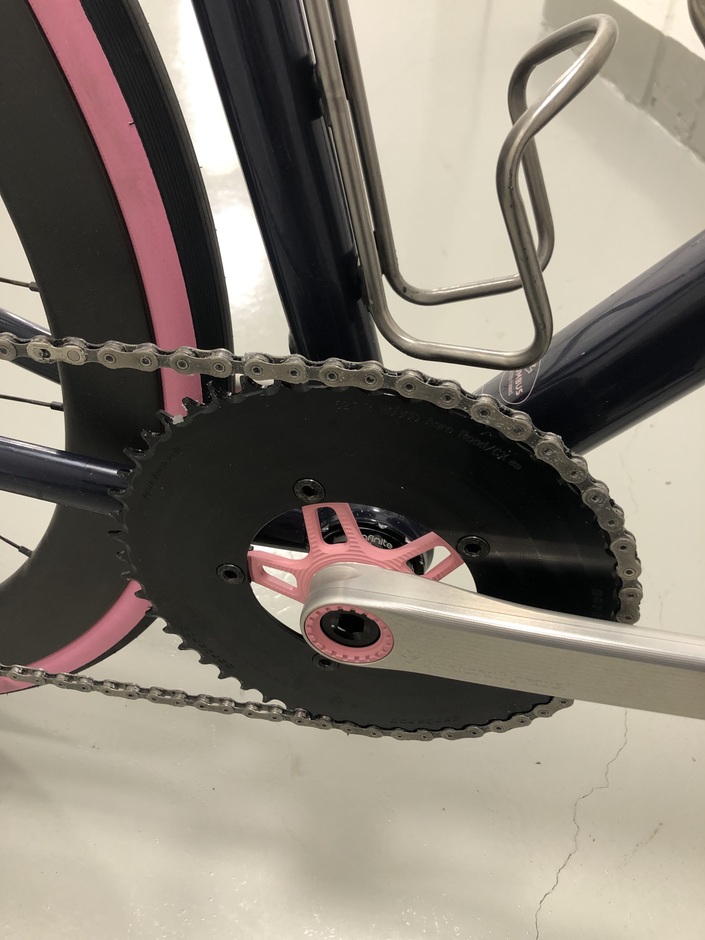

Shimano 1x12 / Shimano Dura-Ace CS-R9100 11-34 / Garabaruk round dm 44T or PRTYP plate N1 52T chainring / Shimano Dura-Ace CN-M9100 chain

Derailleurs/Shifters:

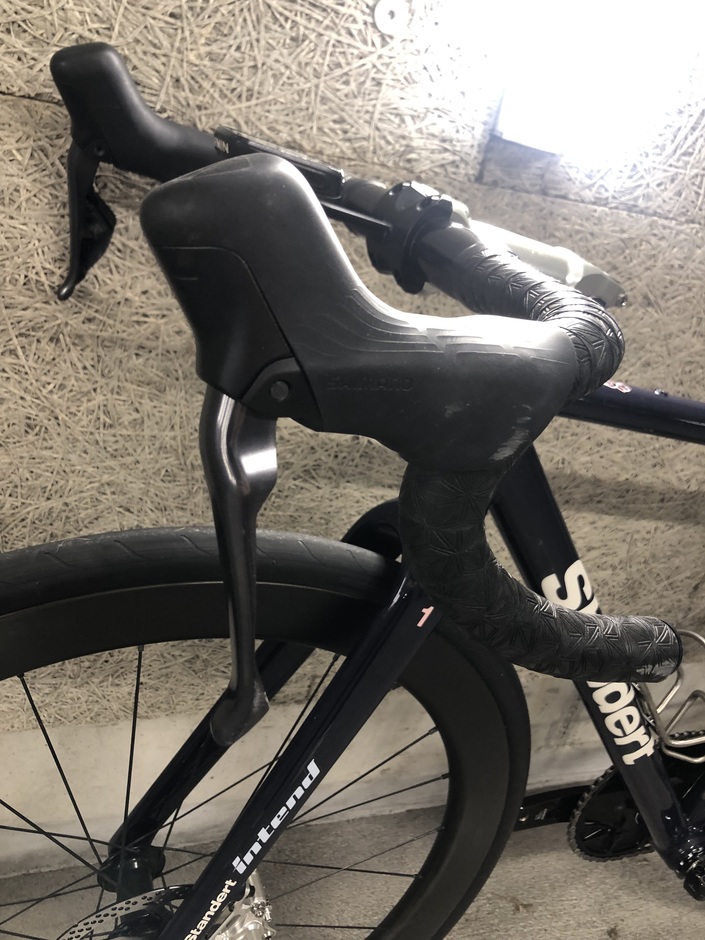

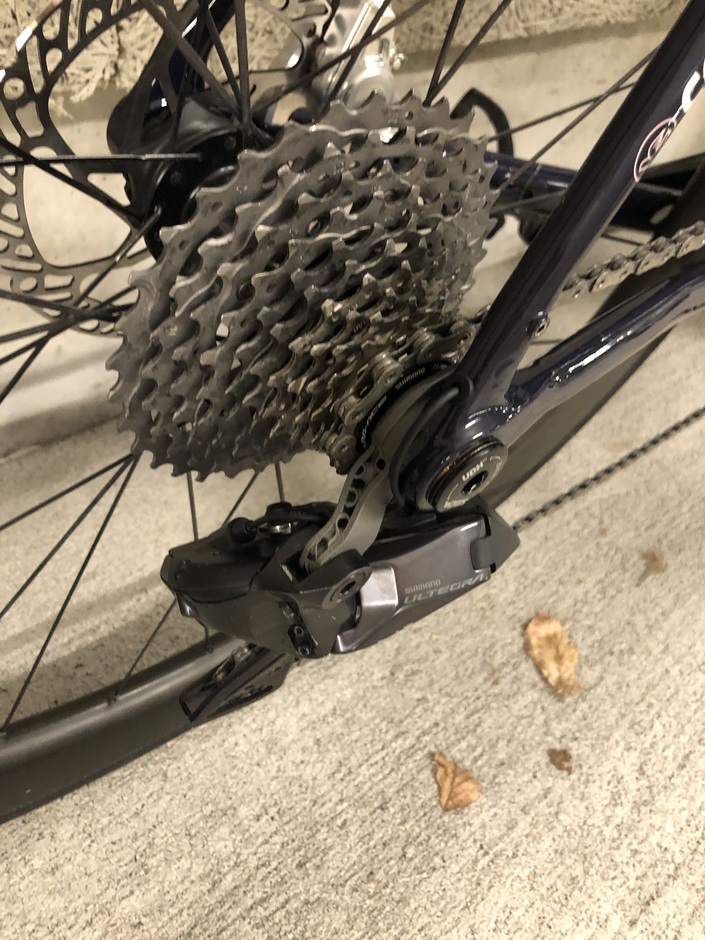

Shimano Ultegra Di2 RD-R8150 / Shimano Ultegra Di2 ST-R8170

Handlebars/Stem:

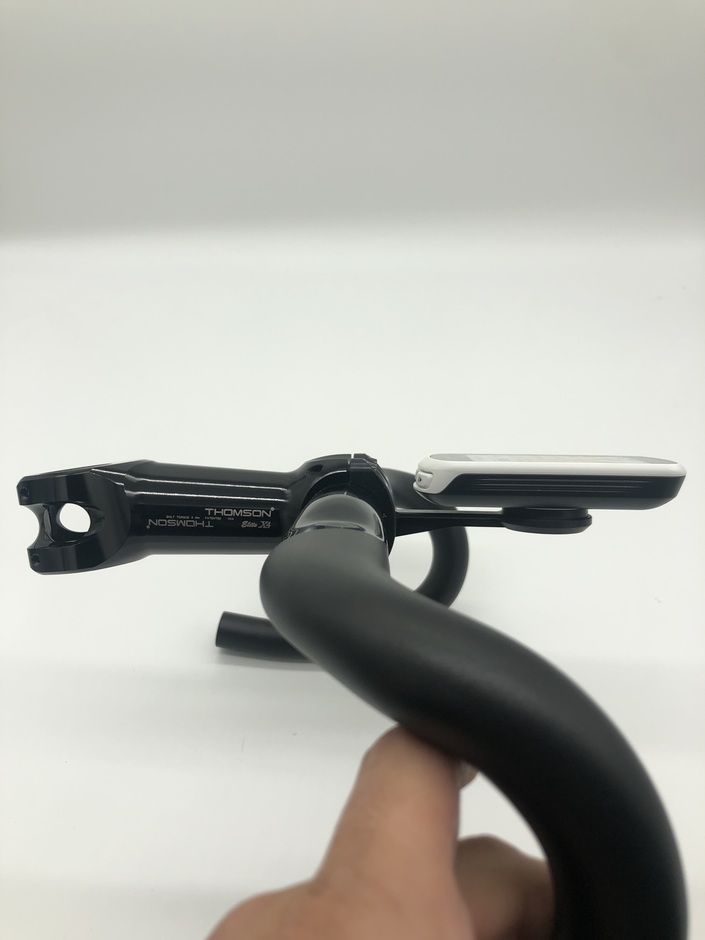

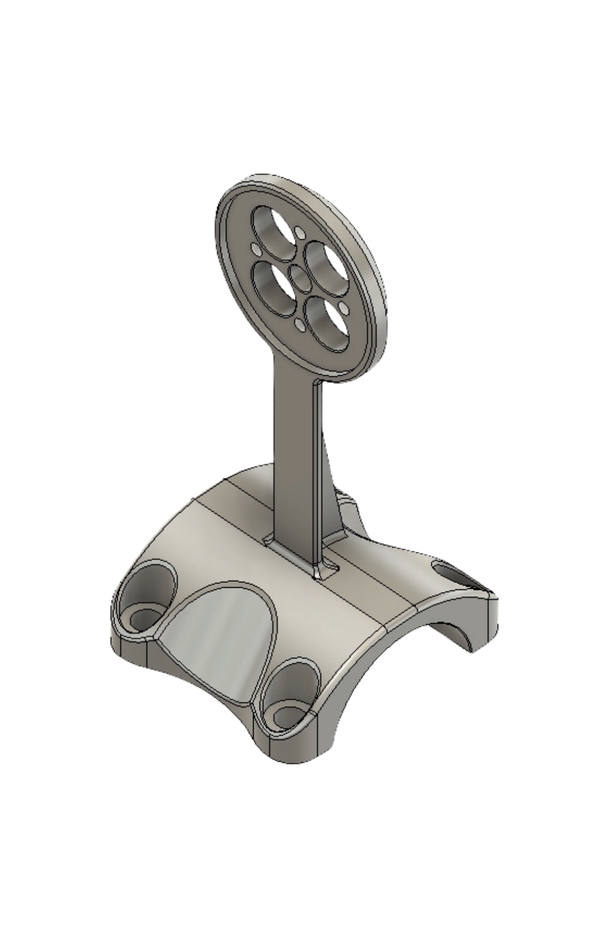

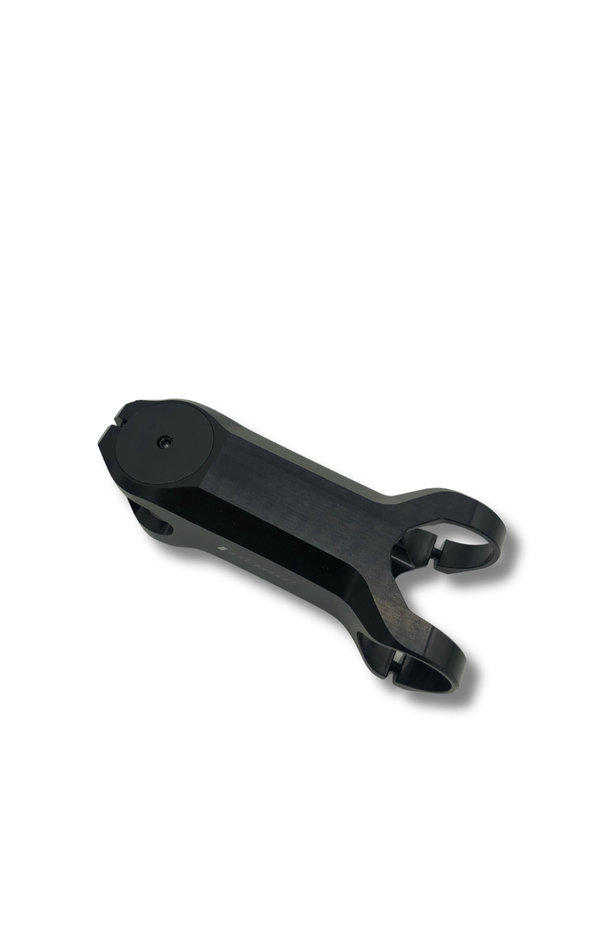

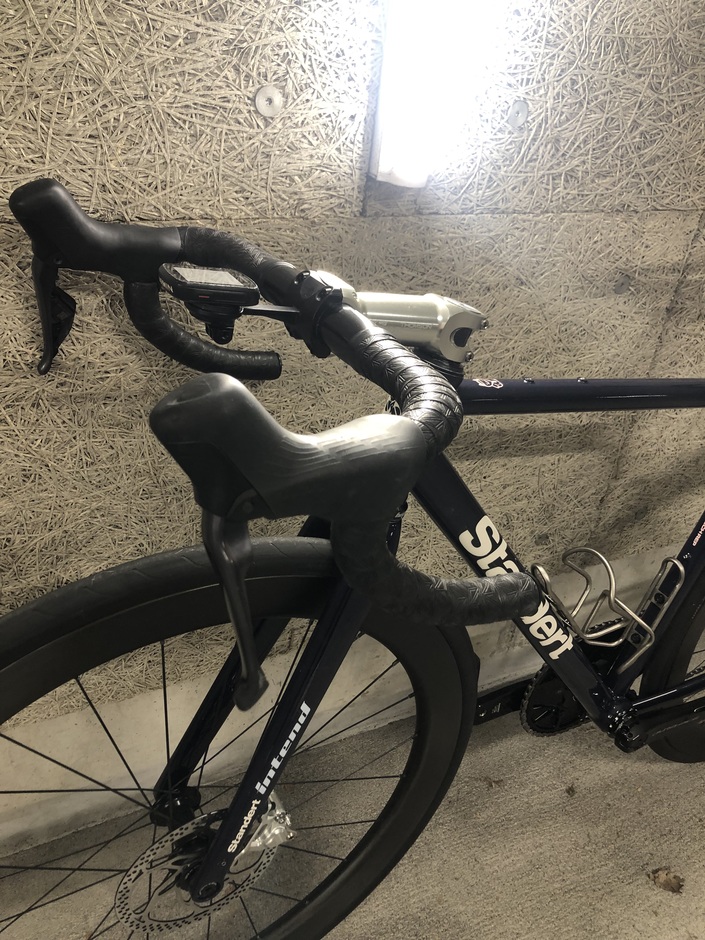

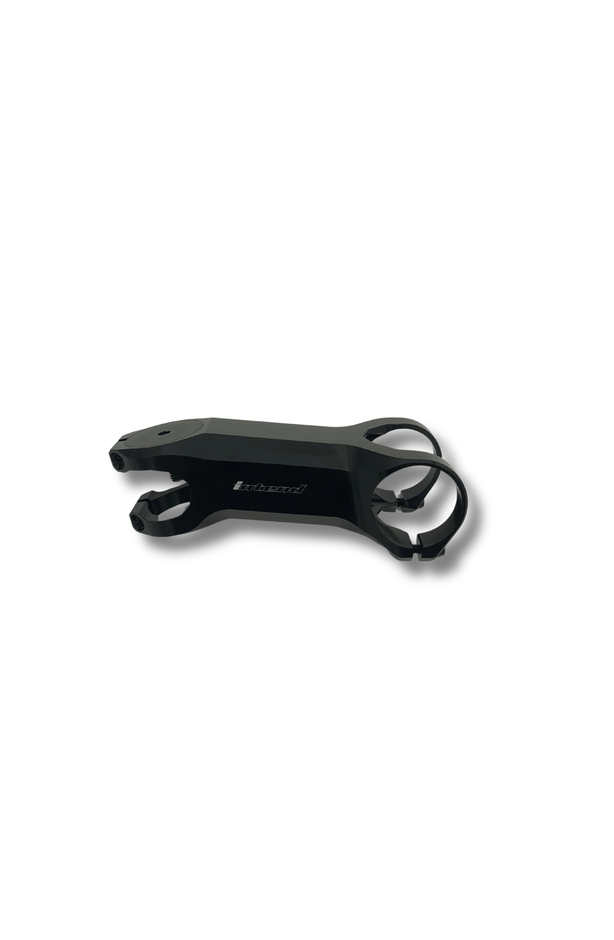

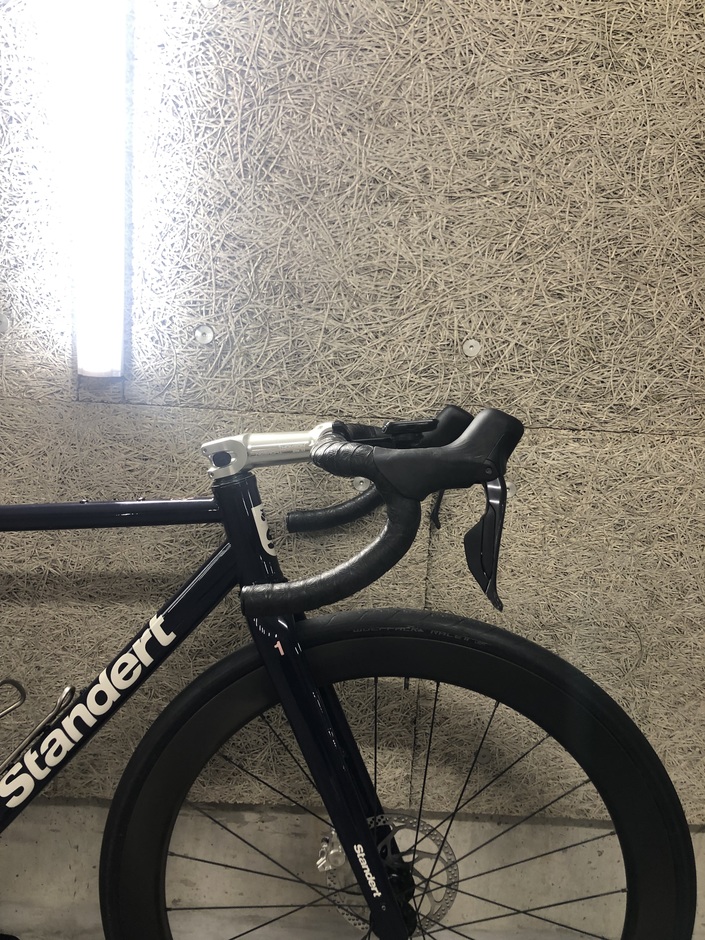

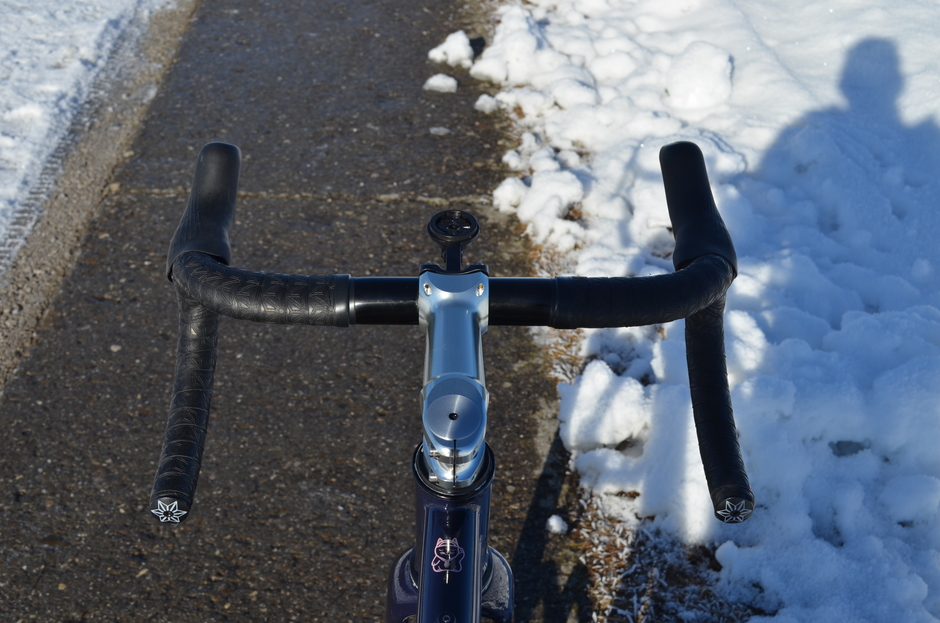

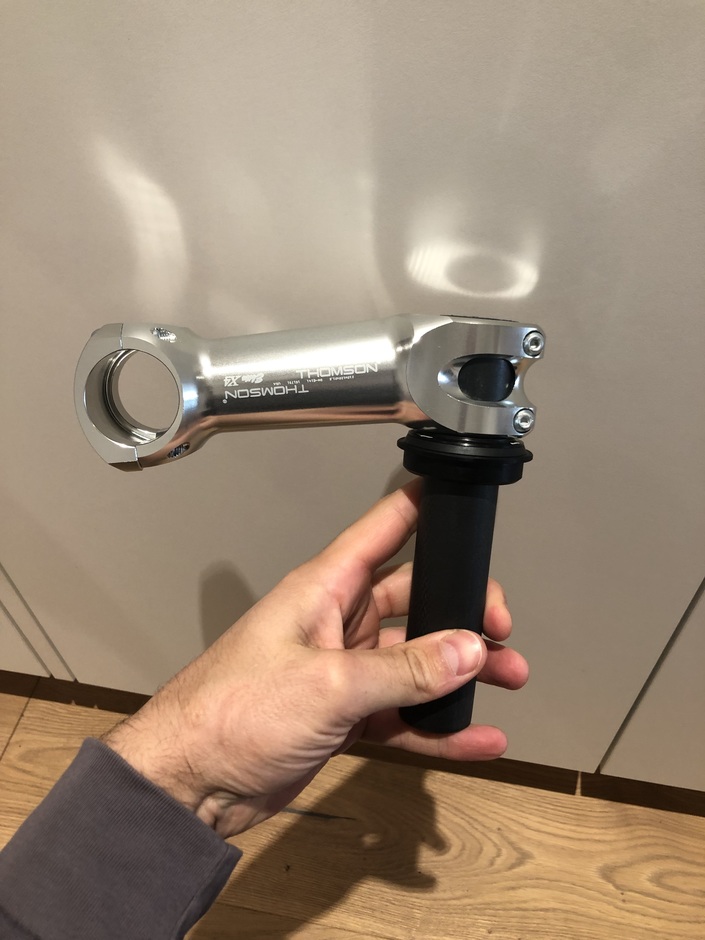

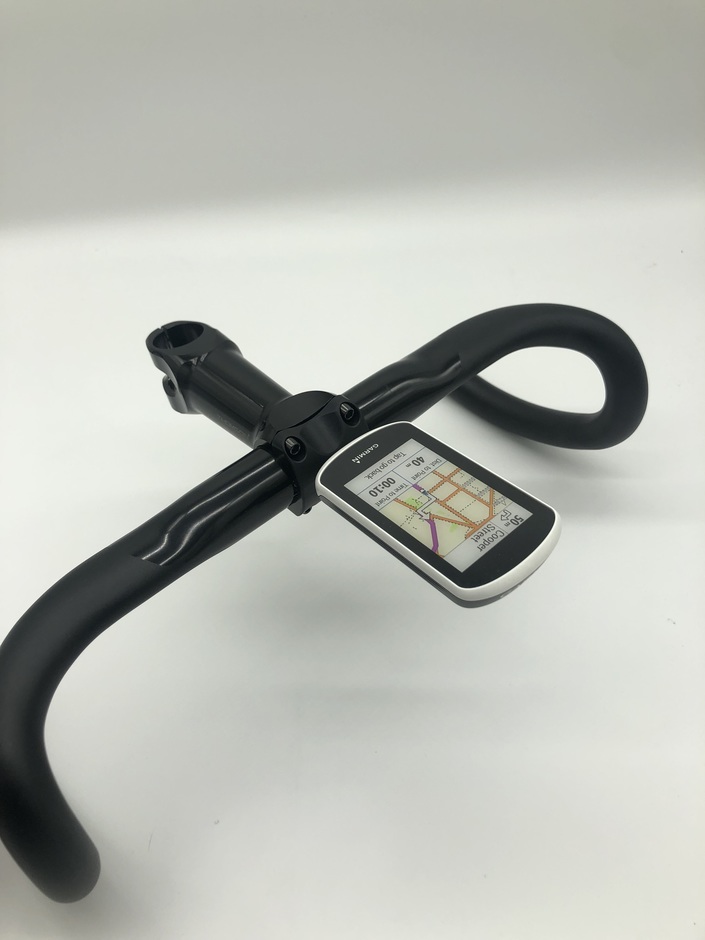

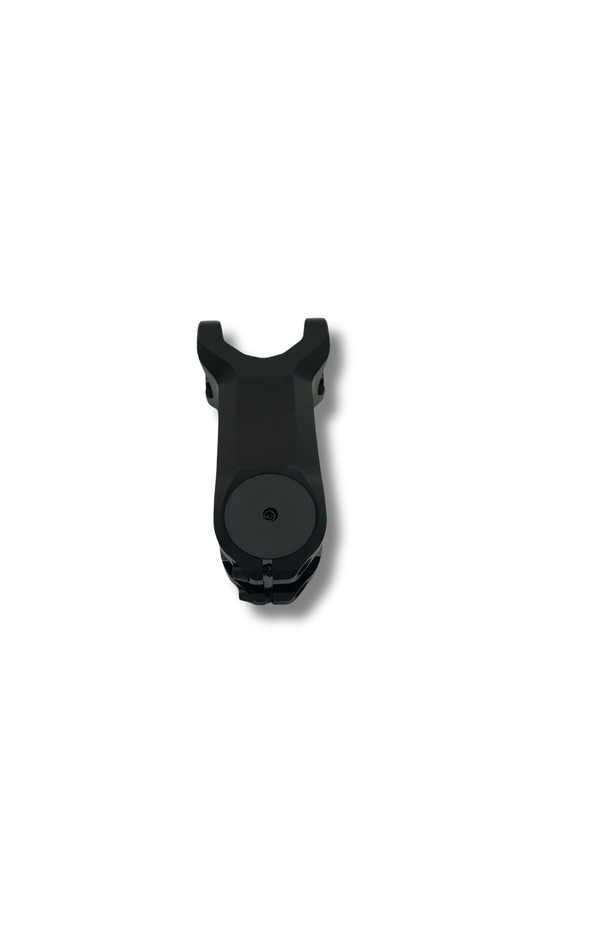

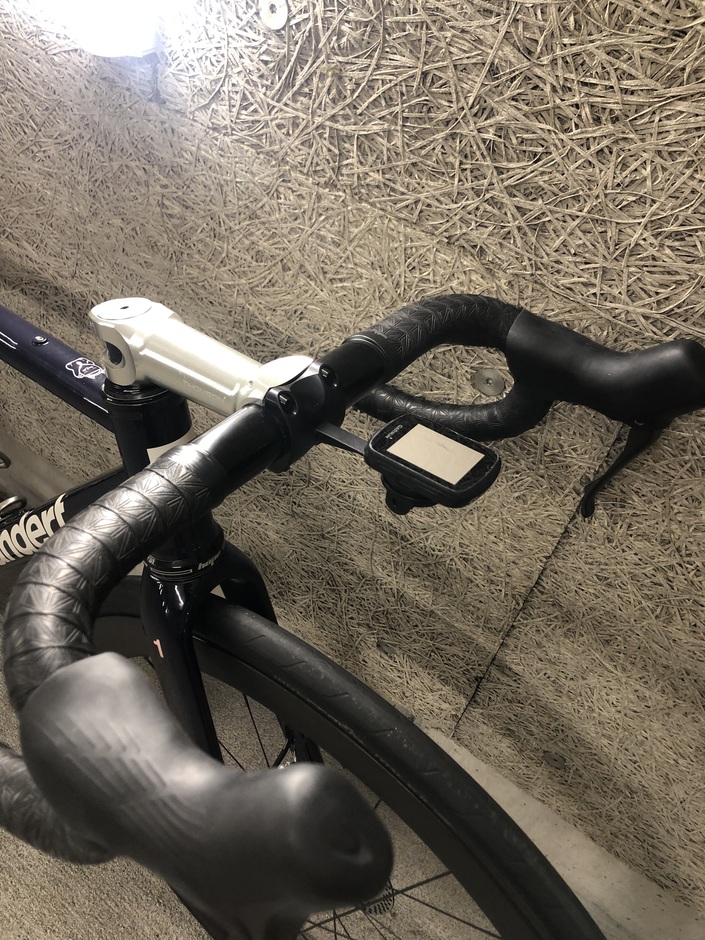

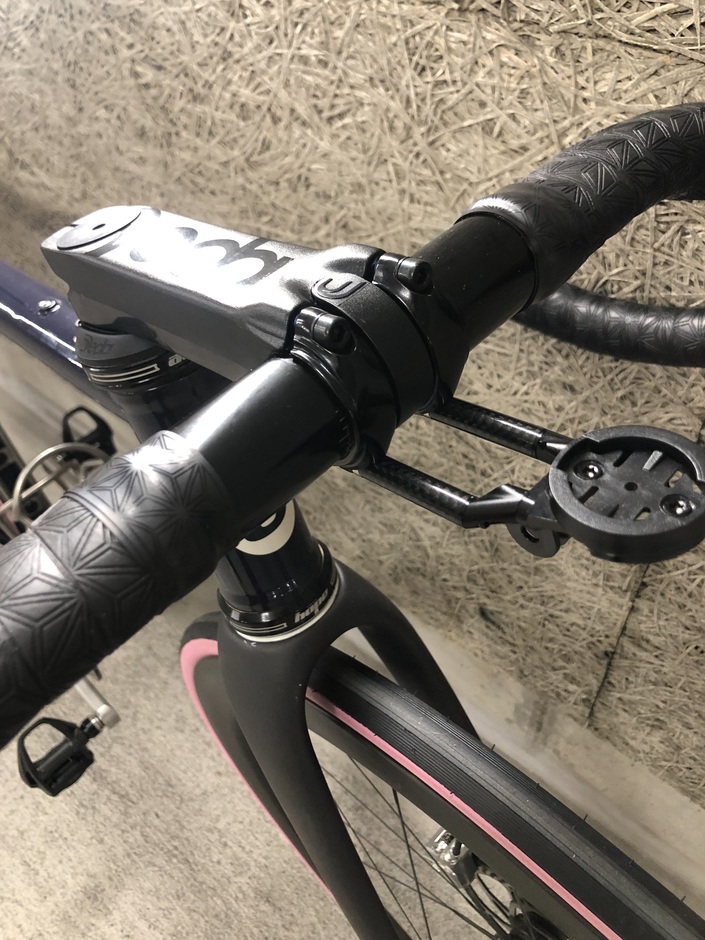

FSA energy super compact 360mm / Thomson X4 stem 120mm -10° / NICHECYCLING integrated Garmin mount

Saddle/Seatpost:

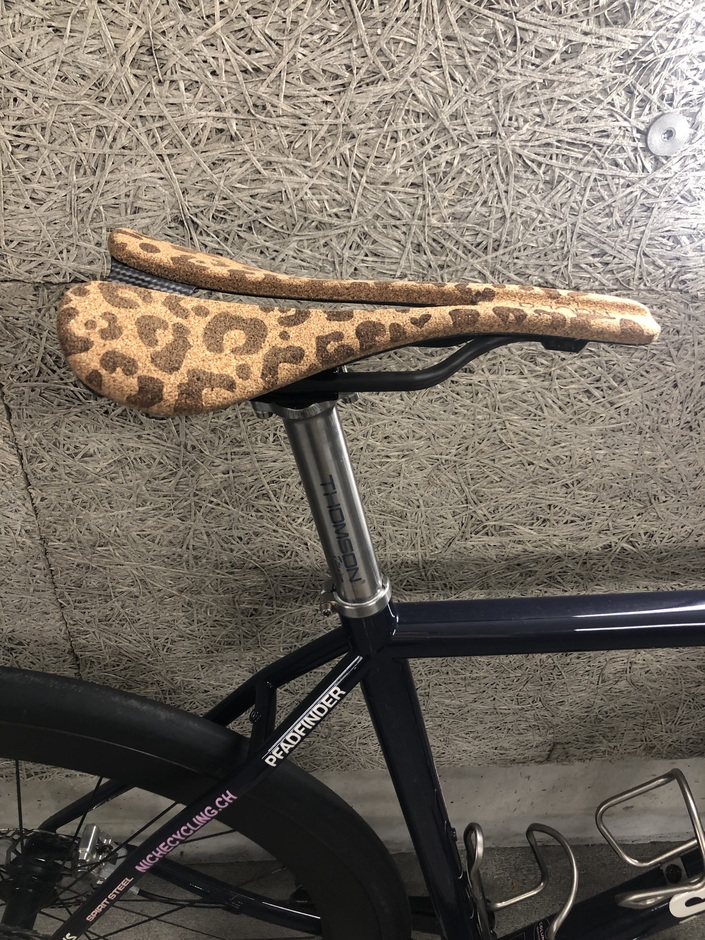

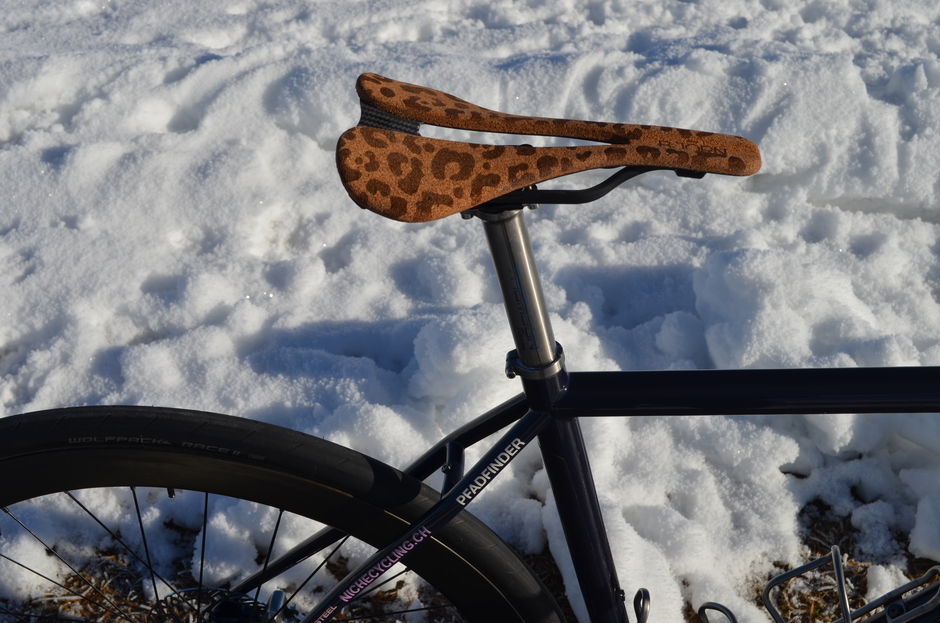

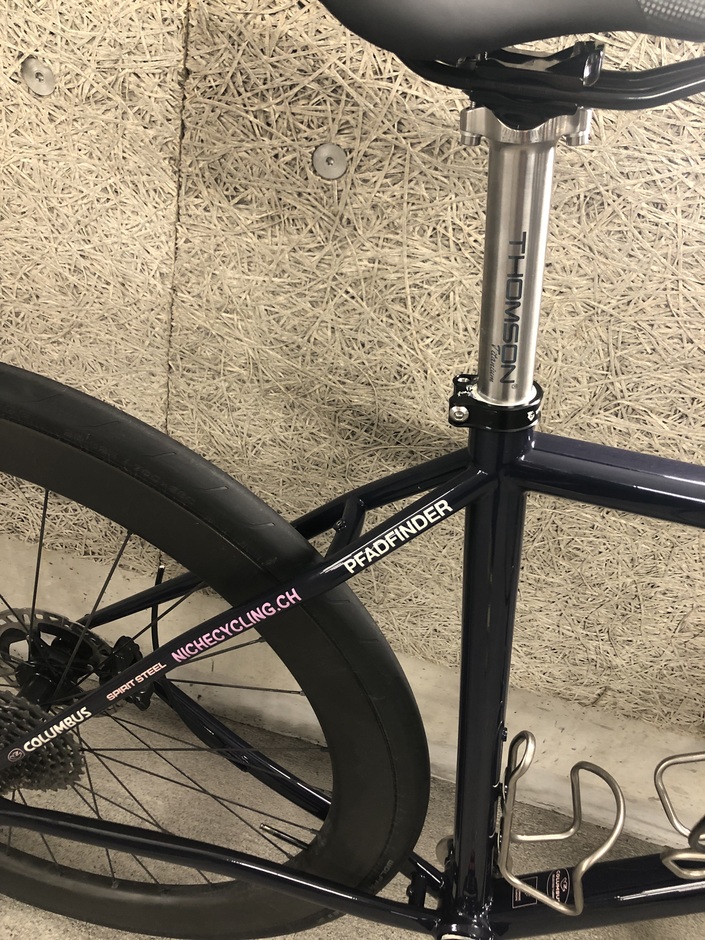

Björn Probka leo kork 143 mm / Thomson titanium 27.2mm / Wolftooth markzer0 seatclamp

Brakes:

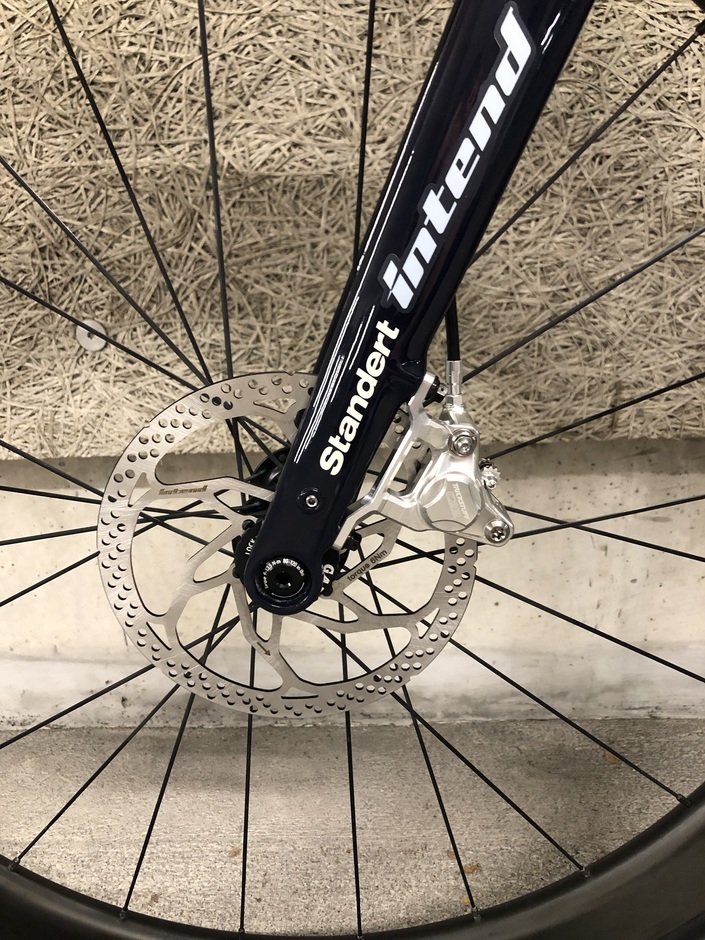

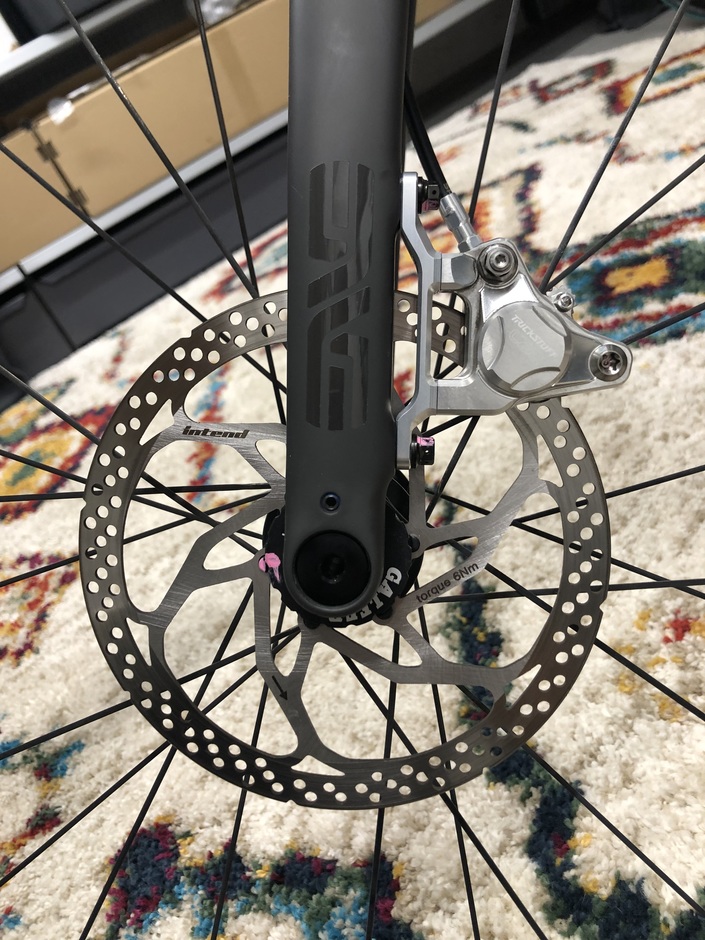

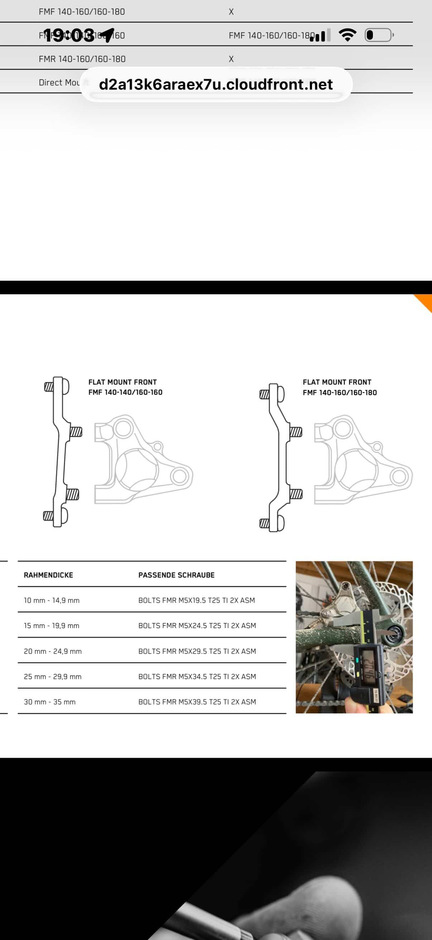

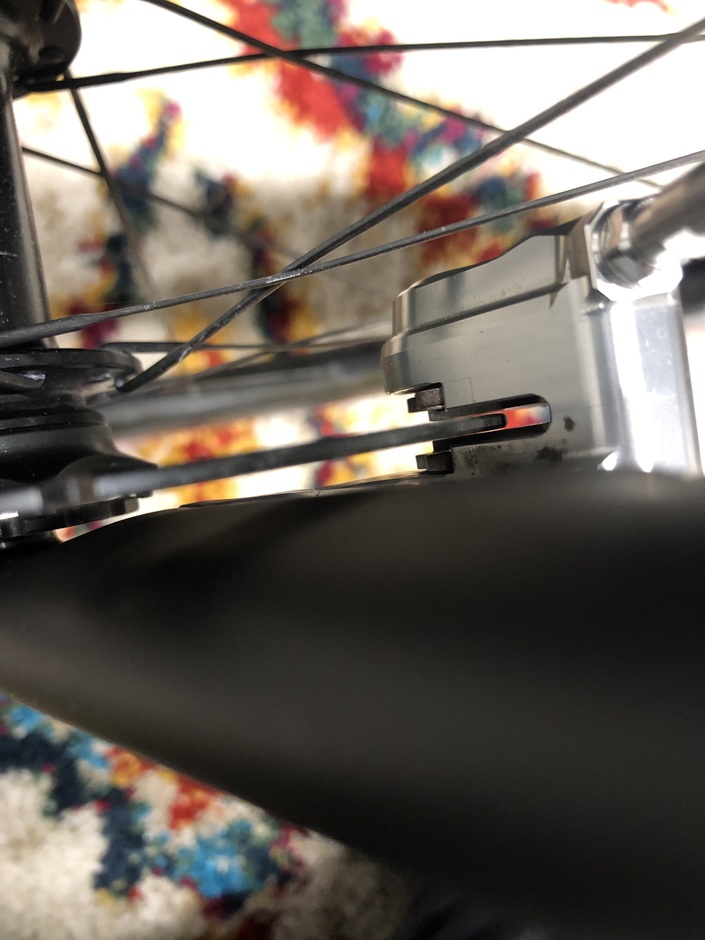

Trickstuff C22 / Trickstuff dächle 140mm / Intend skinny 160mm with Galfer center lock adapters

Front Wheel/Hub/Tire:
690g Nextie Carbon 50mm NXT50GX ERD541mm 425g 50x29x22mm laced with 24x 260mm Sapim CX-Ray to DT-SWISS 350 with black Sapim polyax 12mm brass nippels / 30mm Pirelli p-zero 4s

Rear Wheel/Hub/Tire:
820g Nextie Carbon 50mm NXT50GX ERD541mm 425g 50x29x22mm laced with 28 Sapim CX-Ray (DS256mm, NDS258mm) to DT-SWISS 350 with black Sapim polyax 12mm brass nippels / 30mm Pirelli p-zero 4s

Accessories:
King Cage titanium bottlecages / pro-bolt titanium bolts / NICHECYCLING Ti UDH / Meti titanium pedalaxles / Deda d-shape expander and topcap

More Info:
Xkg total incl. pedals, cages and garminmount

Bike History

Click a link below to see past stages of this bike.

  1. Initial Insta build
  2. Better cranks and cockpit
  3. Back to ZS upper headset

Current Stage Info:

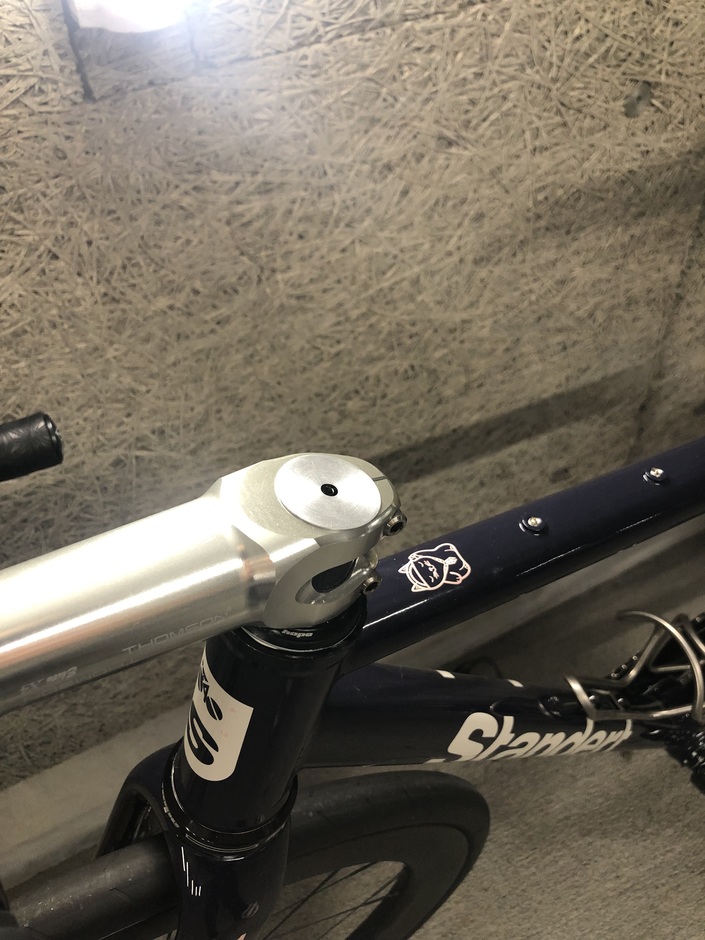

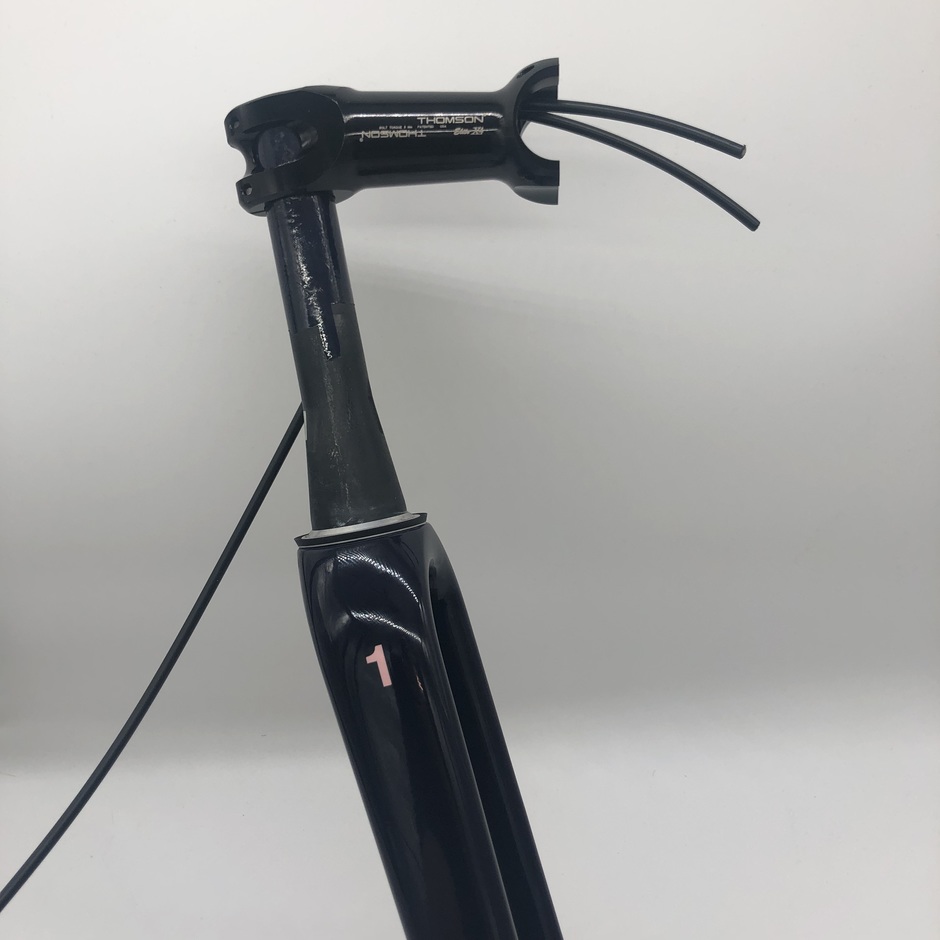

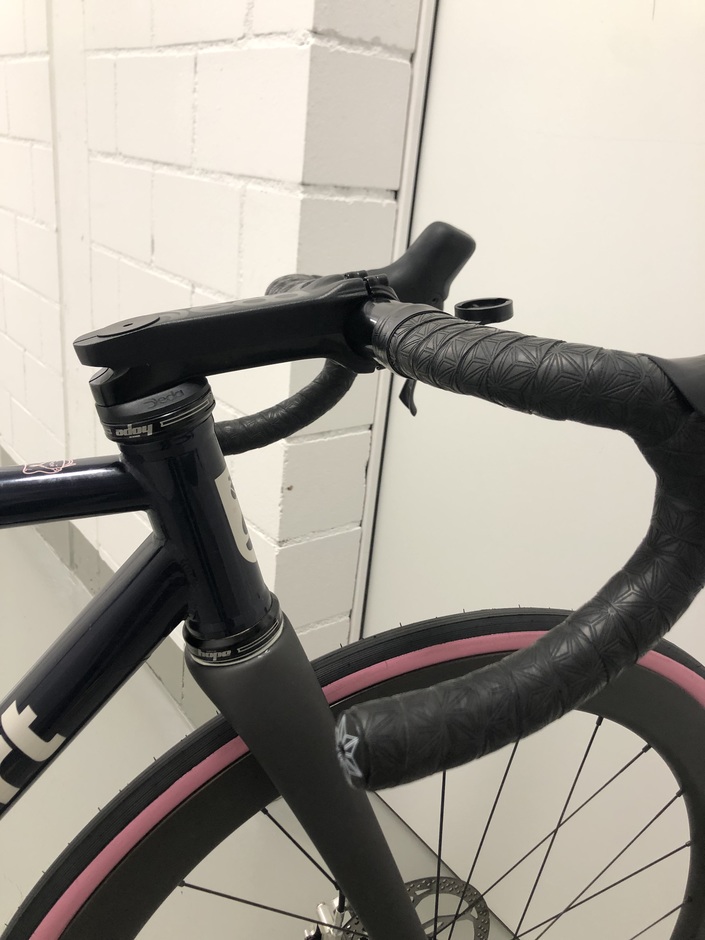

The EC upper headset just doesn't look good so I went back to the classic ZS44 headset but this time with the OEM fork with a custom bonded deda d-shape steerer that works with the normal deda expander and topcap

Added by ianiscaratti. Last updated 7 days ago.

Latest 21 Comments

Show all 40 comments

Does

Does says:

Huge work EC to ZS, well done :)

Posted 3 days ago

ianiscaratti

ianiscaratti says:

Thank you :D

Posted 3 days ago

dirtydeb

dirtydeb says:

The internally routed thomson looks so clean. great update. Thomson carbon post in the future?

Posted 26 days ago

ianiscaratti

ianiscaratti says:

thx. It looked good but was not 100% functional. now it is and looks clean. No carbon post planed I love the ti matching the bottlecages and cassette

Posted 25 days ago

edavsky

edavsky says:

will an additional layer of carbon be applied at the seam?

Posted about 1 month ago

ianiscaratti

ianiscaratti says:

even more than one layer. This bike doesn't have to be ligthweight

Posted about 1 month ago

edavsky

edavsky says:

good job

Posted about 1 month ago

ianiscaratti

ianiscaratti says:

just to be transpatrents: I didn't make it myself it was done by a carbon guy but thx

Posted about 1 month ago

WishIWasMattReyes

WishIWasMattReyes says:

im actaully running the same chainring on my uncomplete trek checkpoint, hopefully it reaches this mojo

Posted 3 months ago

ianiscaratti

ianiscaratti says:

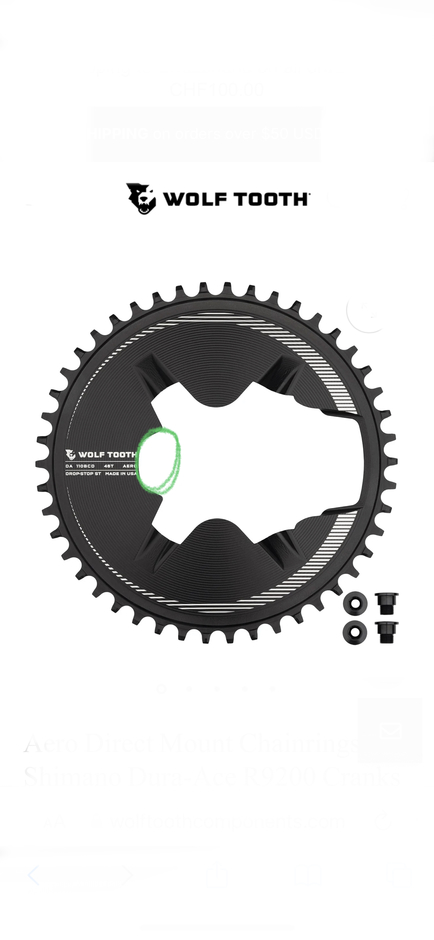

what chainring? started with wolftooth, current chainring is garbaruk and next one will be the prototype one

Posted 3 months ago

WishIWasMattReyes

WishIWasMattReyes says:

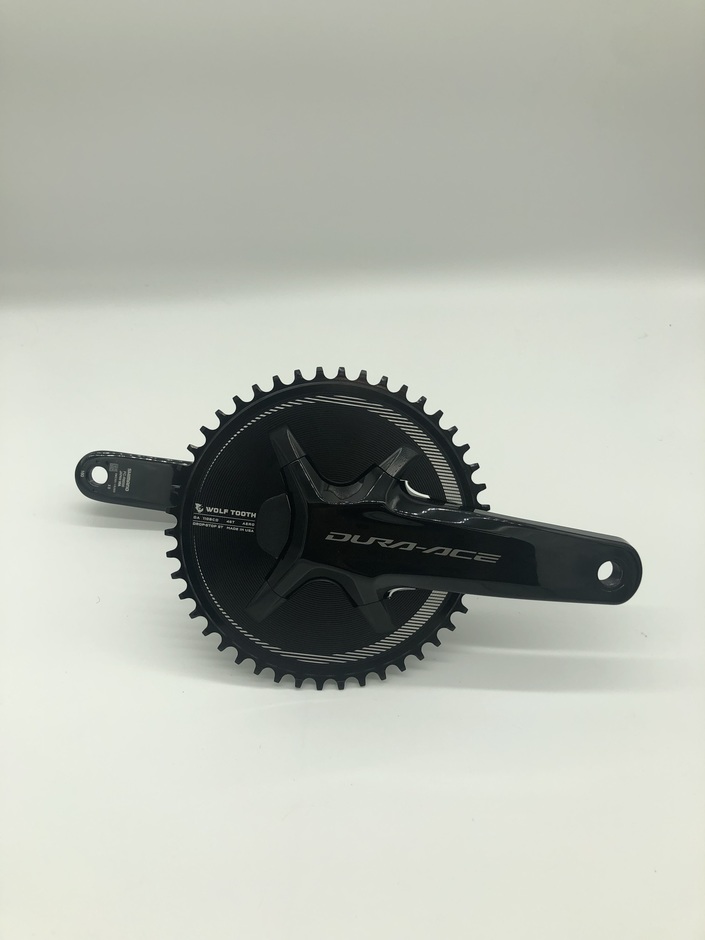

the wolftooth on the dura-ace cranks mb

Posted 3 months ago

ianiscaratti

ianiscaratti says:

check out the nichecycling aero cover to close the hole then

Posted 3 months ago

WishIWasMattReyes

WishIWasMattReyes says:

holy crap this is so well done

Posted 4 months ago

ianiscaratti

ianiscaratti says:

thank you

Posted 4 months ago

FixedMaksaks

FixedMaksaks says:

Baller saddle

Posted 7 months ago

ianiscaratti

ianiscaratti says:

Thanks

Posted 7 months ago

RSchwentke

RSchwentke says:

Super nice, sometime i allow myself a Standert too !

Posted 10 months ago

ianiscaratti

ianiscaratti says:

Thank you and can't wait to see your build oneday

Posted 10 months ago

benus

benus says:

Clean, Cleaner, Cleanest!

Amazing work with the cable routing through one of the most beautiful stems (except X2 or G2, even if I am not sure if I want to go back to a 2 bolt stem).

Posted 10 months ago

GhostRidingTheWhip

GhostRidingTheWhip says:

+1

Posted 10 months ago

ianiscaratti

ianiscaratti says:

Thank you <3

Posted 10 months ago

Show 19 more comments
