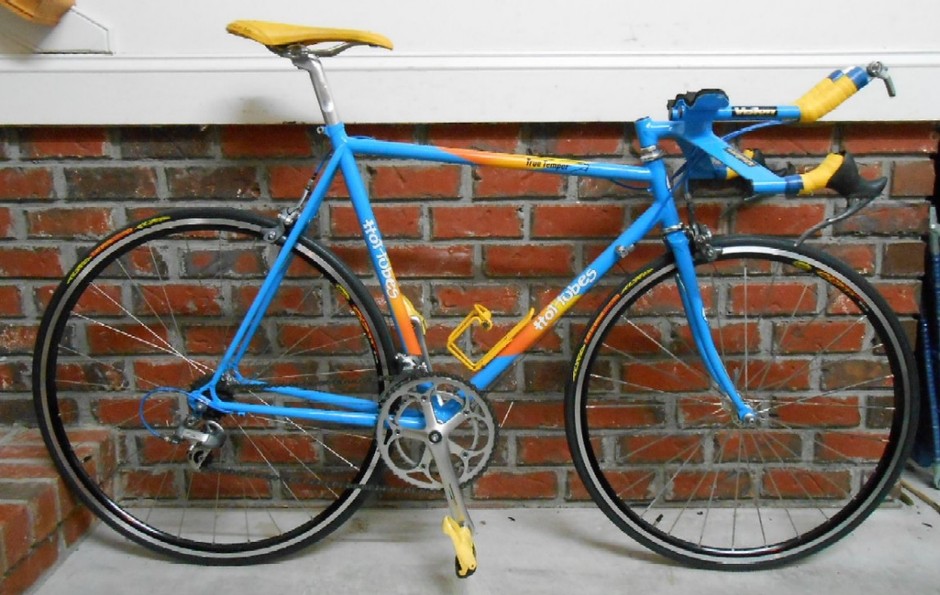

1995 Hot Tubes TT Bike

From Toby Stanton (Stanton Cycles, Hot Tubes) comes a TT bike that was fast then, and is fast now.

Frame:
53cm True Temper tubing, 700c rear / 650c front

Fork/Headset:
True Temper external lugged 1" threaded

Crankset/Bottom Bracket:
Shimano 6400 a.k.a. "tricolor"

Pedals:
Look PP296

Drivetrain/Cog/Chainring/Chain:
Shimano Dura Ace 11-19 8-sp cassette 53/39 chain rings Shimano Ultegra 6500 chain

Derailleurs/Shifters:
Shimano 6400 8-sp bar end shifters Shimano 6400 series FD Shimano 6400 seried RD

Handlebars/Stem:
Custom quill stem/bar combo by Toby Stanton. Used a Vision base bar as a template, but changed it.

Saddle/Seatpost:
Selle Italia Gel Flow Shimano 6400 Aero 27.2 post

Brakes:
Shimano 6400 series dual pivots Shimano 6400 brake levers

Front Wheel/Hub/Tire:
Race: HED Jet 650c Train: CXP-33 650c rim Shimano 6400 hub Shimano 6400 hub Tufo S3 Pro tubular 650c tubular Tufo CS 33 tire

Rear Wheel/Hub/Tire:
Race HED Jet 700c Train: CXP-33 700c rim Shimano 6400 hub Shimano 6400 hub Tufo S3 Pro tubular 700c tubular Tufo CS 33 tire

Accessories:
Jagwire cable kit.

More Info:
Is curently being moved to 9-sp Dura Ace and Tektro TT200 aero brake levers. Requires modification of the shifter and brake lever barrels to fit in those bars. I train on the super-strong Mavics, and race on the HED's

Added by RobbieTunes. Last updated about 9 years ago.

As of about 9 years ago, RobbieTunes has indicated that they no longer own this bike.

10 Comments

dietrootbeer

dietrootbeer says:

this is so awesome! how could you ever part with it?!

Posted about 8 years ago

RobbieTunes

RobbieTunes says:

It is at a very good home, being used as a pursuit bike. I can always get it back.

Posted about 8 years ago

RSchwentke

RSchwentke says:

great bike.

Posted about 8 years ago

time-trial-collector

time-trial-collector says:

I like it a lot - especially the color scheme. Maybe you remove the pink JET stickers?

Posted over 9 years ago

RobbieTunes

RobbieTunes says:

I should. I've been looking for some HED decals just like the ones already there, to put in place of the JET decals.

This weekend, it goes to 9-sp Dura Ace, and a whopping big 11-21 cassette.

Posted over 9 years ago

Yoink

Yoink says:

Looks fast. I expect it is with an 11-19 cassette :P

Posted over 9 years ago

RobbieTunes

RobbieTunes says:

Fairly flat in these parts, and I rarely need the small ring. I'm as fast on this as any bike I have, and I think the position helps a lot. It was custom-built for a guy, apparently my size, because it fits very well.

Posted over 9 years ago

Yoink

Yoink says:

Lucky you. Just out of interest, whereabouts are "these parts"?

Posted over 9 years ago

RobbieTunes

RobbieTunes says:

Eastern NC, right on I-95. East and south = flatter and flatter, but constant wind. You pedal about 99% of the time. North and west = hills worth climbing. Almost all the triathlons around here are flat.

Posted over 9 years ago

ridingfixed

ridingfixed says:

Reminds me of a land shark time shark

Posted over 9 years ago
