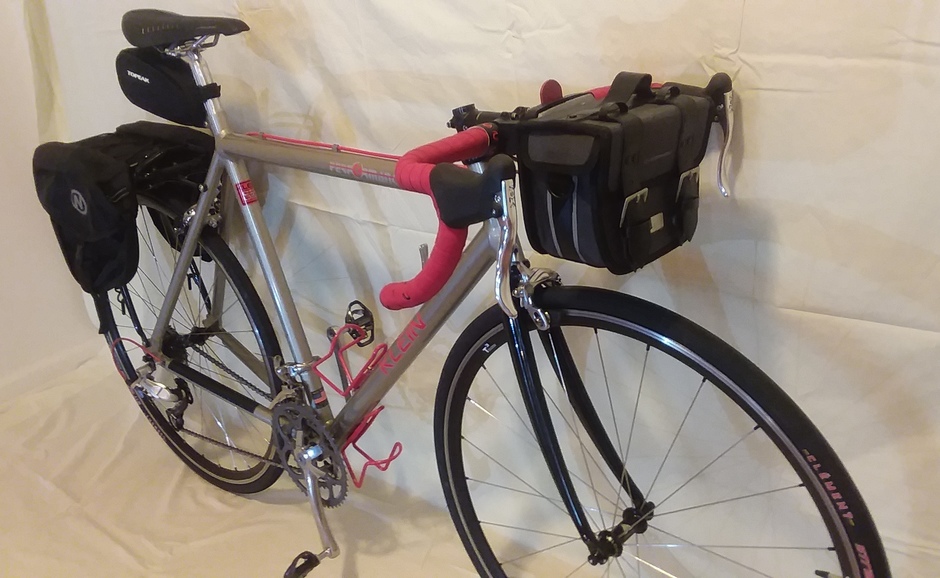

84/85 Klein Performance

One of the originals. Lots of challenges to building this with anything modern. This is for light 2-3 day touring.

Frame:

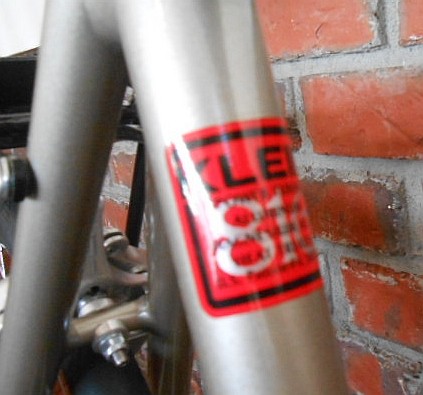

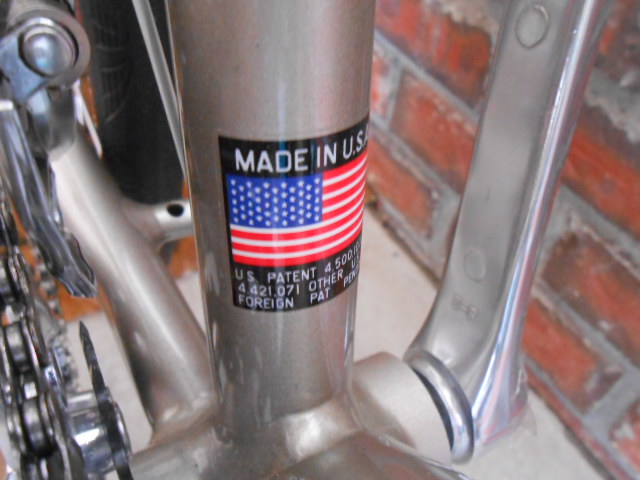

861 Aluminum (Klein spec) frame, approx 55x56 cm.

Fork/Headset:
Performance carbon 1" threaded fork / Innicycle headset/stem adapter.

Crankset/Bottom Bracket:

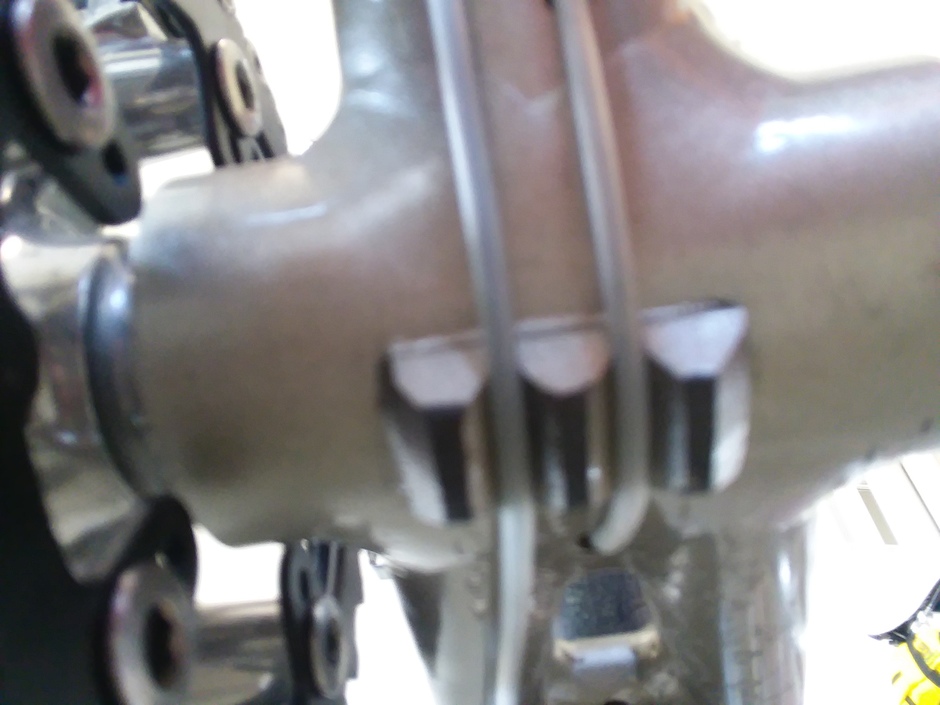

Shimano RSX compact triple crankset / Suntour Superbe Pro press-fit square taper BB (symmetrical).

Pedals:
Shimano PD-A600

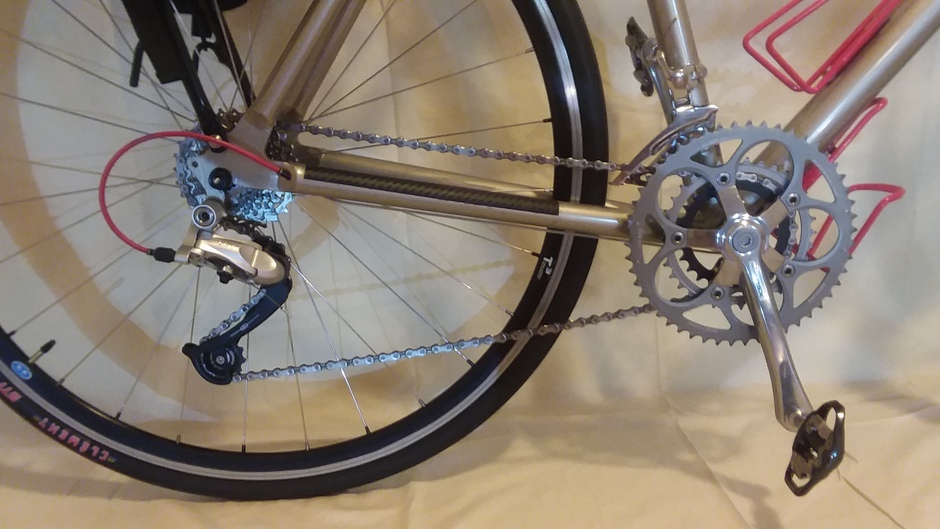

Drivetrain/Cog/Chainring/Chain:

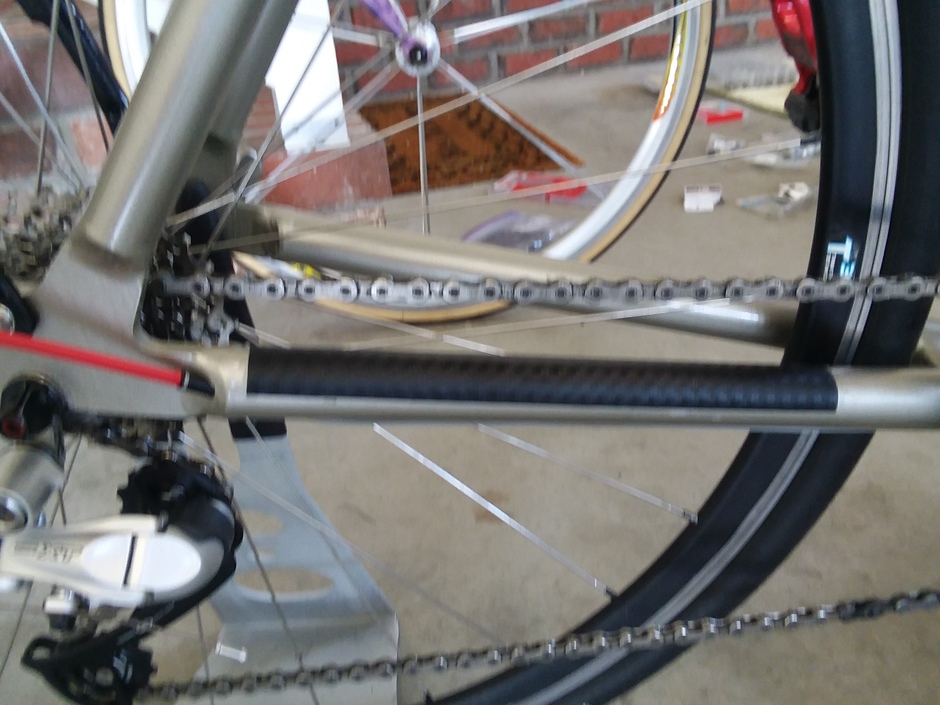

Ultegra 11-28 10-sp cassette / 48/36/26 FSA rings / SRAM 1071 chain.

Derailleurs/Shifters:

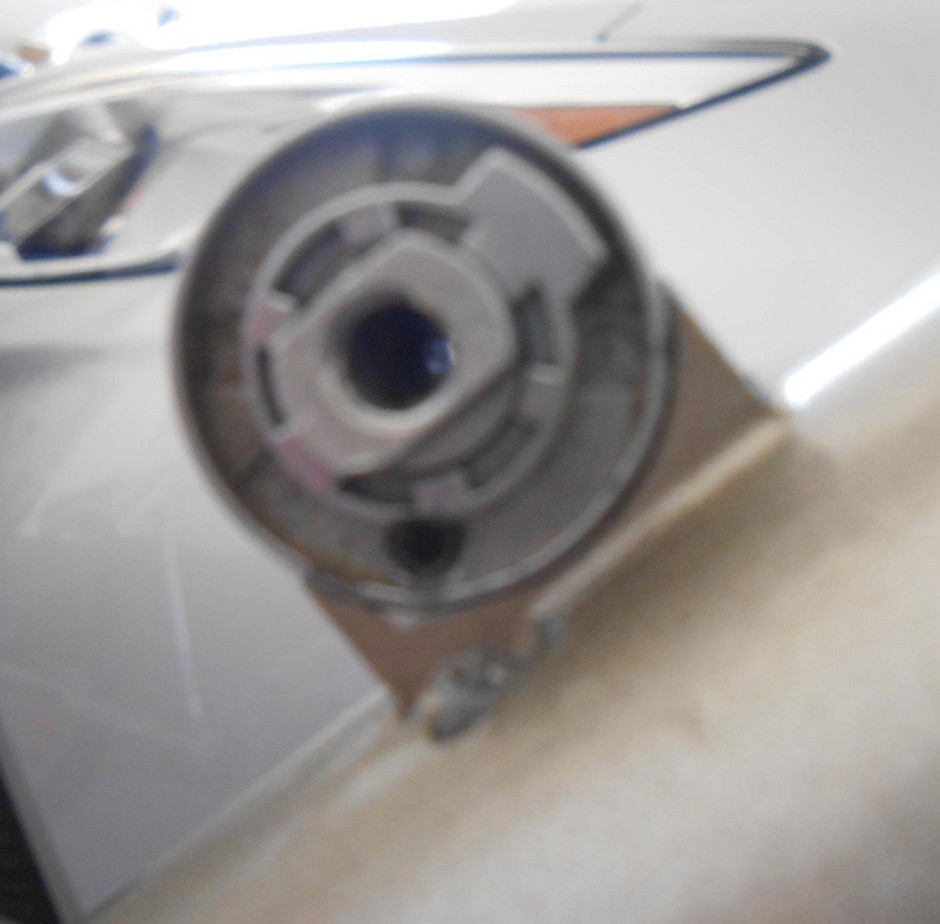

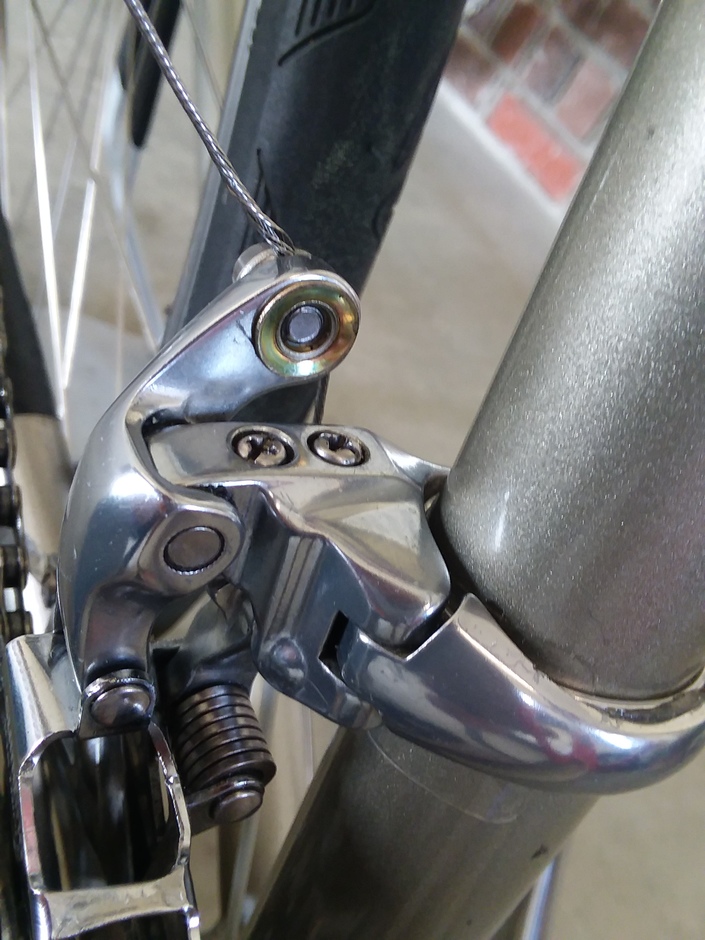

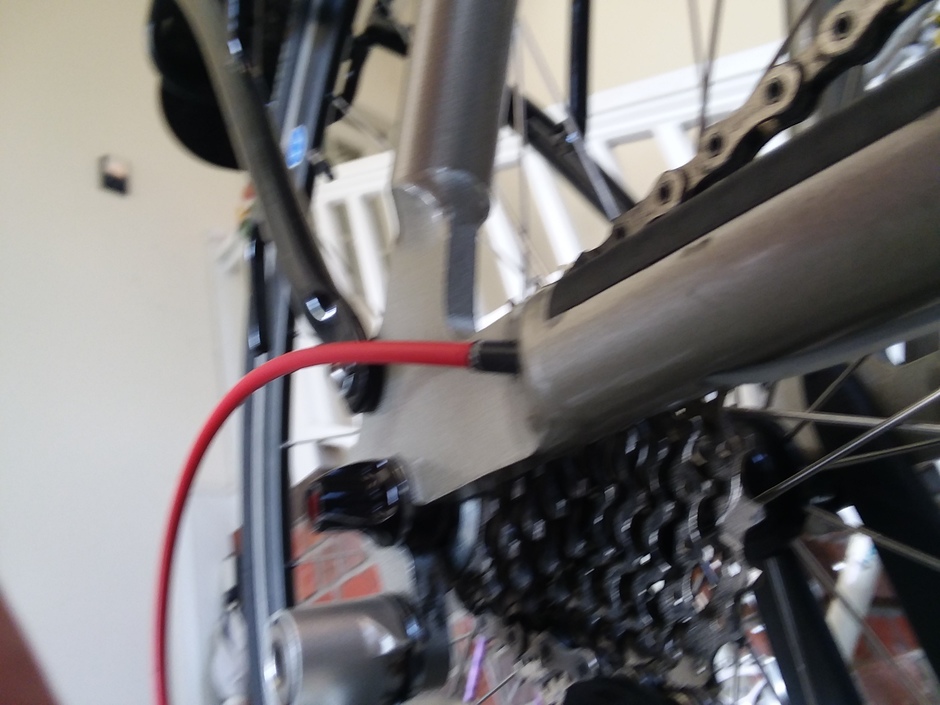

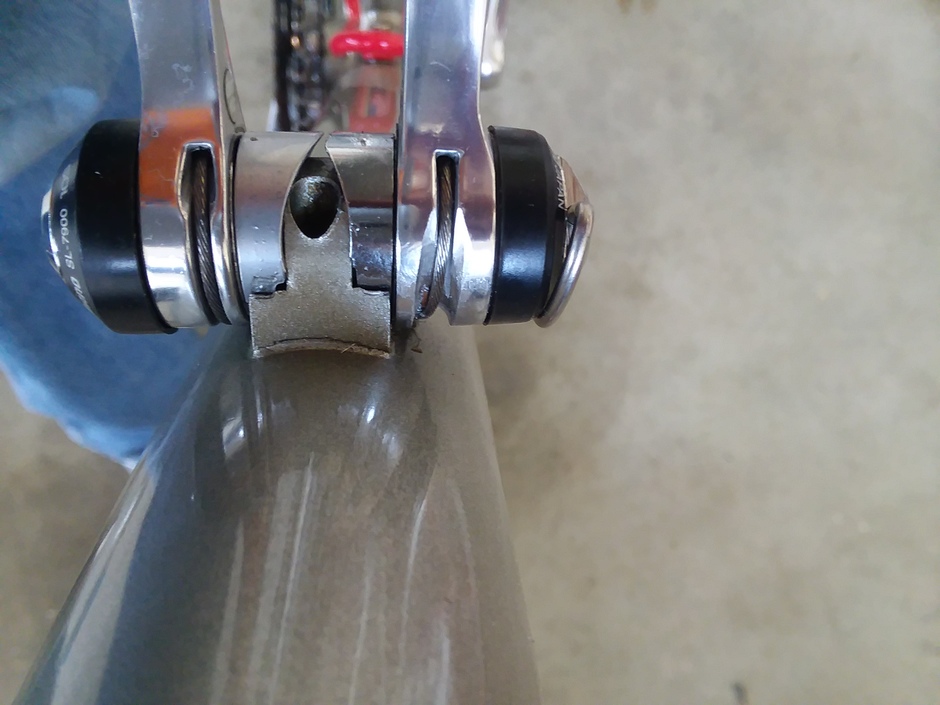

Shimano/Dura Ace FD7730-R triple FD / Shimano Deore XT M760 RD (reverse pull) / Shimano Dura Ace SL7800 2/3 x 10 down tube shifters. Mounted on modified backing plates, screwed and glued to the aero mounting tab.

Handlebars/Stem:
Toseak 42 cm carbon bars / Toseak 80mm carbon/alloy stem.

Saddle/Seatpost:
Prologo Nago Evo X10 saddle / Dura Ace 27.4 seat post.

Brakes:
Shimano Tiagra calipers / Soma brake levers

Front Wheel/Hub/Tire:
VeloMax Circuit wheel / Clement Strada LG 700x28

Rear Wheel/Hub/Tire:
VeloMax Circuit wheel / Clement Strada LG 700x28.

Accessories:
Cannondale wrap. Roswheel seat bag. Louis Garneau Oxford front bag. Modified the mount to run a lower height. Looking for another bag that fits that mount (larger) Red Planet Bike bottle cages. Looking at fenders. Nashbar panniers. Trunk bag not pictures.

More Info:

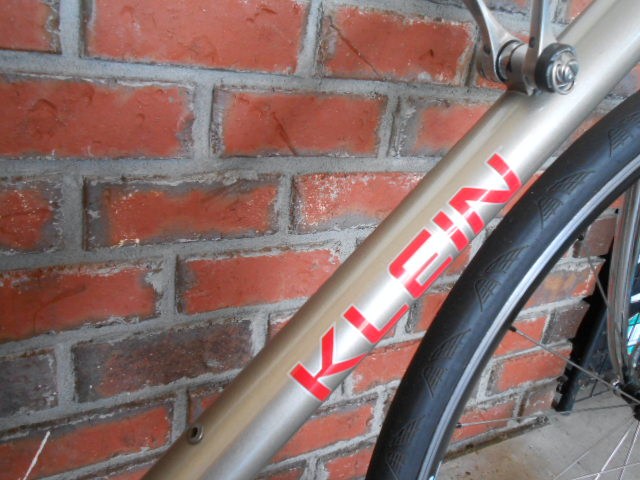

VeloCals provided the decals. I could use a head tube decal, but didn't want to spend the extra $. I can now run this in light 2-3 day mode, lighter overnight mode (with just the trunk bag and front bag) or even lighter with no bags (at 22 lbs).

Bike History

Click a link below to see past stages of this bike.

  1. Initial
  2. Stage 2
  3. Stage 3
  4. Stage 4

Added by RobbieTunes. Last updated almost 3 years ago.

As of almost 3 years ago, RobbieTunes has indicated that they no longer own this bike.
