2001 Fully Faired Recumbent Bike Project

A bike that was being built for the 2002 Brantfort IHPV races but was near fully finished.

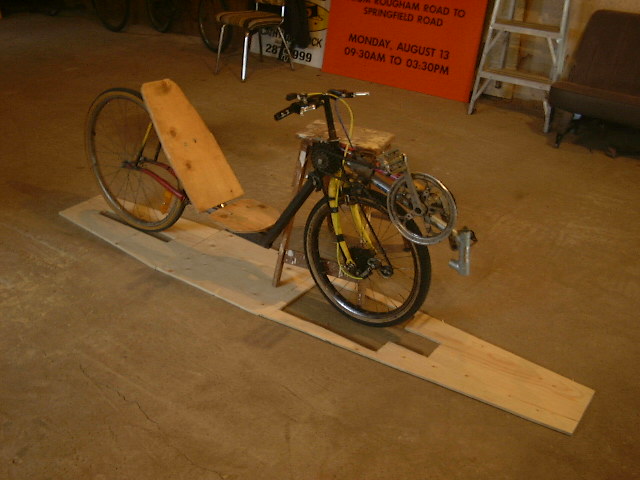

Frame:

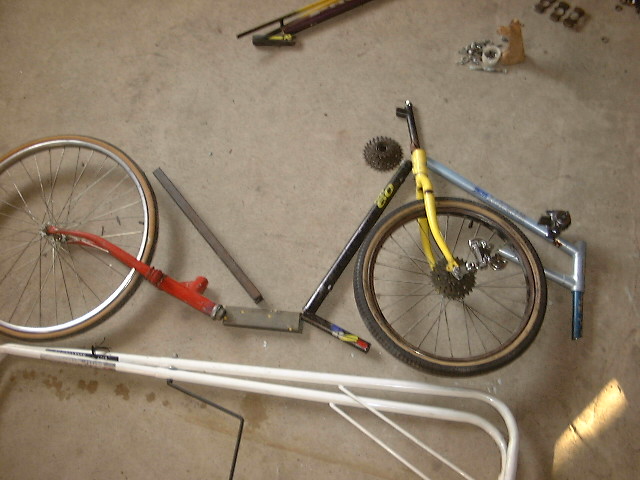

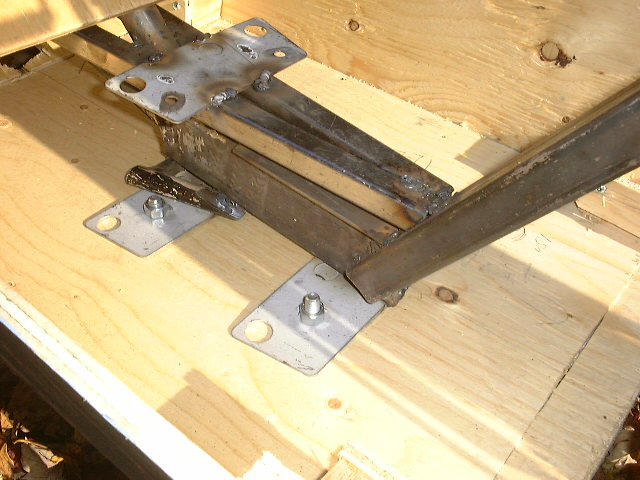

A mix of old recycled parted to create the frame structure.

Fork/Headset:
A modified 20" tire fork to allow a rear drive wheel to fit.

Drivetrain/Cog/Chainring/Chain:

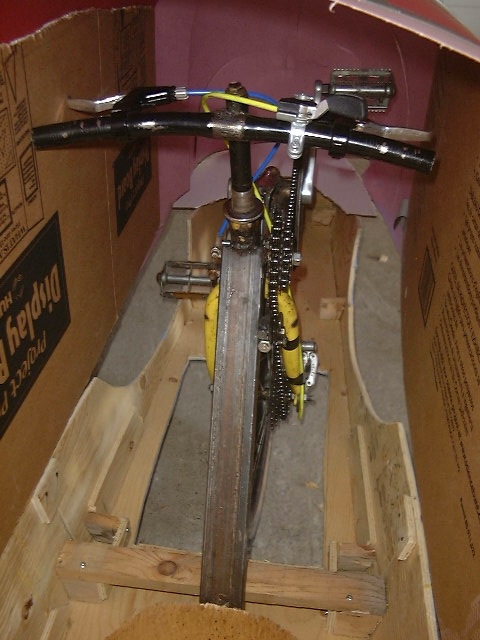

A modified 5 speed freewheel to act as a mid drive to bump up the gear ratio of the 20" FWD wheel.

Derailleurs/Shifters:
A simple thumb shifter to allow of the bottom drive train section of the bike.

Handlebars/Stem:
A factory stock quell type stem mounted backwards when compared to a regular bike.

Saddle/Seatpost:
A simple plywood seat base mounted on to the bike frame.

Brakes:
A set of old side pull brakes where planned to be used but never put on.

Front Wheel/Hub/Tire:
20" by 1.75" wheel (405mm)

Rear Wheel/Hub/Tire:
24" by 1 3/8 wheel

Accessories:

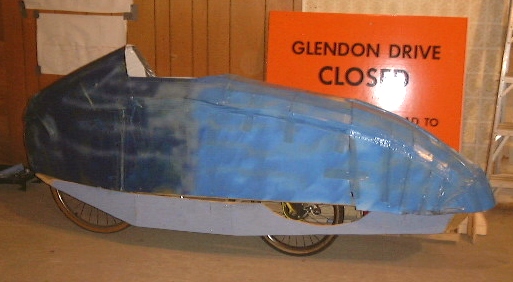

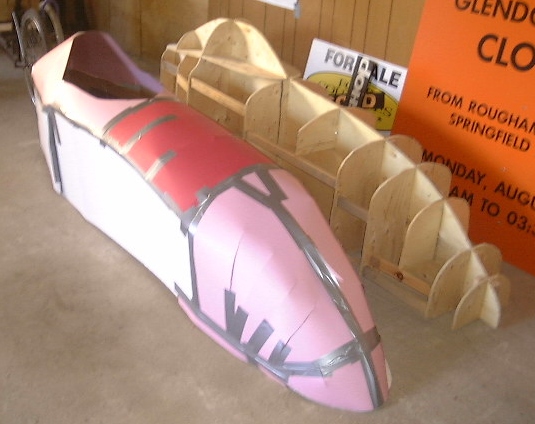

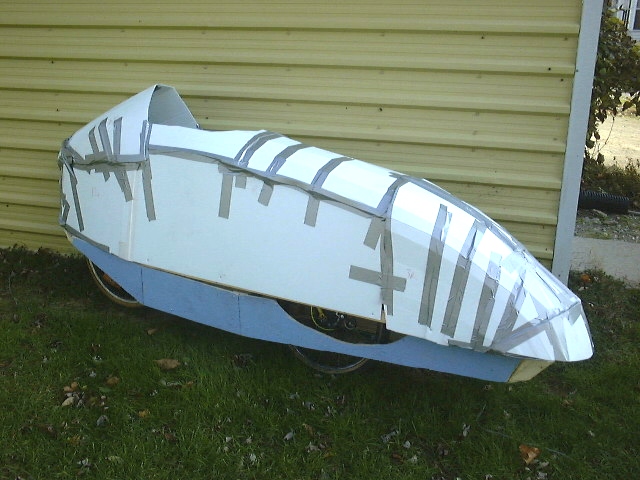

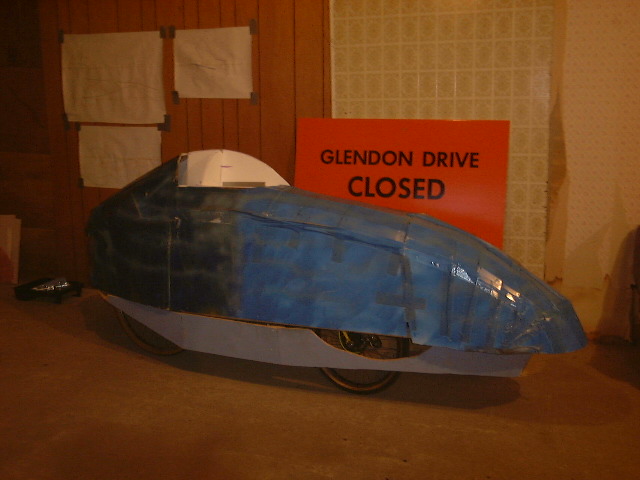

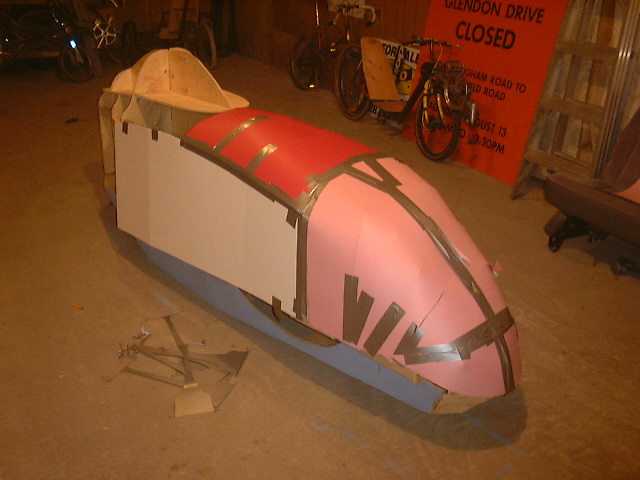

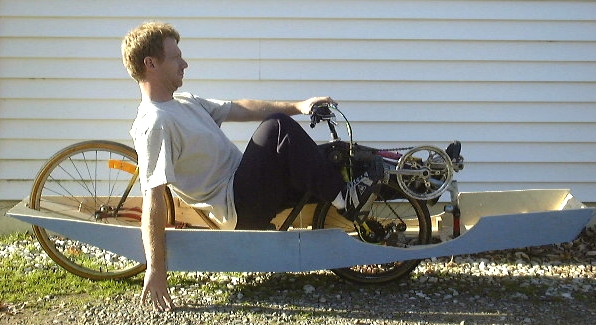

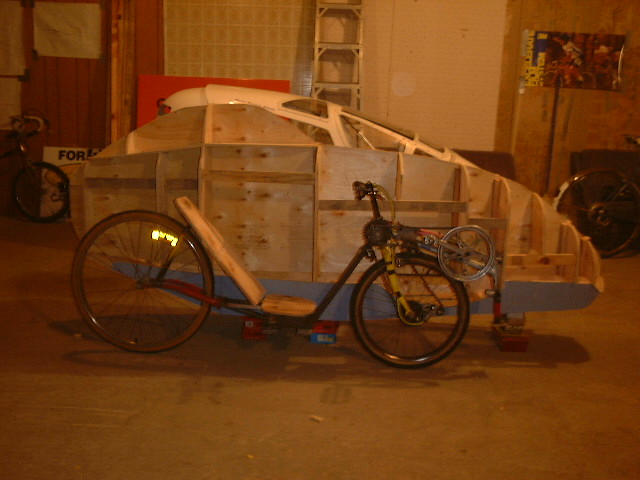

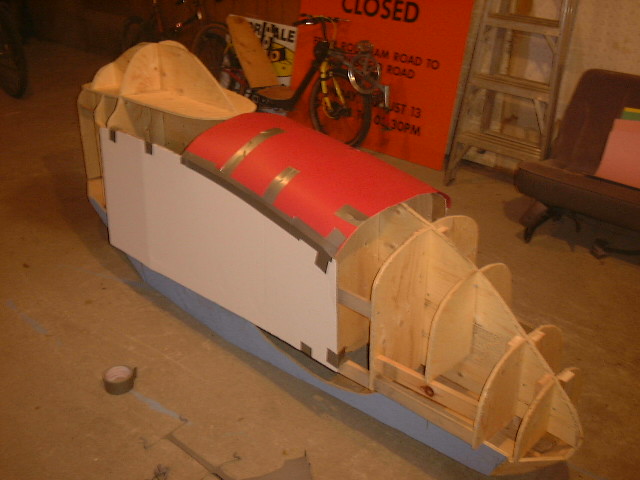

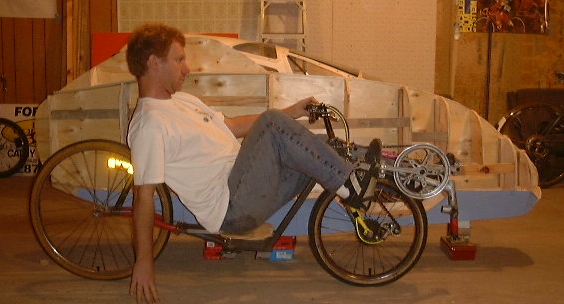

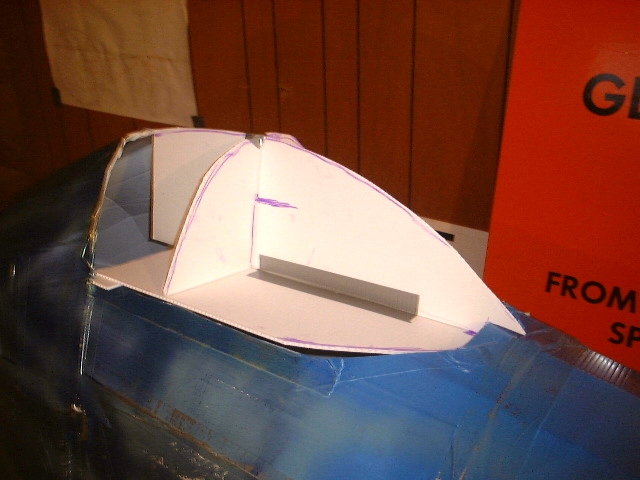

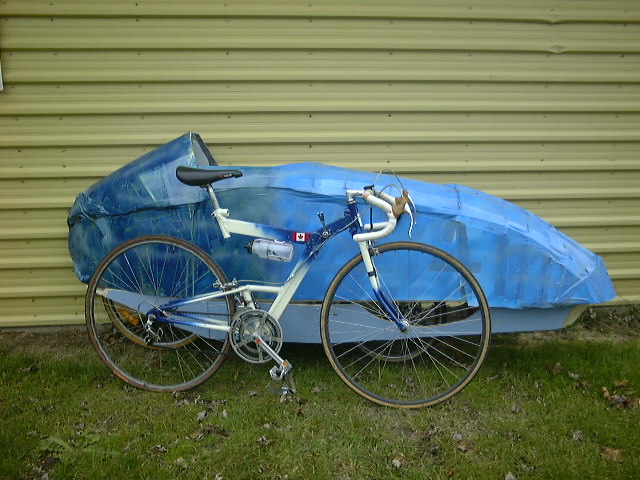

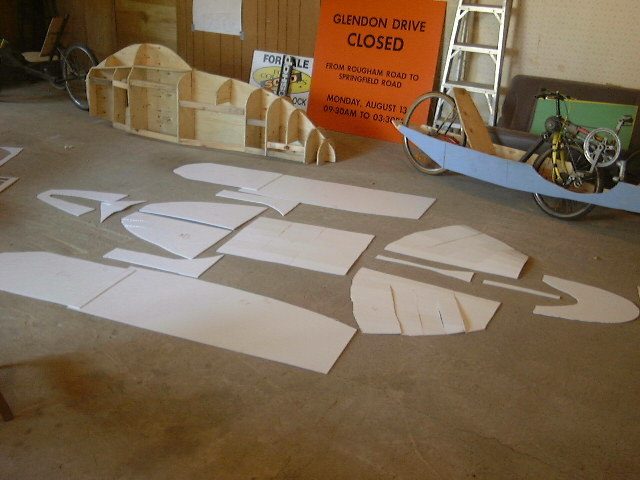

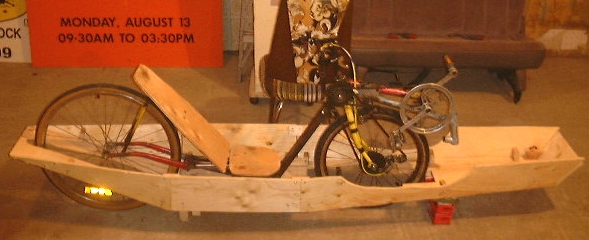

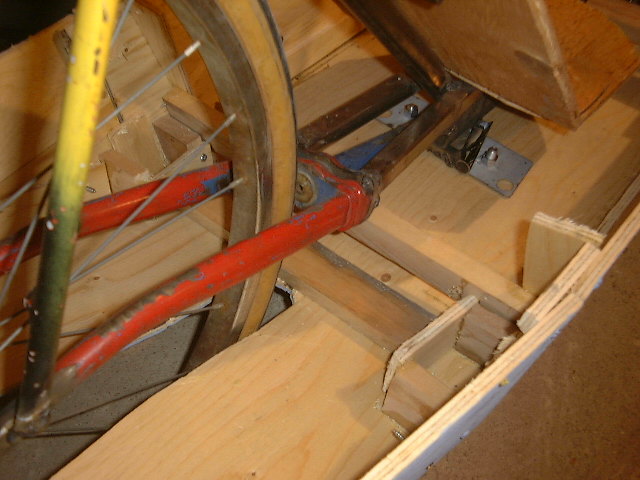

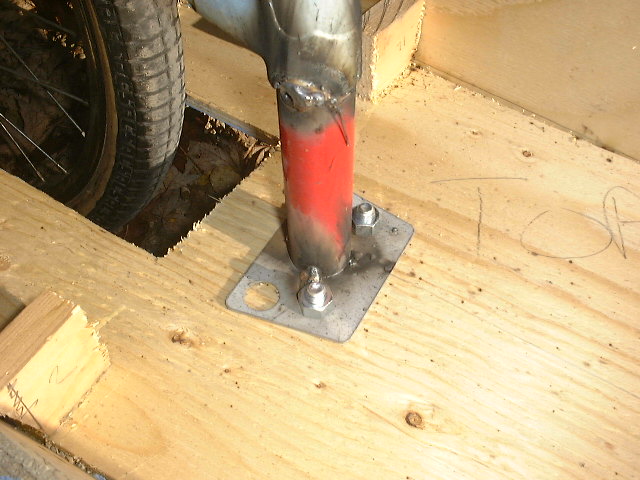

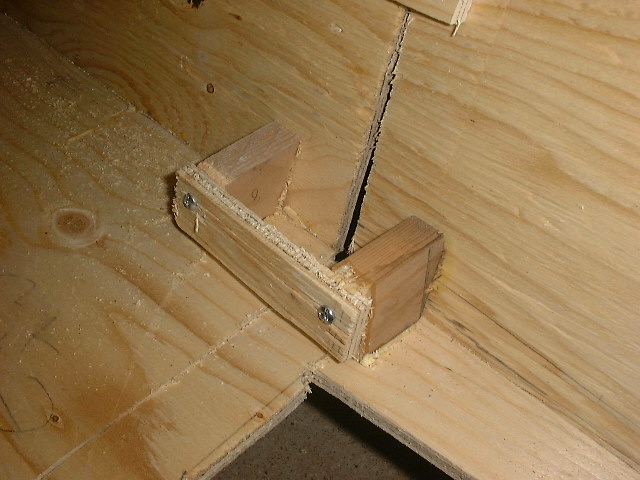

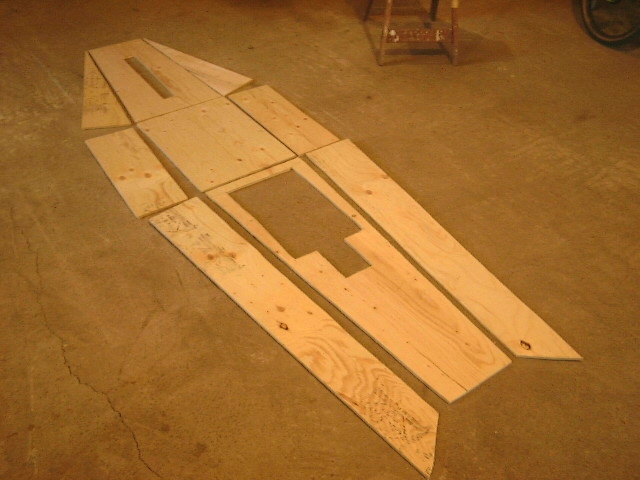

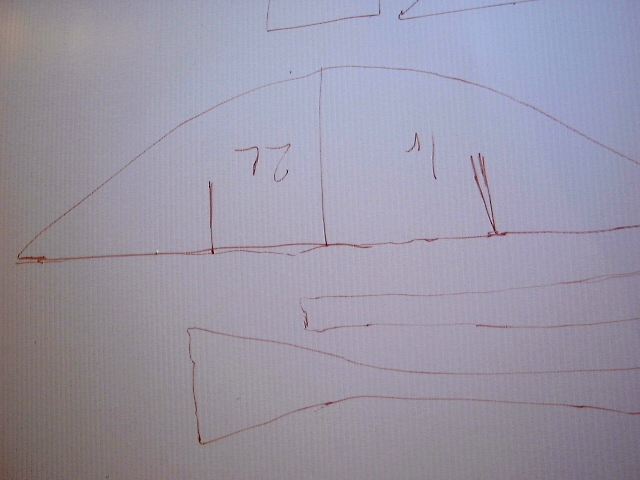

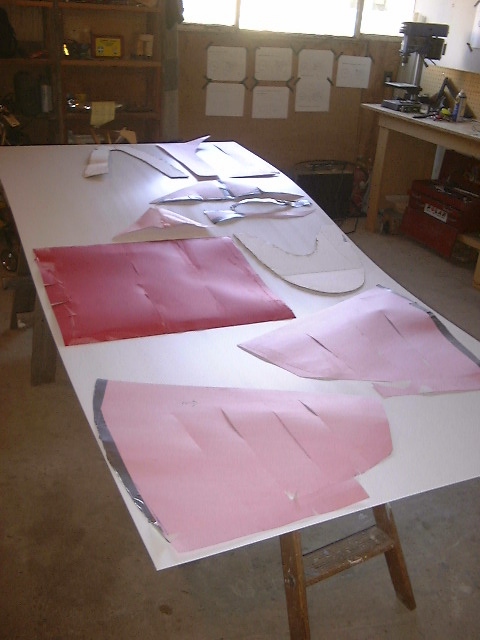

Bottom belly pan and cloroplast upper body cover.

More Info:

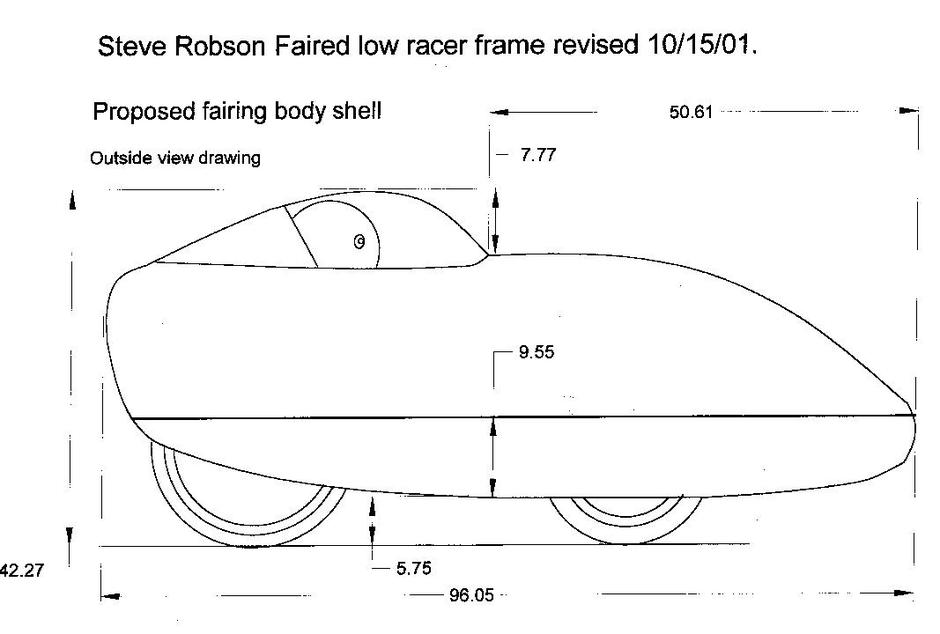

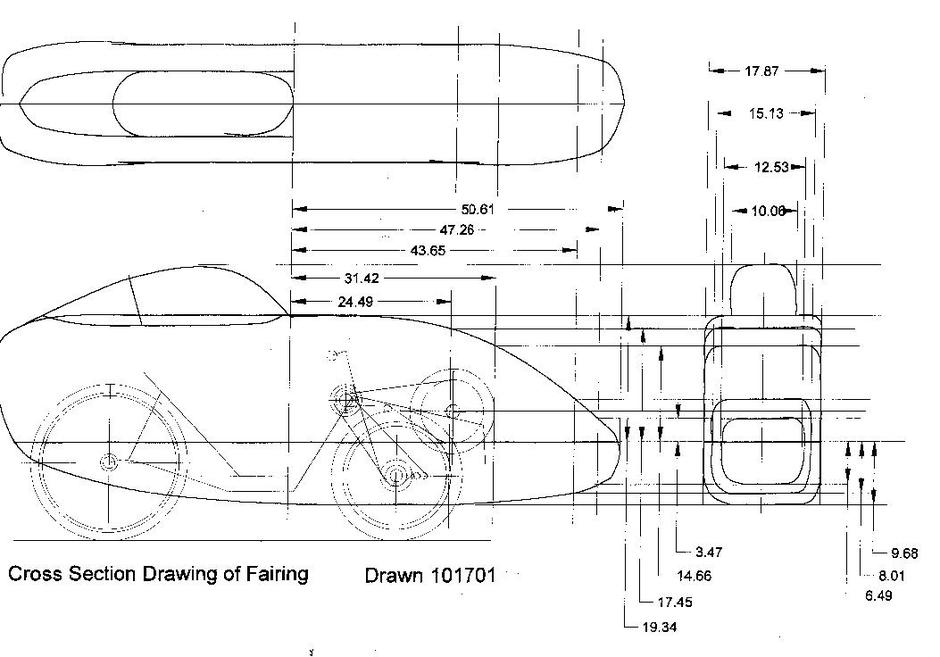

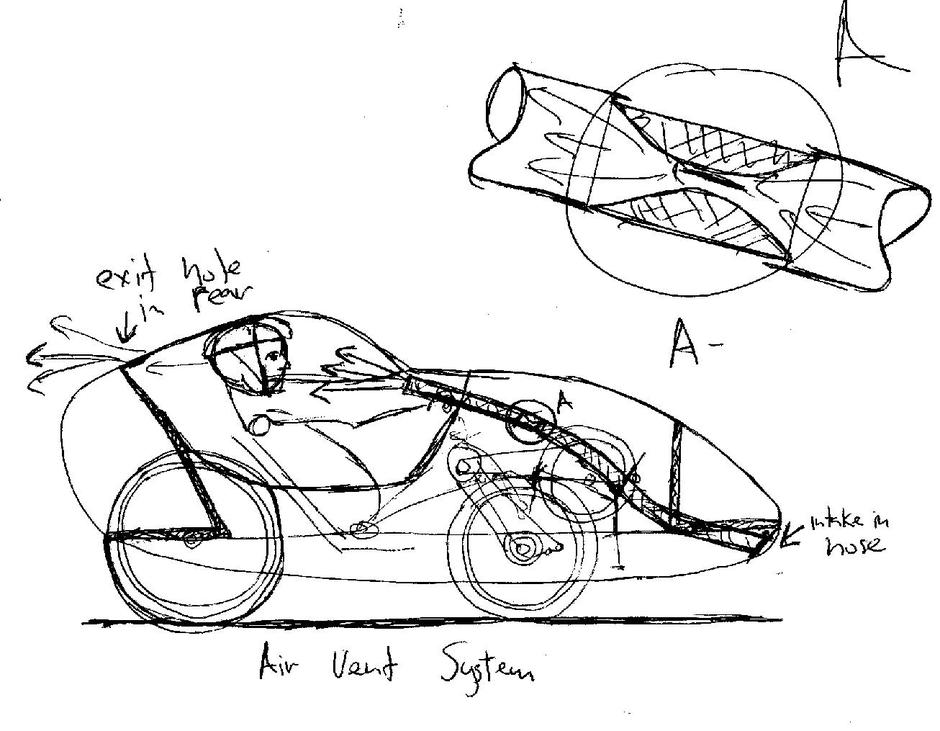

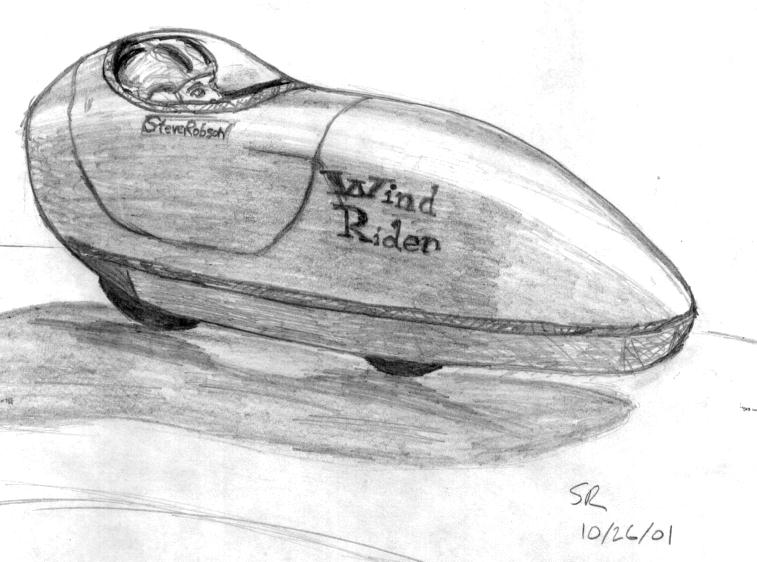

This was one of my involved recumbent bike design projects. It's use was very limited for the amount of work put into it. The need for cad drawings and fitting time was far greater then any other recumbent I had worked on. Some of the materials used where not really up to the task as the budget for building this bike was tight. In the end, the base bike design was not really suited to general sreet/ commuting use due to extreme crank arm/ front tire over lap. This bike was scrapped in the end. It did show the value of detailed planning working in getting a working bike like this from concept to running bike.The biggest problem with a design like this that with the upper body fairing in place it next to impossible to self start the bike from a standing still start.It is not that practical a design when compared to other designs I have done. This type of bike it suited to speed record type racing only.

Added by stevbike. Last updated about 8 years ago.

As of about 8 years ago, stevbike has indicated that they no longer own this bike.
